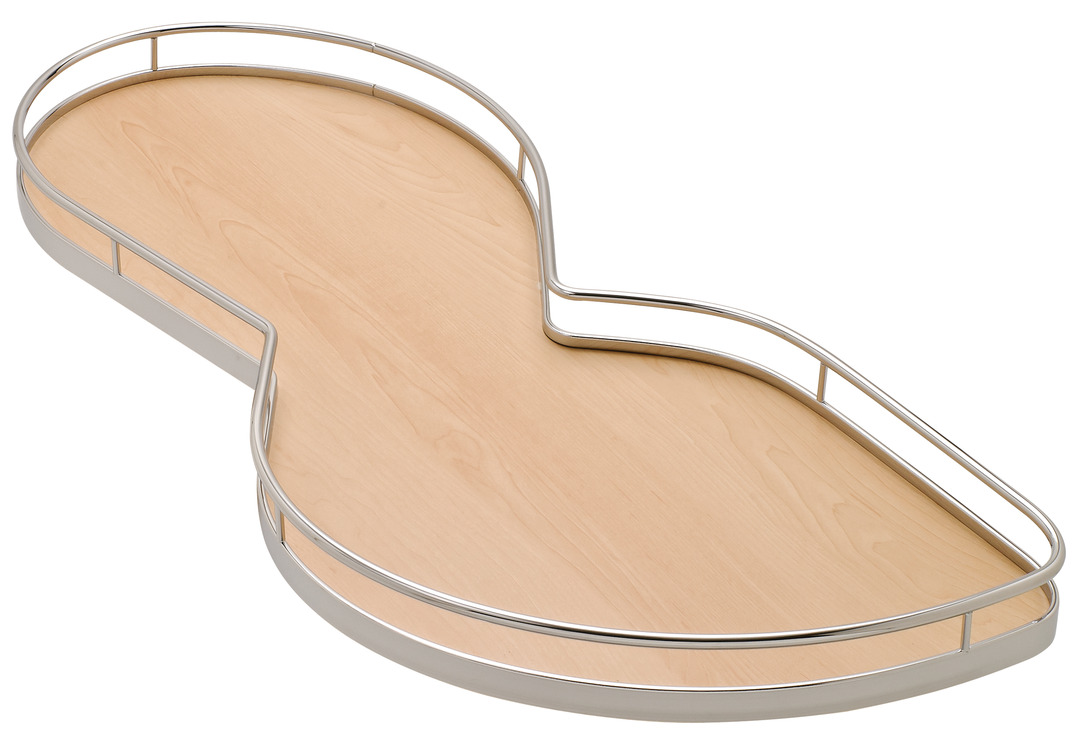

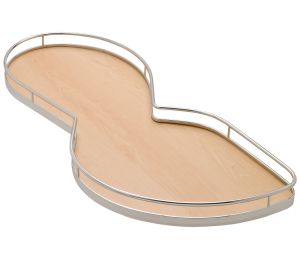

Hafele 541.32.151

• Lemans II
• For Blind Corner Cabinets
• Model: 50
• Swivel direction: Left
• Framed A min: 17-3/4" (450 mm) (please check on the picture below)
• Frameless A min: 18-3/8" (467 mm) (please check on the picture below)
• B min: 36-1/4" (920 mm) (please check on the picture below)
• Tray Size: 18"
• Inside cabinet height min: (21-1/2") 546 mm
• Opening angle: Minimum door opening 85°
• Height adjustment: Shelves are height adjustable every 2"
• Load bearing capacity max. per shelf: (55 lbs) 25 kg
• Version: 884 sq. in capacity
• With 20% more storage capacity than the original Lemans
• Innovative mounting jig included; no measuring required
• Application: For full height door and door/drawer applications
• Features: Soft & Silent
• Please consider if a filler strip is needed based on your application.
• Material:
  • Shelf: Melamine
  • Surround: Steel
• Color: Anthracite
• Finish:
  • Surround: Chrome
  • Tray: Maple
• Supplied with:
  • 2 trays
  • 2 posts
  • 2 soft close
  • 1 Screw Pack 8 Pcs #10 x 34" 7 Pcs #8 x 5/8" Lemans: 015.80.990
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Optional accessories:

• Highboard Post Kit, for LeMans II: 541.30.473, 541.30.973, 541.30.773
