Hafele 521.99.380

Name: Hafele 521.99.380 Parallel Shelf Pins, for Parallel Rod Wine Storage, Plastic, Black
Brand: Hafele
SKU: Hafele 521.99.380
Price: 41.37 USD

Hafele 521.99.380 Parallel Shelf Pins, for Parallel Rod Wine Storage, Plastic, Black

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 521.99.380 Parallel Shelf Pins, for Parallel Rod Wine Storage, Plastic, Black

Price: $41.37 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 13

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 521.99.380 Parallel Shelf Pins, for Parallel Rod Wine Storage, Plastic, Black

Parallel Shelf Pins

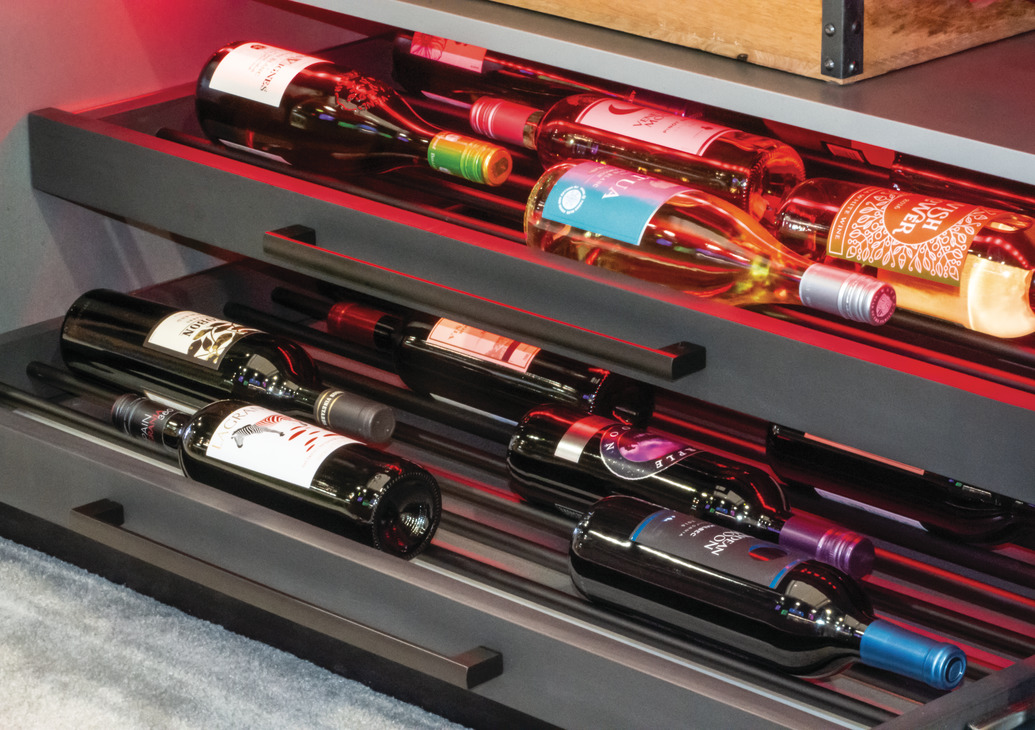

For Parallel Rod Wine Storage

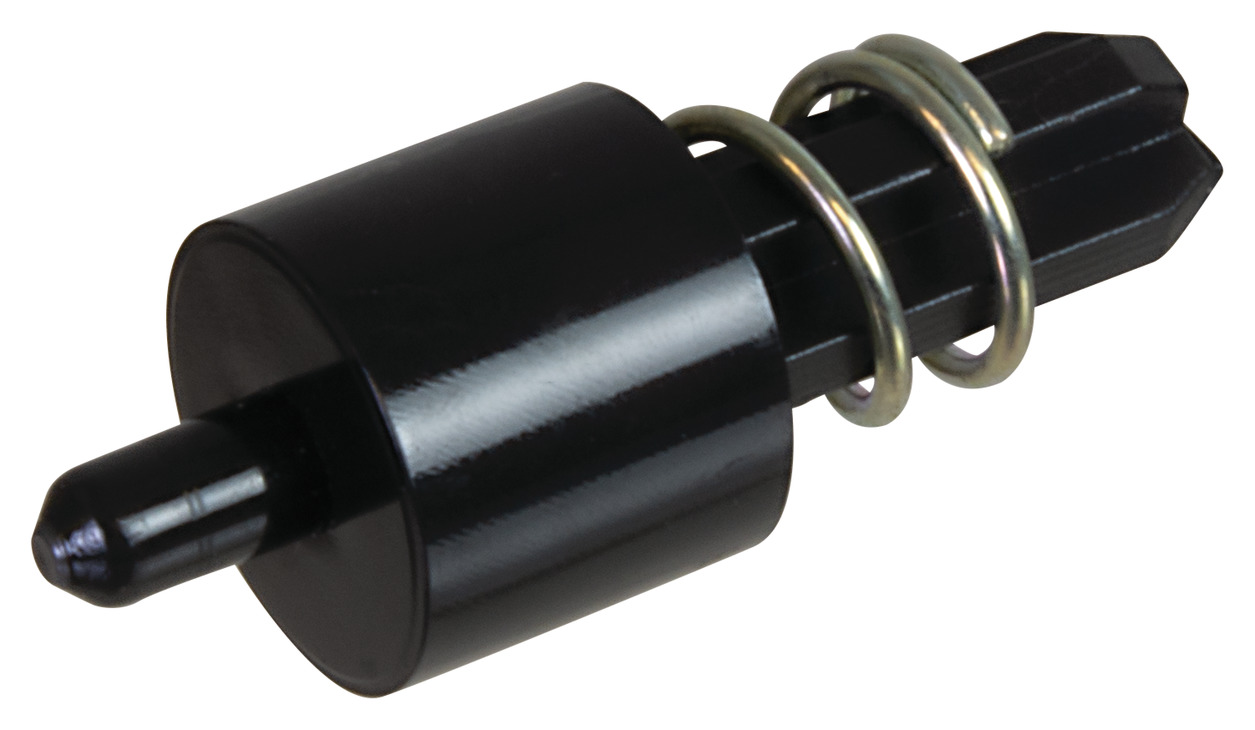

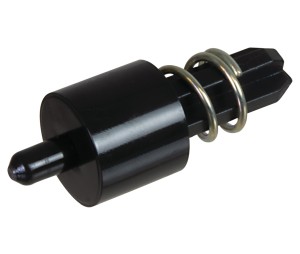

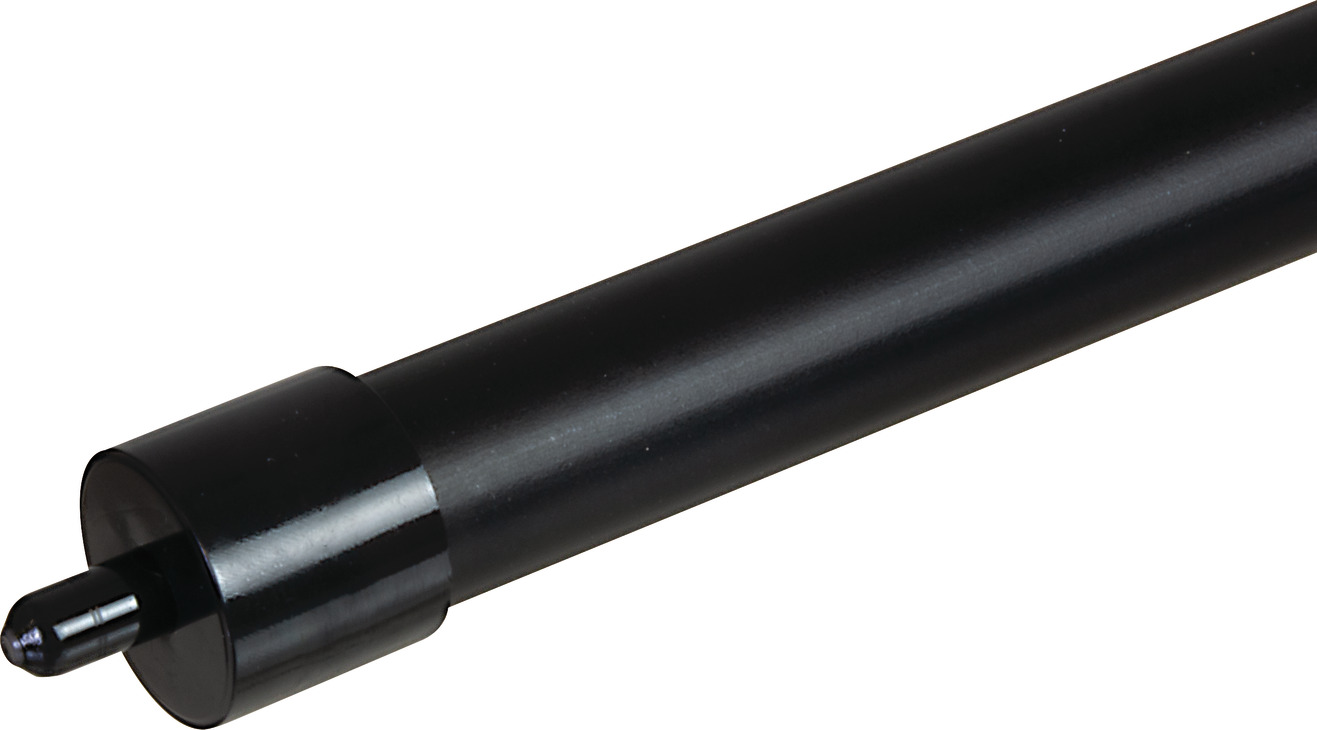

Notes: Each parallel shelf pin (PSP) has a spring that slips over the spline. Insert the spline into the Parallel Rod on each end. The shelf pin compresses into the Parallel Rod allowing the rod to fit snugly between the interior casework sidewalls. To install a Parallel Rod into interior casework, fit the spring onto the spline of the PSP and insert it into the ends of the Parallel Rods. Insert one end of the rod into a 5 mm shelf hole, then push the rod against the side wall to compress the spring. At the same time, compress the other PSP by hand while you align the opposite shelf pin hole, releasing the pressure as the hardware pin springs expand against the casework sidewalls. The Parallel Rod is now securely held into place.
Note on load bearing capacity: per parallel rod
Load bearing capacity: 4.00 kg
Load bearing capacity: 9 lbs

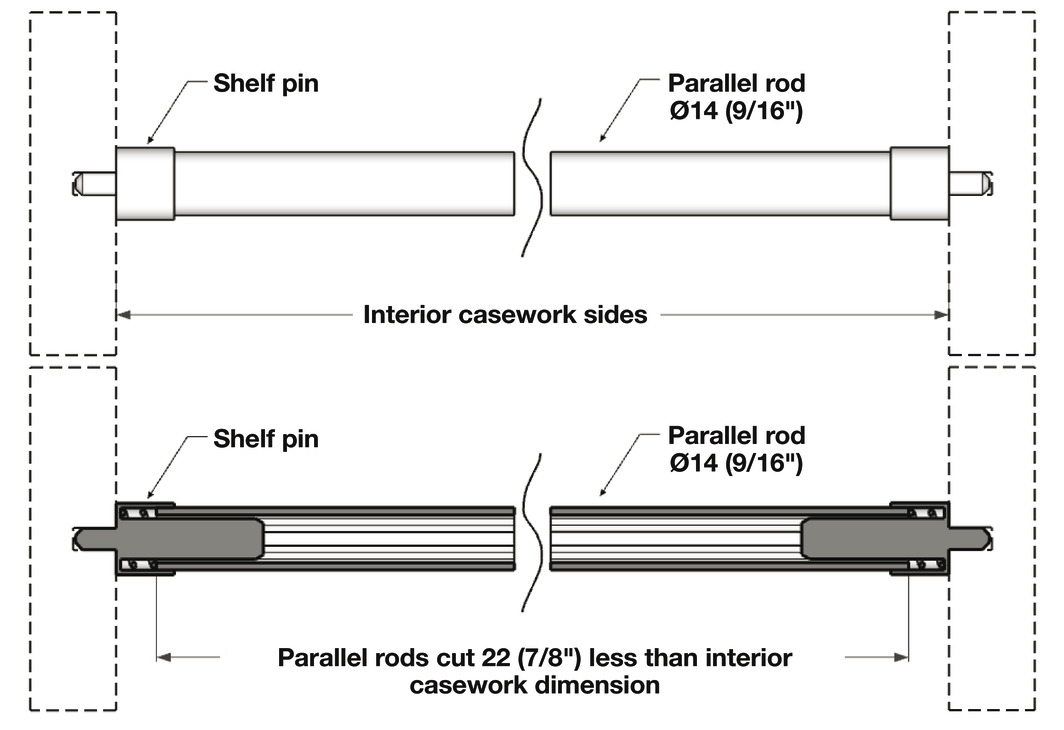

Installation: The parallel rod should be cut 22 mm (7/8") shorter than the interior dimensions of the casework sidewall
Material: ABS Plastic
Finish: Black
Order reference: Two parallel shelf pins are required for each parallel rod
Additional information: Spring-loaded to allow the quick and easy installation of the parallel rods into standard 5 mm shelf pin holes
Packing: 18 each/box. Sold in full box quantities only.
Note: Unit of measure are Boxes. Each Box contains 18 pieces. When you are purchasing a quantity of 1 you will get one box of 18 pieces. We are unable to break open the box quantity, therefore we are unable to sell you this item in multiples other than 18.
