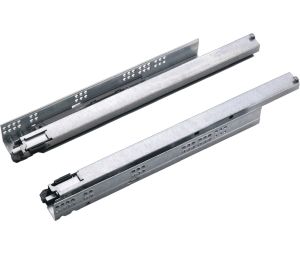

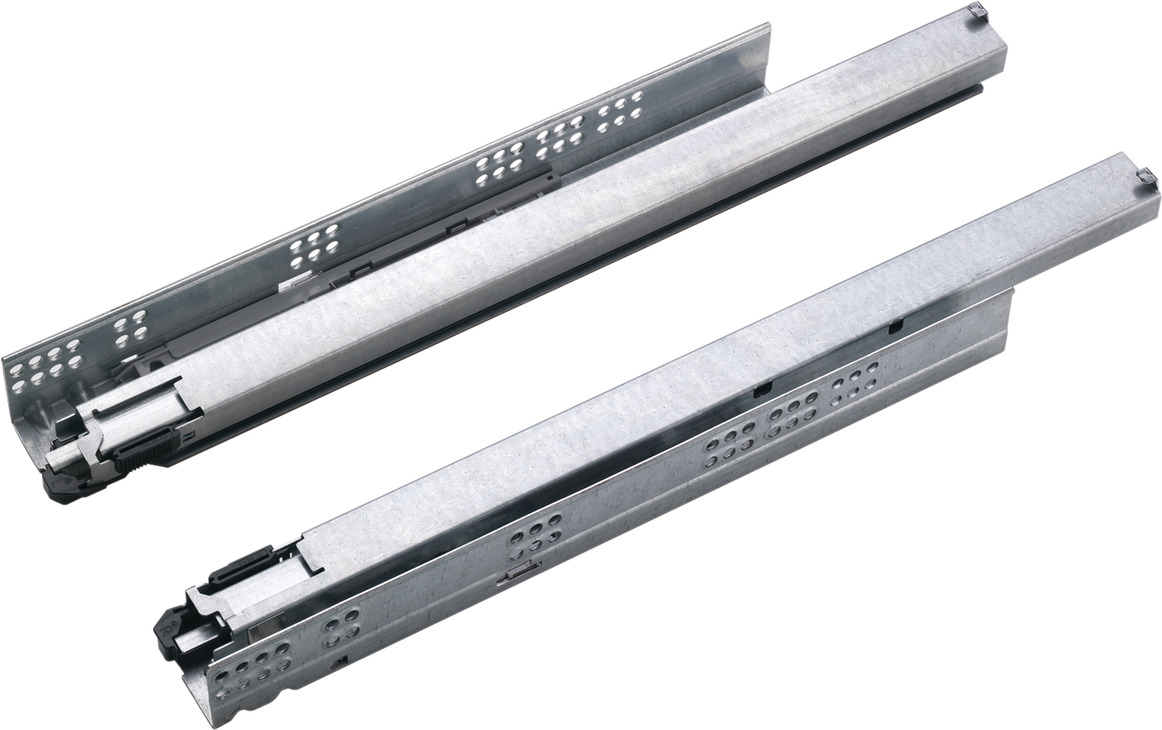

Hafele 433.19.555

• Slide
• Grass Dynapro 19
• Full Extension
• 2D Adjustment
• Slide-On Mounting
• Face frame or frameless
• For 48" wide drawers
• Type of closing: Soft & silent
• Features: For 3/4" drawer box
• Integrated soft close liquid dampening provides sleek, smooth closing
• Fully synchronized runner for the ultimate in smooth silent operation
• Continuous self-locking of drawer when pushed onto the drawer
• Meets or exceeds BHMA Grade 1 testing requirements
• Features side to side, height, depth and tilt adjustment for perfect drawer alignment
• Tool-less integrated height adjustment +3.5 mm (9/64")
• Tool-less adjustment adapter for side adjustment ±1.5 mm (1/16"), tilt adjustment +4 mm (5/32") and depth adjustment +3 mm (1/8")
• 3-D version adds tilt adjustment +4 mm (11/64")
• Load bearing capacity: (100 lbs) 45 kg
• Drawer length: (21") 533 mm
• Installation depth: (21 27/32" - 23 17/32") 555 mm - 598 mm
• For drawer width: (48") 1219 mm
• Material: Steel
• Finish: Zinc Plated
• Front locking devices must be ordered separately and 3-D version also requires R/L rear adjustment adapter
• Packing & Sold in: Pair.
• Note: Unit of measure is Pair. When you buy a quantity of 1 you will get one pair. Price is for one pair.

Required products:

• Front Locking Device, For Grass Dynapro Slides, 2-D: 433.19.043
• Front Locking Device, For Grass Dynapro Slides, 2-D: 433.19.044
