Hafele 433.19.388

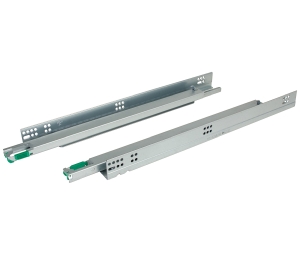

Name: Hafele 433.19.388 Drawer Slide, Concealed Undermount, Grass, Dynapro 2.0 16, Full Extension, Single, 21" Length, Steel, Zinc Plated
Brand: Hafele
SKU: Hafele 433.19.388
Price: 32.67 USD

Hafele 433.19.388 Drawer Slide, Concealed Undermount, Grass, Dynapro 2.0 16, Full Extension, Single, 21" Length, Steel, Zinc Plated

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 433.19.388 Drawer Slide, Concealed Undermount, Grass, Dynapro 2.0 16, Full Extension, Single, 21" Length, Steel, Zinc Plated

Price: $32.67 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 7728

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

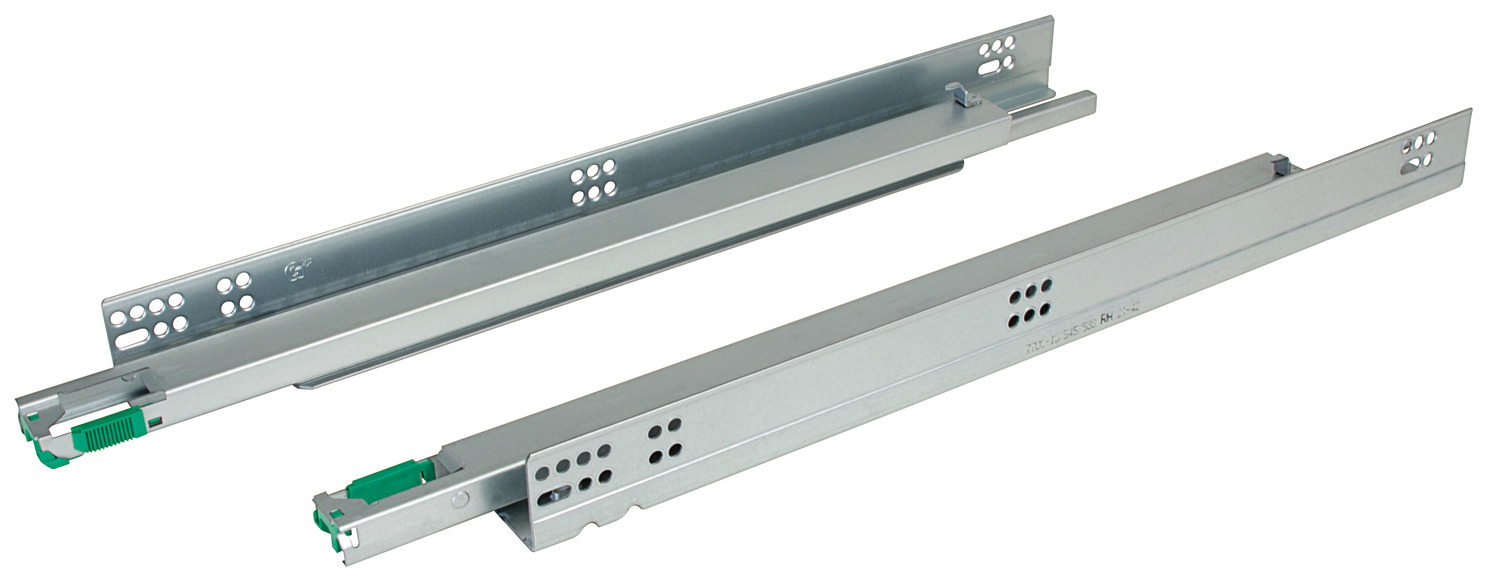

Hafele 433.19.388 Drawer Slide, Concealed Undermount, Grass, Dynapro 2.0 16, Full Extension, Single, 21" Length, Steel, Zinc Plated

Drawer Slide
Concealed Undermount
Grass
Dynapro 2.0 16
Single
Type of pull out: Full extension
Model: F130100733204
Version: For 12.7–16 mm (1/2"–5/8") drawer box
Features: 2-D
Load bearing capacity: 40 kg
Load bearing capacity: 90 lbs

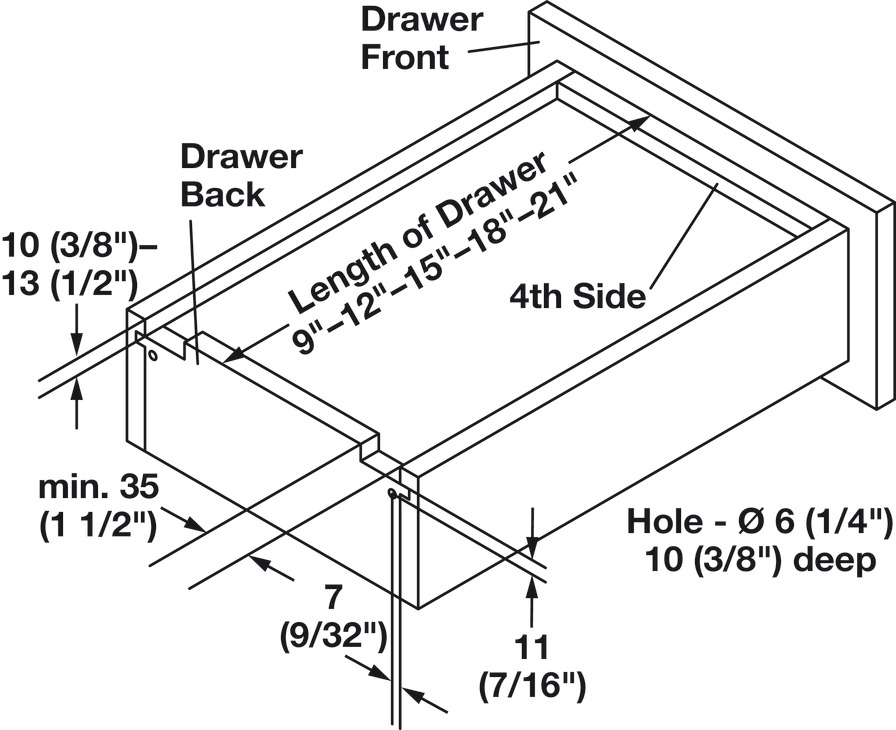

Drawer length: 533 mm (21")
Drawer width max.: 48"
Material: Steel
Finish: Zinc plated
Notes:
- Integrated soft close liquid damping provides sleek, smooth closing
- Fully synchronized runner for the ultimate in smooth silent operation
- Continuous self-locking of drawer when pushed onto the drawer

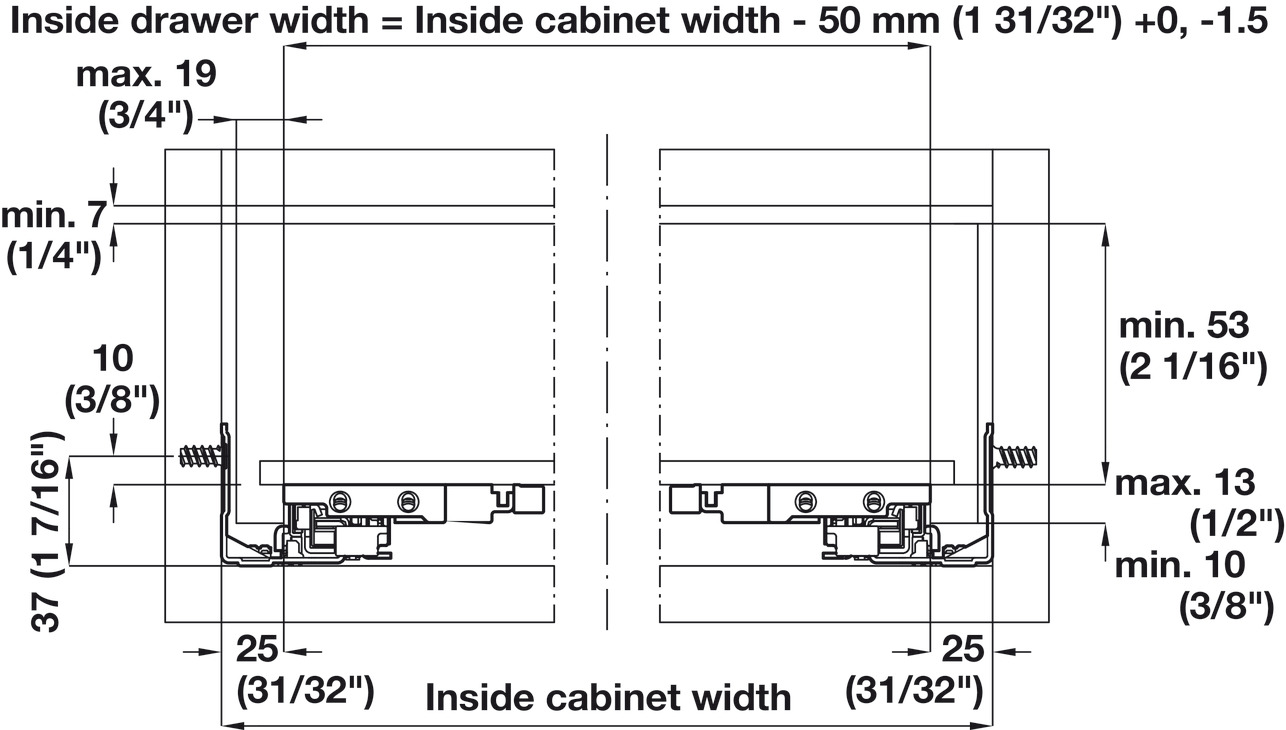

- Clip features: Side to side, height, depth and tilt adjustment
  for perfect drawer alignment
- - Tool-less integrated height adjustment +3.5 mm (9/64")
- - Tool-less adjustment adapter for side adjustment
- ±1.5 mm (1/16") and depth adjustment +3 mm (1/8")
- Meets or exceeds BHMA Grade 1 testing requirements
Packing & Sold in: Pairs.
Note: Unit of measure is Pair. When you buy a quantity of 1 you will get one pair. Price is for one pair.
