Hafele 430.90.323

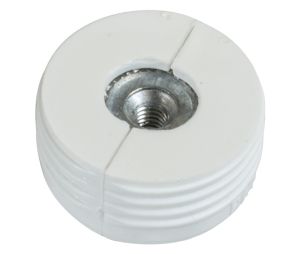

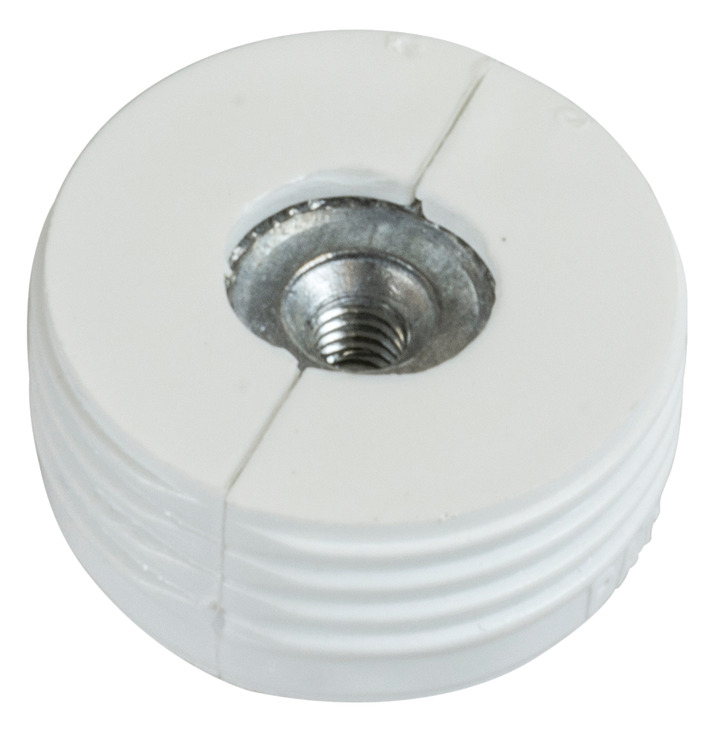

Hafele 430.90.323 Drawer Front Adjuster, M4, 1/2" Height, 1" Diameter, Plastic/Steel, White

× This image is for a similar product but it will differ in size, color and/or other attributes.

Stock Alert

This item is discontinued and is kept in the database for informational purposes only.

Sales

Technical Support

Product Description:

Hafele 430.90.323 Drawer Front Adjuster, M4, 1/2" Height, 1" Diameter, Plastic/Steel, White

Drawer Front Adjuster

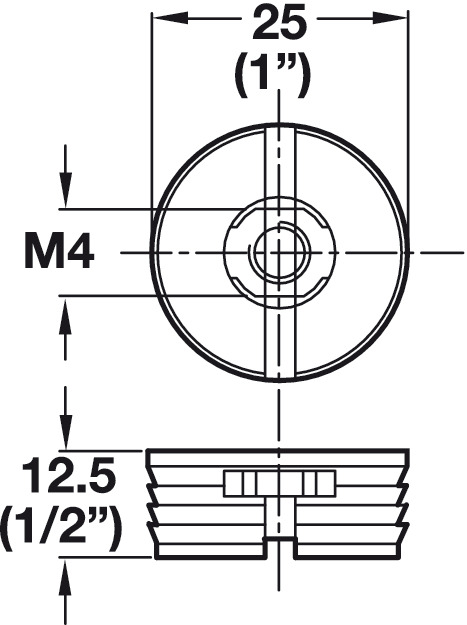

Screw diameter: M4
Only the screw head used to mount and adjust is visible

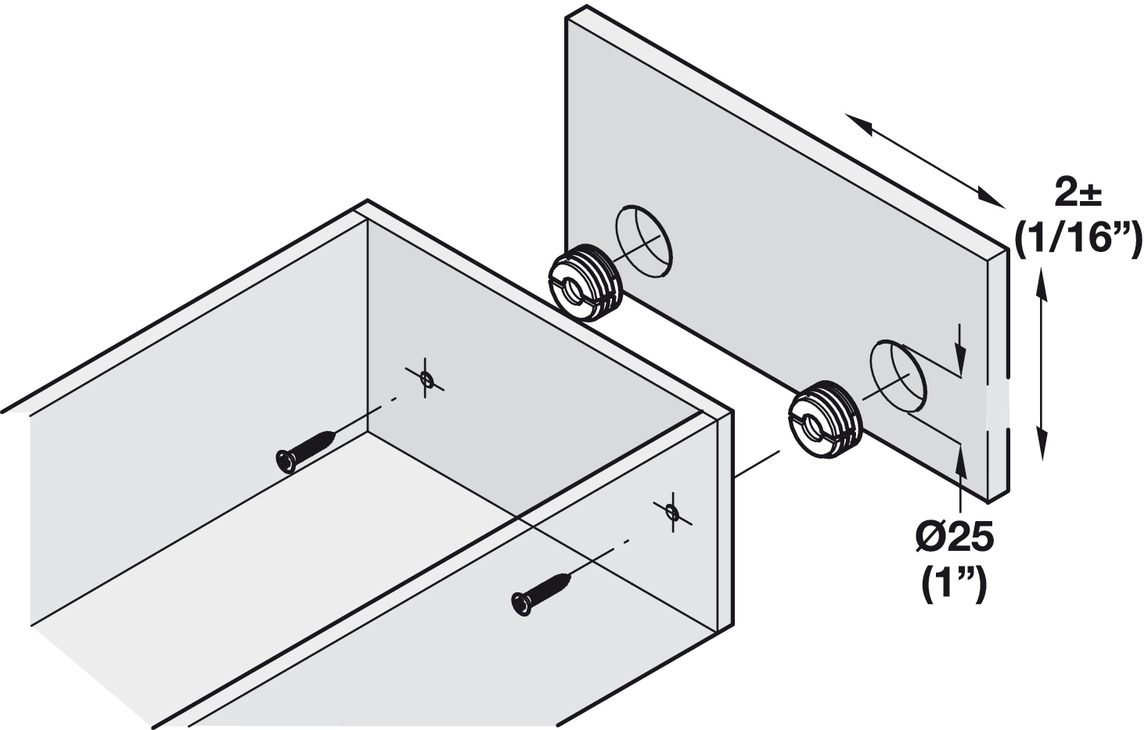

The floating action inside the fitting allows for ±2 mm (1/16") adjustment of the drawer front in two directions
One part drawer front adjusting fitting fits into a Ø25 mm (1") hole in the drawer front
Diameter: (1") 25 mm
Height: (1/2") 12.5 mm
Material:
- Fitting: Plastic
- Insert: Steel
Finish: White
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
