Hafele 422.88.957

Hafele 422.88.957 Slide, Accuride 3732, Ball Bearing, 22" Extension Length, Steel, Zinc, Box of 10 Pairs

× This image is for a similar product but it will differ in size, color and/or other attributes.

Stock Alert

This item is discontinued and is kept in the database for informational purposes only.

Sales

Technical Support

Product Description:

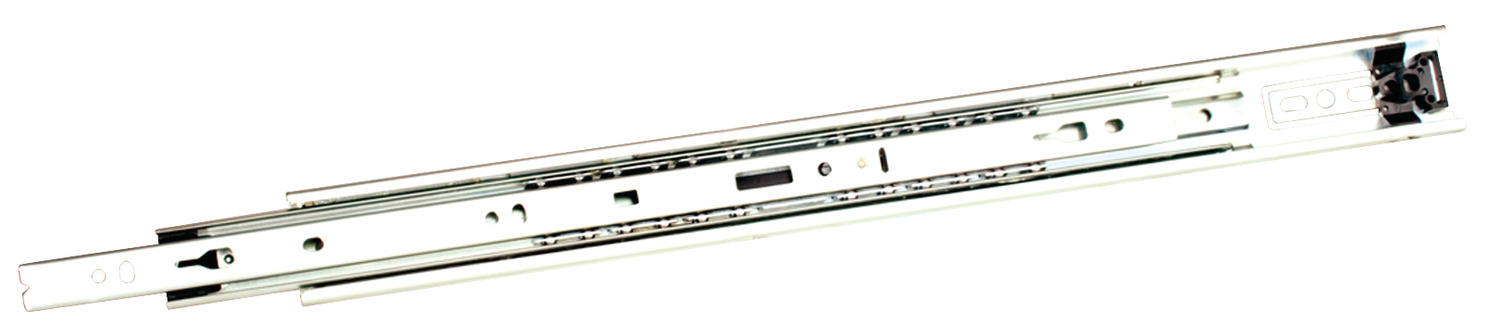

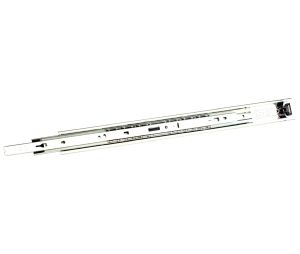

Hafele 422.88.957 Slide, Accuride 3732, Ball Bearing, 22" Extension Length, Steel, Zinc, Box of 10 Pairs

Slide
Accuride 3732
Ball Bearing
Type of pull out: Full extension with hold-in detent

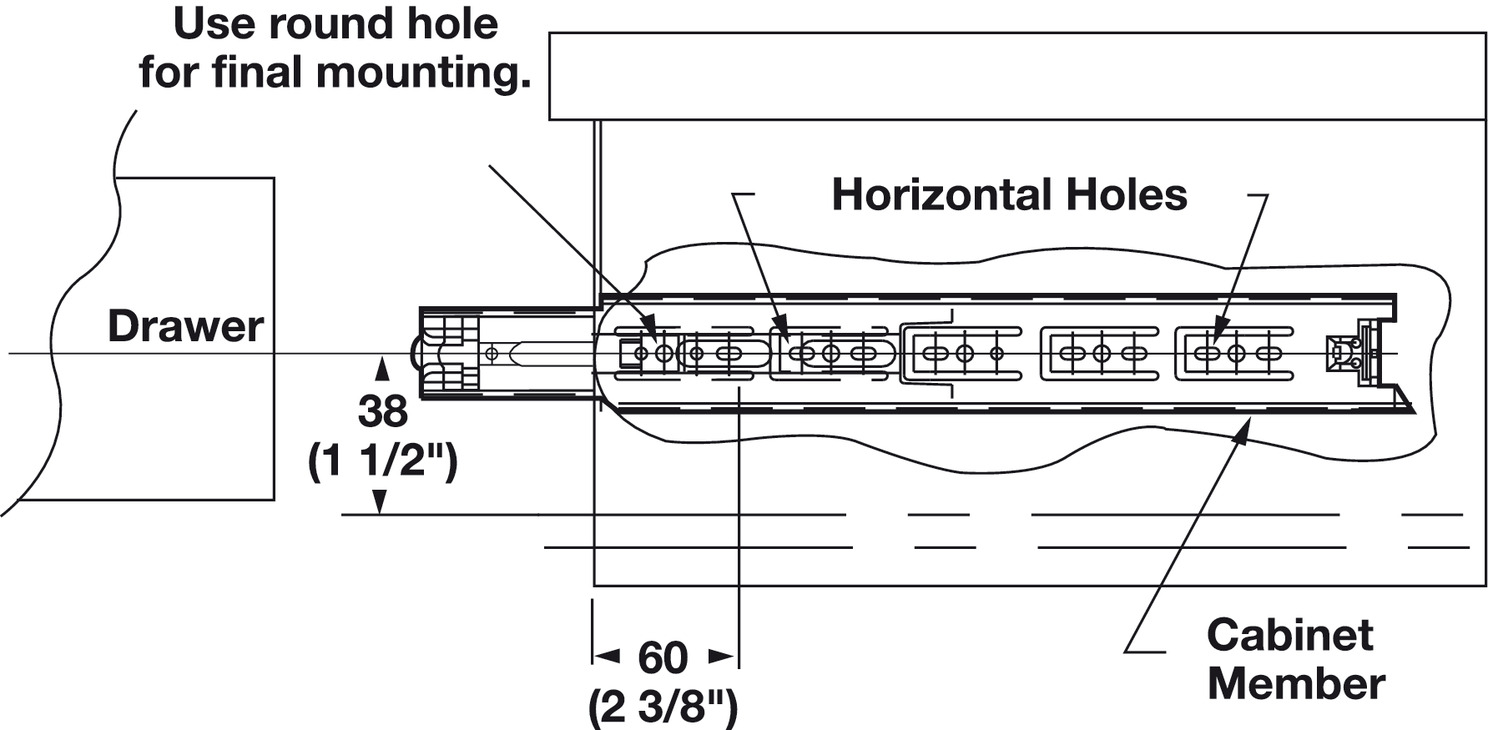

Mounting: Side mounted

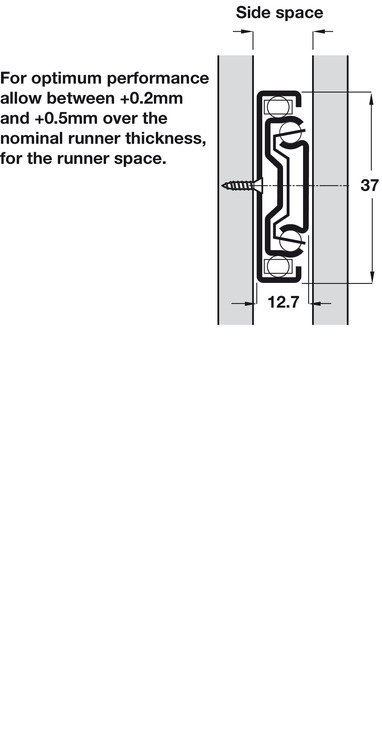

Slim side space mounting 1/2"
Lever disconnect

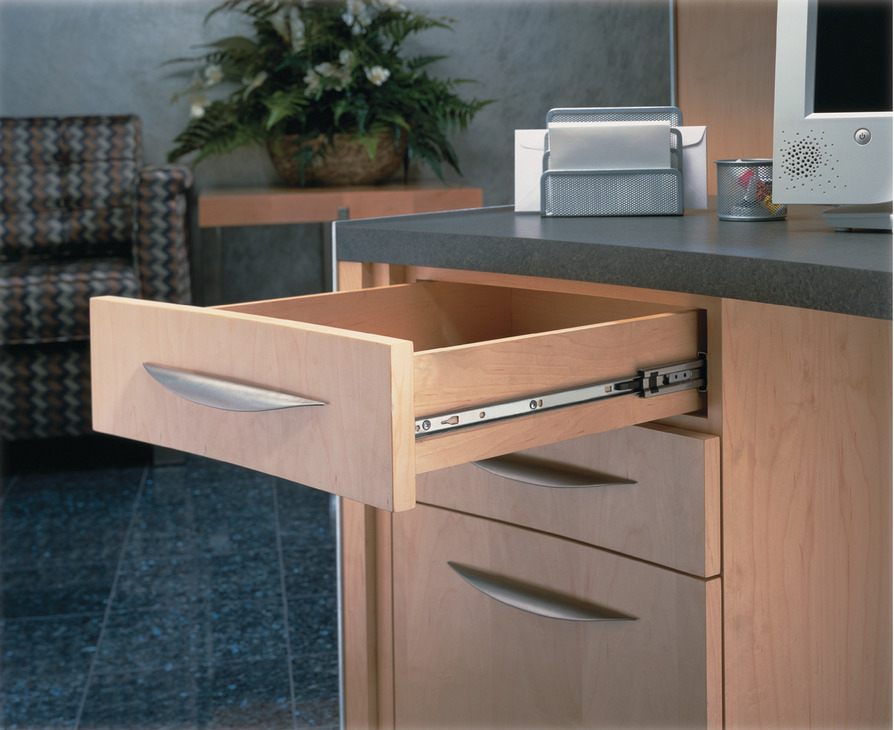

Application: Drawers up to 16" wide
Low profile height 1 1/2" (38 mm)
Load capacity per pair: (100 lbs) 45 kg
Installed length: (21 5/8") 550 mm
Extension length: (22") 559 mm

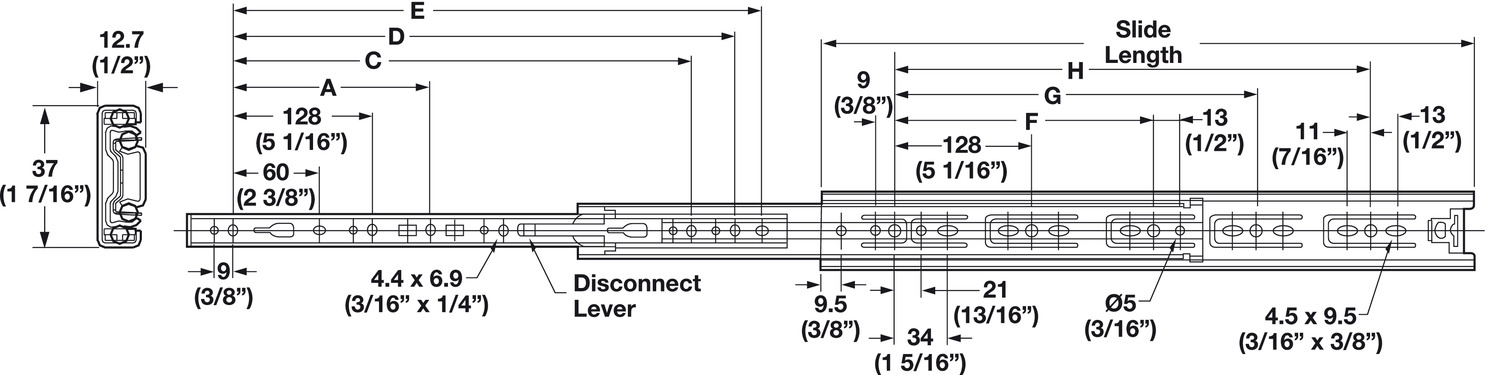

Dimensions (please check on the picture below):
- C: 320 mm (12-5/8")
- D: 416 mm (16-3/8")
- E: 481 mm (18-15/16")
- F: 224 mm (8-13/16")
- G: 352 mm (13-7/8")
Material: Steel
Finish: Zinc
Set includes 10 pairs.
Packing & Sold as: Set.
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
