Hafele 422.16.562
Hafele 422.16.562

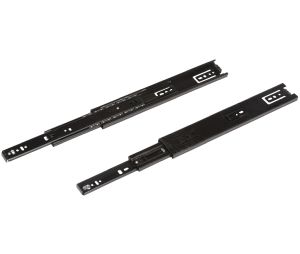

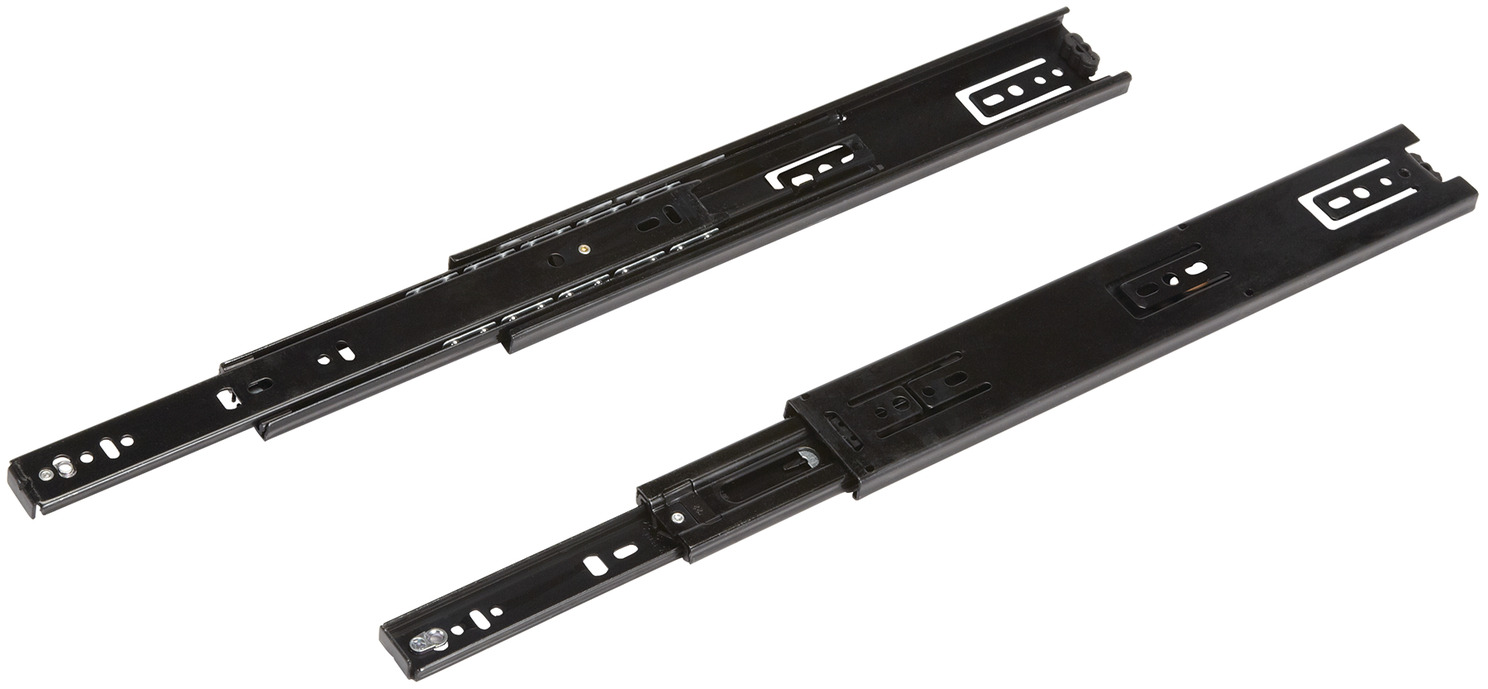

Hafele 422.16.562 Slide, Accuride 3834, Telescopic, CB3834-C22 Model, 22" Installed Length, Steel, Black, 1 Pair
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
26.19 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 18
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 422.16.562 Slide, Accuride 3834, Telescopic, CB3834-C22 Model, 22" Installed Length, Steel, Black, 1 Pair
Slide
Accuride 3834
Model: CB3834-C22
Mounting: Side mounted
Features: Telescopic
Cam Adjust
Features low profile for shallow drawers
Lever disconnect
BHMA certified to Grade 1 HD-100
Type of pull out: Full extension with 1" overtravel and hold-in detent
Application: For drawers up to 609 mm (24") wide
Load bearing capacity: Per pair: (90 lbs) 41 kg
Installed length: (22") 550 mm
Extension length: (23") 580 mm
Material: Steel
Finish: Black
Packing & Sold in:
Pair.
Note:
Unit of measure is Pair. When you buy a quantity of 1 you will get one pair. Price is for one pair.
Optional accessories:
Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides:
422.04.000
,
422.59.001
,
422.59.002
Catalog Page
Reference Instructions
