Hafele 422.14.345

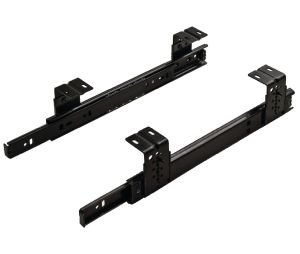

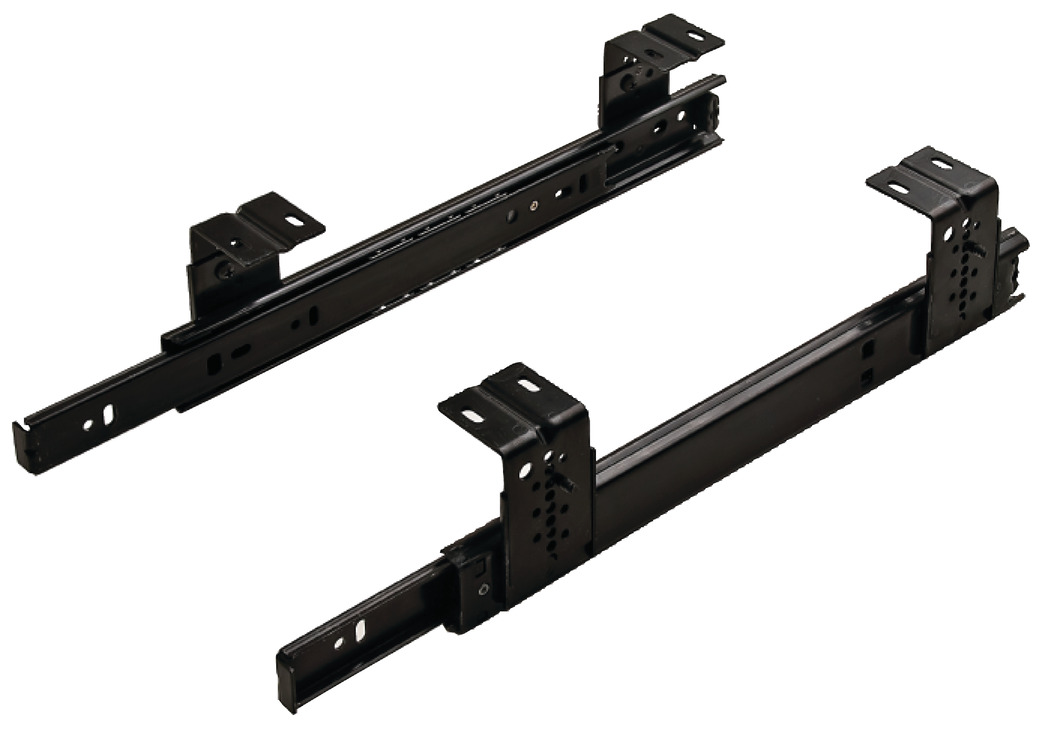

Name: Hafele 422.14.345 Slide, Keyboard/Pencil Drawer, Accuride 2109, 17-3/4" Installed Length, Steel, Black, 1 Pair
Brand: Hafele
SKU: Hafele 422.14.345
Price: 47.33 USD

Hafele 422.14.345 Slide, Keyboard/Pencil Drawer, Accuride 2109, 17-3/4" Installed Length, Steel, Black, 1 Pair

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 422.14.345 Slide, Keyboard/Pencil Drawer, Accuride 2109, 17-3/4" Installed Length, Steel, Black, 1 Pair

Price: $47.33 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 45

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 422.14.345 Slide, Keyboard/Pencil Drawer, Accuride 2109, 17-3/4" Installed Length, Steel, Black, 1 Pair

Slide
Keyboard/Pencil Drawer
Accuride 2109
Mounting: Top mounted
Features: With lever disconnect

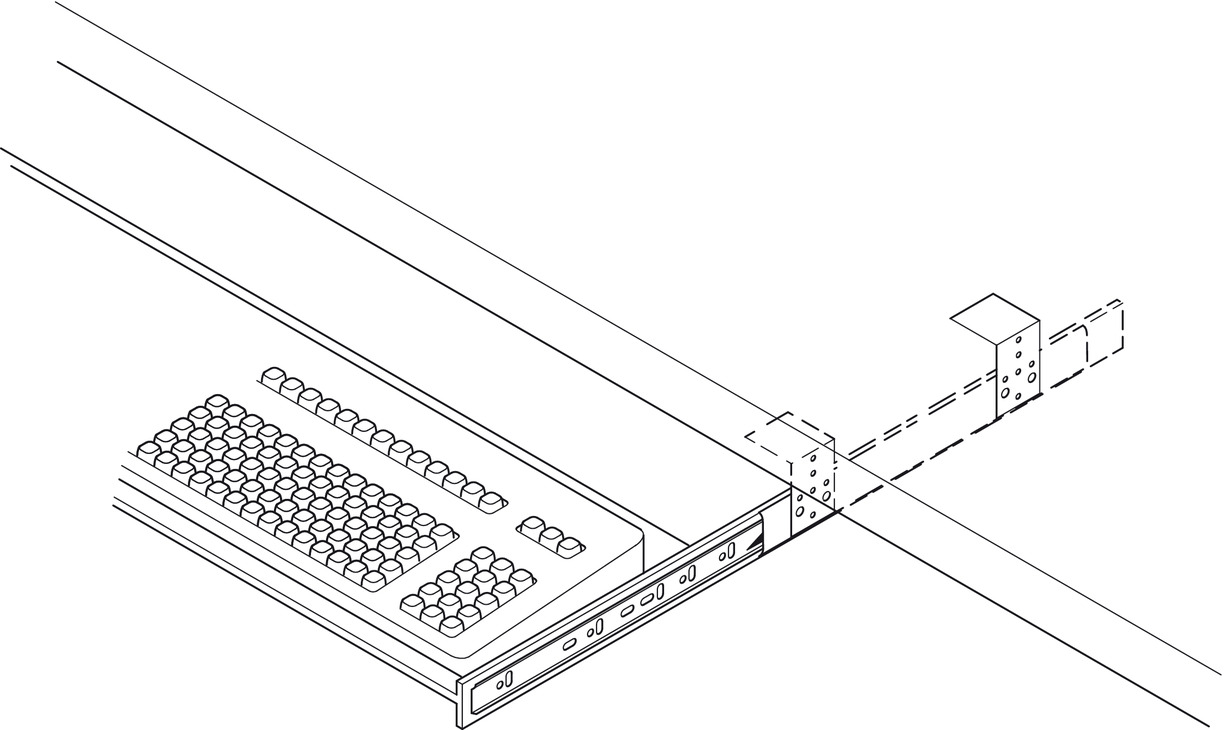

Application: For computer keyboard, printer shelf and pencil drawer applications
Type of pull out: 3/4 extension with detent-out

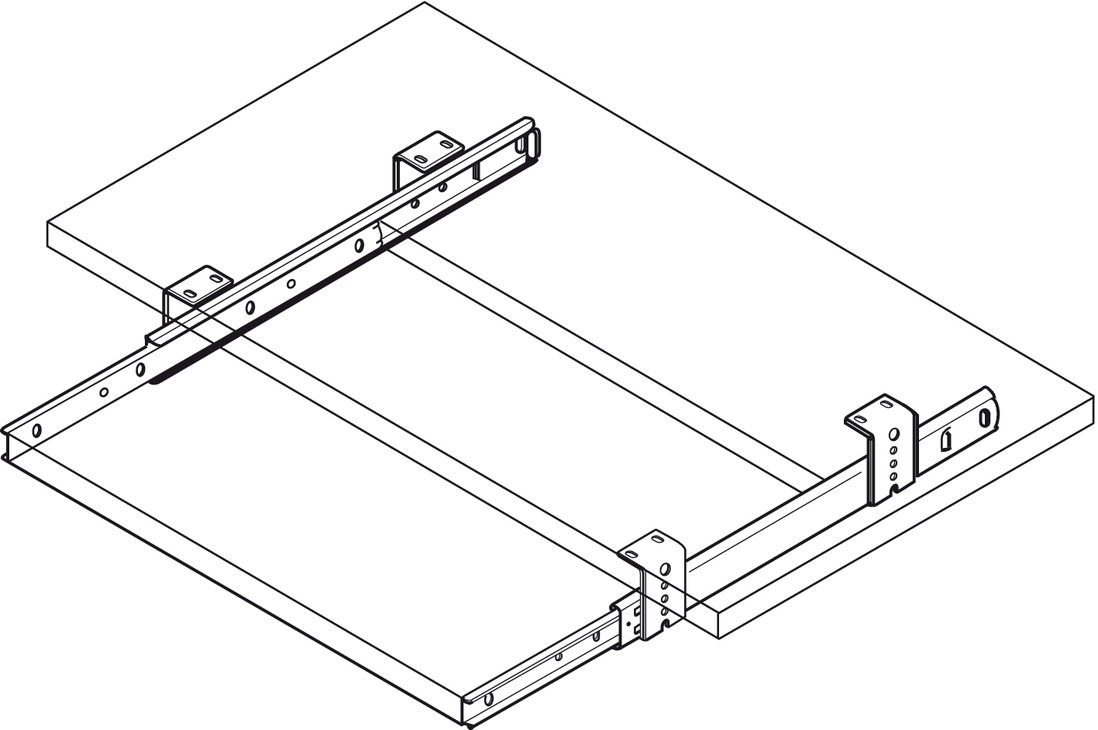

Adjustment: Features mounting brackets that are height adjustable and reversible
Underneath table top, to shelf side
For drawers up to 406mm (16") wide
Load bearing capacity per pair: (75 lbs) 34 kg
Installed length: (17 3/4") 450 mm
Extension length: (13") 331 mm
Dimensions:
- A: 128 mm (5-1/16")
- B: 224 mm (8-13/16")
- D: 392 mm (15-7/16")
- E: 215 mm (8-1/2")
Material: Steel
Finish: Black
Packing & Sold in: Pair.
Note: Unit of measure is Pair. When you buy a quantity of 1 you will get one pair. Price is for one pair.
