- Slide

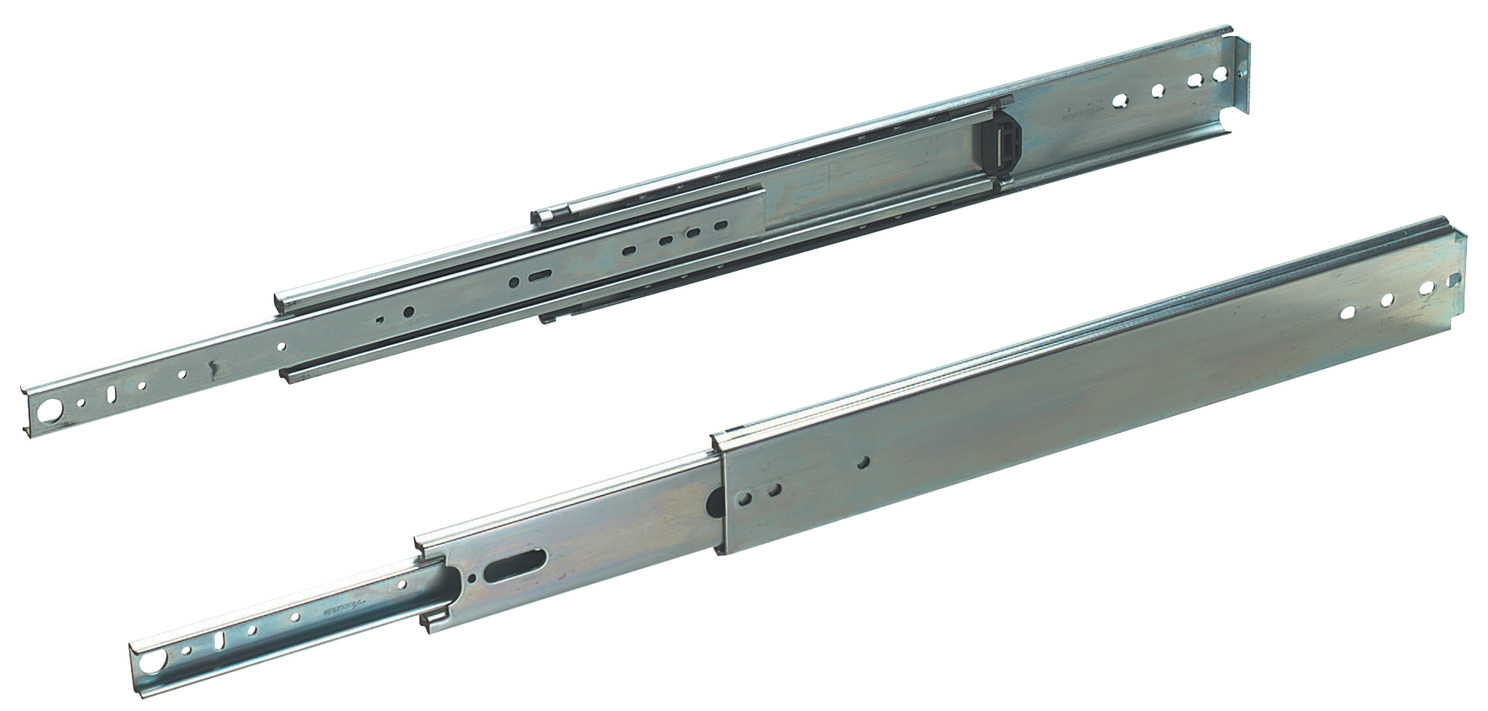

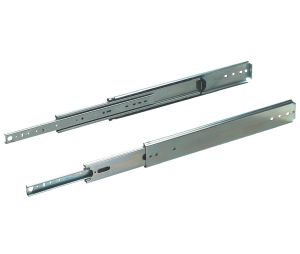

- Accuride 9301E
- Heavy Duty
- Mounting: Side/bottom mounted
- Non-Disconnect Mounted
- Reduced migration and smoother travel
- Type of pull out: Full Extension
- BHMA and AWI certified to Grade 1 HD-100

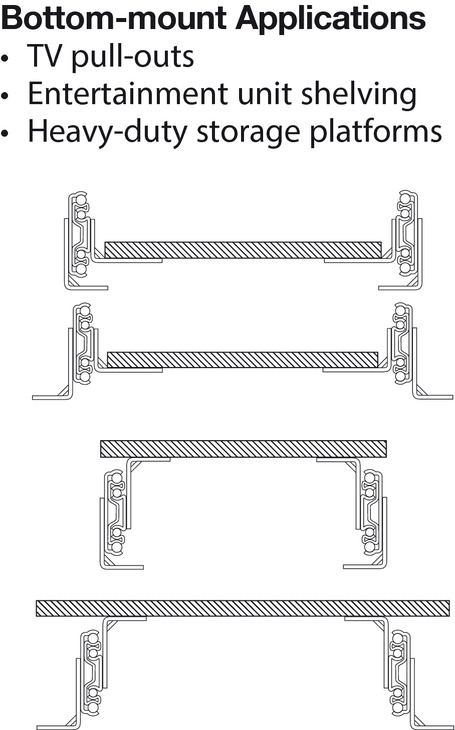

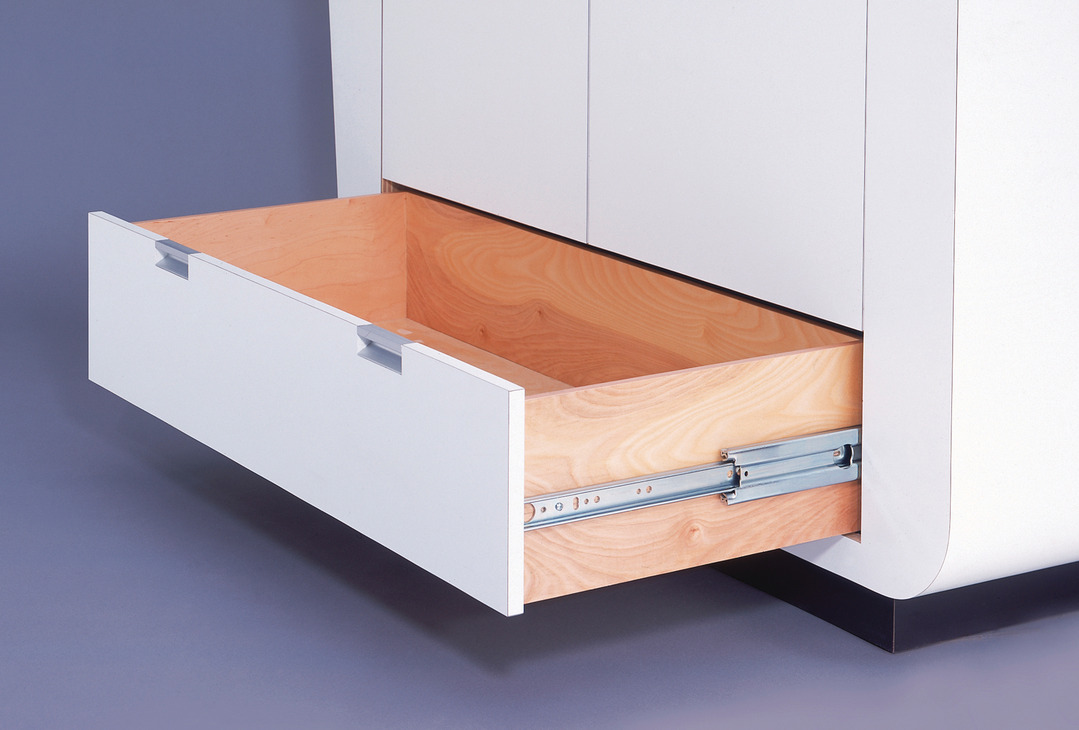

- Bottom Mount: One bracket attached to the outer member of the slide and the base of the cabinet. The other bracket attached to the inner member of the slide and the platform or tray.
- Side Mount: The slide’s outer member attaches to the side of the cabinet and the bracket attaches to the slide’s inner member.
- Load bearing capacity per pair: (600 lbs) 272 kg

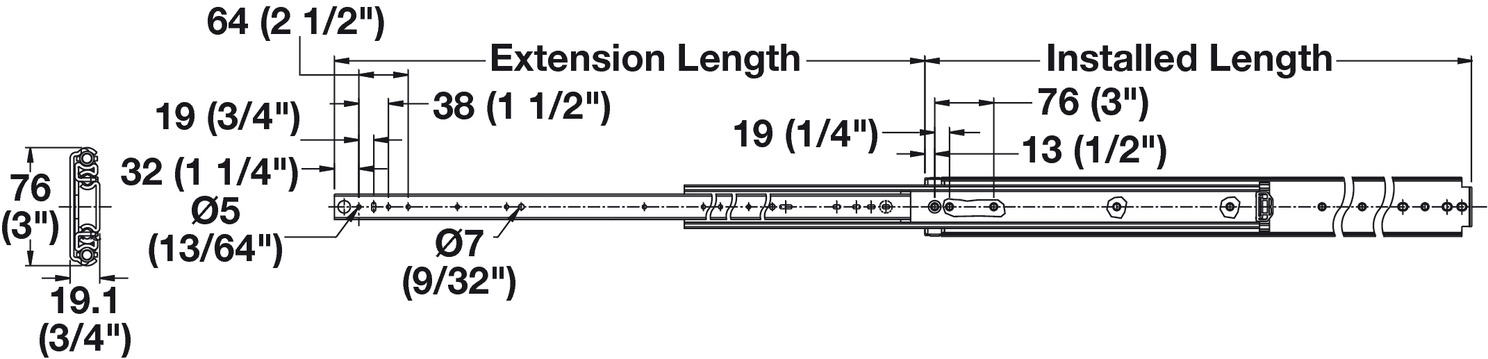

- Installed length: (28") 711 mm
- Material: Steel
- Finish: Zinc plated
- Note: This slide is not intended to support human weight as injury may result. Mounting hardware is not supplied.
- Brackets are unhanded and available in lengths of 12", 16", 22" and 28". These four sizes, used individually or in combination, will accommodate all slide lengths. To assist in bracket kit selection, see the chart below:
- Packing & Sold in: Pair.
- Note: Unit of measure is Pair. When you buy a quantity of 1 you will get one pair. Price is for one pair.
Side
Length | 12” (422.10.001)
| 16” (422.10.003)
| 22” (422.10.006)
| 28” (422.10.009)
| Amt of kits
needed for side mount
| Amt of kits needed for bottom mount | 305 - 356
(12 - 14”)
| X |
|
|
| 1 | 2 | 406 - 508
(16 - 20”)
|
| X |
|
| 1 | 2 | 559 - 660
(22 - 26”)
|
|
| X |
| 1 | 2 | 711 - 813
(28 - 32”)
|
|
|
| X | 1 | 2 | 864 - 914
(34 - 36”)
| X |
|
|
| 2 | 4 | 1016 - 1067
(40 - 42") | X |
| X |
| 1 of ea. | 2 of ea. | 1219
(48") | X |
|
| X | 1 of ea. | 2 of ea. | 1824
(60") |
|
| X | X | 1 of ea. | 2 of ea. | Applications
| Weight Capacity Maximum
| Drawer Widths
| Moderate use
| 272 kg (600 lbs)
| up to 18" | Frequent use
| 217 kg (480 lbs)
| up to 42" | Mobile (Vehicular)
| 163 kg (360 lbs)
| up to 32" | Flat mount
| 81 kg (180 lbs)
