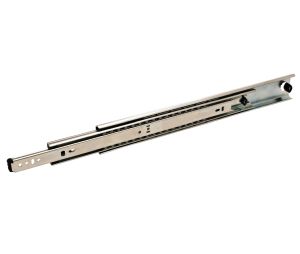

Hafele 422.05.001 Slide, Accuride 3634, Heavy Duty, C3634-12D Model, 12" Installed Length, Steel, Zinc, 1 Pair

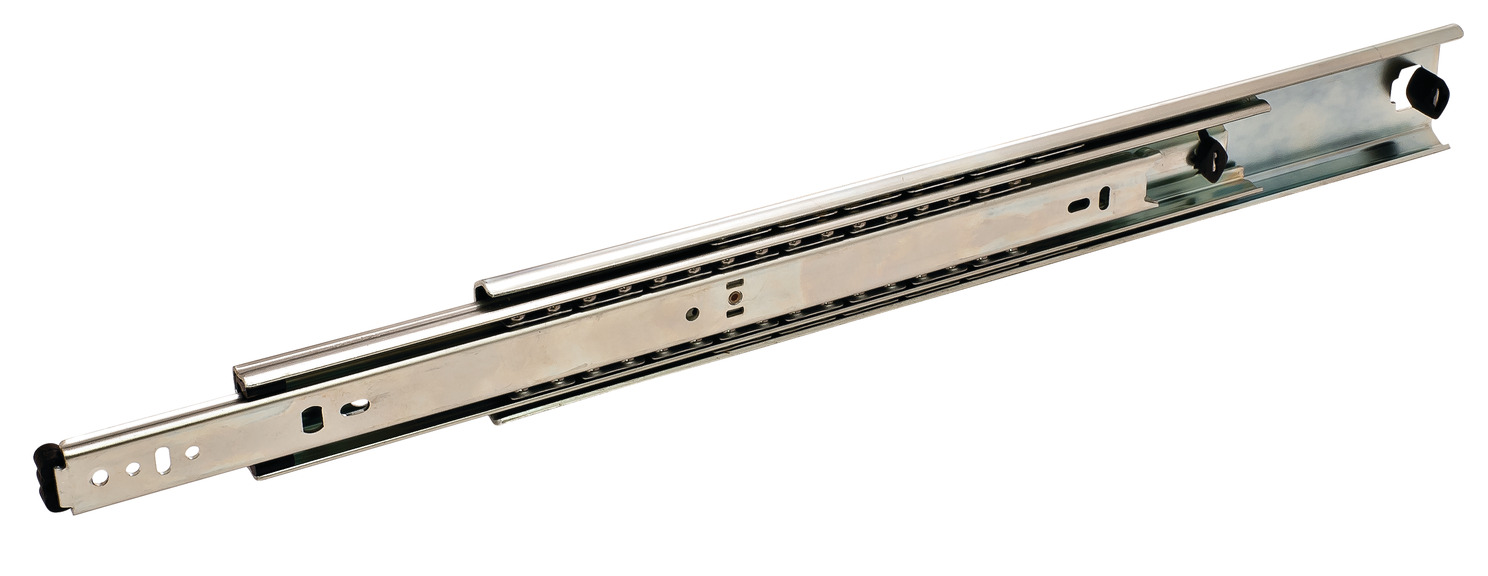

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 422.05.001 Slide, Accuride 3634, Heavy Duty, C3634-12D Model, 12" Installed Length, Steel, Zinc, 1 Pair

Price: $99.96 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 35

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 422.05.001 Slide, Accuride 3634, Heavy Duty, C3634-12D Model, 12" Installed Length, Steel, Zinc, 1 Pair

Slide
Accuride 3634
Model: C3634-12D
Mounting: Side/Bottom Mounted
Heavy Duty
Includes hold-in detent to help hold drawers in a closed position
In-and-out stops silenced for quiet operation
1" over travel for full access to drawer contents
Lever disconnect allows for easier drawer removal and reinsertion
Slides are unhanded, which also helps speed and ease of installation
RoHS compliant
Disconnect: Handed lever disconnect
Suitable for: Wider drawers and trays used for storage in retail fixtures, restaurants, medical facilities and business offices as well as residential kitchens, garages and more
Accommodates drawers up to 42" wide to expand potential applications
Outer member hole pattern matches models 3832/3834. The same hole configuration and fastener type are used whether slides are going into a 1/2" or 3/4" side space.
Side space: 0.78 + .000/-.02 [19.8 mm +0/-.5]
Recommended Drawer Size: 1 9/16" (39.69 mm) less than the cabinet opening
14" is full travel
Load bearing capacity:
- Side mount per pair: (200 lb) 91 kg
- Flat mount per pair: (75 lb) 34 kg

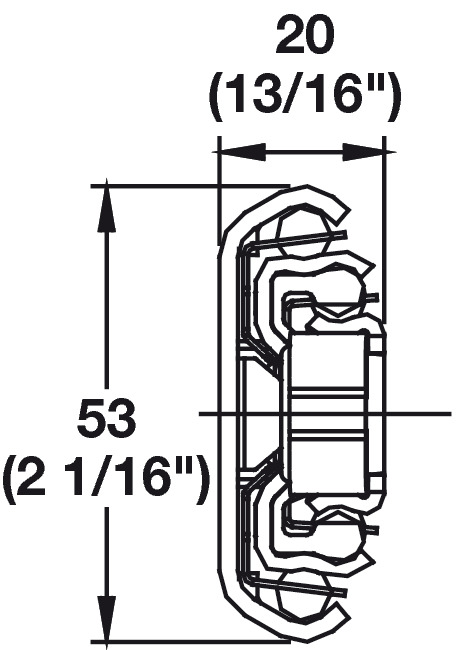

Height: (2.09") 53.1 mm
Width (0.78") 19.8 mm
Over travel: (1") 25.4 mm
Installed length: (12") 305 mm
Extension length: (13") 330 mm

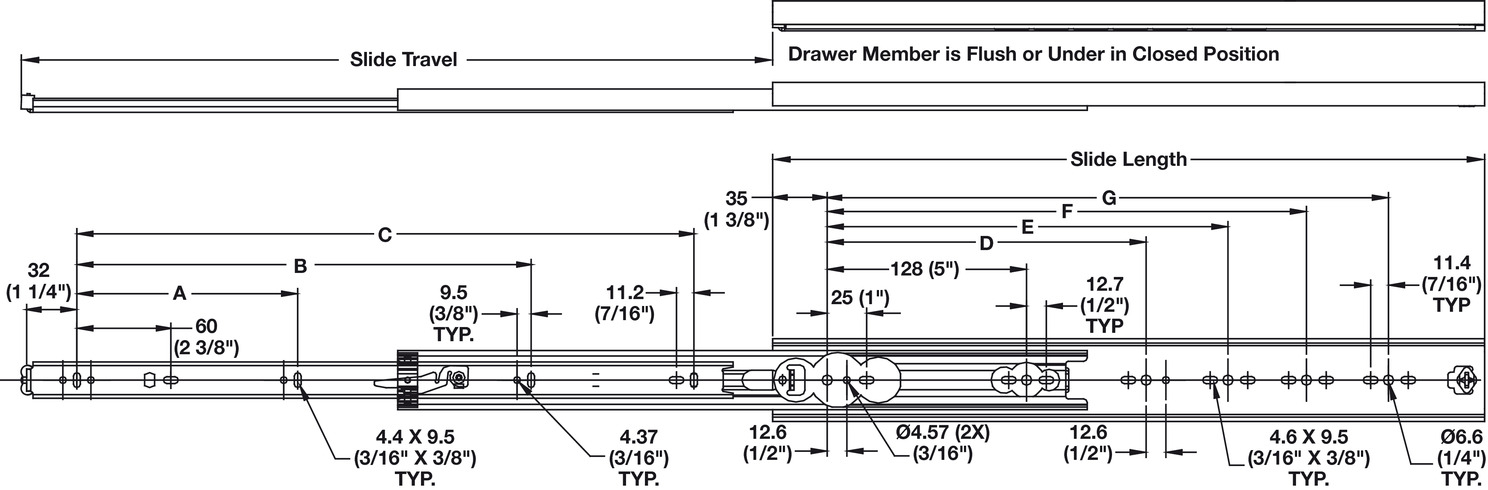

Dimensions (please check on the picture below):
- D: 224 mm (8-13/16")
- D: 224 mm (8-13/16")
Material: Steel
Finish: Zinc
Supplied with: Mounting screws
Packing & Sold in: Pair.
Note: Unit of measure is Pair. When you buy a quantity of 1 you will get one pair. Price is for one pair.
