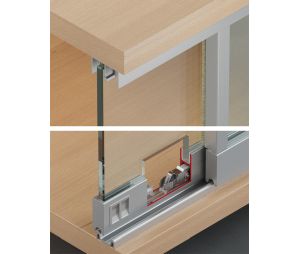

Hafele 415.13.104

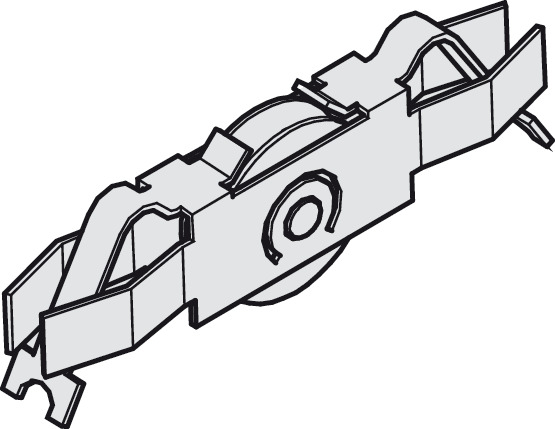

• Running Gear
• Häfele Slido F-Line14 25A
• Door position: Infront
• Area of application: For bottom running doors
• Running gear guided by: Ball bearing
• Running position: Bottom

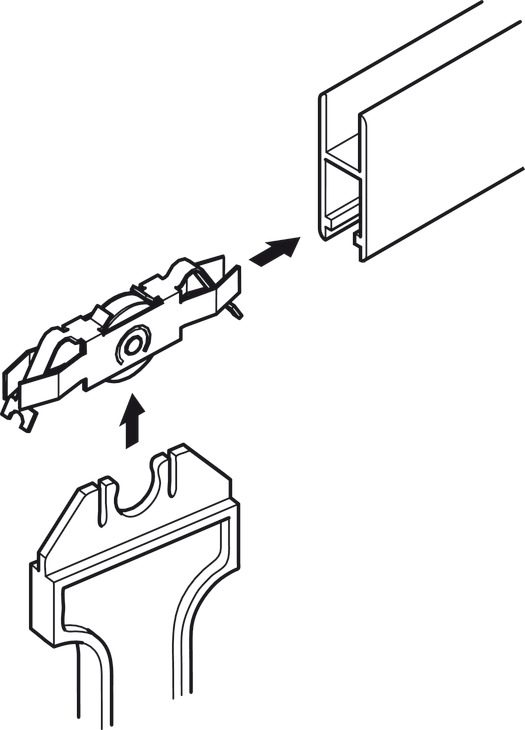

• Quick and easy installation, running gears are inserted into runner housing profile using slide-in system
• Installation:
  • For sliding in and tightening
  • Without glass preparation
• Number of rollers: 1
• For door weight =6 kg
• Door width max. 1' 11 1/4"
• Length: 2' 1 19/32"
• For Door Height max: (55 1/8") 1400 mm
• For Glass Thickness: (1/4") 6 mm, (5/16") 8 mm

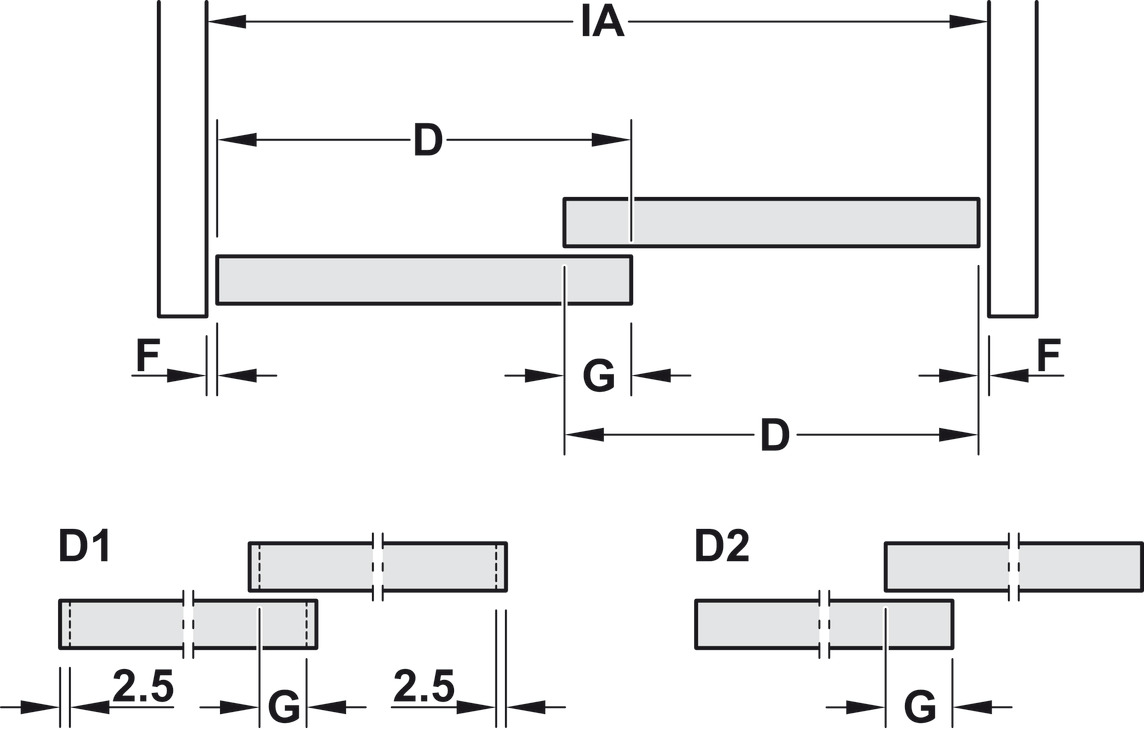

• For door width: (23 5/8" – 47 1/4") 600 mm – 1200 mm
• Material: Steel
• Finish:
  • Castor: White, Zinc Plated
  • Roller: Plastic Coated, Galvanized
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Required products:

• Installation Tool for Running Gear, for Slido F-Line14 25A: 415.13.060
• Gasket, for Slido F-Line14 25A: 415.13.050
• End Cap, for Slido F-Line14 25A: 415.13.020, 415.13.021
• Double Bottom Running Track, for Slido F-Line14 25A: 415.11.925
• Double Upper Guide Track, for Slido F-Line14 25A: 415.10.925
• Runner Housing Profile, for Slido F-Line14 25A: 415.12.925
• Clip-On Profile, for Slido F-Line14 25A: 415.13.622

Optional accessories:

• Glass Profile Grip, for Slido F-Line14 25A: 415.13.010, 415.13.170
• Double Bottom Running Track, for Slido F-Line14 25A: 415.08.972
• Double Bottom Running Track, for Slido F-Line14 25A: 415.11.925
