Hafele 409.36.049

Name: Hafele 409.36.049 Sliding Door Fitting, With Adjustable Center Hinge, 110 lbs. Door Weight Max., Left and Right Mounting, 1 Set
Brand: Hafele
SKU: Hafele 409.36.049
Price: 422.61 USD

Hafele 409.36.049 Sliding Door Fitting, With Adjustable Center Hinge, 110 lbs. Door Weight Max., Left and Right Mounting, 1 Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 409.36.049 Sliding Door Fitting, With Adjustable Center Hinge, 110 lbs. Door Weight Max., Left and Right Mounting, 1 Set

Price: $422.61 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 1

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 409.36.049 Sliding Door Fitting, With Adjustable Center Hinge, 110 lbs. Door Weight Max., Left and Right Mounting, 1 Set

Sliding Door Fitting
For Slido F-Fold 61 25A/50A Set
Version: With Concealed Hinges Mounted to Cabinet Side Panel
For wooden/aluminum folding sliding doors
Set: Set without tracks
Ideal for laterally connected doors
Running gear guided by: Ball bearing
Adjustment facility: Adjustable via hinges
Door adjustment via: Hinges
Installation: Left and right as set
Running gear version: 4 rollers
For Door Weight: (50 kg) 110 lbs.
Length (inch): 2' 1 19/32"
For door thickness: = (5/8") 16 mm
For door width: = (23 5/8") 600 mm
Material/finish: Rollers: Plastic
Order reference: The running tracks, fixing material and concealed hinges for attachment at the side are not included in the set. Please order separately.
Supplied with:
- 1 running gear with 2 concealed hinges for left door
- 1 running gear with 2 concealed hinges for right door
- 8 adjustable concealed hinges
- 2 cover caps, white
Packing & Sold as: Set.
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

Upper Track, For Screw Mounting: 409.31.601, 409.31.605

Catalog Page

Installation Instructions

DWG Drawing Doors

DWG Drawing L1 Door

DWG Drawing R1 Door

DWG Drawing Cover Cap

DWG Drawing Hinge

Questions and Answers

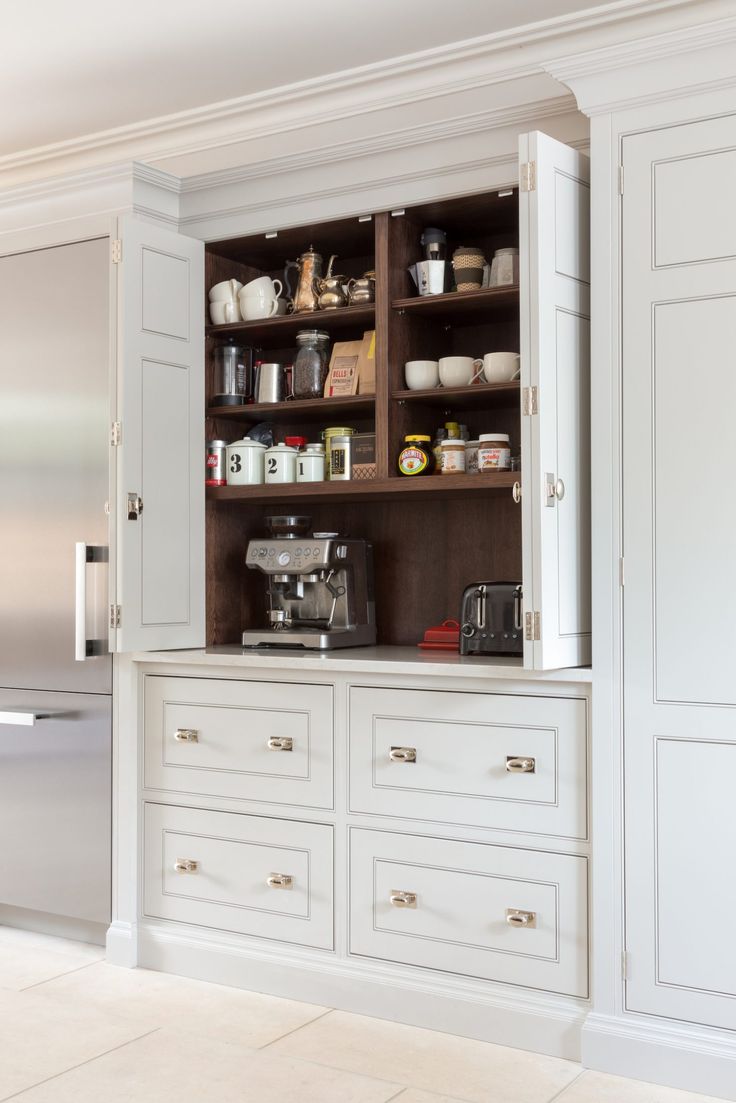

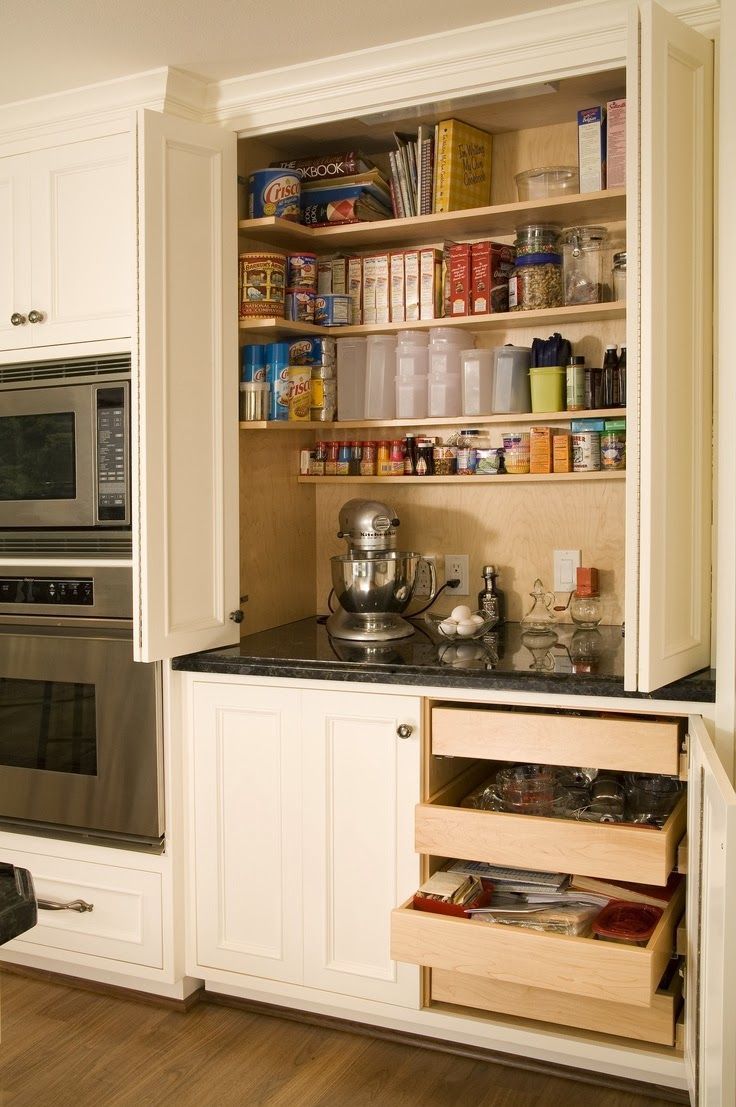

Q: Im in search of bifold door hardware for one of my customers. Were using flush inset style cabinets but I can only find hardware for overlay cabinets from Hafele. Do you offer this hardware from any of your manufacturers? Ive attached examples of what Im trying to accomplish (the bifold doors upper section).

Images here:

View Image

A: Seems to me all you need are Soss hinges and then a roller guide along with a track at the top and then some cabinet hardware knobs.

Q: Thanks for your response. I was looking at these Hafele sets but it doesnt specify if theyll work for inset cabinetry, can you confirm if they do? #409.36.037 or #409.36.049

A: According to the installation instructions for the Hafele 409.36.049 as seen here:

Download File

Only an overlay application is supported.
