Hafele 408.30.590

Name: Hafele 408.30.590 Wooden Pivot Sliding Doors, Hawa Concepta, 11 13/16 - 29 1/2" For Door Width, 4' 1 3/16" - 6' 13/16" For Door Height, 1 Set
Brand: Hafele
SKU: Hafele 408.30.590
Price: 1624.66 USD

Hafele 408.30.590 Wooden Pivot Sliding Doors, Hawa Concepta, 11 13/16 - 29 1/2" For Door Width, 4' 1 3/16" - 6' 13/16" For Door Height, 1 Set

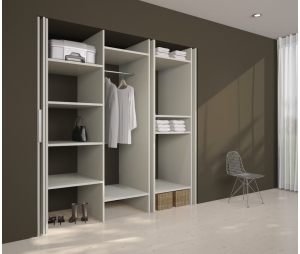

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 408.30.590 Wooden Pivot Sliding Doors, Hawa Concepta, 11 13/16 - 29 1/2" For Door Width, 4' 1 3/16" - 6' 13/16" For Door Height, 1 Set

Price: $1,624.66 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 408.30.590 Wooden Pivot Sliding Doors, Hawa Concepta, 11 13/16 - 29 1/2" For Door Width, 4' 1 3/16" - 6' 13/16" For Door Height, 1 Set

Wooden Pivot Sliding Doors
Hawa Concepta
The door is pulled into the pocket automatically

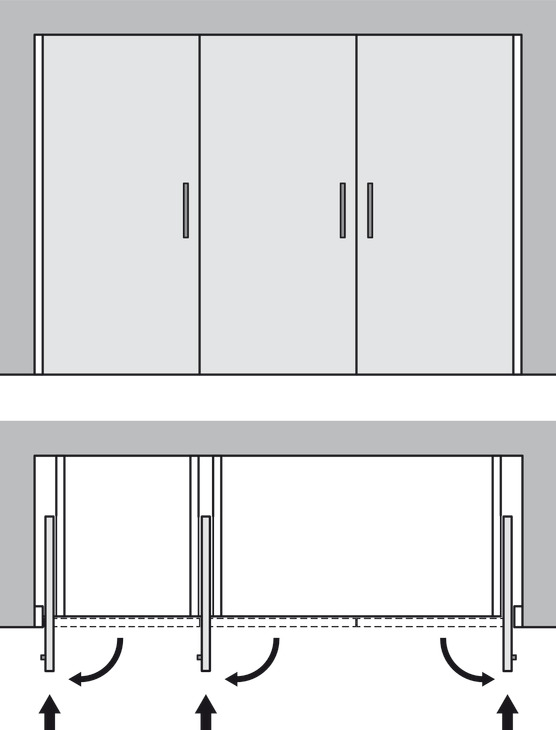

Suitable for room partitioning as there is no need for a base panel and top panel in wall recesses

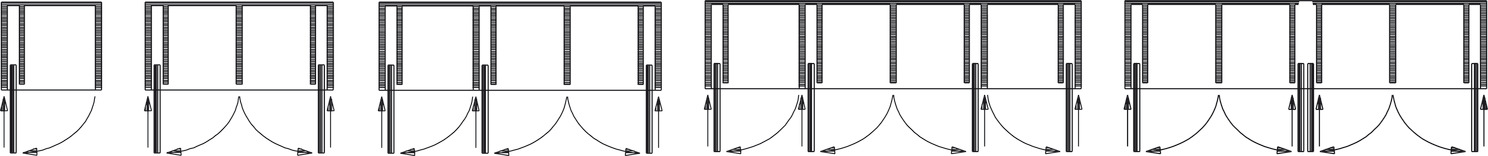

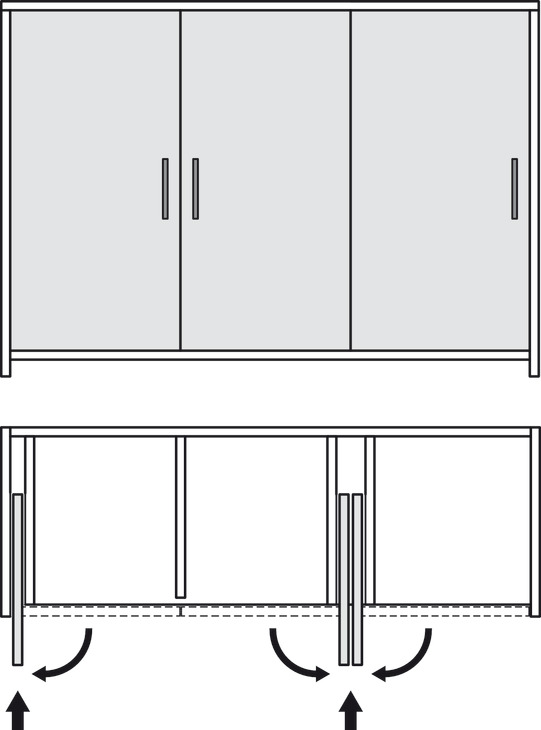

For left and right hand use

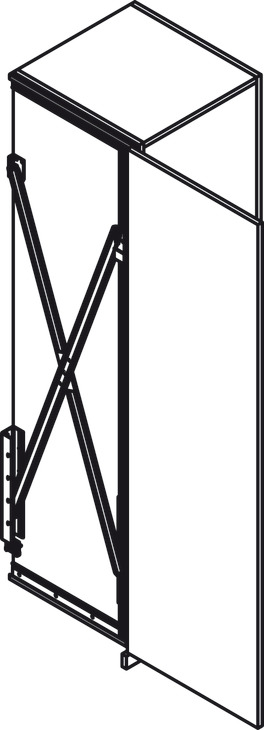

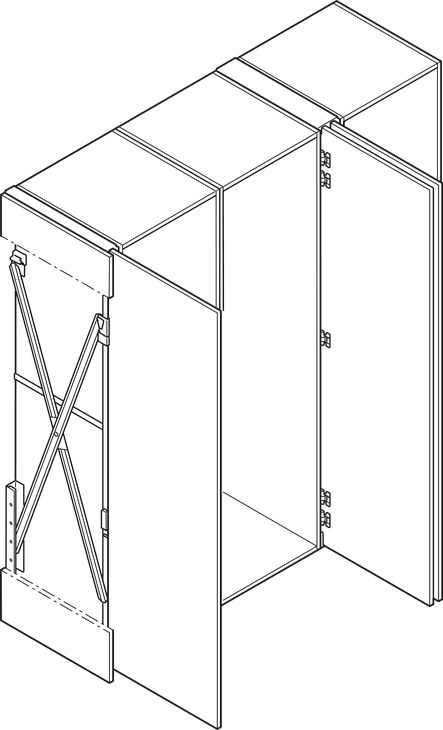

Unique scissor technology accommodates large and heavy doors
All adjustments are made from the front of the cabinet
Version: Hinges with soft closing mechanism
Area of application: For 1 door
For door material: wood
Running gear guided by: Ball bearing
Installation: For left and right hand use
Door weight max: (55 lbs) 25 kg
Length (inch): 2' 1 19/32"
For Door Thickness: (3/4"-1 15/16") 19 mm - 30 mm

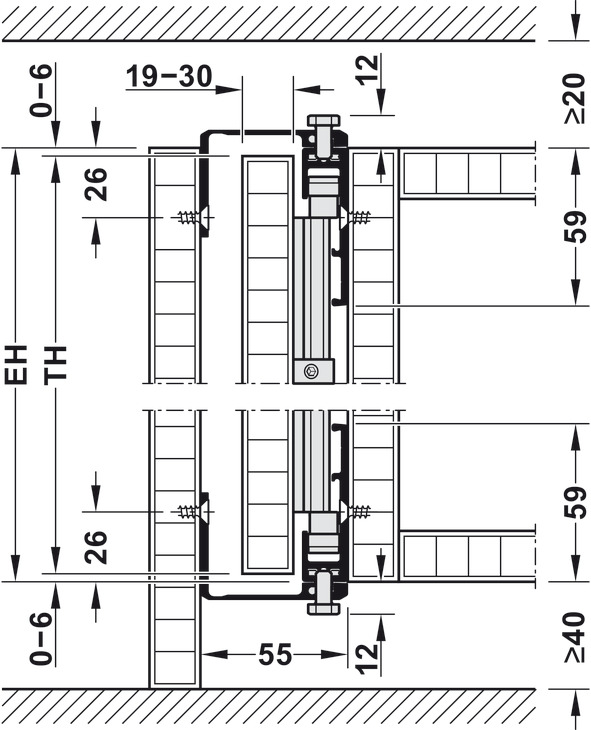

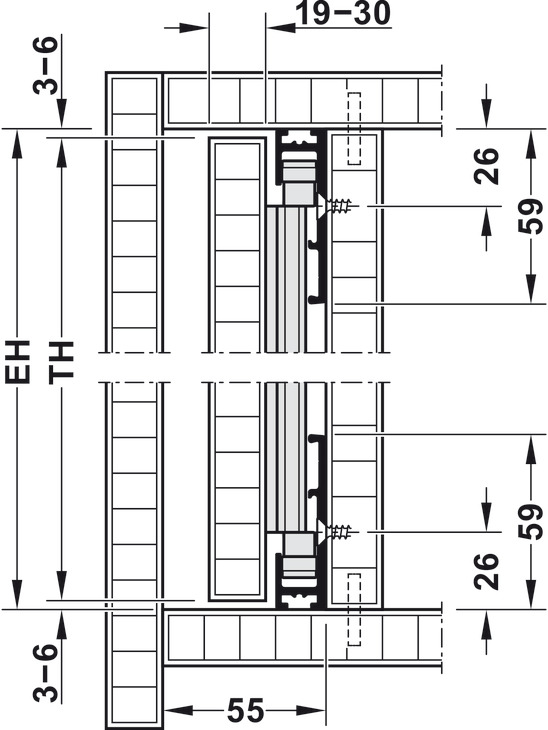

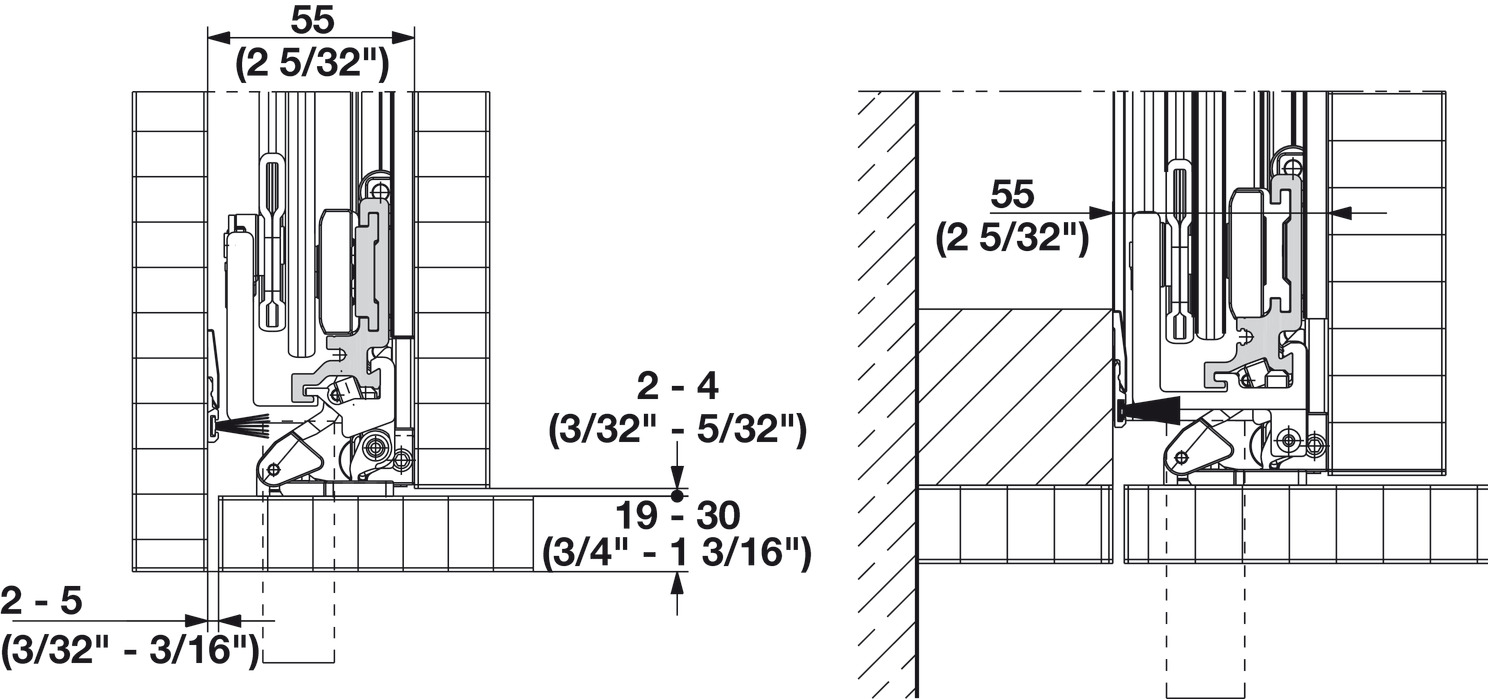

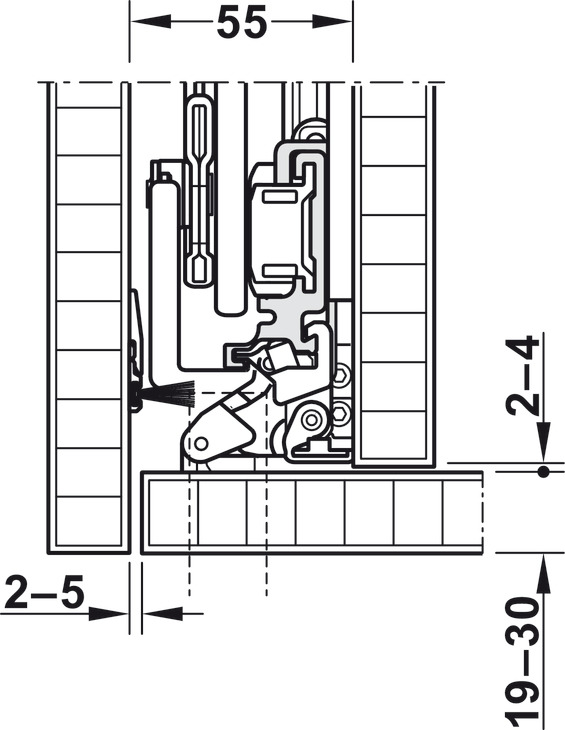

Door Thickness: Straight edge: 19 - 30 mm (3/4" - 1 3/16") Rabbeted edge: >30 - 50 mm (>1 3/16" - 1 15/16")
For Door Width: (11 13/16" - 29 1/2") 300 mm - 750 mm
For Door Height: (4' 1 3/16" - 6' 13/16") 1250 mm - 1850 mm
Supplied with:

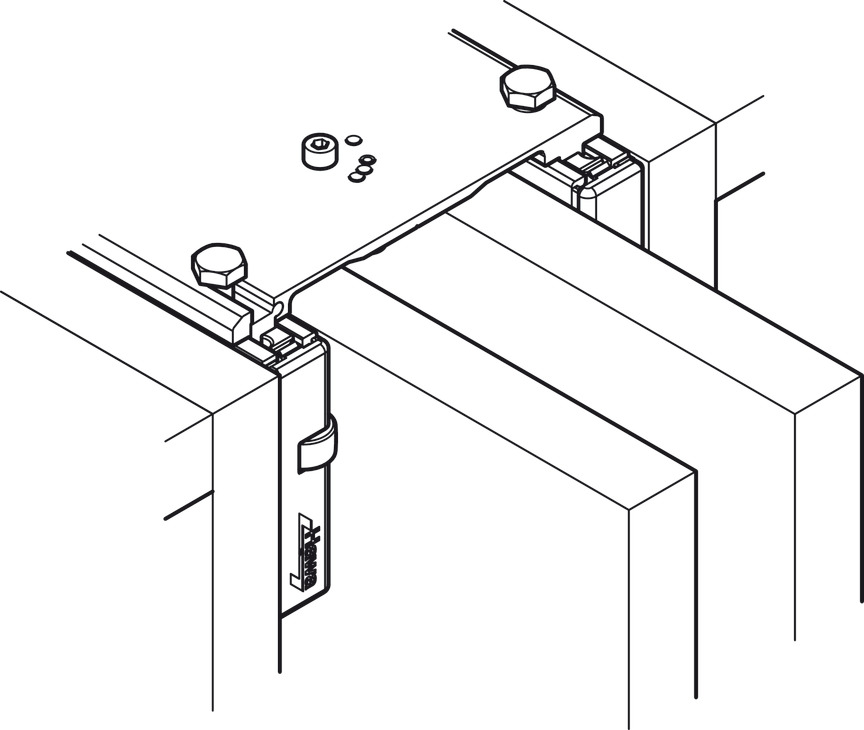

- 1 scissor assembly complete with 2 guides
- 1 spacer profile
- 1 door stopper with clip-in stopper
- 3 alternative profiles and brushes
- 1 pair of cover caps
- 1 end position damper
- 1 self closing mechanism for door
- 1 soft stopper bracket
- 1 upright with 2 play-free guides
- 5 concealed hinges

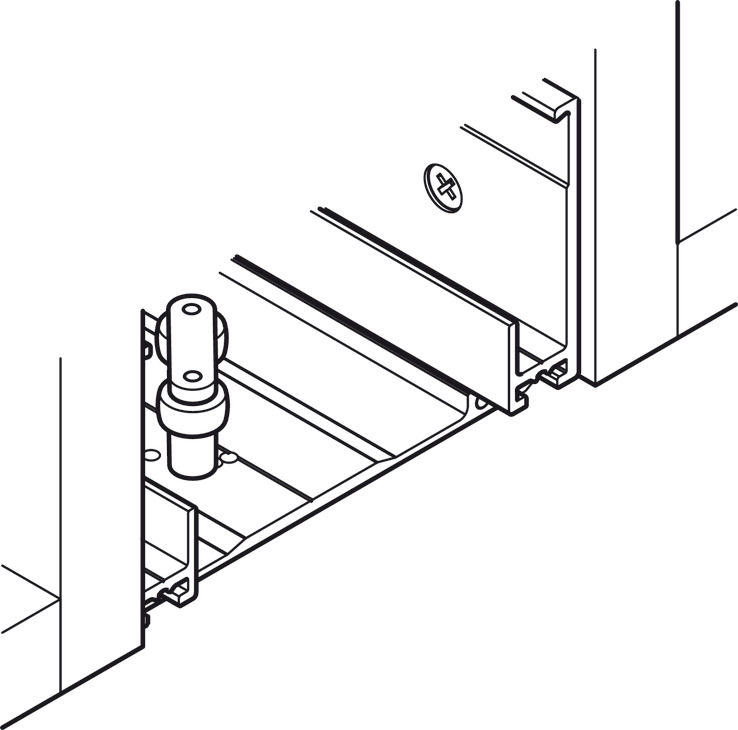

- 1 guide track
- 1 running track
- Mounting instructions
Packing & Sold as: Set.
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
