Hafele 408.30.046

Name: Hafele 408.30.046 Wooden Pivot Sliding Doors, Hawa Concepta 30 Set, Infront/Vorfront, 6' 7/8" - 7' 6-9/16" for Door Height, Model 30, Plastic Coated
Brand: Hafele
SKU: Hafele 408.30.046
Price: 1664.81 USD

Hafele 408.30.046 Wooden Pivot Sliding Doors, Hawa Concepta 30 Set, Infront/Vorfront, 6' 7/8" - 7' 6-9/16" for Door Height, Model 30, Plastic Coated

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 408.30.046 Wooden Pivot Sliding Doors, Hawa Concepta 30 Set, Infront/Vorfront, 6' 7/8" - 7' 6-9/16" for Door Height, Model 30, Plastic Coated

Price: $1,664.81 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 408.30.046 Wooden Pivot Sliding Doors, Hawa Concepta 30 Set, Infront/Vorfront, 6' 7/8" - 7' 6-9/16" for Door Height, Model 30, Plastic Coated

Wooden Pivot Sliding Doors
Hawa Concepta 30 Set
For 1-leaf wooden pivot sliding doors
Infront/Vorfront
Model 30
Set: Set with tracks
Version: Hinges with soft closing mechanism
Mounting: For left and right hand use
Installation: For left and right hand use
Running gear guided by: Ball bearing
Cabinet height: In wall recesses ≥ 1 3/16"
Area of application: For 1 door
Number of doors: 1.00
For door width: 300 – 900 mm
For door height: 1851 – 2,300 mm (6' 7/8" - 7' 6-9/16")
For door weight: ≤30 kg
For door thickness min.: 3/4"
For door thickness max.: 1-13/16"
For cabinet width: 6' 7/8" - 7' 6-3/16"
For wood thickness: 11-13/16 - 35-7/16"
Length (inch): 2' 1-19/32"
For door thickness: 19 – 30 mm
Running gear version: 40/50 kg: 2 rollers
For door material: Wood
Material/Finish: Rollers: Plastic coated
Supplied with:

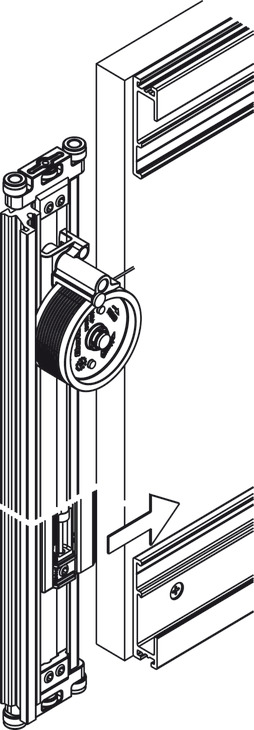

- 1 scissor assembly with two guides
- 1 spacer profile
- 1 door stopper with clip-in stopper
- 3 alternative profiles and brushes
- 1 pair of cover caps
- 1 end position damper
- 1 self closing mechanism for door
- 1 soft stopper bracket
- 1 upright with 2 play-free guides
- 3 concealed hinges
- 2 guide tracks
- Mounting instructions
Additional information: A set is for one door.
Notes:
- The door is pulled into the pocket automatically
- Suitable for room partitioning as there is no need for a base panel and top panel in wall recesses
- For left and right hand use
- Unique scissor technology accommodates large and heavy doors

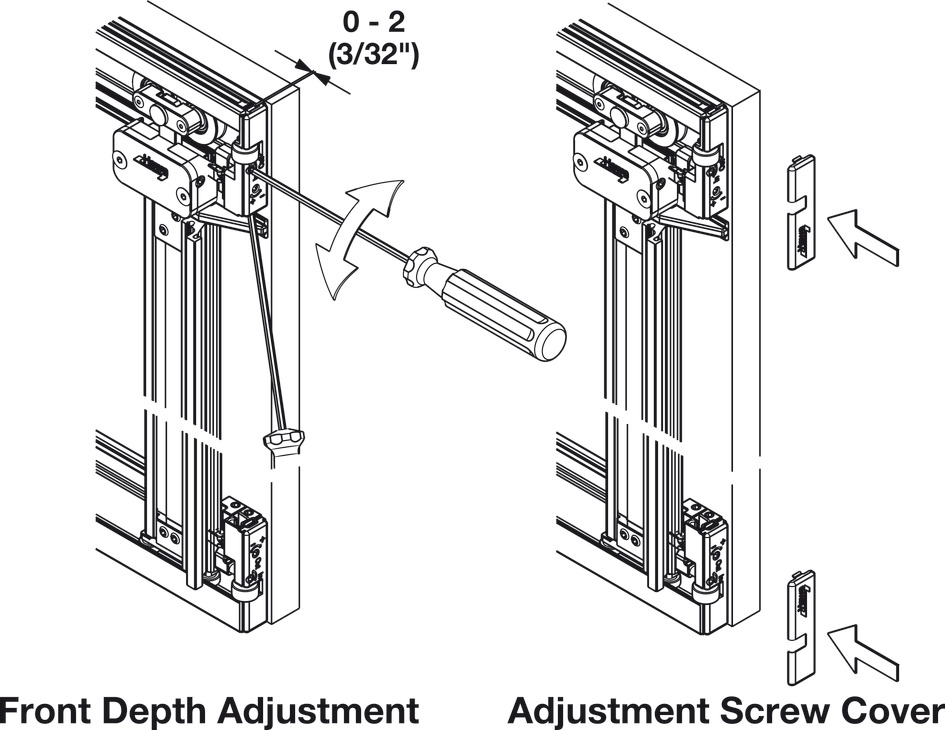

- All adjustments are made from the front of the cabinet
Packing & Sold as: Set
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
