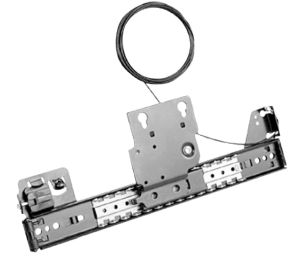

Hafele 408.24.530

• Pocket Door System
• Accuride 1432
• Hinges not Included

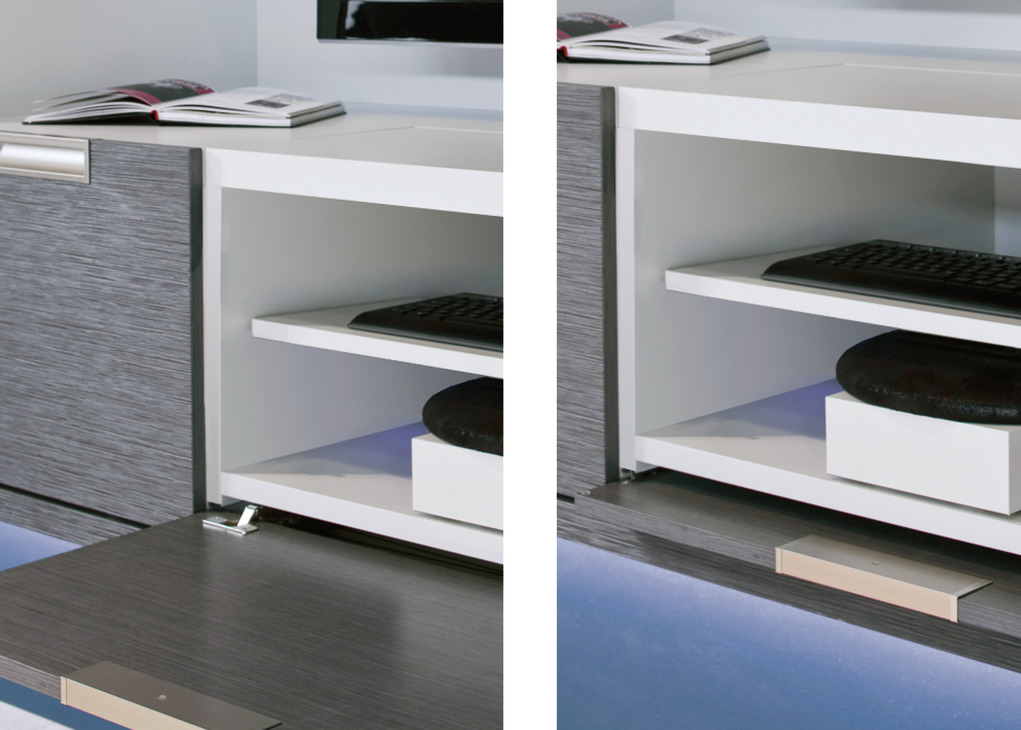

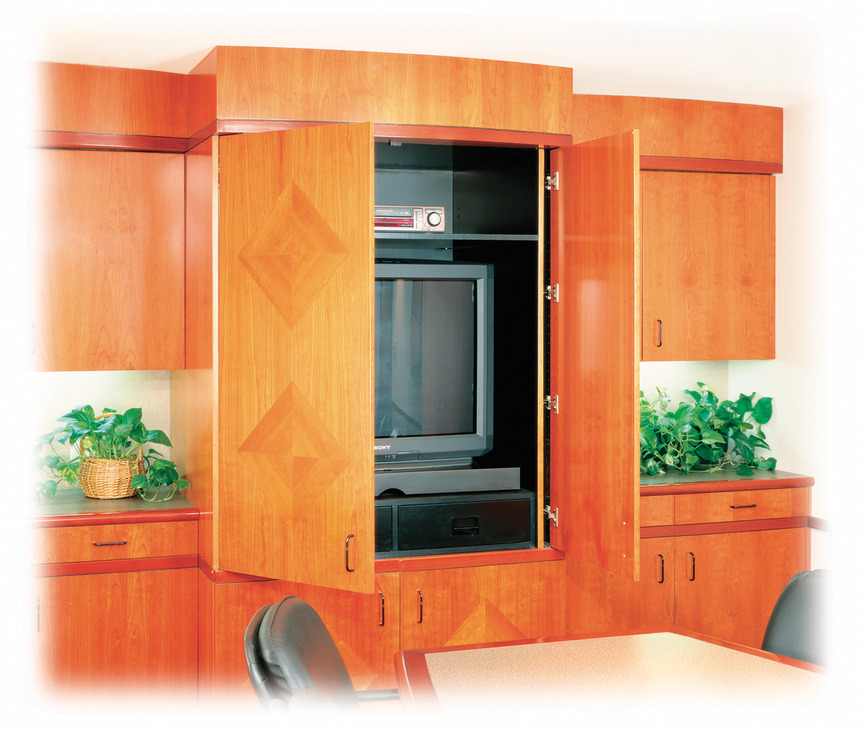

• For swivelling up and sliding in flaps, e.g. in media furniture
• No obstruction caused by open flap or open hinged door
• Excellent running properties provided by synchronised runners

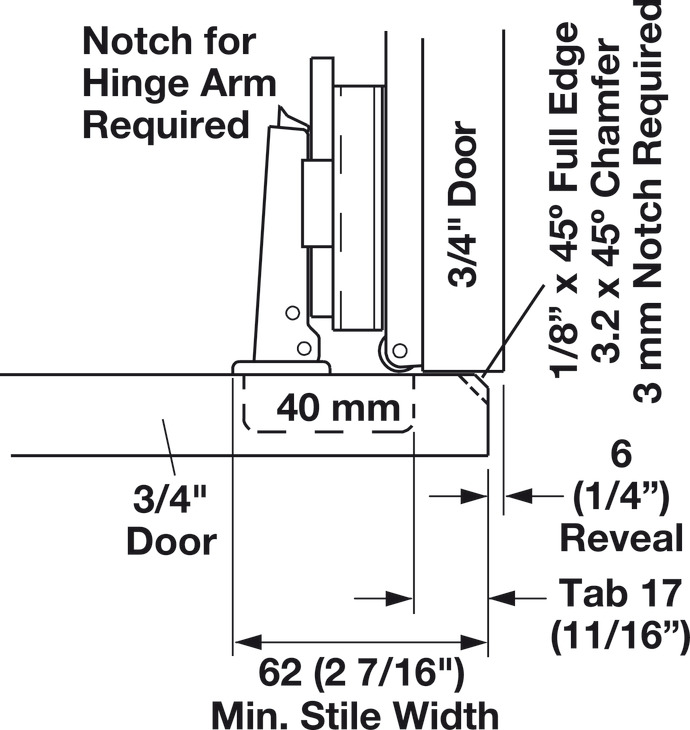

• For doors 13/16" or thicker, please order the optional 40 mm hinge kit
• For doors 36" - 78" tall, see below for additional hinges required

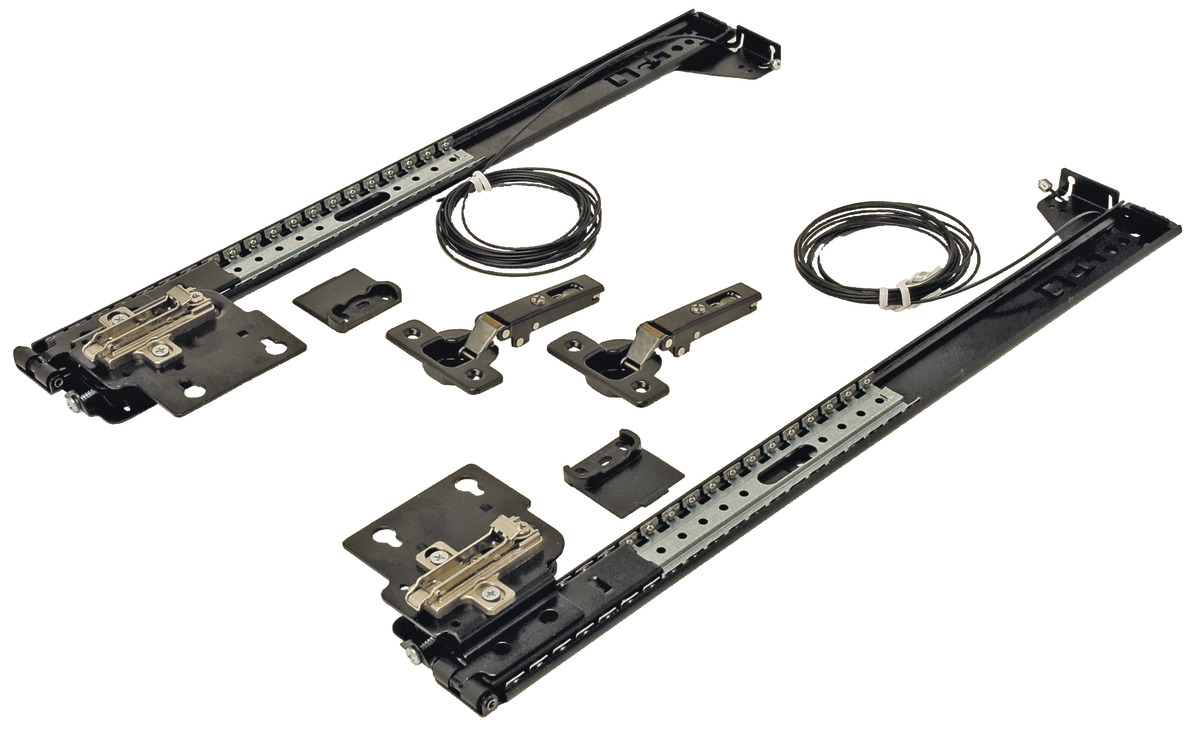

• Set with tracks
• Hinge carrier strip set can be shortened for use with narrower flaps with cable system for synchronised running of left and right runners
• Vertical use as pivot sliding door fitting and horizontal use as pivot sliding door runner

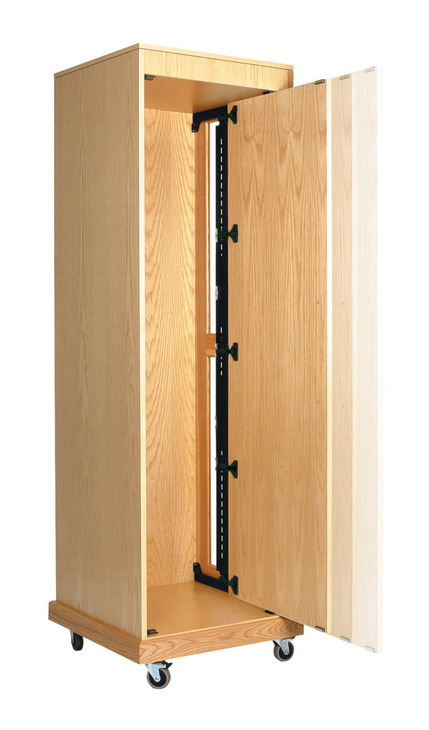

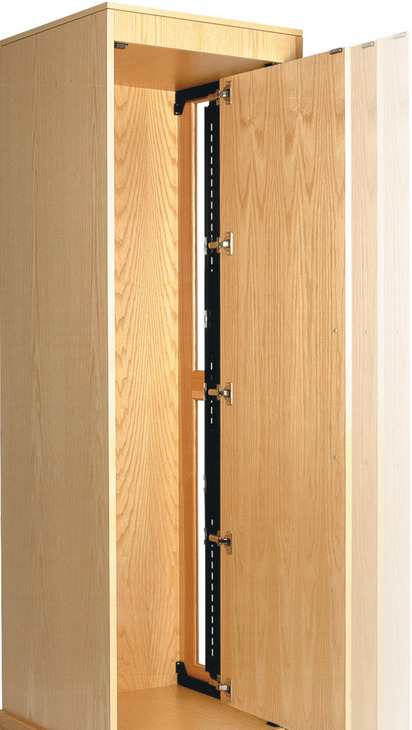

• Installation: Vertically mounted concealed doors
• For door material: wood
• Load bearing capacity: max. (75 lbs) 34 kg
• Length: (12") 305 mm
• Travel: (8 1/4") 210 mm

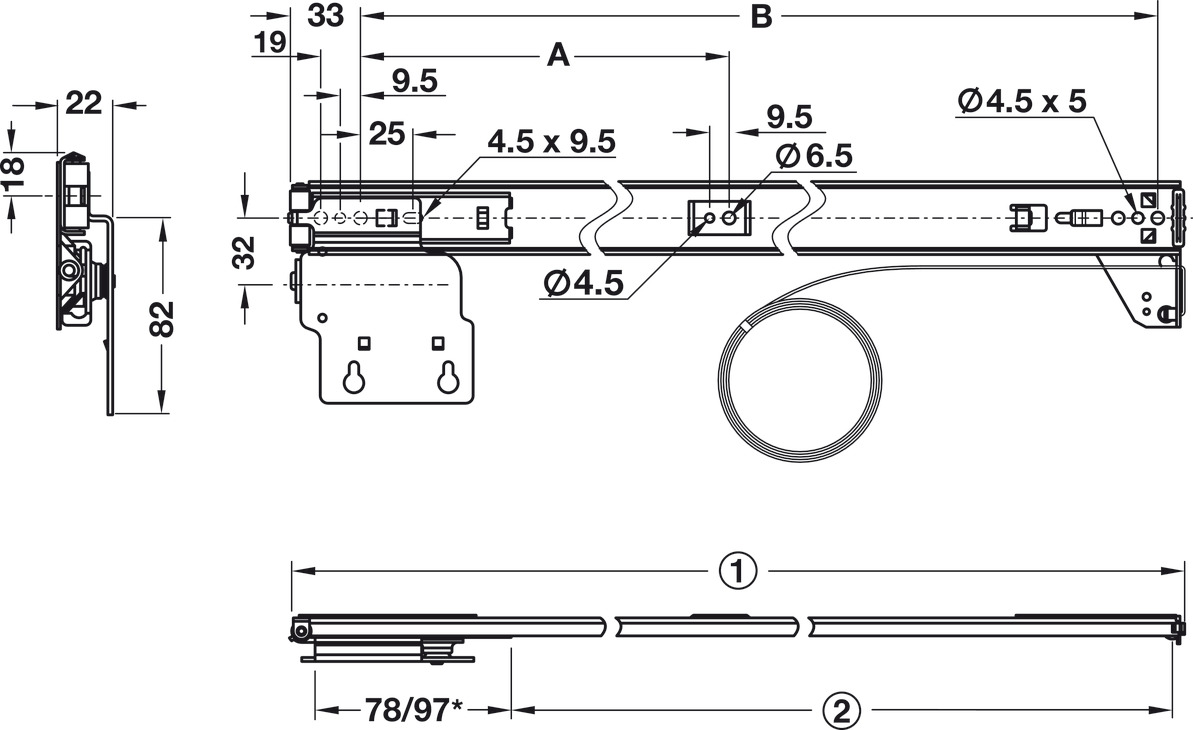

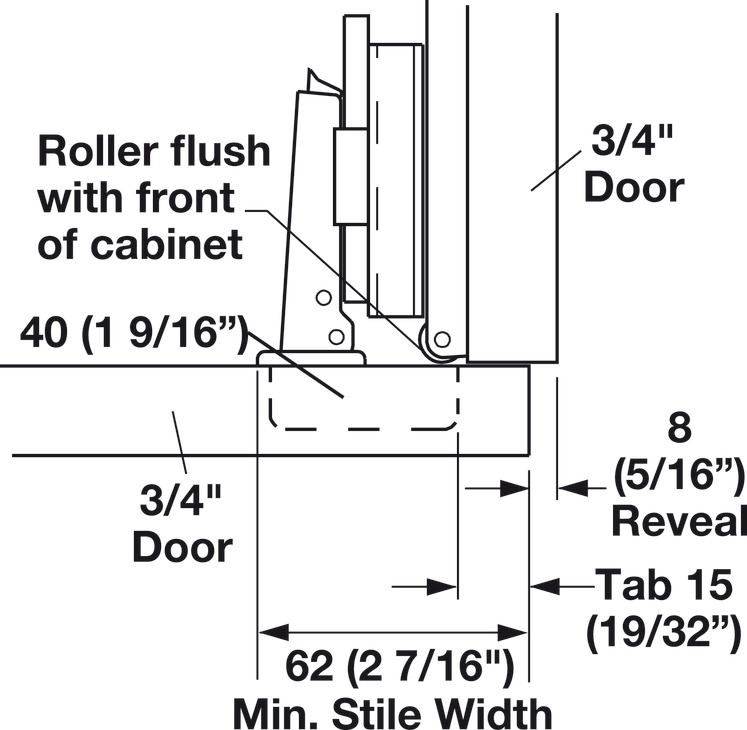

• Dimensions (check the picture below): B: (10 1/8") 257 mm
• For Door Thickness: (3/4" - 1 1/4") 19 mm - 32 mm
• For door height: (36" - 78") 914 mm - 1981 mm
• For door width: (26") 660 mm
• Material: Steel
• Finish: Black, Zinc plated
• Supplied with:
  • Slide mounting hardware kit
  • Mounting instructions
• Packing & Sold in: Pair.
• Note: Unit of measure is Pair. When you buy a quantity of 1 you will get one pair. Price is for one pair.

Required products:

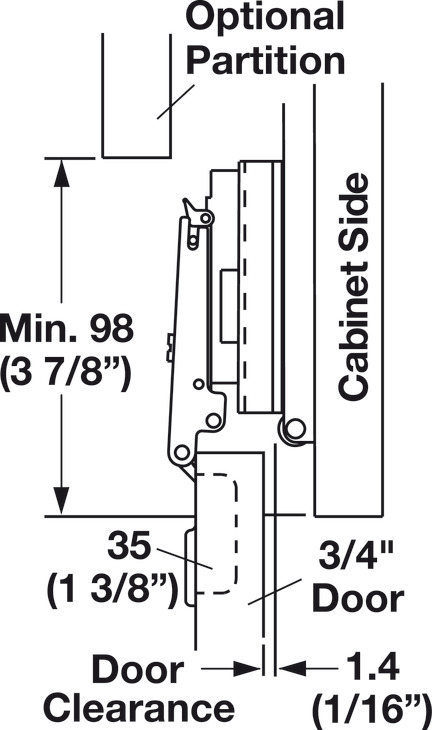

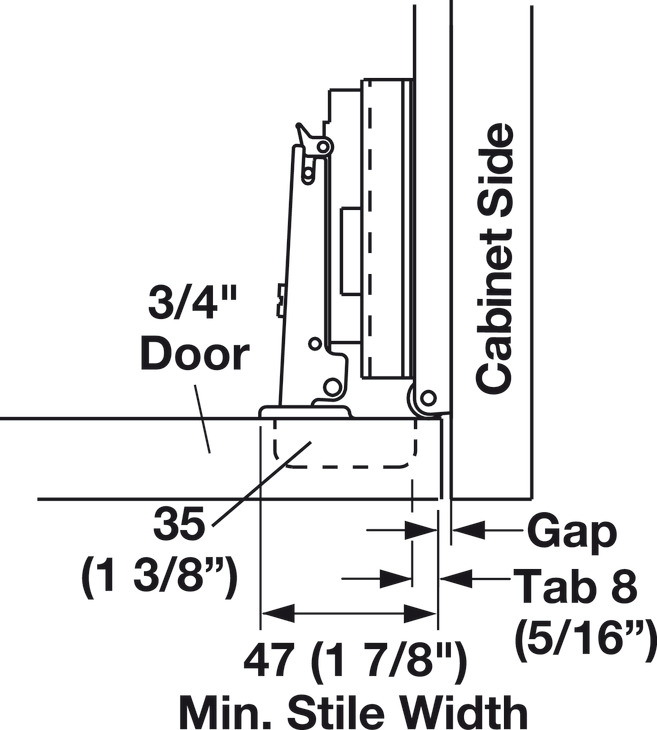

• 35 mm (1 3/8") Hinge Kit, for Accuride 1332/1432 Pivot Pocket Doo: 408.24.071, 408.27.070

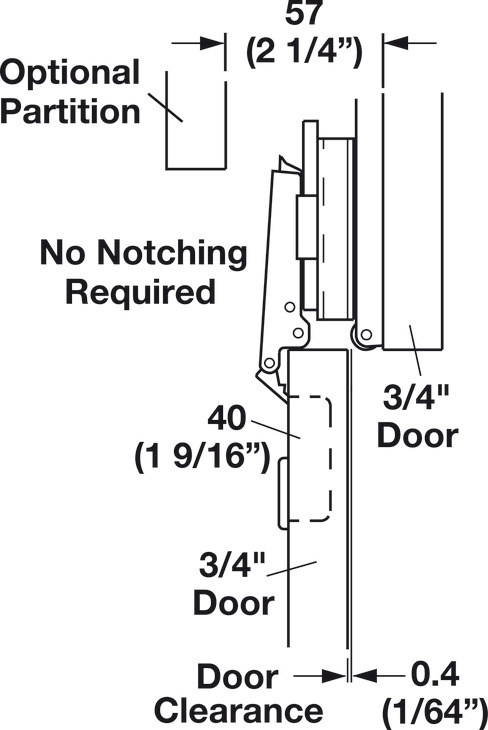

• 40 mm (1 5/8") Hinge Kit, for Accuride 1332/1432 Pivot Pocket Door: 408.24.074, 408.24.075
• Hinge Carrier Strip Kit, for Accuride 1332/1432 Pivot Pocket Door: 408.24.060, 408.24.061
• Connector Clip Kit, for Accuride 1332/1432 Pivot Pocket Door: 408.24.062
