Hafele 407.90.709

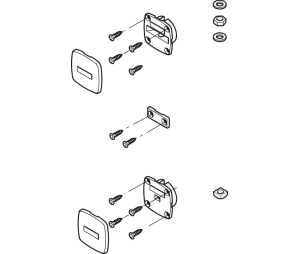

Hafele 407.90.709 Straightening Fitting, for Door Straightening System, Zinc Alloy, White, 1 Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Stock Alert

This item is discontinued and is kept in the database for informational purposes only.

Sales

Technical Support

Product Description:

Hafele 407.90.709 Straightening Fitting, for Door Straightening System, Zinc Alloy, White, 1 Set

Straightening fitting
For Door Straightening System
Planofit
Planofit adds rigidity to wooden sliding and hinged doors from 16 mm thick and prevents warping in either direction
Ideal for large, heavy doors
Can also be used to straight doors that have warped over a period of time
Normally two straightening fittings are recommended per door panel
Area of application: For sliding doors
Installation instruction:
- 1. The threaded rod is inserted into the trim strip and 2 x U-washers and a hexagonal nut is attached to both sides of it
- 2. The pre-mounted rod is then inserted into the groove
- 3. The tensioners are inserted into the boss drilling job and fixed with screws
- 4. Screw fix the retaining plates
- 5. The door can now be aligned using the tensioners with an open ended SW10 wrench
- 6. Position the cover caps on the tensioners
Material:
- Zinc alloy
- Plastic
Finish: White

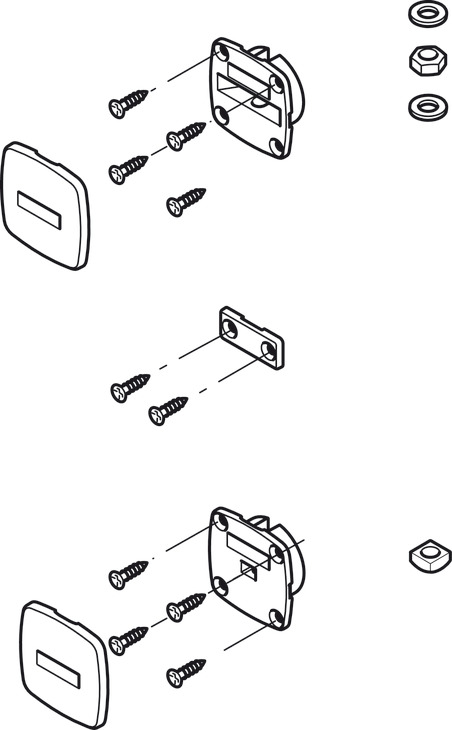

Supplied with:
- 2 x tensioners
- 1 x hexagonal nut
- 2 x securing washers
- 1 x square nut
- 2 x cover caps for tensioners
- 4 x retaining plates
Packing & Sold as: Set.
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
