Hafele 407.90.010
Hafele 407.90.010

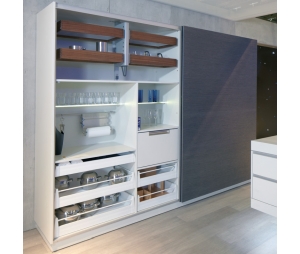

Hafele 407.90.010 Straightening Fitting, Planofit, Dimension A max. 74 25/32", 94 1/2" Door Height, Steel, Black, 1 Set
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
70.83 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 132
For quantities beyond the "In Stock" above, the item(s)
ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 407.90.010 Straightening Fitting, Planofit, Dimension A max. 74 25/32", 94 1/2" Door Height, Steel, Black, 1 Set
Straightening fitting
Planofit
For Wood Doors
Adds rigidity and prevents warping and twisting
Can be installed in new doors or retrofitted into existing doors
To straighten warped doors
Installation of two fittings per door is recommended
Not recommended for hard wood
For door thickness min. 5/8"
Max. Door Height: (94 1/2") 2400 mm

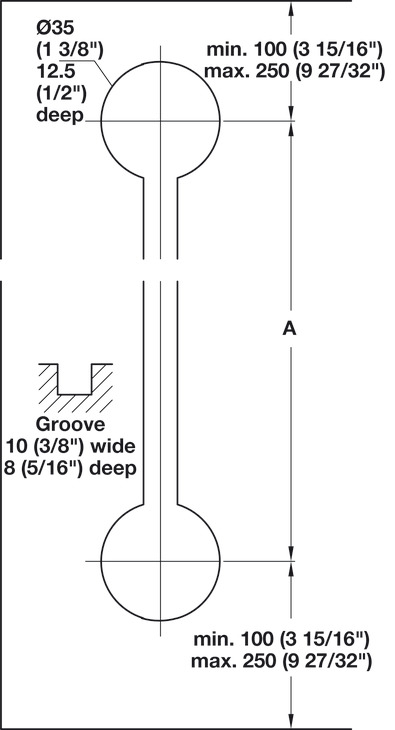

Dimension A max. (74 25/32") 1900 mm
Material:
Threaded rod: Steel, galvanized
Tensioner: Zinc alloy, bright
Trim strip, cover caps and retaining plate: Plastic
Finish: White
Supplied with:
2 Threaded rods - 2195 mm (86 7/16")
2 Trim strips - 2138 mm (84 3/16")
4 Tensioners
2 Square nuts
2 Hexagon nuts
4 Cover caps (for open-type tensioner and closed-type tensioner)
8 Retaining plates
4 Lock washers
Packing & Sold as:
Set.
Note:
Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
