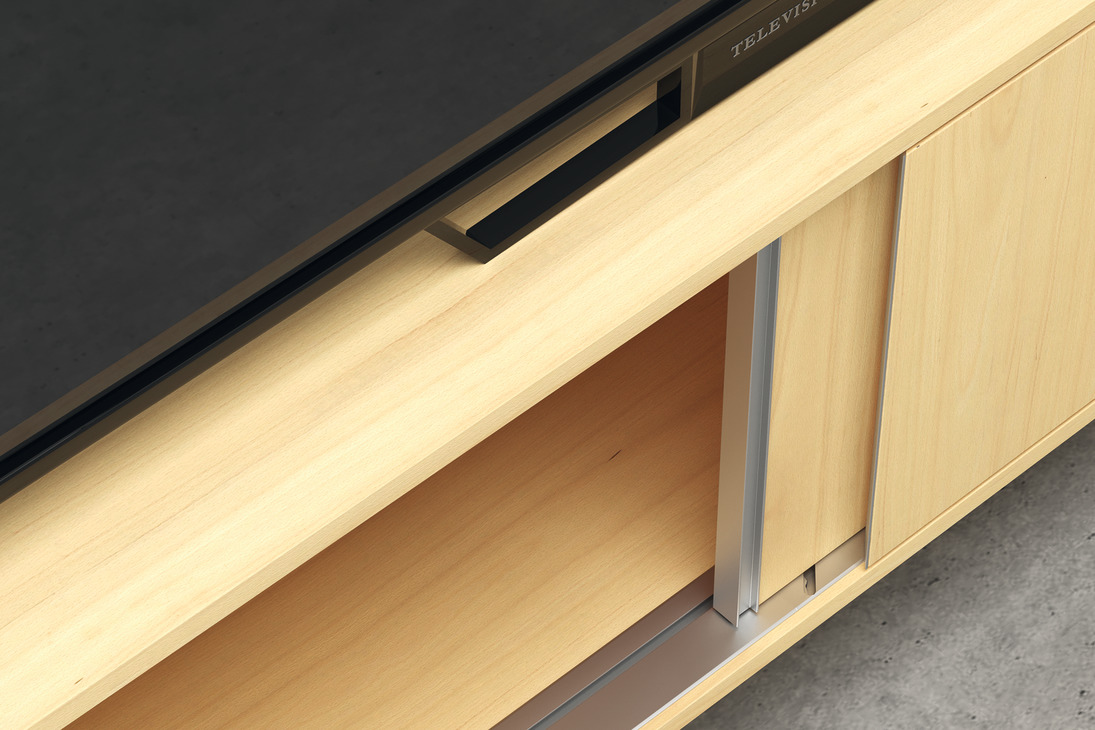

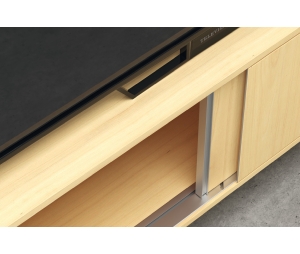

Hafele 407.40.093 Sliding Door Hardware, Häfele Slido F-Flush52 20A, 35 3/4" Internal Cabinet Width, 17 11/16" Cabinet Width, Silver, 1 Set
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
411.44 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 7
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 407.40.093 Sliding Door Hardware, Häfele Slido F-Flush52 20A, 35 3/4" Internal Cabinet Width, 17 11/16" Cabinet Width, Silver, 1 Set
Sliding Door Hardware
Häfele Slido F-Flush52 20A
Exclusive: For flush, inside running doors
Door adjustment via: Knurled nut (without tools)
Installation: Running gear for screw fixing

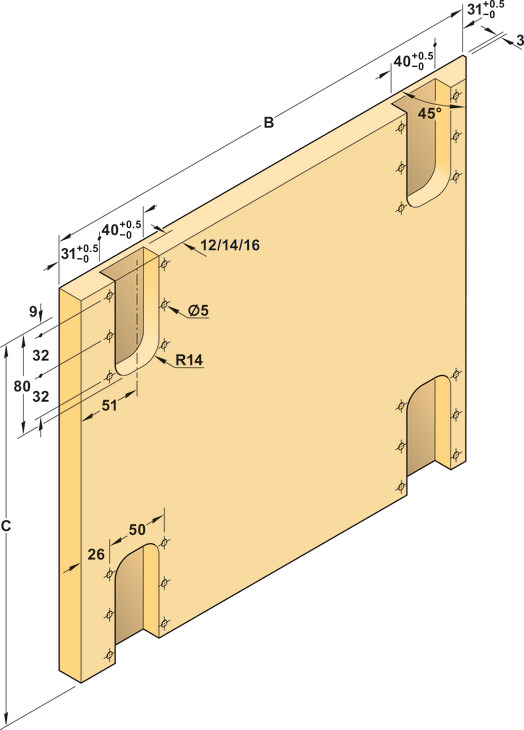

Door processing: With recess
Installation reference: A centre panel is mandatory.
Adjustment facility: ±2 mm
For door thickness: (3/4" -7/8") 18 mm - 22 mm
For material thickness: = (3/4") 18 mm

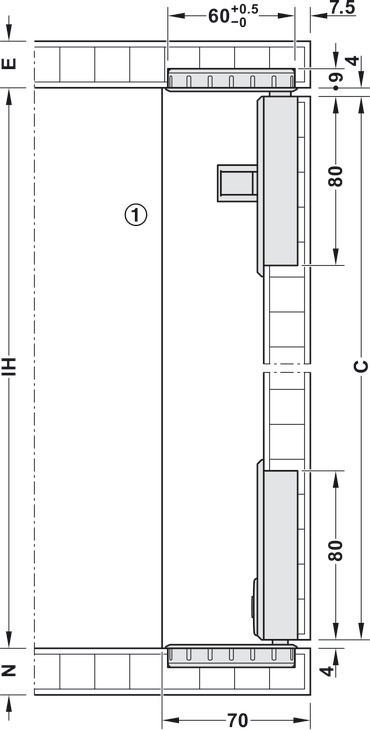

Installation depth, bottom: (2 3/4") 70 mm
For door height: = (63") 1600 mm
Length (inch): 2' 1 19/32"
For door weight: = (44lb) 20 kg
Door width: (17 11/16") 450 mm
Internal cabinet width: (35 3/4") 908 mm
For cabinet width: (35 7/16") 900 mm
Finish: Silver colored anodized
Supplied with:
2 running tracks
4 bottom running gears
4 top guide parts

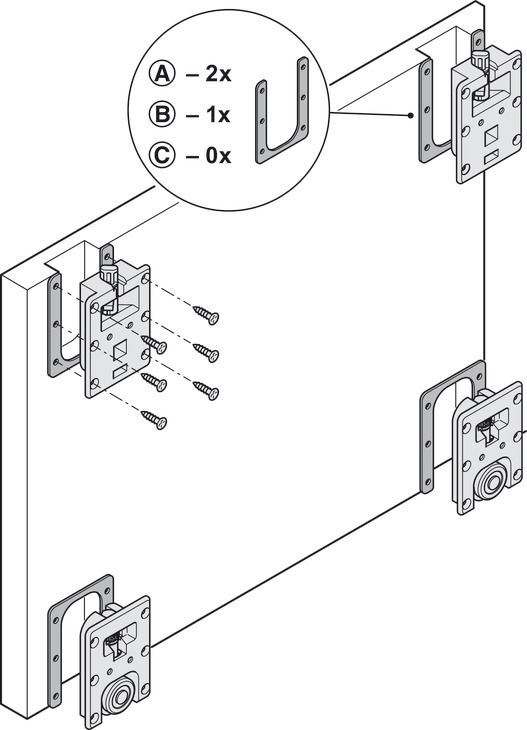

Spacer plates for door thickness 18 and 20 mm
Packing & Sold as:
Set.
Note:
Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
