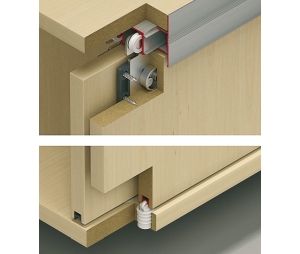

Hafele 405.91.724

• Sliding Door Hardware
• Hawa Combino 35 IF
• Soft closing mechanism: with clip-in door stopper
• Model series: Combino

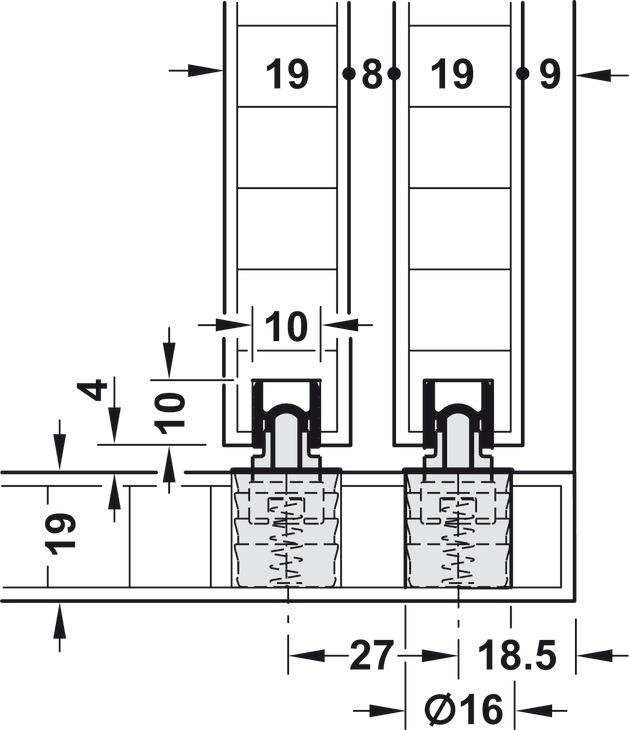

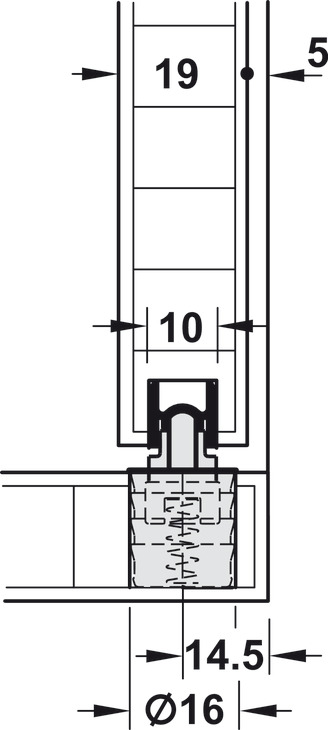

• Door stopper: Top clip-in door stopper, for sliding into double or single running track
• Running position: Top
• Running gear guided by: Ball bearing
• Type of opening: linear

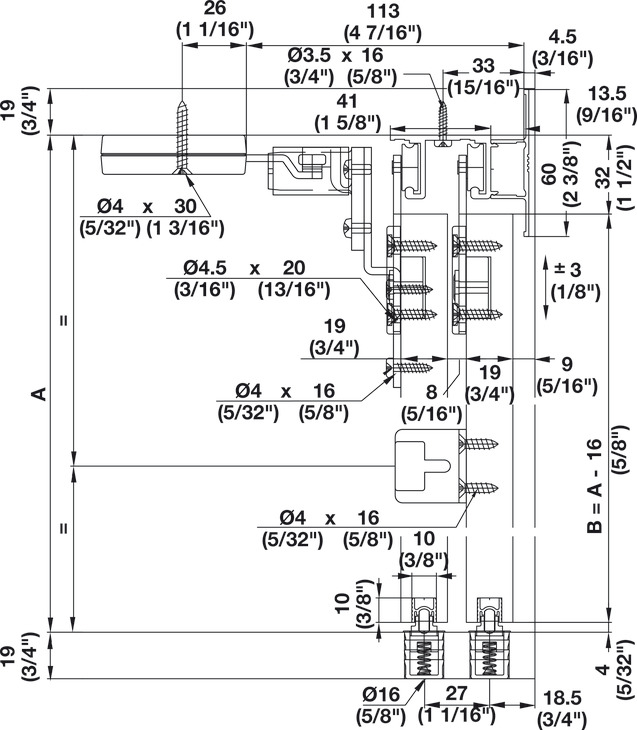

• Installation:

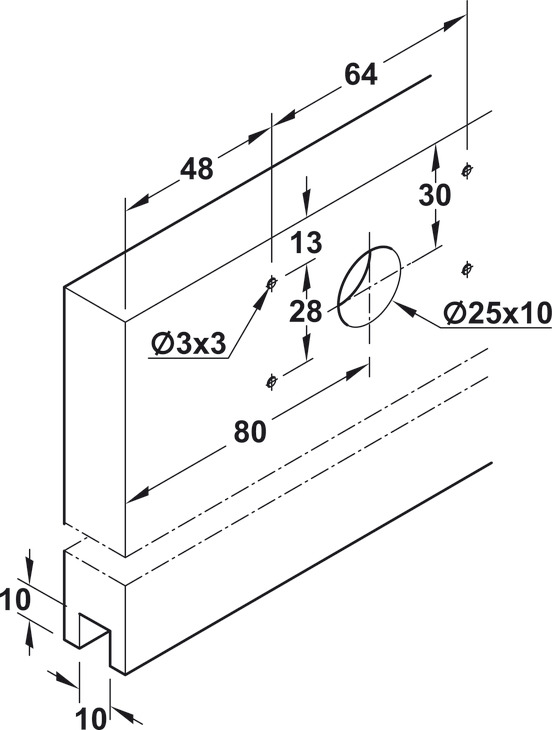

  • Guide for press fitting into a drill hole
  • Running gear for screw fixing
  • Backlash-free spring-loaded floor guide for press fixing
• Adjustment facility:
  • Height adjustment: ±3 mm

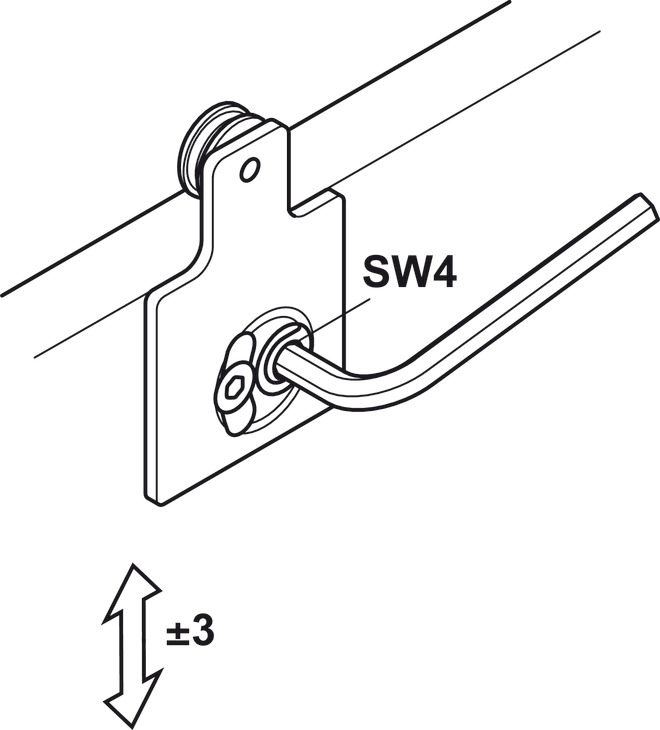

  • ±3 mm on running gear using eccentric screw
• Tool-less door mounting via spring guide bolt
• Elegant clip-on aluminum fascia
• Number of doors: 3
• Number of rollers: 2
• For door weight: max. (77 lbs) 35 kg
• For door Thickness: (3/4") 19 mm
• For door width: max. (47 1/4") 1200 mm
• For door height: max. (86 5/8") 2200 mm
• Material:
  • Running gear: Steel
  • Guide: Plastic
  • Rollers: Plastic
  • Axis: Steel
• Supplied with:
  • Running gears
  • Mounting bracket
  • Track stopper with retainer
  • Track stopper
  • Guide
  • Buffer (2 different types)
  • Mounting screws
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Single Running Track, Hawa Combino 20 and 35 H IF: 406.30.967, 406.30.976
• Double Running Track, For Hawa Combino IF/MF: 406.31.964, 406.31.973, 406.31.982

Optional accessories:

• Clip-on Fascia, For Hawa Combino IF/MF: 406.34.942
• Clip-on Adapter for Wood Fascia, For screw fixing to panel and clip fixing to running track: 406.35.900
