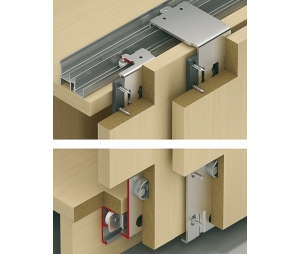

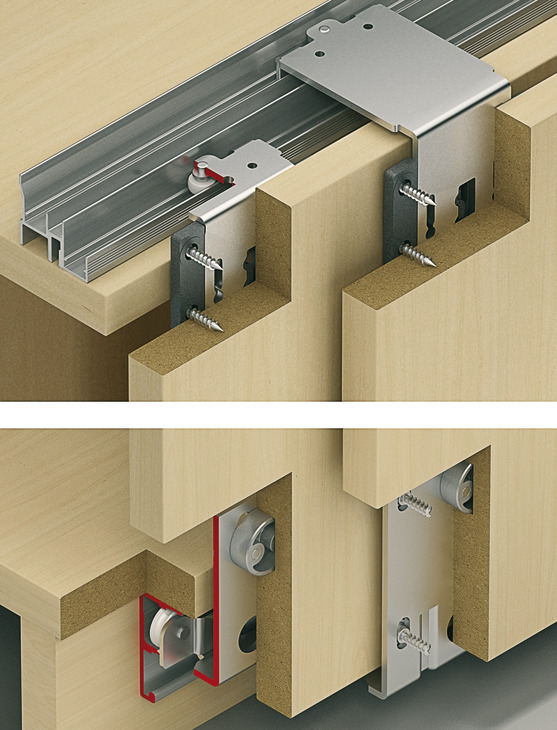

Hafele 405.91.125

• Sliding Door Hardware
• Hawa Combino 20 VF
• Soft closing mechanism: with clip-in door stopper
• Model series: Combino 20 VF
• Door stopper: Top and bottom clip-in door stopper or soft and self closing mechanism
• Running position: Bottom
• Running gear guided by: Ball bearing
• Type of opening: linear
• Door adjustment via: eccentric screw

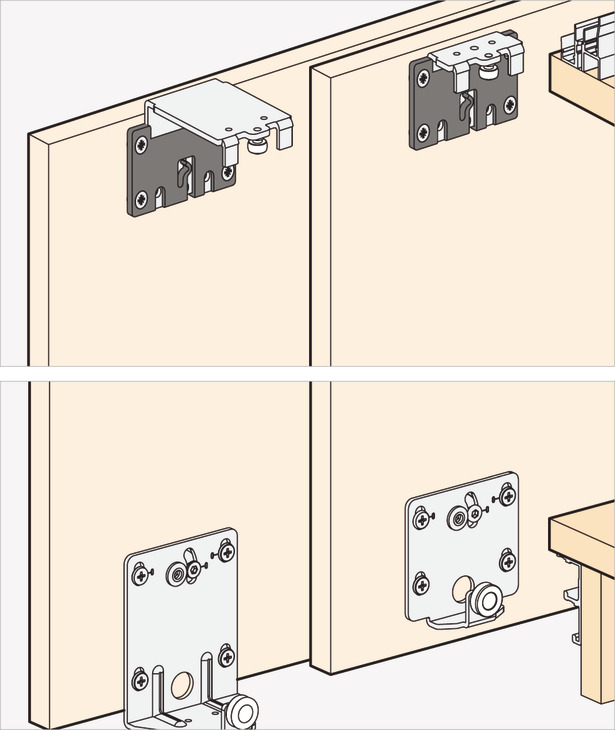

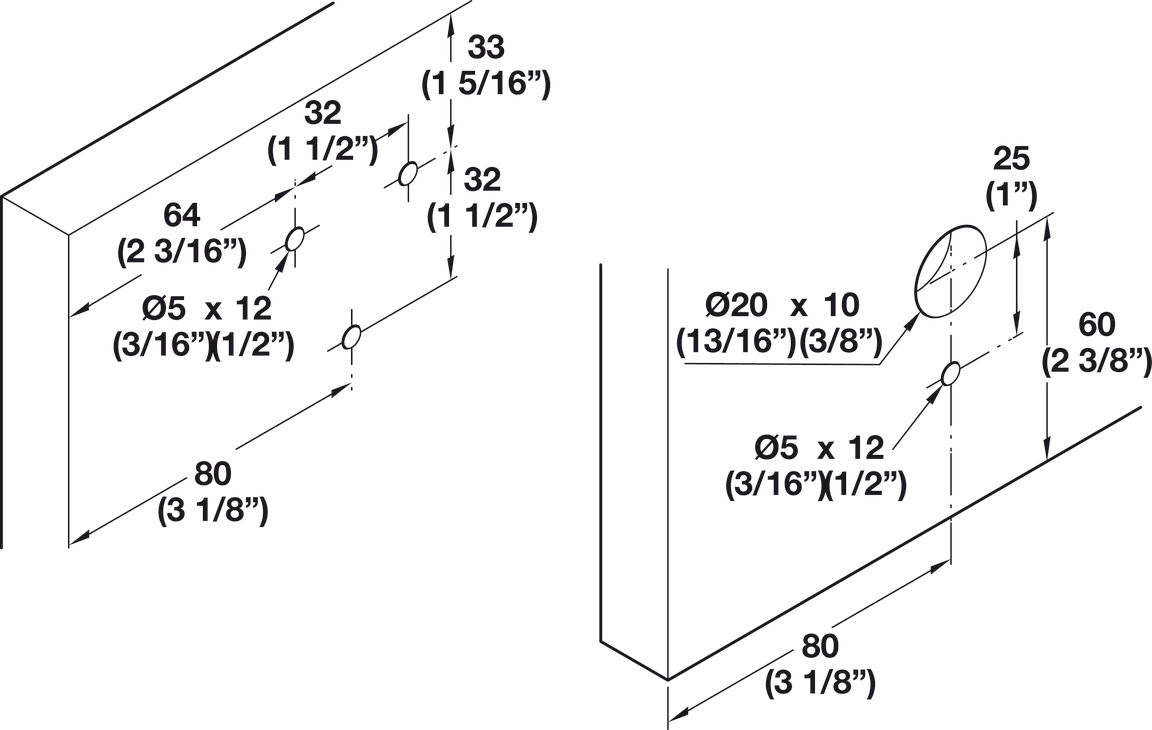

• Installation:
  • Running gear and guide for screw fixing
  • Tool-free installation and de-installation of door wings
• Adjustment facility:
  • Height adjustment: -2 - 4 mm
  • Height +4/-2 mm on running gear using eccentric screw
• Number of doors: 2
• Number of rollers: 1
• For door weight: max. (77 lbs) 35 kg
• For door Thickness: (3/4") 19 mm
• For door width: max. (47 1/4") 1200 mm
• For door height: max. (86 5/8") 2200 mm
• Material:
  • Running gear: Steel
  • Guide: Steel
  • Rollers: Plastic
• Supplied with:
  • 4 Running gears
  • 4 guides
  • 6 Mounting brackets
  • 3 Track stoppers with retainers
  • 1 Track stopper
  • 4 Clip retainers
  • 5 Buffers
  • 1 Set ounting screws
• Order reference: Please order running and guide track separately.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Double Upper Guide Track, Pre-drilled: 405.52.026, 405.52.036
• Double Lower Running Track, EKU Combino 20 and 35 H Foreslide: 406.31.902, 406.31.903

Optional accessories:

• Soft and self closing mechanism, For Hawa Combino 20/35 VF/MF/IF: 405.10.003
• Cover Profile, EKU Combino 20 and 35 H Foreslide: 406.31.912
• Center Door Stopper, Steel spring part, plastic retainer: 405.93.020
