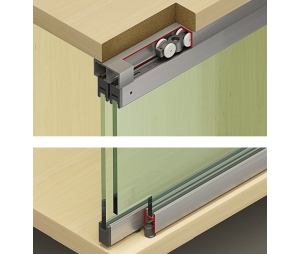

Hafele 405.82.290

• Sliding Door Hardware
• Hawa Clipo 16 GPK IF
• Area of application: For 2 doors
• Soft closing mechanism: with clip-in door stopper
• Cabinet version: with sliding doors without glass drilling
• Model series: Clipo
• Set without tracks
• Version: with top glass retaining profile and visible bottom guide with zero clearance
• Door stopper: Top clip-in door stopper
• Running position: Top
• Running gear guided by: Friction bearing
• Door processing: Without glass preparation

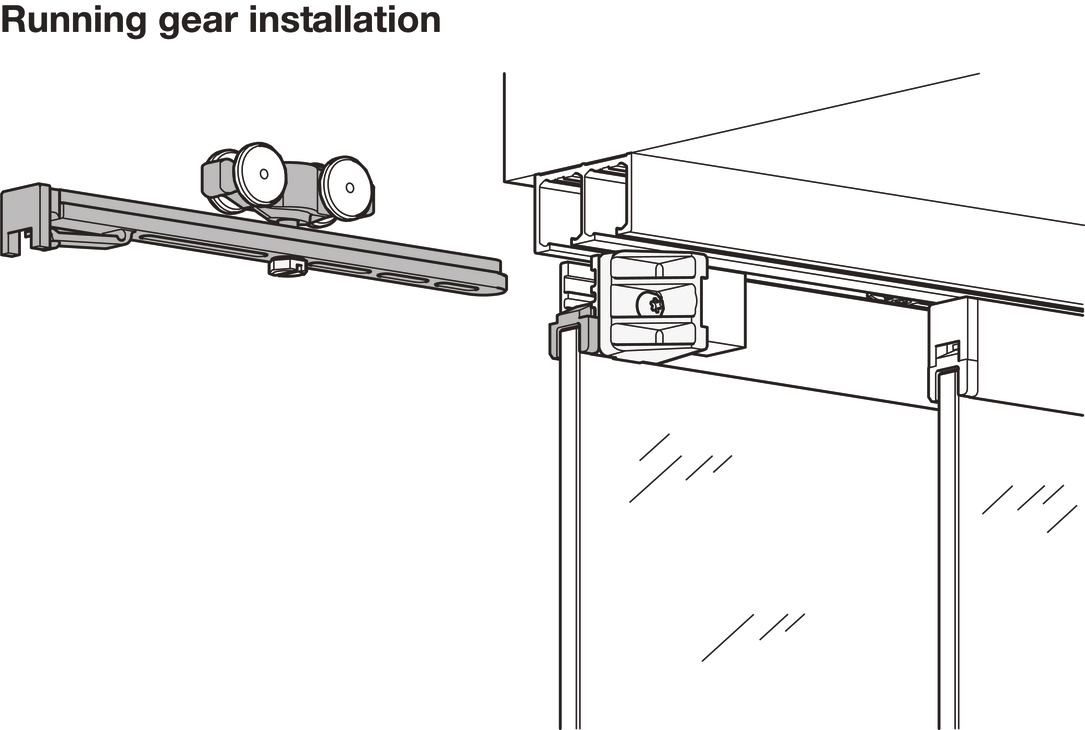

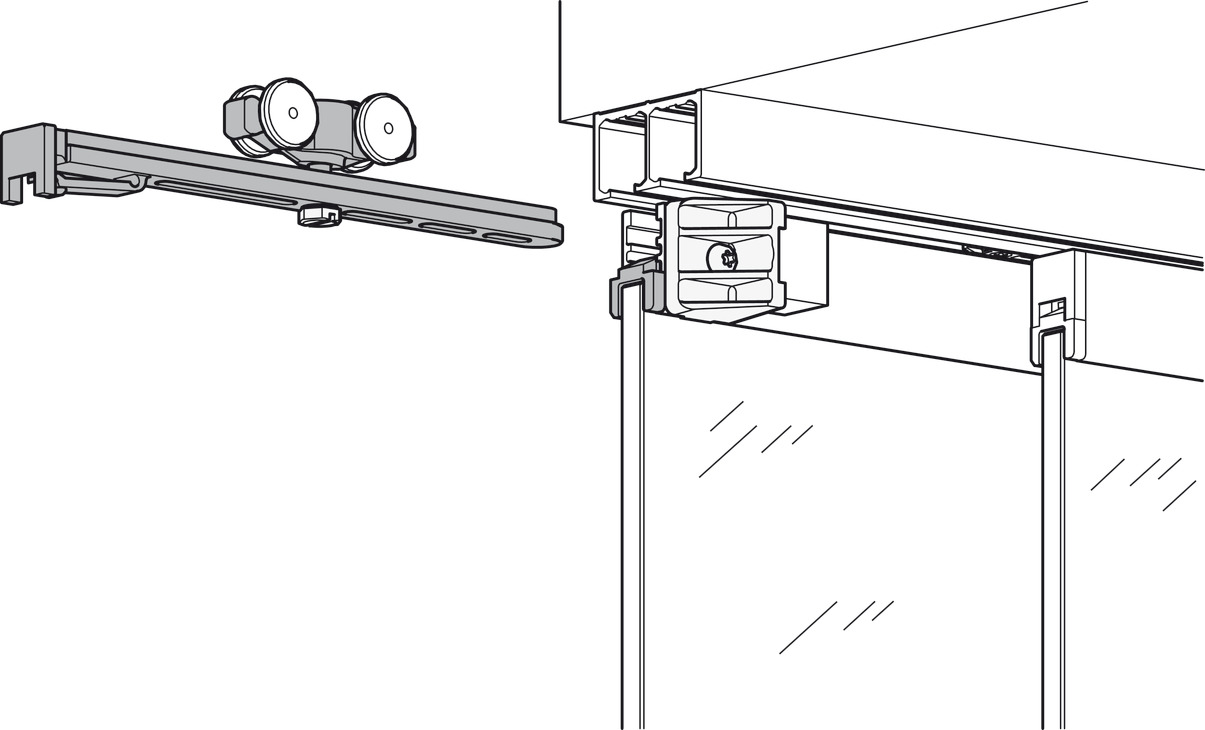

• Installation: Screw-on guide, Running gear without tools (quick fixing system)
• Adjustment facility: Height adjustment: -1 - 2 mm, Height (+/- 1/16") +2/-1 mm
• Type of opening: linear
• Cabinet top panel thickness min. (1/4") 6 mm
• For door width: max. (39 3/8") 1000 mm
• For door height: max. (55 1/8") 1400 mm
• For door weight: max. (35 lbs) 16 kg
• Material: Plastic
• Supplied with:
  • 4 Running gears
  • 4 locking components
  • 2 floor guides
  • 1 door follower
  • 2 door stoppers with clip-in door stopper
• Order reference:

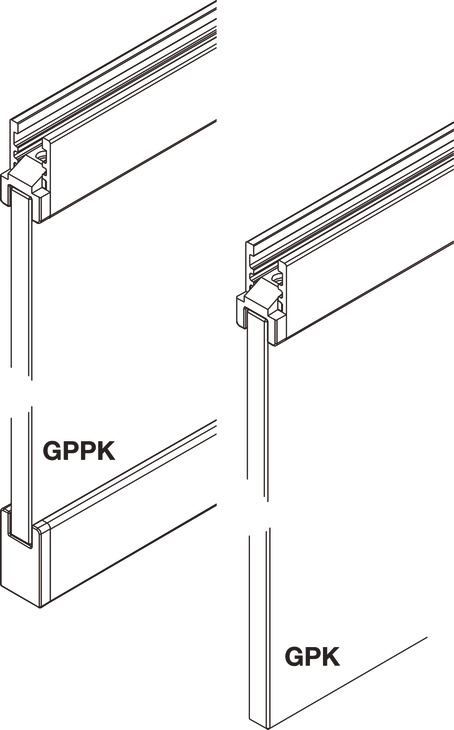

  • Please order running tracks, guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately.
  • Please order soft closing mechanism set separately.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Sliding Door Hardware, Top, for screw fixing: 405.90.962, 405.90.963
• Double Top Track, Top, for screw fixing: 405.90.972, 405.90.973
• Glass Fixing Profile, Top and Bottom, for Glue Fixing: 405.89.932
• Single Top Track, Hawa Clipo: 405.87.042
• Single Top Track, Hawa Clipo: 405.87.092
• Single Top Track, Hawa Clipo: 405.87.082, 405.87.083

Optional accessories:

• Soft Close Mechanism, Hawa Clipo IF: 405.10.075, 405.10.077
• Service Port, Hawa Clipo: 405.83.180
• Service Port, Hawa Clipo: 405.83.181
• Knob, For Sliding Glass Doors: 405.46.910
• Flush pull, for Sliding Glass Doors: 405.46.900
