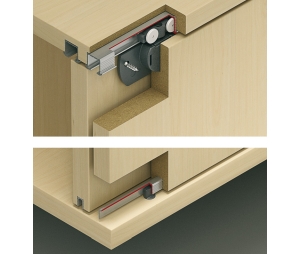

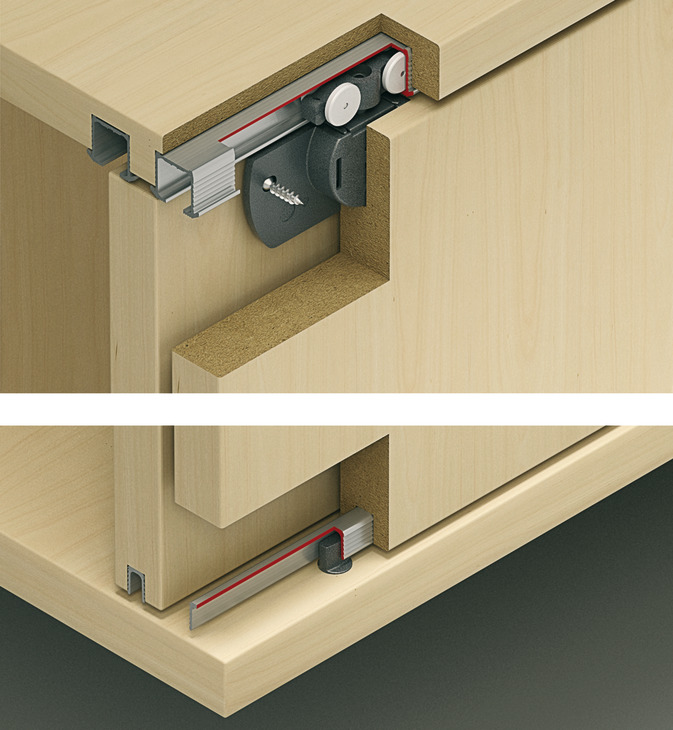

Hafele 405.82.216

• Sliding Door Hardware
• Hawa Clipo 16 IF
• Area of application: For 2 doors
• Running gear guided by: Friction bearing
• For door material: aluminum frame
• Cabinet version: with thin cabinet top panels, with narrow doors
• Model series: Clipo
• Set without tracks
• Running position: Top
• Door stopper: Top clip-in door stopper, for sliding into running track
• Adjustment facility:
  • Height adjustment: -1 - 2 mm
  • Height +2/-1 mm on running gear using adjusting wheel
• Installation:

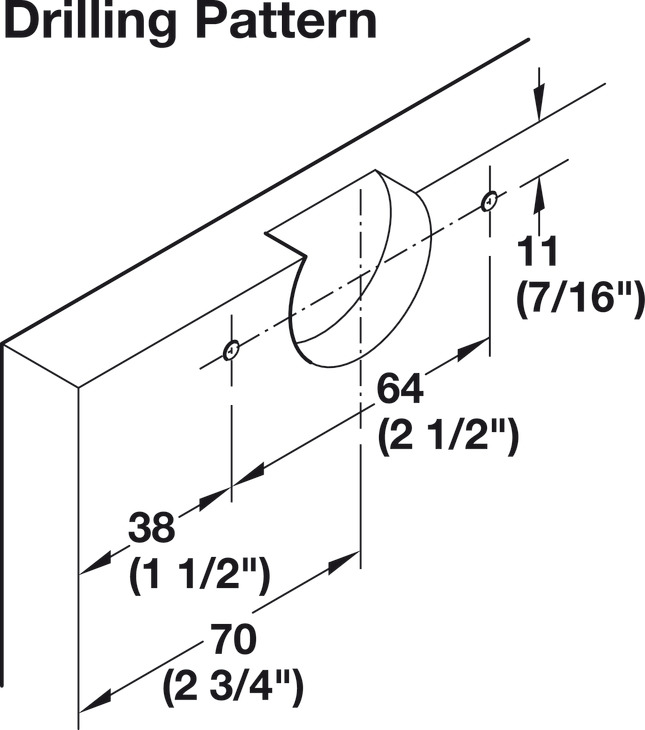

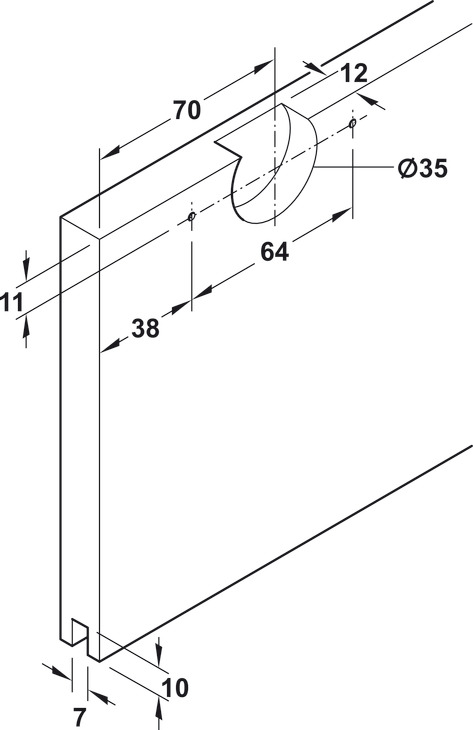

  • Guide for press fitting into a drill hole
  • Screw-on housing
  • Running gear without tools (quick fixing system)
• Door adjustment via: adjusting wheel
• Running gears with clip-mounting, plastic rollers with metal axles
• Optional soft close
• Quick door mounting
• No guide rails in the floor
• A wood cover panel is not needed

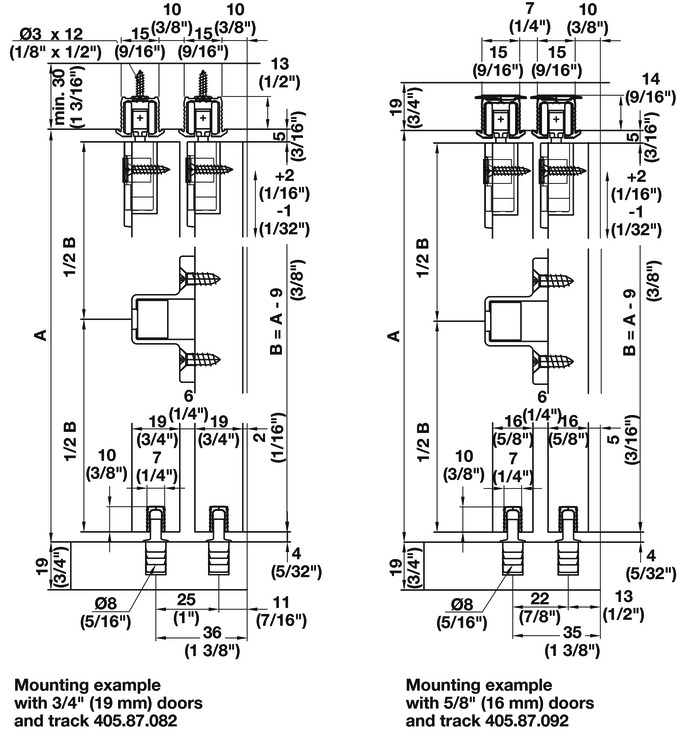

• Cabinet top panel thickness min. (5/8" - 3/4") 16 mm - 19 mm
• For door width: max. (39 3/8") 1000 mm
• For door height: max. (55 1/8") 1400 mm
• Height adjustment: +1/16-1/32"
• For door weight: max. (35 lbs) 16 kg
• Material:
  • Housing: Plastic
  • Laufwerk: Plastic
  • Guide: Plastic
  • Rollers: Plastic
  • Axis: Steel
• Supplied with:
  • 4 Running gears
  • 4 housing pieces
  • 1 soft stop
  • 2 track stoppers
  • 2 floor guides
• Order reference:

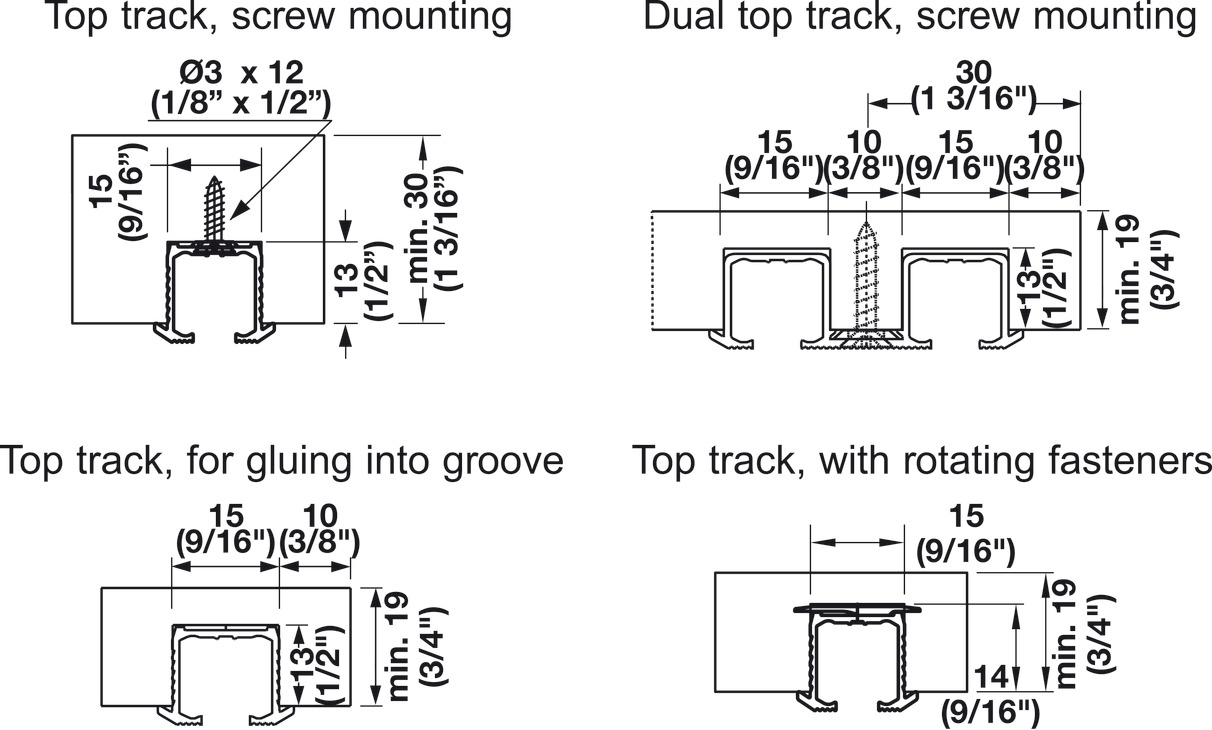

  • Please order running and guide tracks separately.
  • Please order soft closing mechanism set separately.

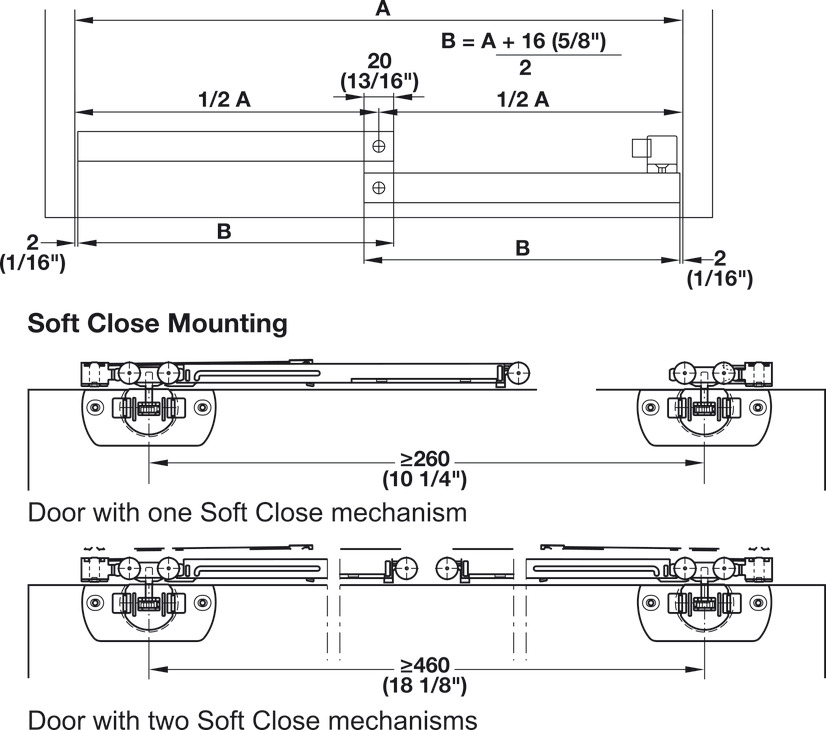

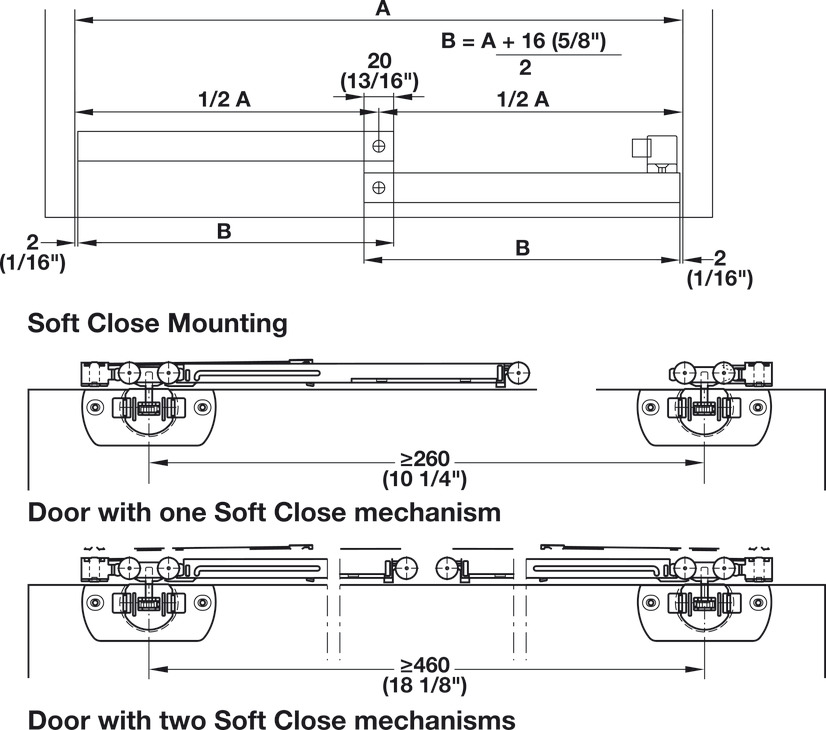

  • Soft closing mechanism on one side is possible from pitch length of min. 260 mm, both sides from 460 mm
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Optional accessories:

• Service Port, Hawa Clipo: 405.83.180
• Service Port, Hawa Clipo: 405.83.181
