Hafele 405.82.215

Name: Hafele 405.82.215 Sliding Door Hardware, Hawa Clipo 15 H Set, Infront, for Straight or Curved Wooden Doors, for Door Weights up to 33 lbs., for 2 Doors, Plastic/Steel
Brand: Hafele
SKU: Hafele 405.82.215
Price: 151.55 USD

Hafele 405.82.215 Sliding Door Hardware, Hawa Clipo 15 H Set, Infront, for Straight or Curved Wooden Doors, for Door Weights up to 33 lbs., for 2 Doors, Plastic/Steel

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 405.82.215 Sliding Door Hardware, Hawa Clipo 15 H Set, Infront, for Straight or Curved Wooden Doors, for Door Weights up to 33 lbs., for 2 Doors, Plastic/Steel

Price: $151.55 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 9

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

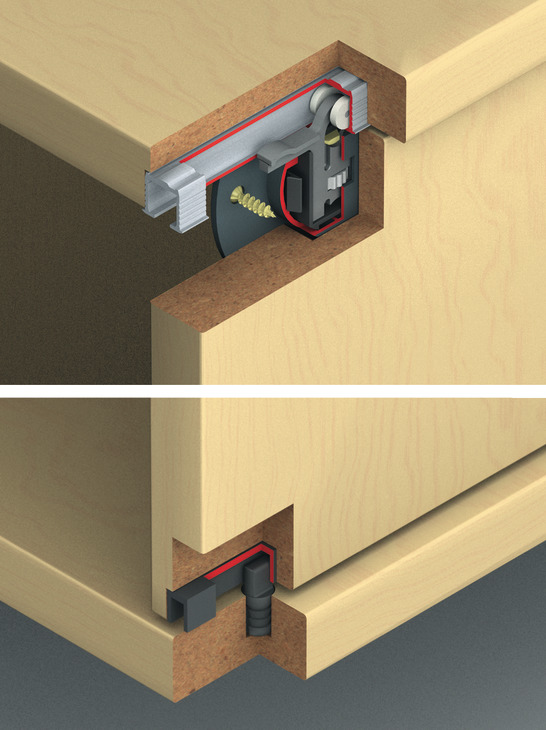

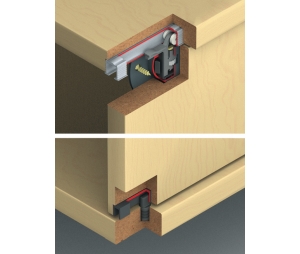

Hafele 405.82.215 Sliding Door Hardware, Hawa Clipo 15 H Set, Infront, for Straight or Curved Wooden Doors, for Door Weights up to 33 lbs., for 2 Doors, Plastic/Steel

Sliding Door Hardware
Hawa Clipo 15 H Set
Infront
For straight or curved wooden doors
Running position: Top
Running gear guided by: Friction bearing
Set: Set without tracks
Door adjustment via: Adjusting wheel
Type of opening: Linear
Cabinet version: With straight and curved door leaves
Door stopper: Top stopper, with retainer for sliding into single top running track

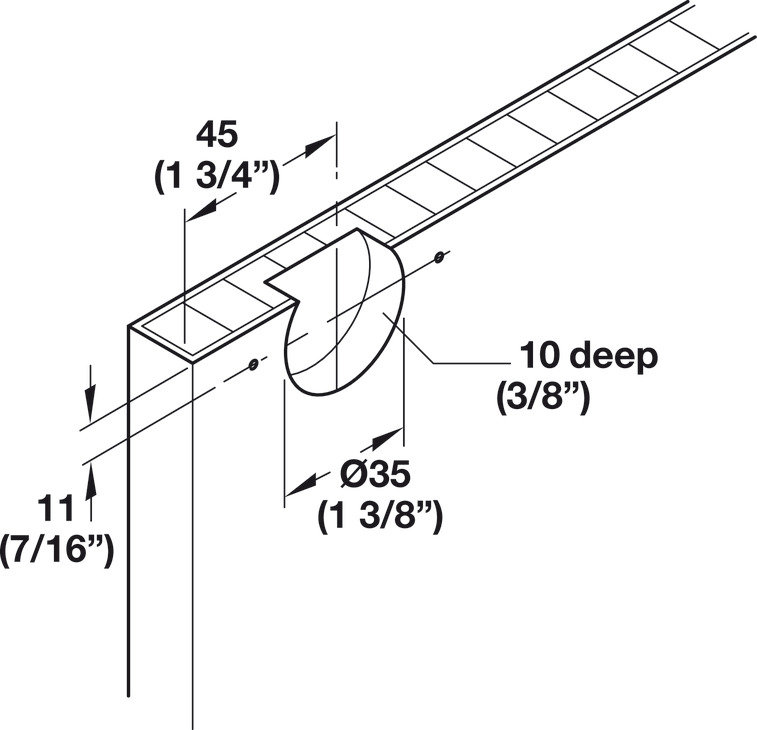

Installation: Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)
Adjustment facility: Height adjustment: -1.5 – 1.5 mm, Height: ±1.5 mm on running gear using adjusting wheel
Area of application: For door weights up to 15 kg (33 lbs.)
Number of doors: 2.00
For door thickness: 16 – 19 mm
For door thickness min.: 5/8" and 3/4"
For door width: ≤1,000 mm
For door weight: ≤15 kg
Door height min.: 55-1/8"
For door height: ≤1,400 mm
Door width max.: 39-3/8"
Number of rollers: 1.00
Height adjustment: ±1.5 mm
Height adjustment: ±1/16"
Number of doors per system max.: 2
For door material: Wood
Material/Finish: Housing: Plastic; Running gear: Plastic; Guide: Plastic; Rollers: Plastic; Axis: Steel
Packing & Sold as: Set
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
