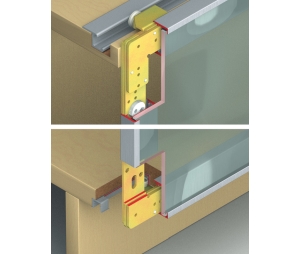

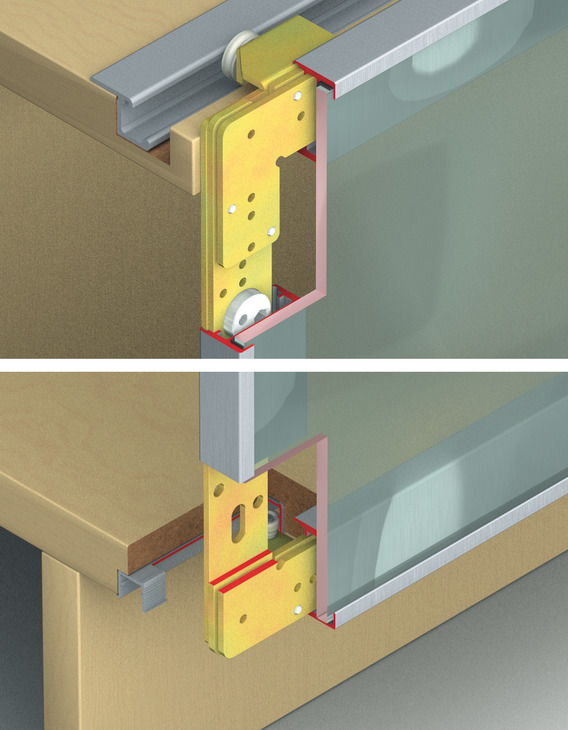

Hafele 405.55.111

• Sliding Door Hardware
• Hawa Regal A 25 GR VF
• Model series: Regal
• Running position: Top
• Running gear guided by: Ball bearing
• Cabinet version: shelves
• Door stopper: Top stopper, with retainer for sliding into single top running track
• Door adjustment via: eccentric screw

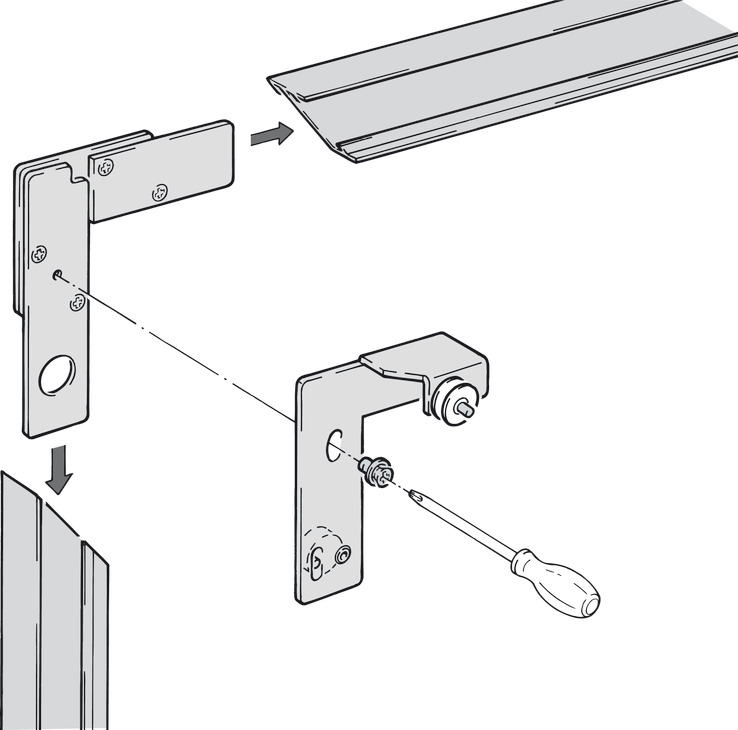

• Installation: Running gear and guide for screw fixing
• Area of application:
  • For door weights up to 25 kg
  • For sliding doors with aluminium frame 40/22
• Adjustment facility:
  • Height adjustment: ±2 mm

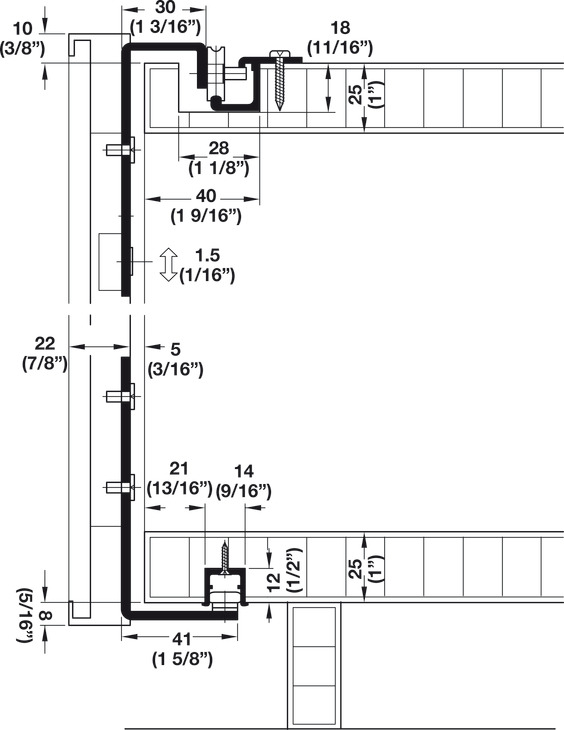

  • Eccentric height adjustment of ±1.5 mm (± 1/16") on running gear
• Number of doors: 1
• Number of rollers: 1
• Height adjustment: ±2 mm
• For Door Thickness: min. 5/32"
• For door width: max. (47 1/4") 1200 mm
• For door height: max. (86 5/8") 2200 mm
• For door weight: max. (55 lbs) 25 kg
• Material: Rollers: Plastic
• Please order running tracks, guide rail, aluminum profile and glass gasket separately.

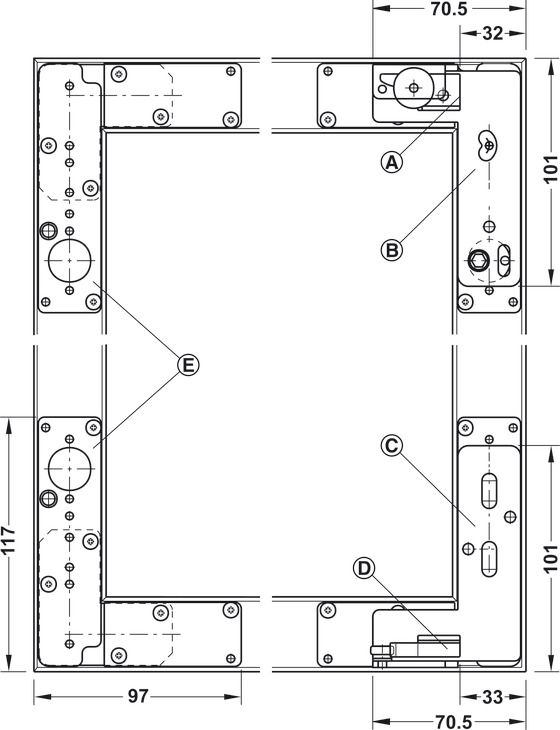

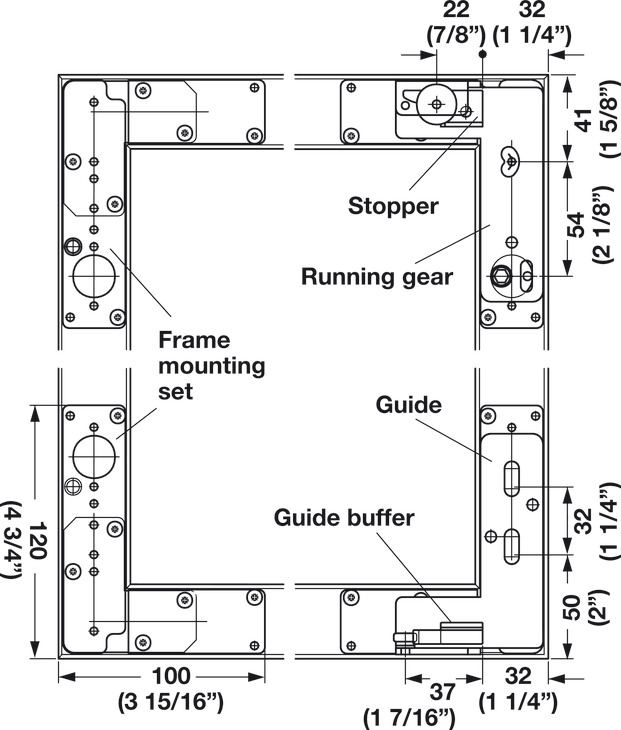

• Supplied with:
  • 1 Running gear
  • 1 guide
  • 1 frame mounting set
  • 2 stoppers (left & right)
  • 2 guide bufferss
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, For Hawa Regal VF: 405.56.002, 405.56.002
• Single Guide Track, for Hawa Combino/Regal MF/VF, Hawa Divido: 405.30.026, 405.30.036

Optional accessories:

• Aluminum frame profile, For 40/22 aluminum frame, Hawa Frontal: 405.58.002, 405.58.003
• Glass Gasket, EKU Clipo 26 GR & Regal A 25 GR 40/22 Forslide: 401.65.526
• Intermediate Door Stop, For Hawa Regal VF: 405.33.030
