- Sliding Door Hardware

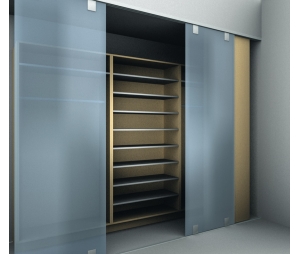

- Hawa Ordena 70/F

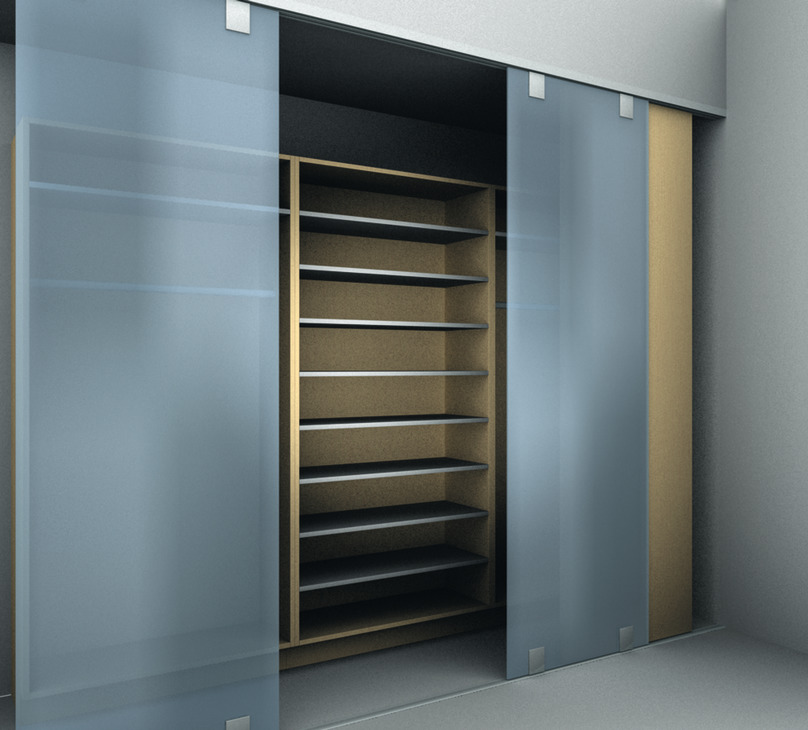

- Top running sliding system that is impervious to dust and dirt

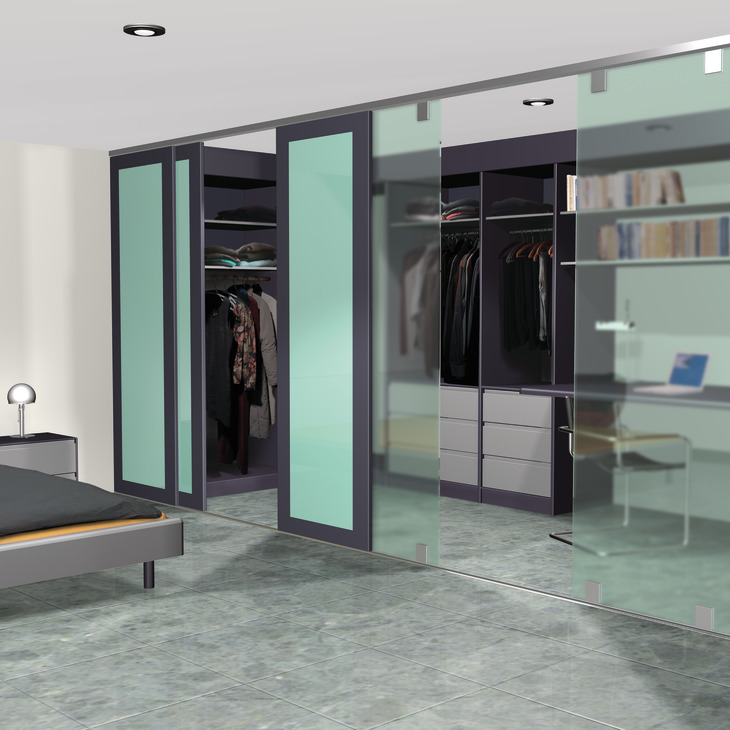

- Allows wood and glass sliding door combinations

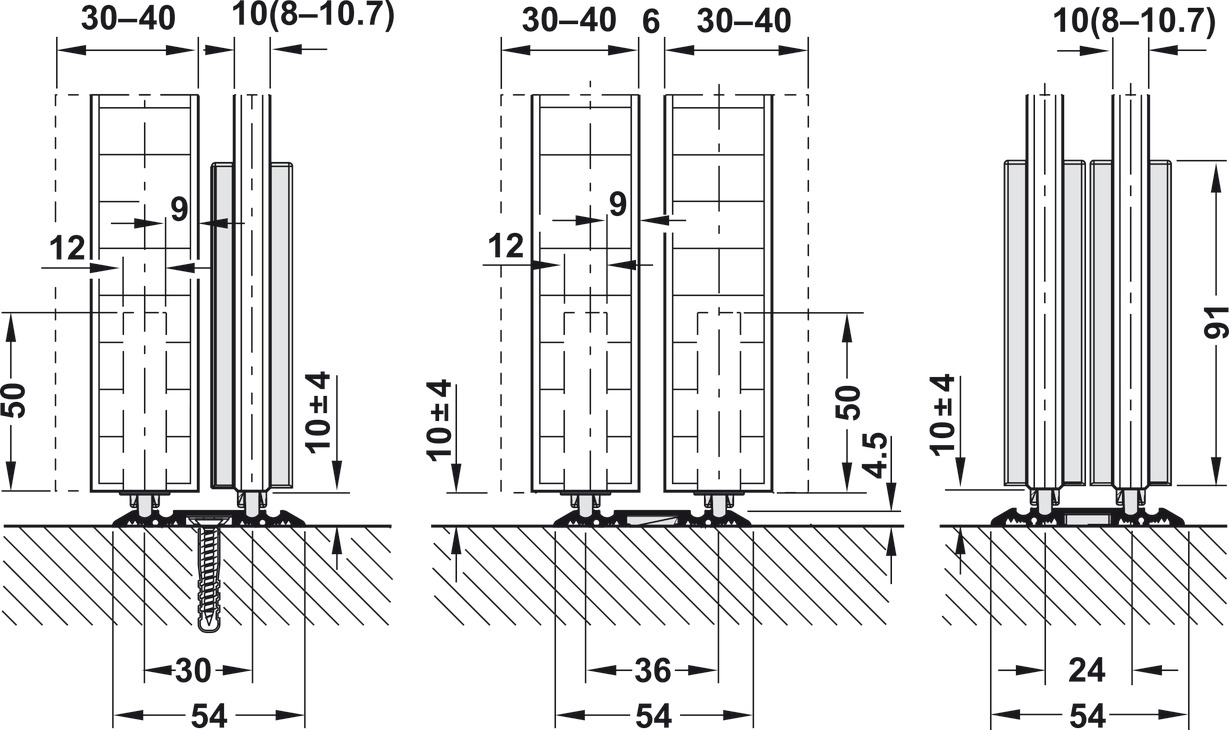

- Lower guide channel is only 4.5 mm high; it is clipped or glued on

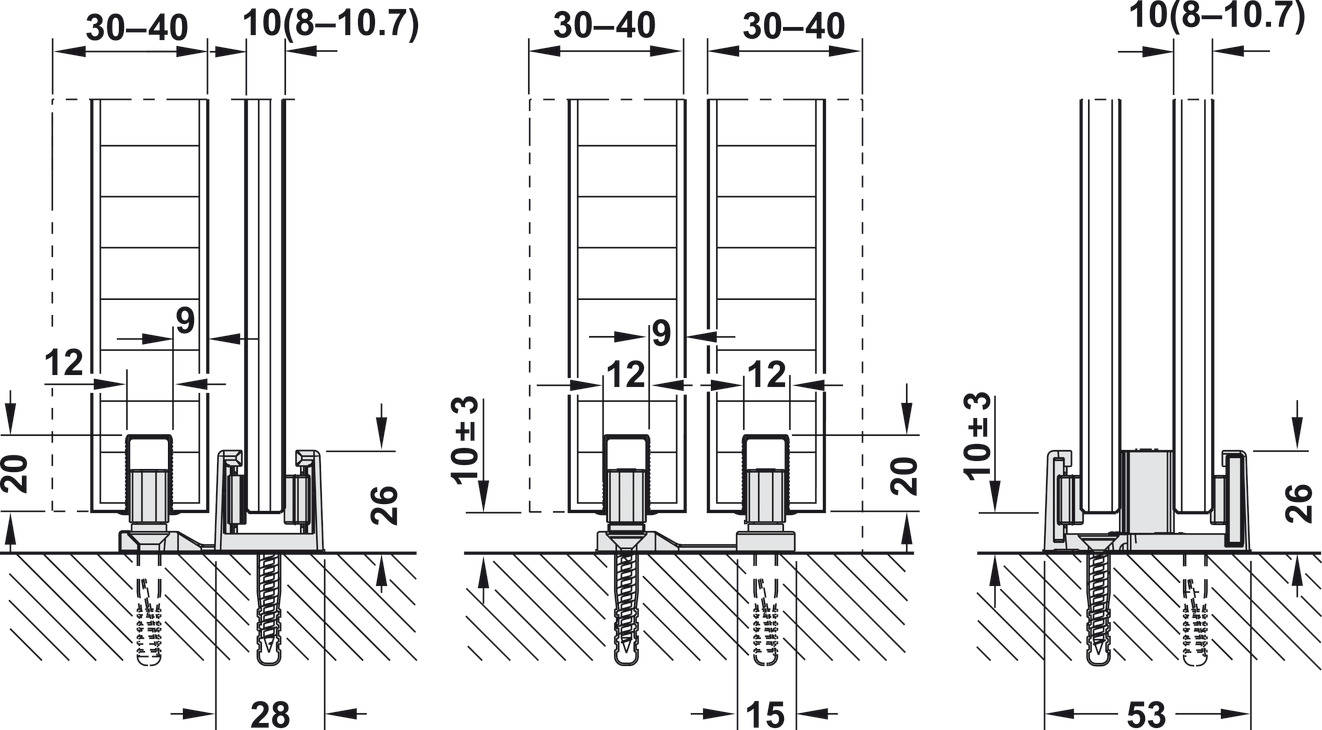

- Wider doors are guided securely with two spring-loaded lower guides

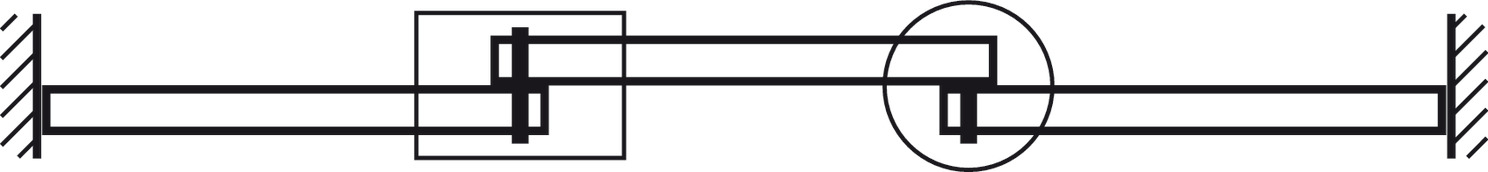

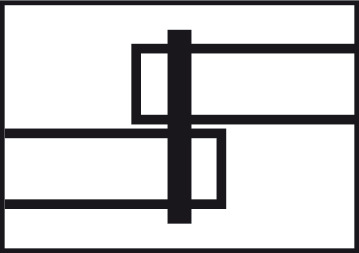

- Center stops hold sliding doors in correct closed position
- For door material: wood
- Controller installation options: Ceiling installation
- Suitable for: Room-high solutions
- For glass type: Tempered safety glass, Laminated glass
- Installation: Suspension with form-fitting glass connection with glass holders

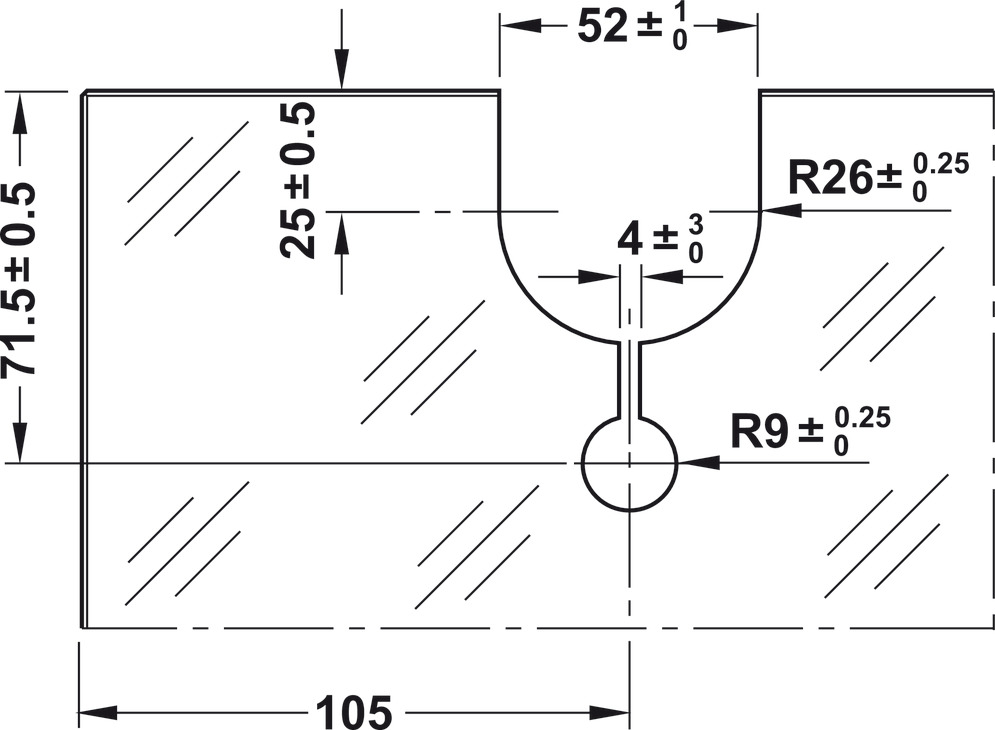

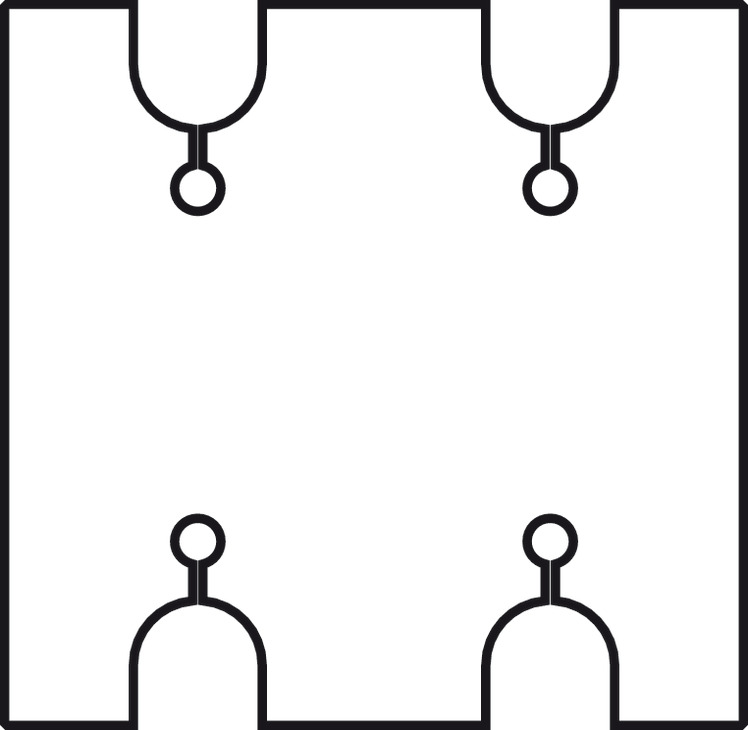

- Door processing: With recess, With glass preparation
- Running gear guided by: Ball bearing
- Number of doors: 1
- Number of rollers: 4
- Number of doors per system max. 4
- Adjustment facility: Height: +/- 3 mm (1/8")
- For Door Thickness: (1 3/16" - 1 9/16") 30 mm - 40 mm
- For Door Height: = (102 1/3") 2600 mm
- For Door Width: = (23 5/8") 600 mm
- For door weight: = (154 lbs) 70 kg
- For glass thickness with tempered safety glass: (5/16" - 25/64") 8 mm - 10 mm
- Material:
- Order reference:
- Order appropriate number of sets for multiple-leaf sliding door systems.
- Please order running and guide track, guide, fixing set, door buffer set, sealing profile, centring door stop and cover caps separately.
- Supplied with:
- 4 Running gears
- 2 Support profiles
- 2 cover caps
- Hex key
- Installation instructions
- Packing & Sold as: Set.
- Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
Required products: Optional accessories: - Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in: 940.41.130
- Fixing set, For single guide track: 404.97.990
- Lower Guide Set, Spring-loaded: 404.95.915
- Cover Cap, for Patch Suspension, Round: 940.40.023, 940.40.027, 940.40.028, 940.41.023, 940.41.029
- Cover Cap, for Patch Suspension, Square: 940.41.024, 940.41.027, 940.41.028
- Centering Element, for Glass Doors: 941.24.042
- Dual Lower Guide, for 2 Glass Doors: 404.95.911
- Single Lower Guide, Zero clearance, for glass thickness 8, 10, 12 (12.7) mm: 940.40.032
- Single Lower Guide, for Wood Sliding Door: 940.40.037
|
