Hafele 403.50.941

• Sliding Door Hardware
• Slido R-Aluflex 80W
• Soft closing mechanism: with soft and self closing mechanism
• For door material: wood
• Controller installation options: Ceiling installation
• Suitable for: Room-high solutions
• Installation: Running track for recessed mounting or glue fixing

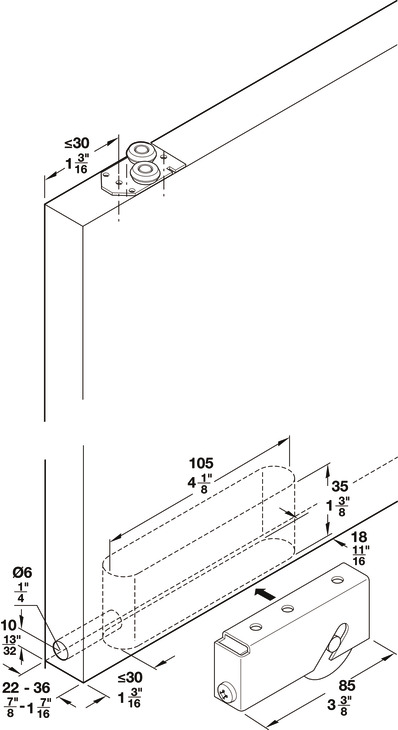

• Installation reference: The roller is inserted from below and screwed to the door leaf through the middle hole.
• Door processing: for screw fixing
• Adjustment facility: Height adjustment: ±5 mm, -5/+6 mm on running gear (TS 20 drive)
• Door weight max. (176 lbs) 80 kg
• Number of doors: 1
• Number of doors per system max. >4
• For Door Thickness: 7/8" - 1 7/16"
• For Door Width: (19 11/16" - 59 1/16") 500 mm - 1500 mm
• For door height: = (118 1/8") 3000 mm
• Order reference: Please order running and guide track, soft closing mechanism and other accessories separately.

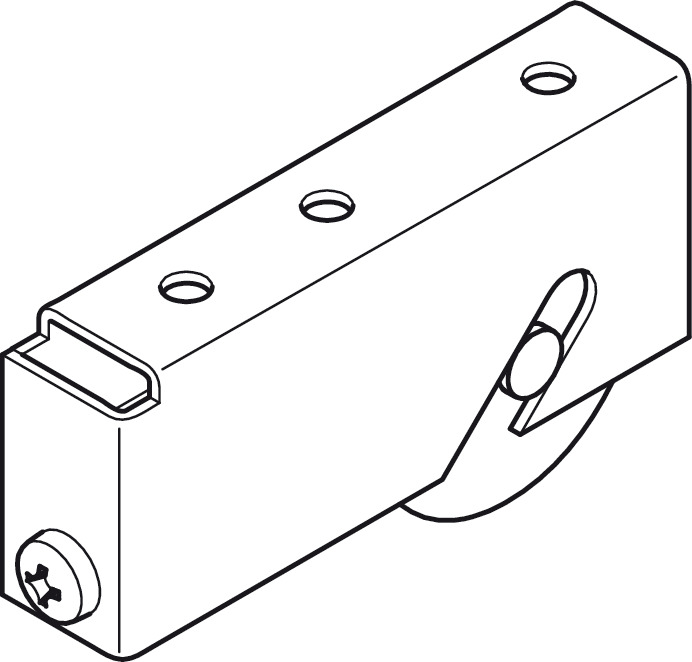

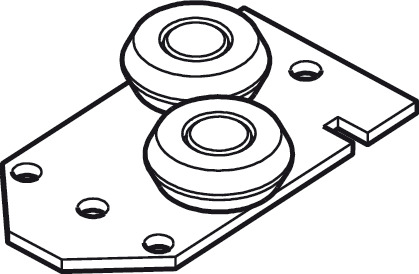

• Supplied with: 2 Running gears, 2 guides
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Single Top Guide Track, Häfele Slido R-Aluflex 80A: 403.36.102, 403.36.902, 403.36.903, 403.36.906
• Double Top Guide Track, Häfele Slido R-Aluflex 80A: 403.36.112, 403.36.113, 403.36.116, 403.36.912, 403.36.913, 403.36.916

Optional accessories:

• Cover Cap, for Slido R-Aluflex 80A/R-Aluflex 80W: 403.55.060, 403.55.160
• Wall Mounting Bracket, for Top Guide Track: 403.55.101, 403.55.980
• Soft and Self Closing Mechanism, for Slido R-Aluflex 40A/R-Aluflex 80A/R-Aluflex 80W: 403.50.988, 403.50.989, 403.50.999
• Release Bracket, For soft and self closing mechanism: 403.50.997
• Torx Drill Bit: 006.37.174
• End Bracket, for Slido R-Aluflex 80A/R-Aluflex 80W: 403.55.100, 403.55.991
• Center Door Stopper, for Mounting into the Top Guide Track: 403.50.945
