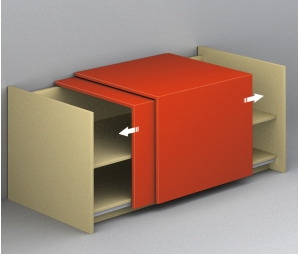

Hafele 403.31.000

• Sliding Door Hardware
• Hawa Combino L 40
• Soft closing mechanism: with clip-in door stopper
• Running position: Bottom
• Running gear guided by: Ball bearing
• For door material: wood

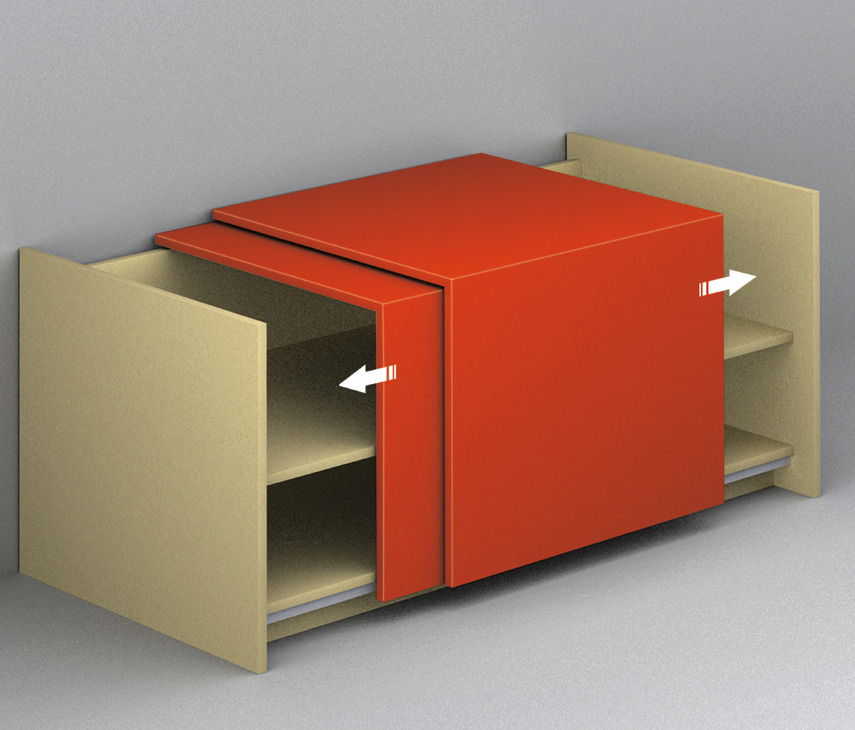

• Cabinet version: with angled wooden sliding doors
• Model series: Combino
• Area of application: For angled sliding door
• Door stopper: Top clip-in door stopper or soft and self closing mechanism, for sliding into running track
• Door adjustment via: eccentric screw
• Installation: Running gear and guide for screw fixing

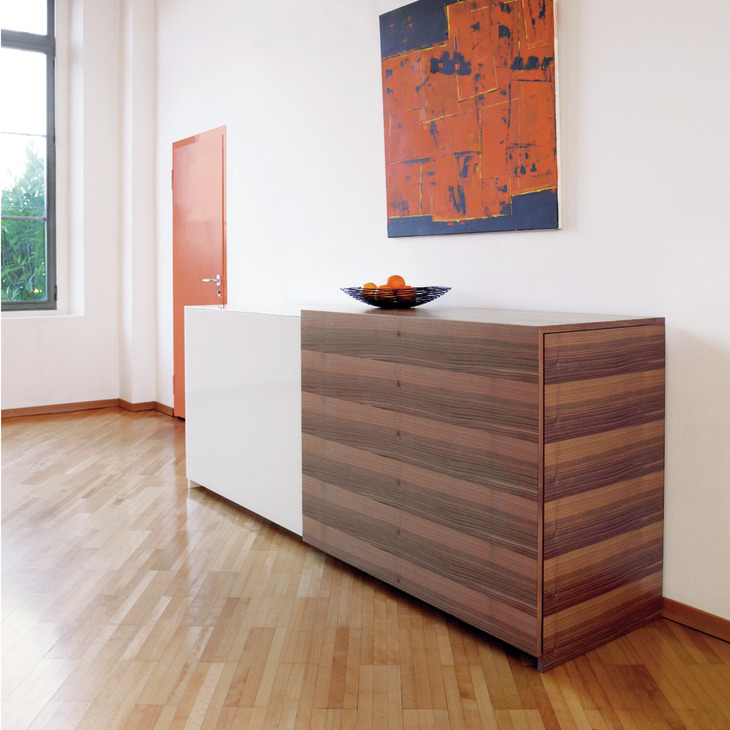

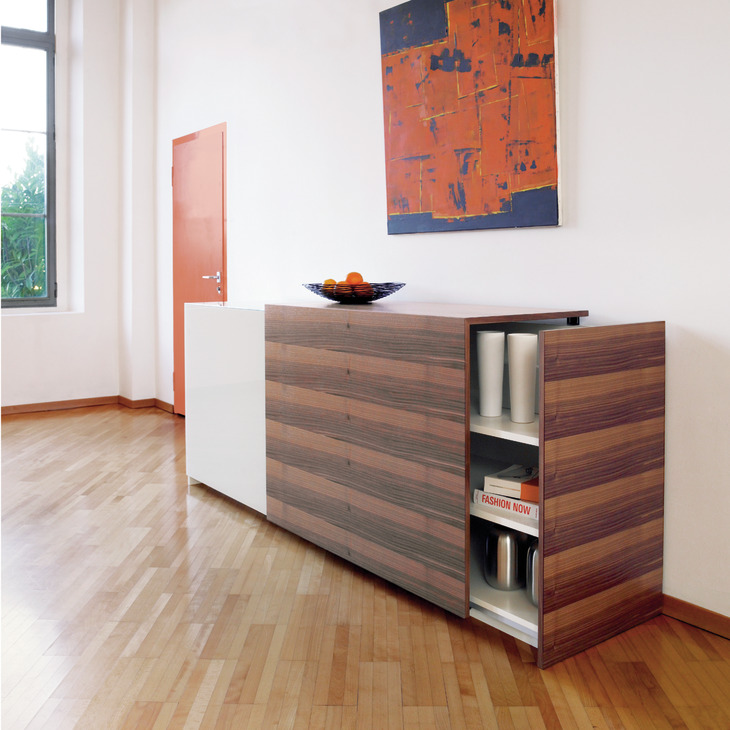

• Great for home entertainment applications
• Can be used to hide large flat screen TVs
• Top and bottom door stopper, bottom stopper with spring
• Guided by running gear, ball bearing mounted, plastic-coated rollers
• Adjustment facility: Height adjustment: -2 - 4 mm, Depth adjustment facility: ±3 mm, Height +4/-2 mm on running gear using eccentric screw depth ±3 mm on running gear using eccentric screw
• Number of doors per system max. 1 to 3
• Number of doors: 1
• Number of rollers: 1
• Door weight max. (88 lbs) 40 kg
• Height adjustment: -2 - 4 mm
• Door width max. (59 1/16") 1500 mm
• Door height max. (59 1/16") 1500 mm
• For material thickness: (3/4") 19 mm
• Material:
  • Rollers: Plastic
• Supplied with:
  • 2 Running gears
  • 2 guides
  • 4 door stoppers (2 with clip-in door stopper, 2 stoppers)
• Order reference:
  • Please order double running and double guide tracks separately.
  • We recommend the use of Planofit straightening fitting for doors with a height of more than 800 mm.
  • Door heights of 1,500-2,000 mm are only possible in conjunction with soft closing mechanism for sliding doors.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Double Bottom Running Track, EKU Combino L 40: 403.32.926, 403.32.936
• Double guide track, Top, for screw fixing: 403.33.926, 403.33.936
