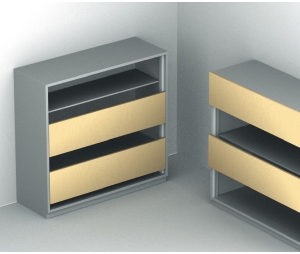

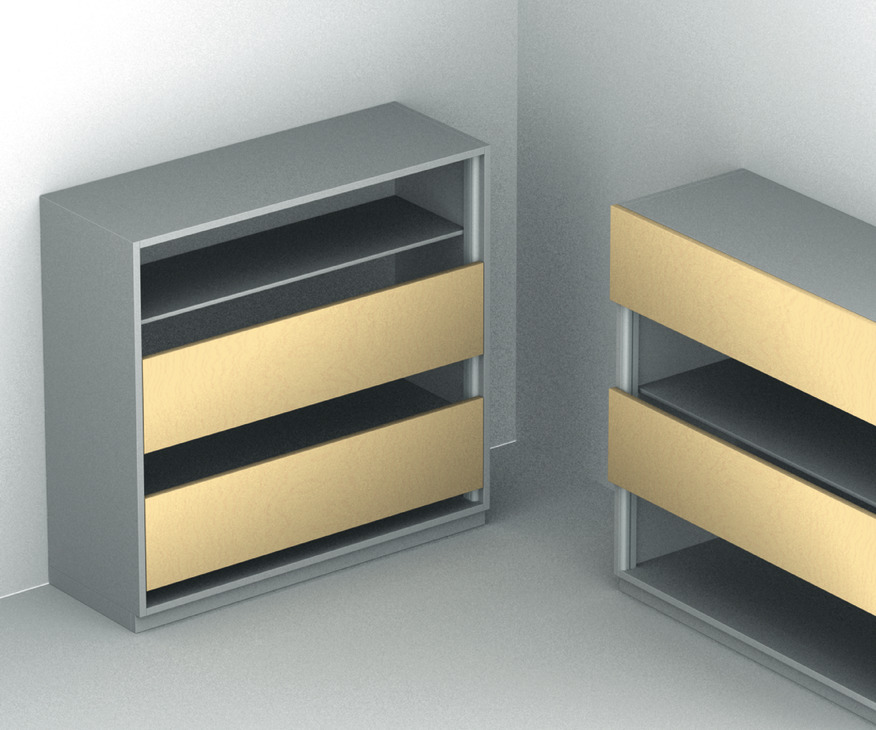

Hafele 403.20.001

• Sliding Door Fitting
• Hawa Libra 20 Synchro H IF/VF
• Running position: Bottom, top on the side
• For door material: wood
• Door stopper: Top and bottom stopper, for sliding into single guide track

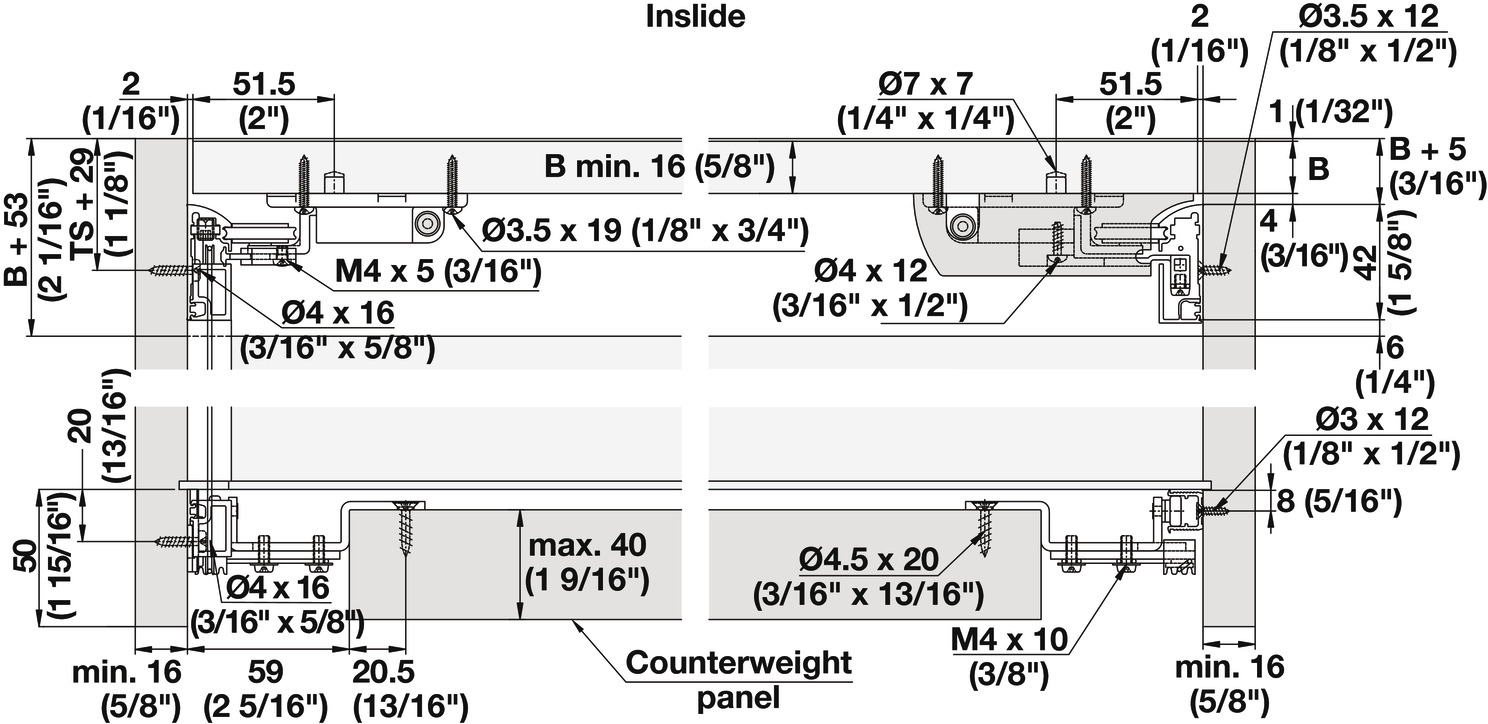

• Installation: Running gear and guide for screw fixing

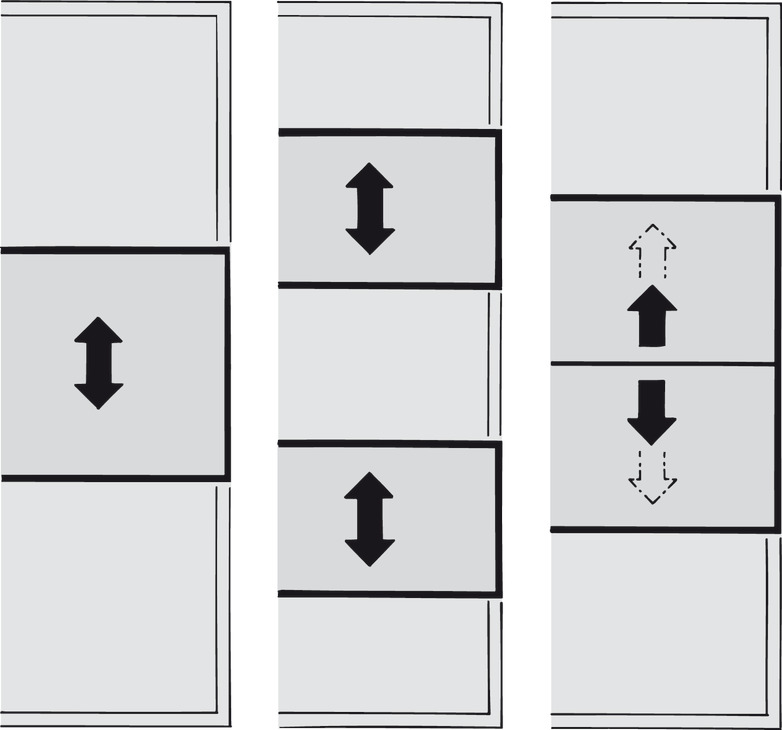

• Counterweight: The bottom door represents the counterweight for the top door, therefore both doors must be of equal weight
• Set without tracks
• Independent vertical sliding door system for wood doors

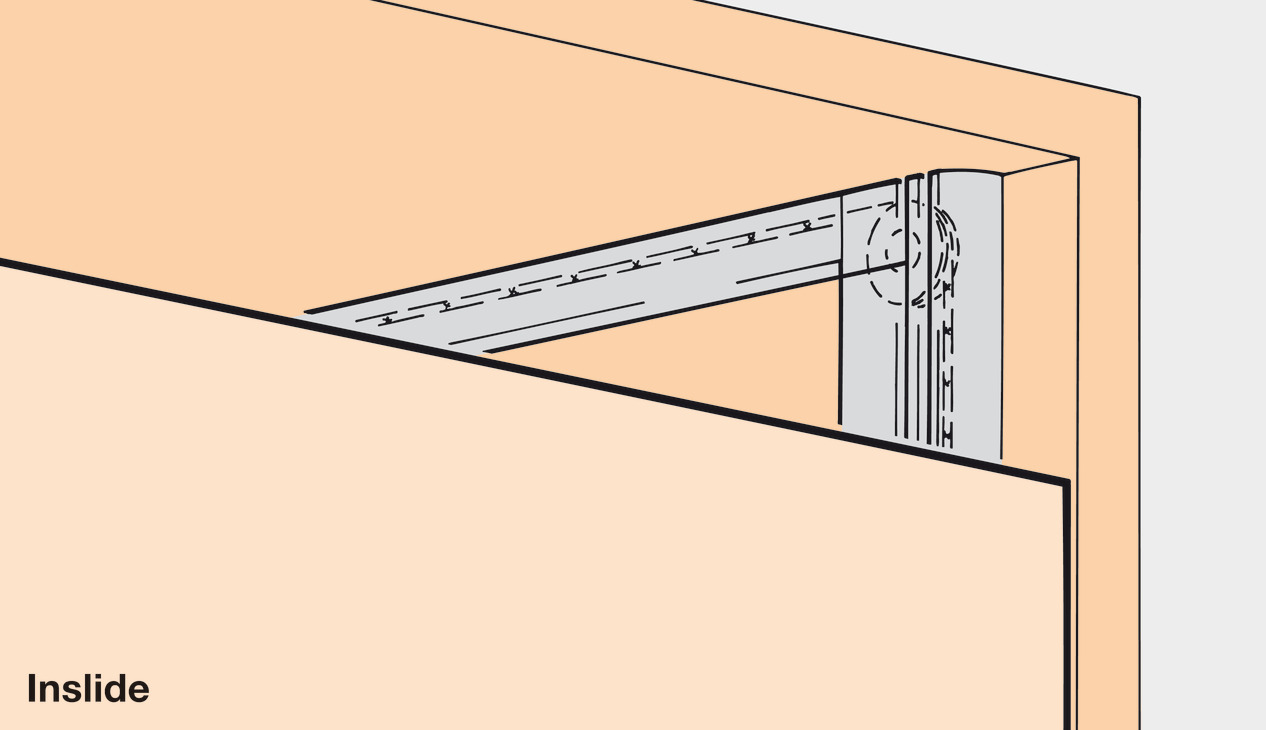

• For inlay or overlay doors
• Number of doors: 1
• Number of rollers: 1
• Door weight max. (44 lbs) 20 kg
• Number of doors per system max. 1 to 2
• Door width max. (63") 1600 mm
• For door height max. (39 3/8")1000 mm
• Side panel thickness min. (5/8") 16 mm
• Material:
  • Rollers: Plastic
• Supplied with:
  • 4 running gears (2 with spring/2 with eccentric adjustment)
  • 4 deflection rollers (2 front, 2 rear)
  • 2 door brackets
  • 2 cord holders
  • 2 clamping bolts for cord bracket
  • 2 cables
  • 4 cord cover plates
  • 2 guide brackets for counterweight
  • 2 cord guide bracket for counterweight
  • 4 door stoppers
  • 4 clips for cover profiles
  • Installation instructions
• Order reference:
  • Please order running and guide track and cover profile separately.
  • Order additional guide for counterweights higher than 500 mm.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Front Guide Track, for Hawa Libra: 403.21.902
• Single Guide Track, for Hawa Combino/Regal MF/VF, Hawa Divido: 405.30.026, 405.30.036

Optional accessories:

• Clip-On Cover Strip, Hawa Libra 20 H: #Y403.22.902
• Additional Guide, EKU Libra 20 H, Set: #Y403.23.900
