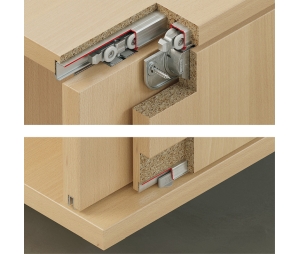

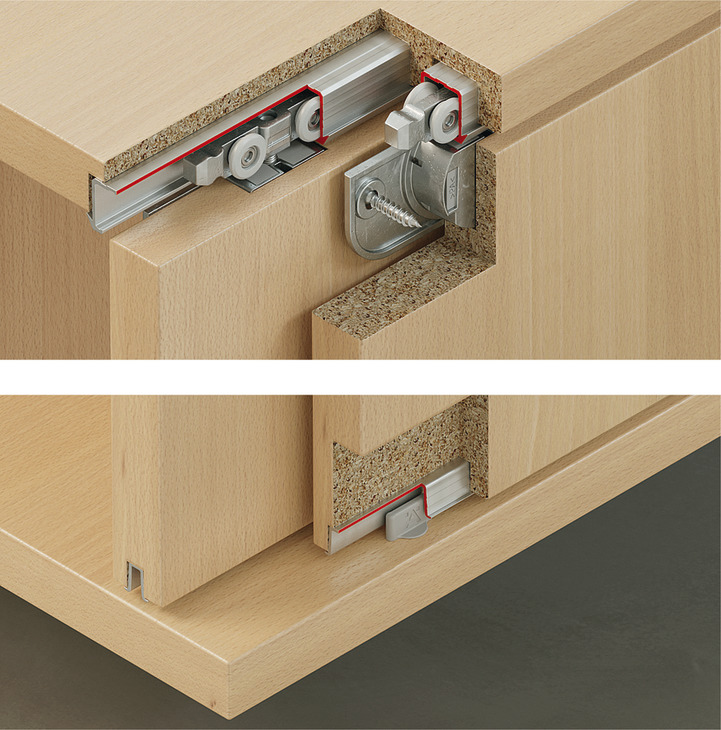

Hafele 402.33.026

• Sliding Door Hardware
• Slido F-Line21 40C
• Soft closing mechanism: With Clip-in Door Stopper

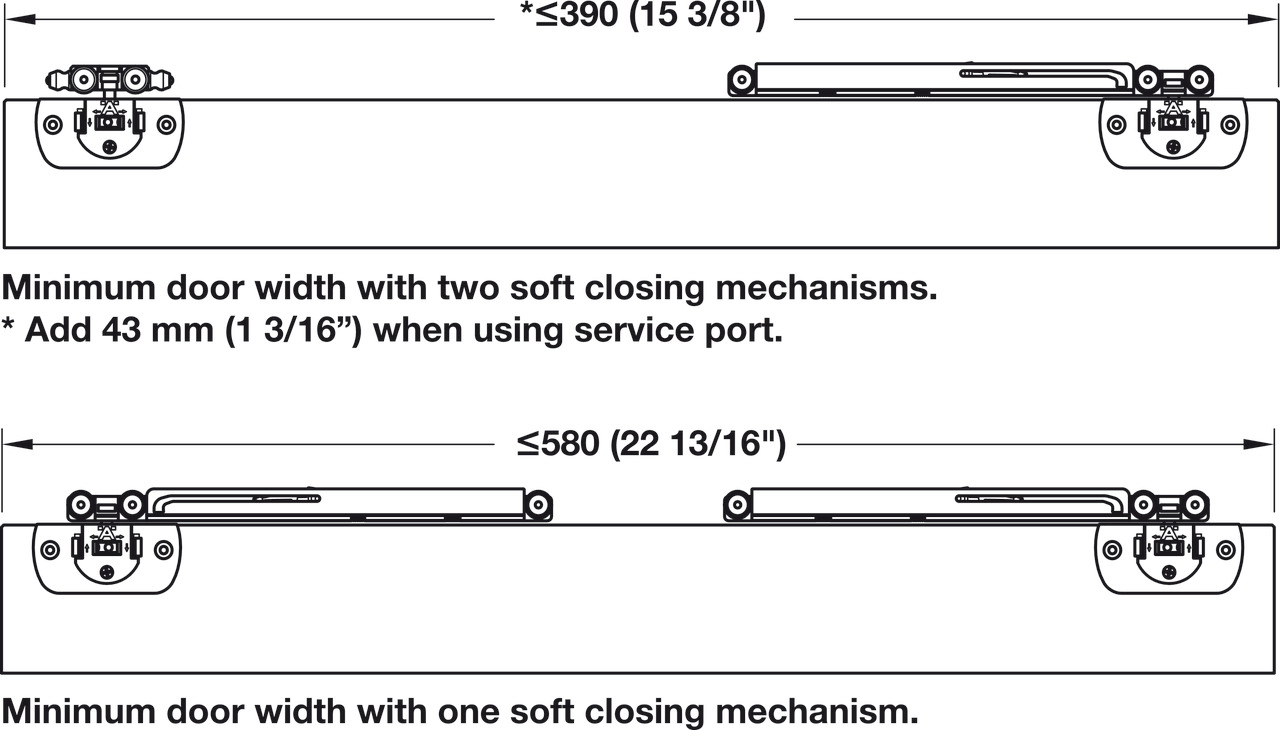

• Note on door weight: We recommend that you adhere to the minimum door weight.

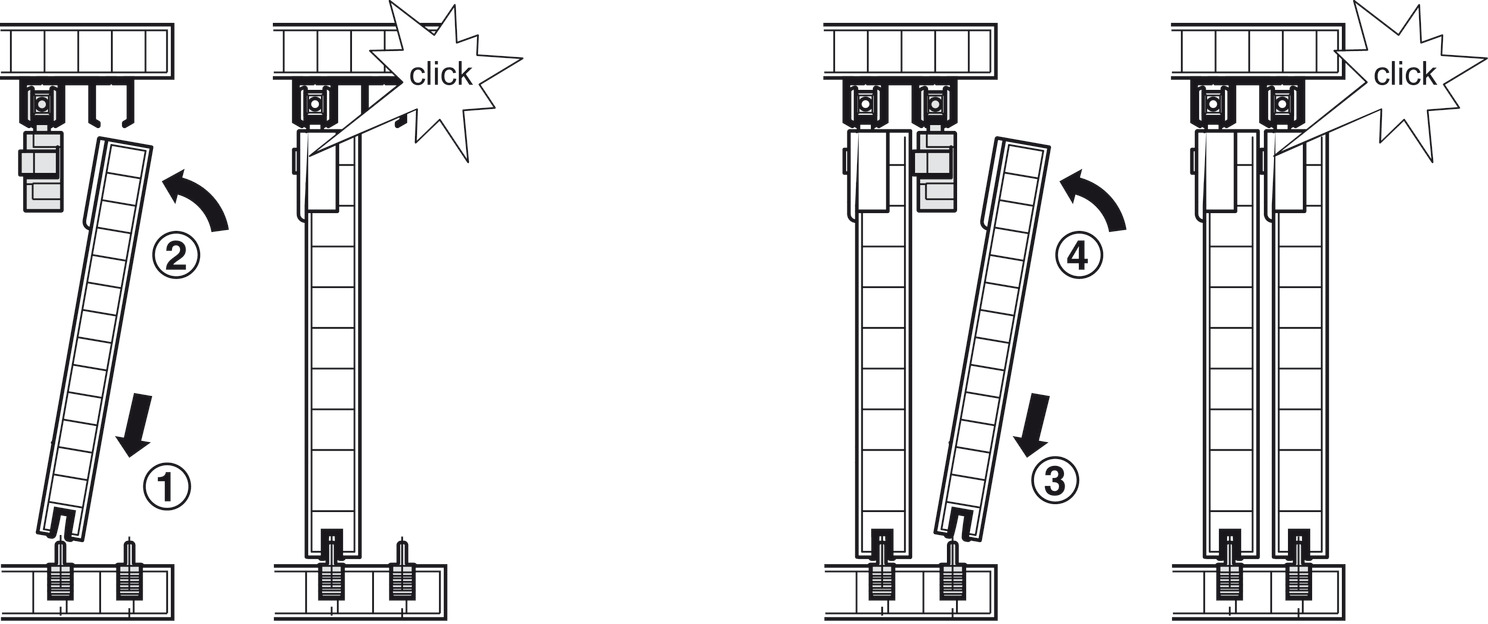

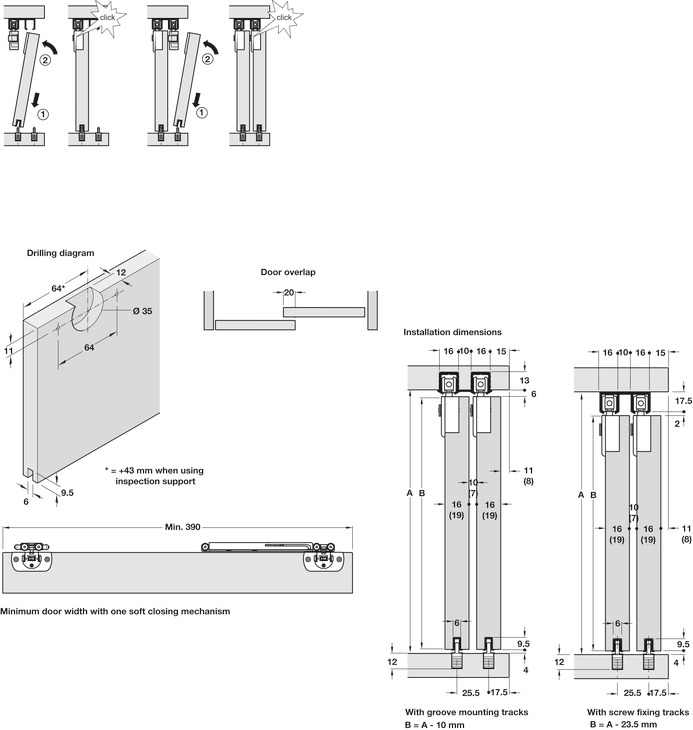

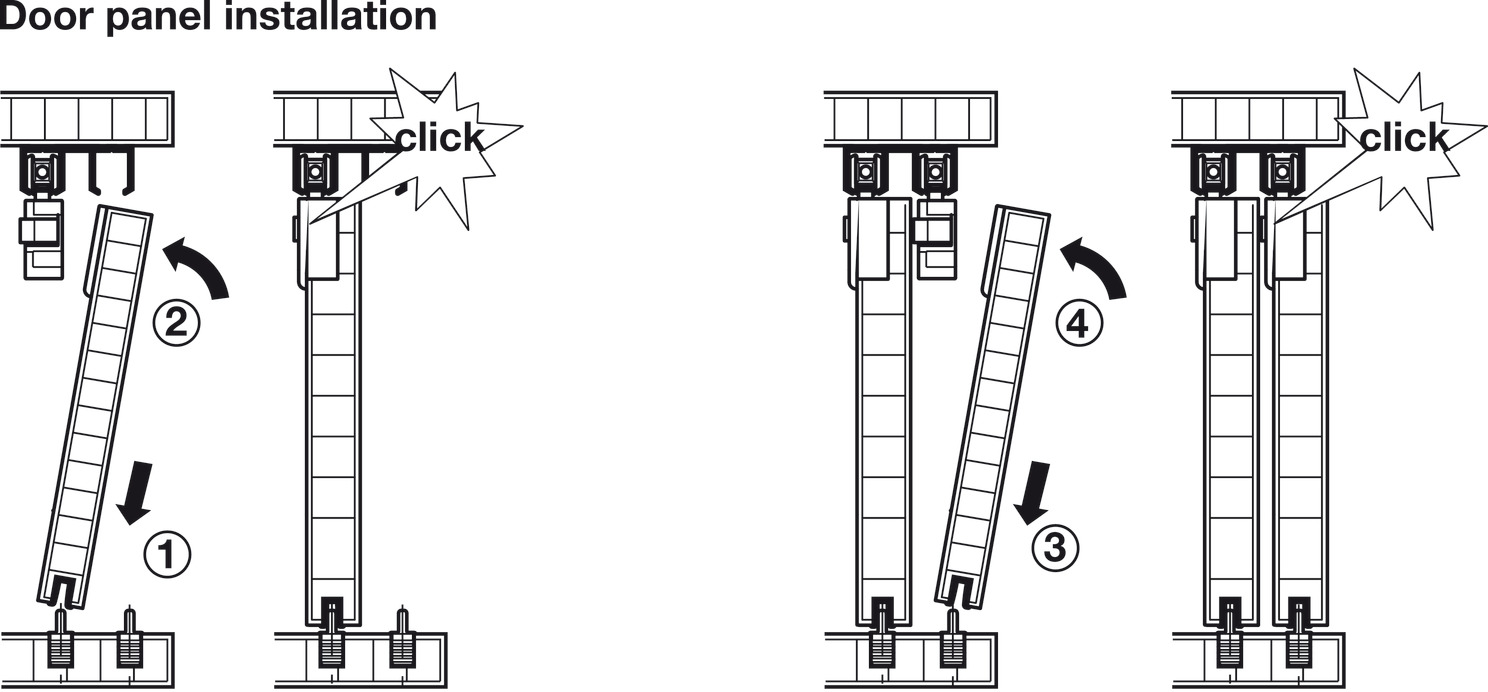

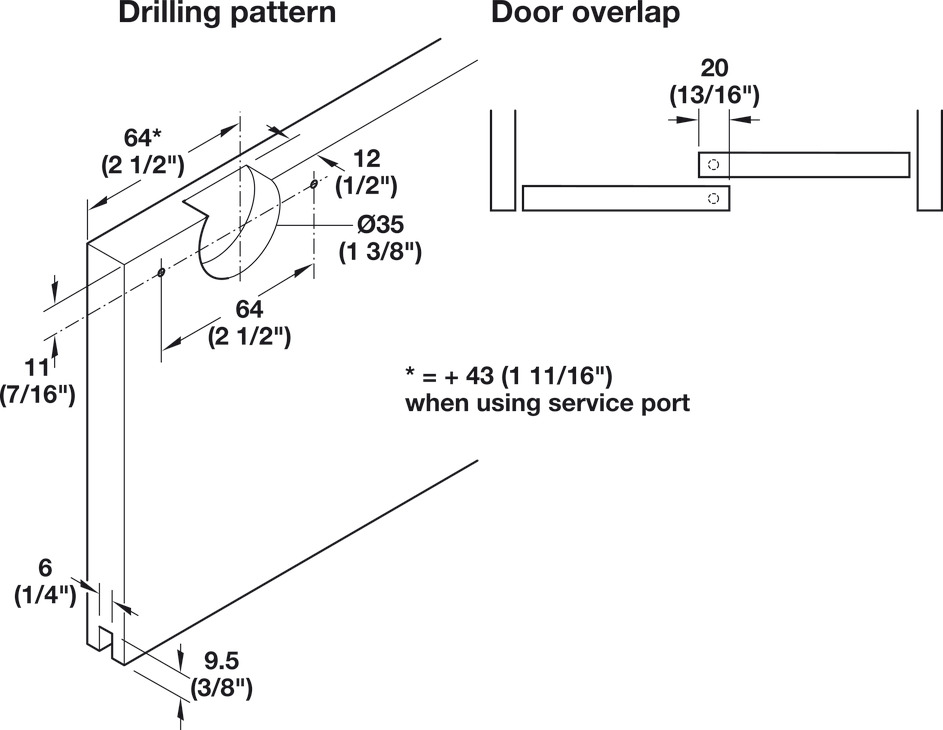

• Installation: Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)
• Door adjustment via: adjusting wheel
• Door stopper: Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track
• Area of application: For thin cabinet top panels
• Cabinet version: with thin cabinet top panels
• For door material: wood
• Running gear guided by: Ball bearing
• Running position: Top
• Type of opening: linear
• Adjustment facility: Height ±2 mm on running gear using adjusting wheel
• Number of doors: 2
• Number of rollers: 4
• Number of doors per system max. 1 to 3
• For door weight: = (88 lbs) 40 kg

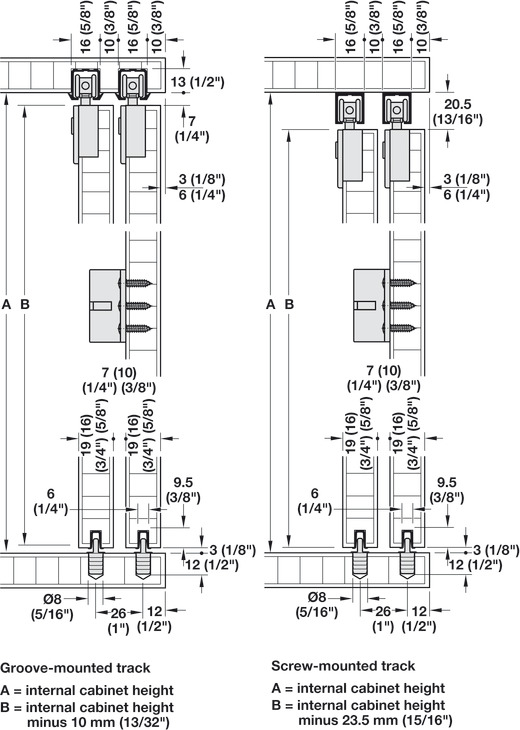

• For Door Thickness: (5/8" - 3/4") 16 mm - 19 mm
• Door Width max: 4' 1 3/16"
• Length: 2' 1 19/32"
• Material:
  • Housing: Zinc alloy
  • Running gear: Zinc alloy
  • Guide: Plastic
  • Rollers: Plastic
  • Axis: Steel
• Supplied with:
  • 4 running gears
  • 4 door stoppers with clip-in door stopper
  • 1 door follower
  • 2 inspection supports
  • 2 guides
  • 1 mounting aid
• Order reference:
  • Please order running and guide tracks separately.
  • For cabinets with 3 doors, please order the following sets: 1 set for 1 door and 1 set for 2 doors.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Single running track, For Slido F-Line21: 402.33.642, 402.33.643
• Double Top Running Track, For Slido F-Line21: 402.33.652
• Single Top Running Track, For Slido F-Line21: 402.30.642, 402.30.643
• Double Top Running Track, For Slido F-Line21: 402.30.652
• Lower Guide Channel, For Slido F-Line21: 402.30.802

Optional accessories:

• Flathead screw, Slido Classic: 402.33.010
