Hafele 402.23.001

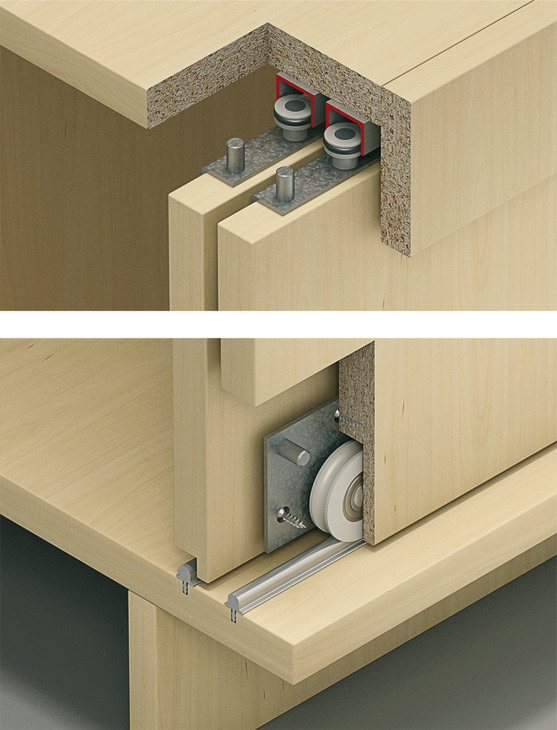

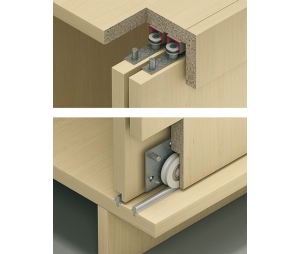

Name: Hafele 402.23.001 Sliding Door Hardware, Slido F-Line15 55A, for Bottom Running Wood Doors, for Door Weights up to 121 lbs., for 3 Doors, without Height Adjustment, Plastic/Steel, Per Set
Brand: Hafele
SKU: Hafele 402.23.001
Price: 339.28 USD

Hafele 402.23.001 Sliding Door Hardware, Slido F-Line15 55A, for Bottom Running Wood Doors, for Door Weights up to 121 lbs., for 3 Doors, without Height Adjustment, Plastic/Steel, Per Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 402.23.001 Sliding Door Hardware, Slido F-Line15 55A, for Bottom Running Wood Doors, for Door Weights up to 121 lbs., for 3 Doors, without Height Adjustment, Plastic/Steel, Per Set

Price: $339.28 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 2

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 402.23.001 Sliding Door Hardware, Slido F-Line15 55A, for Bottom Running Wood Doors, for Door Weights up to 121 lbs., for 3 Doors, without Height Adjustment, Plastic/Steel, Per Set

Sliding Door Hardware
Slido F-Line15 55A
Version: Without height adjustment
Cabinet version: With bottom running door wings
Set: Set without tracks
Area of application: For door weights up to (121 lbs.) 55 kg
Running position: Bottom
Running gear guided by: Ball bearing
Adjustment facility: Height ±2 mm
Type of opening: Linear
Number of doors: 3.00
For door thickness: 16 – 19 mm
For door weight: ≤55 kg
Number of rollers: 1.00
Number of doors per system max.: 2 to 3
Material: Rollers: Plastic; Axis: Steel
Order reference: The top guide and bottom running tracks are not included in the set. Please order separately.

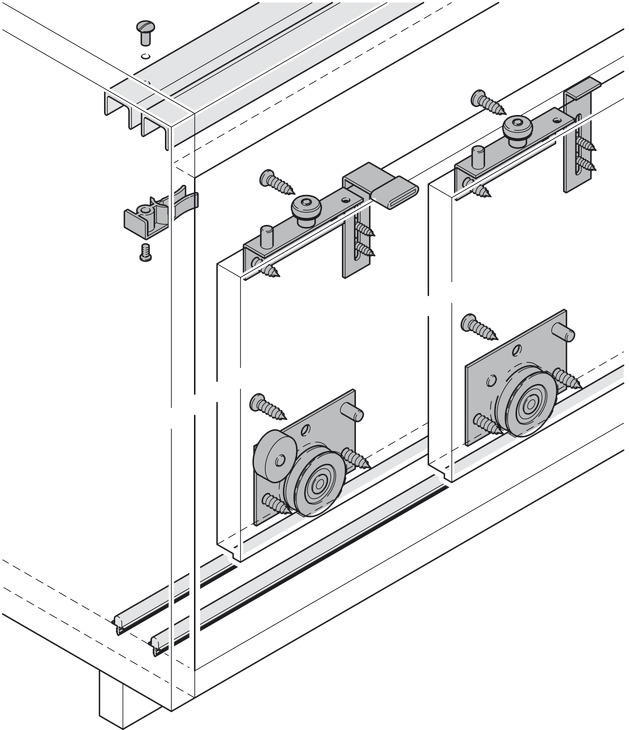

Supplied with:
- 6 running gears
- 3 buffers
- 6 anti-derailment devices (2 for rear doors/4 for front door)
- 6 guides
- 2 door stoppers
Additional information:
- The position of the running gears depends on the choice of running tracks.

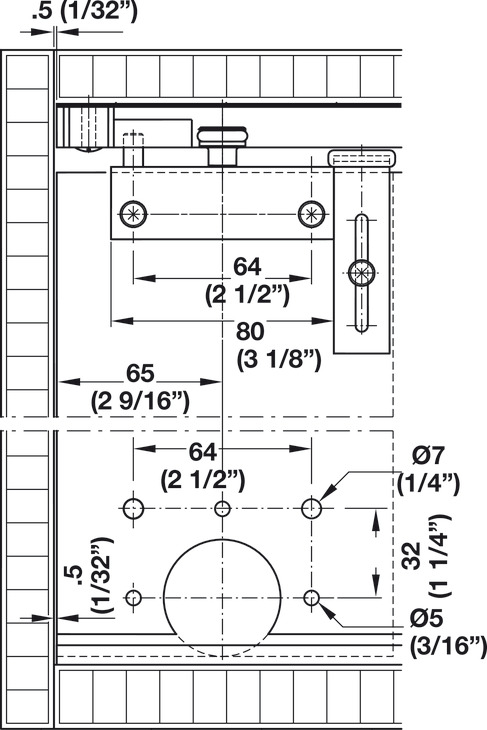

- Please note the drilling patterns in the installation instructions.
Notes:
- Excellent running characteristics due to large diameter rollers.
- Separate running and guide tracks eliminate door thickness restrictions
Packing & Sold as: Set
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
