Hafele 400.70.900

Name: Hafele 400.70.900 Sliding Door Hardware, Parking Area Set, Hawa Aperto 40/F, Infront, for up to 7 Stackable Door Panels, for 1 Parking Area, Plastic/Zinc Alloy, Per Set
Brand: Hafele
SKU: Hafele 400.70.900
Price: 2042.35 USD

Hafele 400.70.900 Sliding Door Hardware, Parking Area Set, Hawa Aperto 40/F, Infront, for up to 7 Stackable Door Panels, for 1 Parking Area, Plastic/Zinc Alloy, Per Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 400.70.900 Sliding Door Hardware, Parking Area Set, Hawa Aperto 40/F, Infront, for up to 7 Stackable Door Panels, for 1 Parking Area, Plastic/Zinc Alloy, Per Set

Price: $2,042.35 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 1

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 400.70.900 Sliding Door Hardware, Parking Area Set, Hawa Aperto 40/F, Infront, for up to 7 Stackable Door Panels, for 1 Parking Area, Plastic/Zinc Alloy, Per Set

Sliding Door Hardware
Hawa Aperto 40/F
Infront
For up to 7 stackable door panels
Running gear guided by: Friction bearing
Cabinet version: With parking area, with stackable door panels per parking area
Set: Set with tracks
Area of application: For 1 parking area

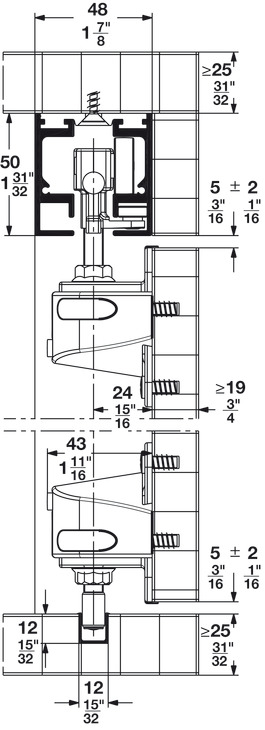

Adjustment facility: Height adjustment: -2 – 2 mm, Height adjustment ±2 mm on running gear using screw
Door adjustment via: Screw
Installation: Running gear and guide for screw fixing
Door processing: For screw fixing
Model series: Aperto
Type of opening: Parking
For door thickness: 19 – 25 mm
For door width: 400 – 900 mm
For door weight: ≤40 kg
Number of rollers: 2.00
Height adjustment: ±2 mm
For door thickness max.: 1"
For door height (inches: ≤ 102 3/8"
For cabinet width: 15 3/4" - 35 7/16"
For door width (inches): ≤ 102 3/8"
For door thickness min.: 3/4"
Height adjustment: ± 5/64"
For door height: ≤2,600 mm
Number of doors per system max.: 7
For door material: Wood
Finish: Mounting plate: Zinc alloy; Running gear: Zinc alloy; Rollers: Plastic
Supplied with:

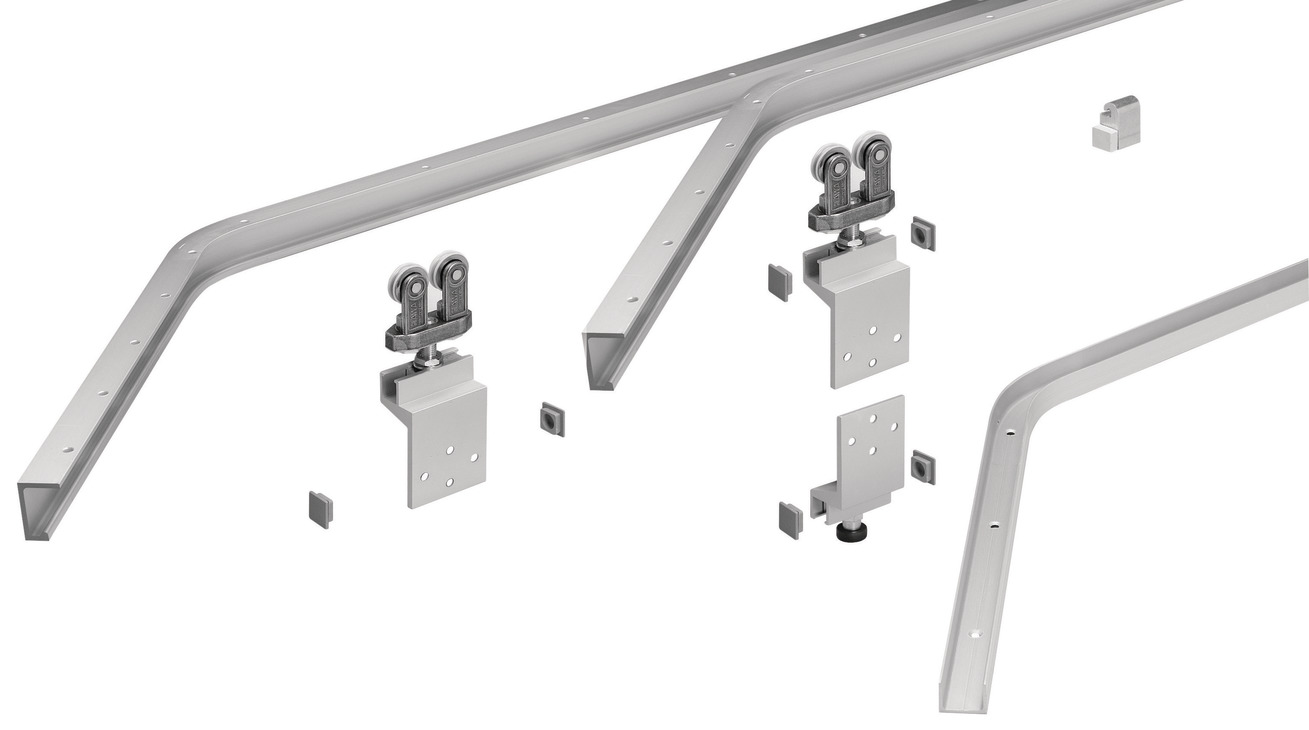

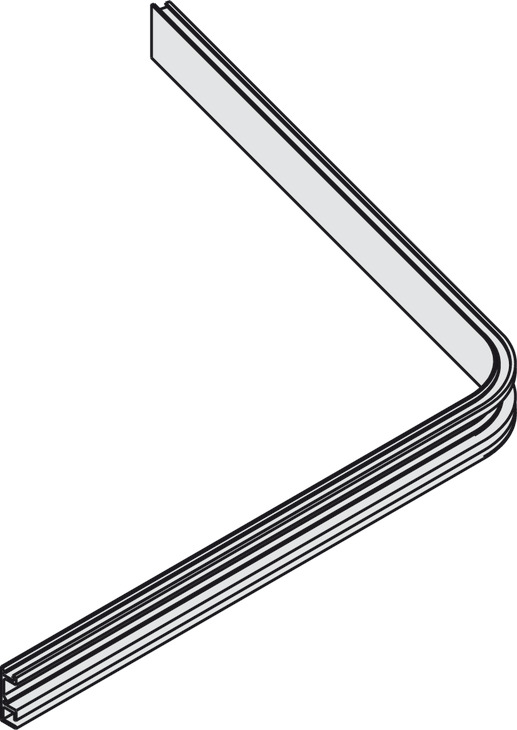

- 2 curved single top running tracks

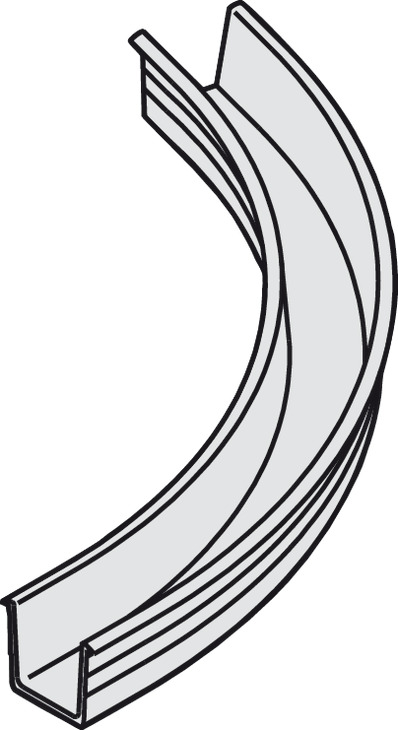

- 1 curved single bottom guide track

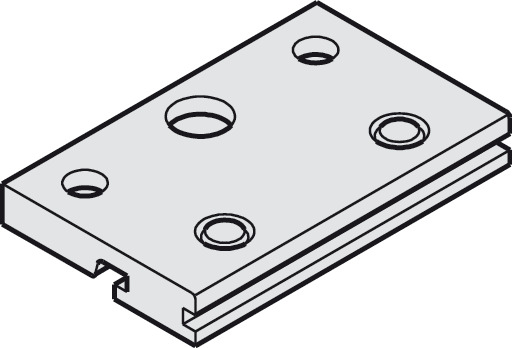

- 8 single fixing plates
- 1 double fixing plate

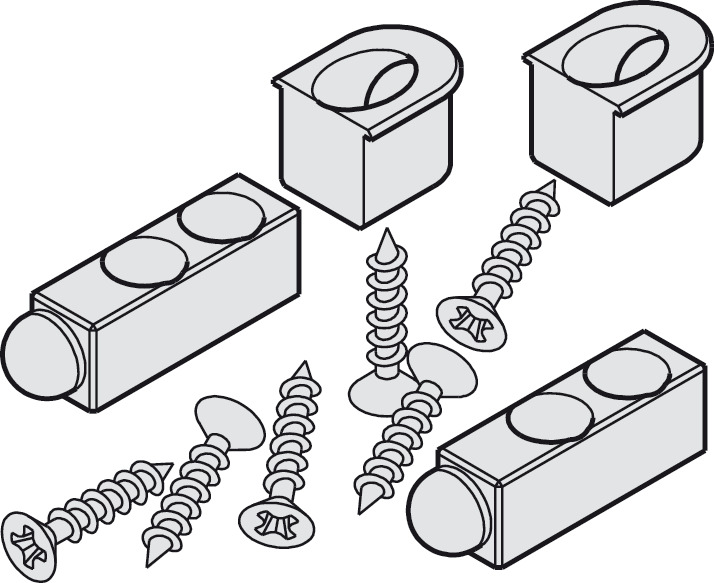

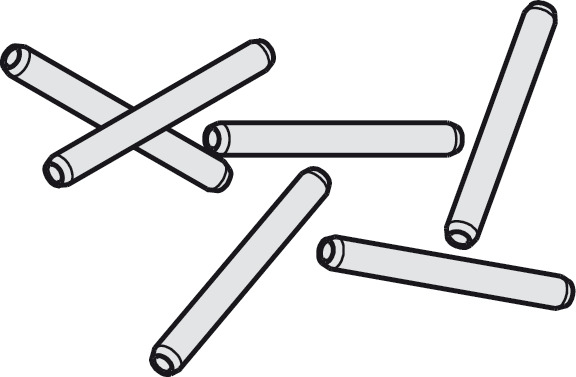

- 6 connecting bolts

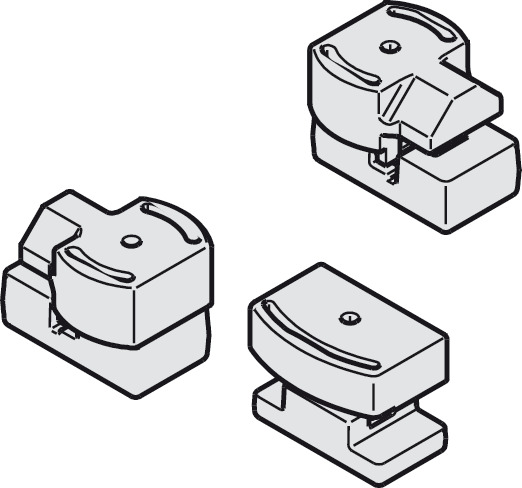

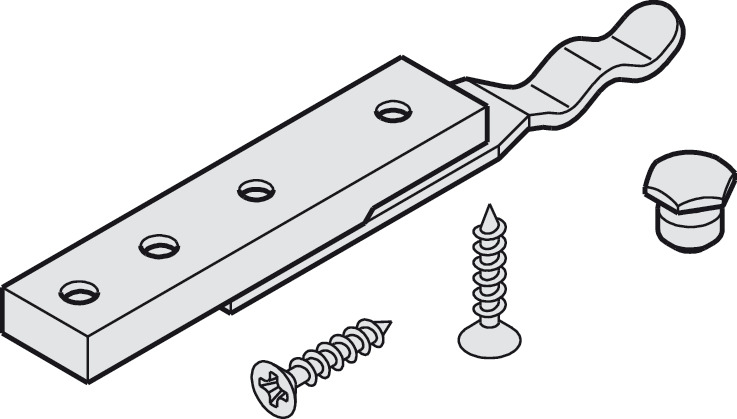

- 2 door stopper sets (1 top/1 bottom)
- 1 center door stopper

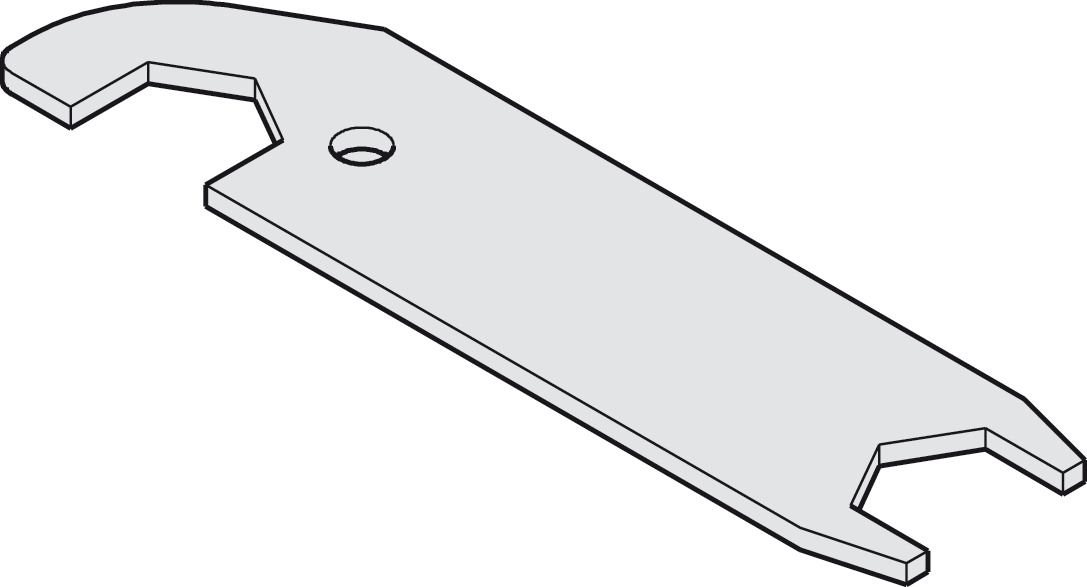

- 1 adjustment wrench

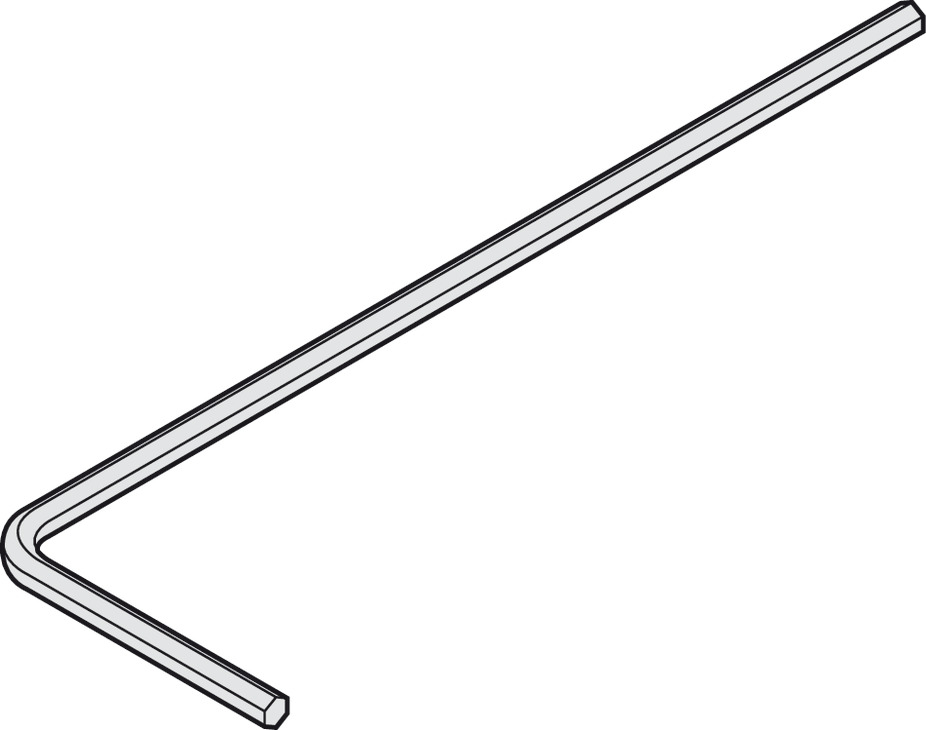

- 1 hex key
Notes:
- Smooth quiet operation

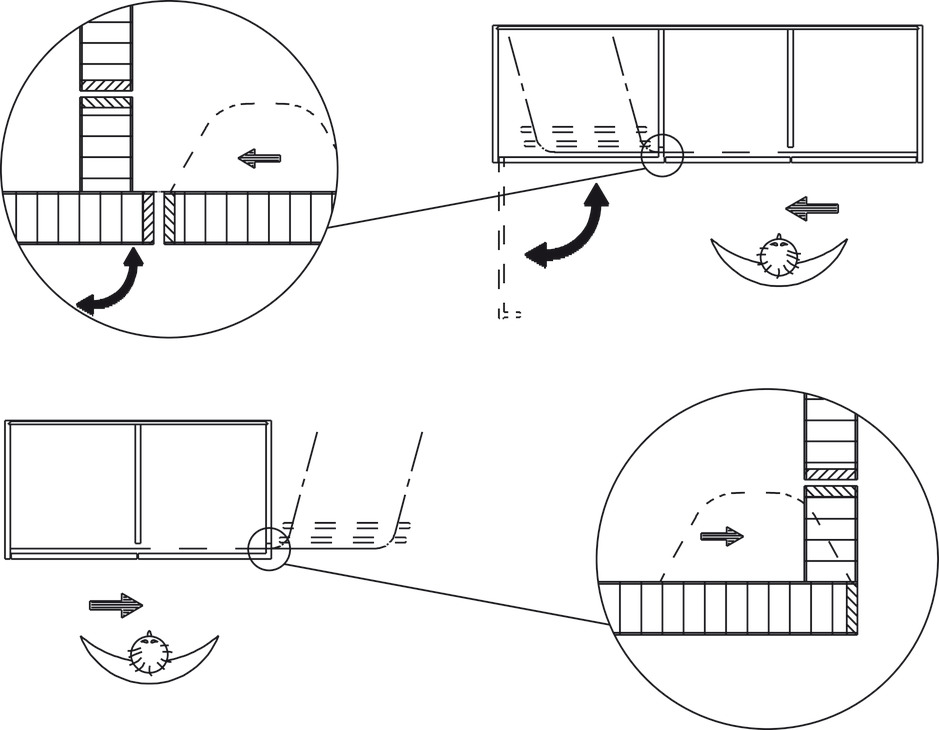

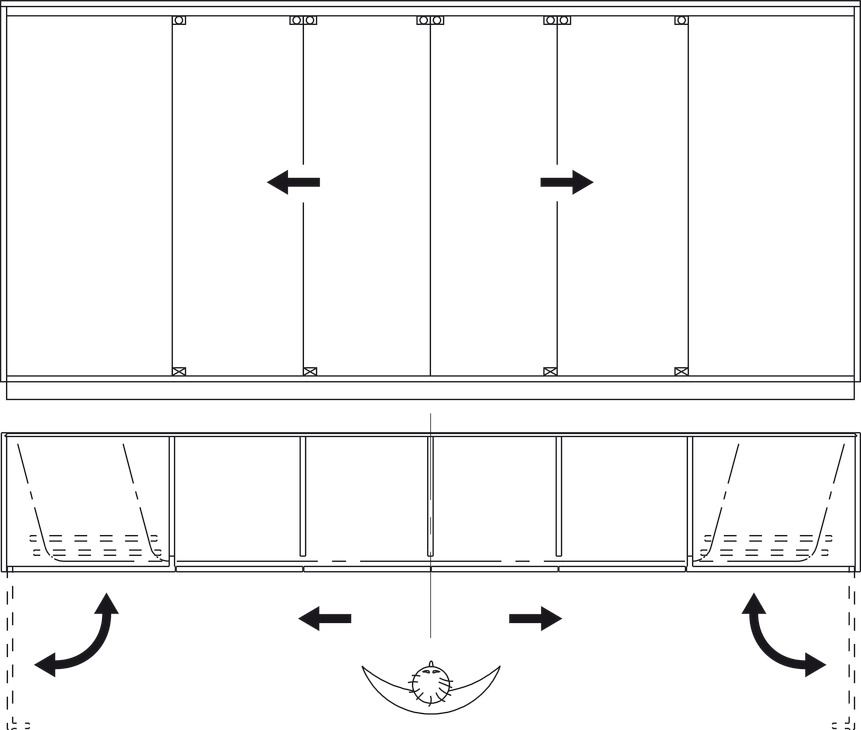

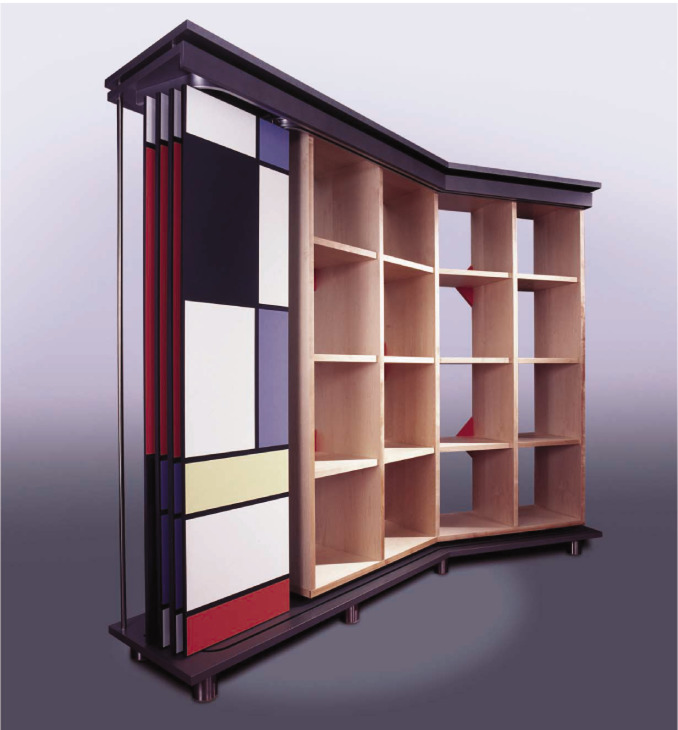

- Up to 7 panels can be stored in a parking area on one side of the cabinet
- Cabinet front is flush when closed
- Use for left or right handed application
- Custom and curved applications available. Contact our product specialist at 1-888-437-7477.
Packing & Sold as: Set
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
