Hafele 372.91.333

• Swing-Up Fitting
• Free Flap 3.15
• Model: G
• Suitable for: large, one-piece doors made of wood or with aluminum frame
• For door height: (14" - 26") 350 mm - 650 mm

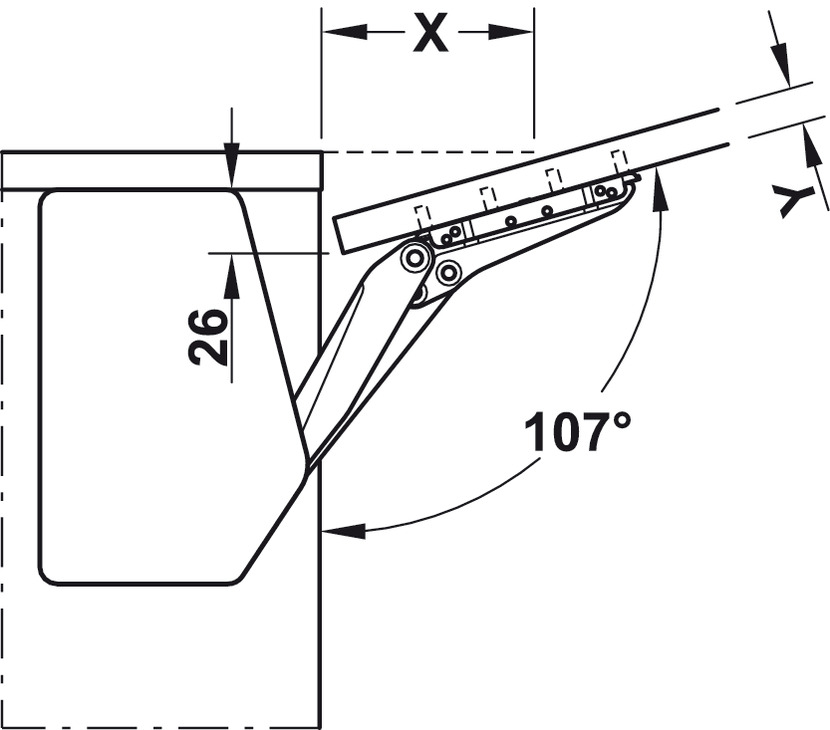

• Opening angle: 90° or 107° (adjustable on fitting)

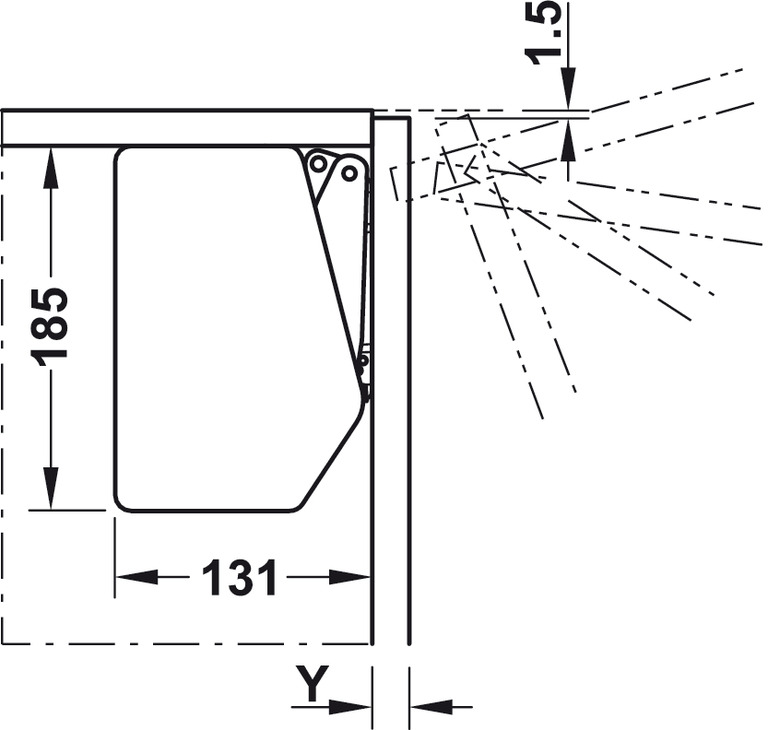

• Adjustment: Height/side/tilting angle of front panel ± 1.5 mm, holding power
• Material:
  • Fitting: Steel
  • Cover cap: Plastic
• Finish:
  • Fitting: Nickel plated
  • Cover caps: Grey

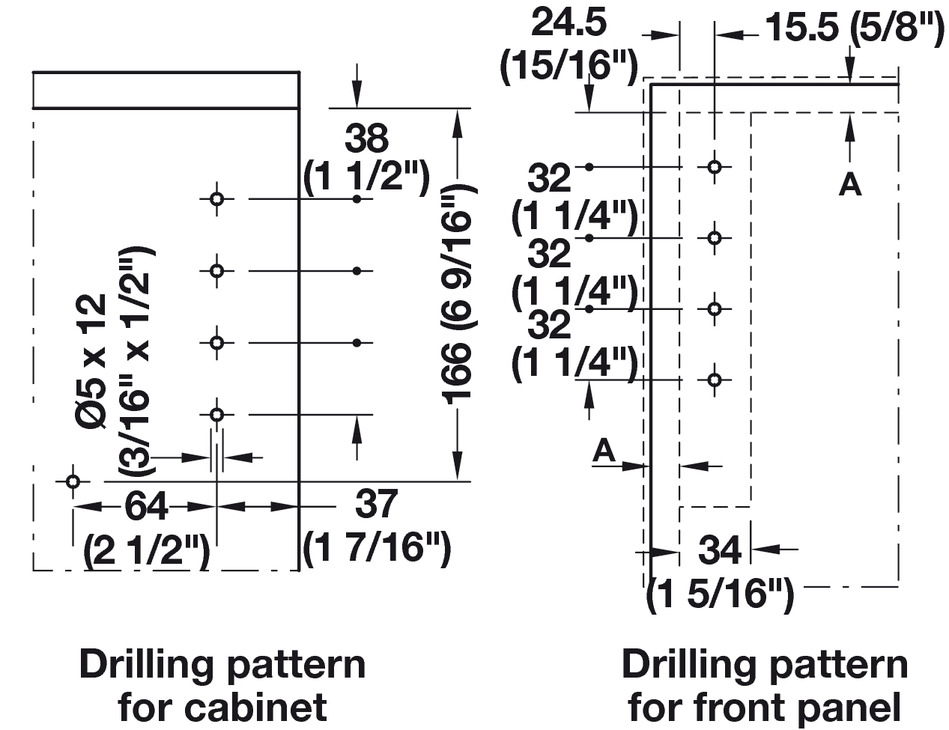

• Supplied with: 2 Fittings (right/left), 2 Cover caps for fitting (right/left), 2 Brackets for doors from frame width 1-3/4", Installation instructions, Paper drilling template
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Optional accessories:

• Adapter for 20 mm aluminium frame: 372.91.599
• Push catch, for mounting in drilled hole, Ø 10 mm: 372.91.470, 372.91.471, 372.91.472
