Hafele 372.34.620

Name: Hafele 372.34.620 Front Lift-Up Fitting, Free Swing, for One-Piece Flaps Made of Wood, Glass or with Aluminum Frame, Model S3sw, 670-800 mm (26-3/8" - 31-1/2") Cabinet Height, 2.9-6.5 kg (6.4 - 14.33 lbs) Flap Weight, Set
Brand: Hafele
SKU: Hafele 372.34.620
Price: 159.5 USD

Hafele 372.34.620 Front Lift-Up Fitting, Free Swing, for One-Piece Flaps Made of Wood, Glass or with Aluminum Frame, Model S3sw, 670-800 mm (26-3/8" - 31-1/2") Cabinet Height, 2.9-6.5 kg (6.4 - 14.33 lbs) Flap Weight, Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 372.34.620 Front Lift-Up Fitting, Free Swing, for One-Piece Flaps Made of Wood, Glass or with Aluminum Frame, Model S3sw, 670-800 mm (26-3/8" - 31-1/2") Cabinet Height, 2.9-6.5 kg (6.4 - 14.33 lbs) Flap Weight, Set

Price: $159.50 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 372.34.620 Front Lift-Up Fitting, Free Swing, for One-Piece Flaps Made of Wood, Glass or with Aluminum Frame, Model S3sw, 670-800 mm (26-3/8" - 31-1/2") Cabinet Height, 2.9-6.5 kg (6.4 - 14.33 lbs) Flap Weight, Set

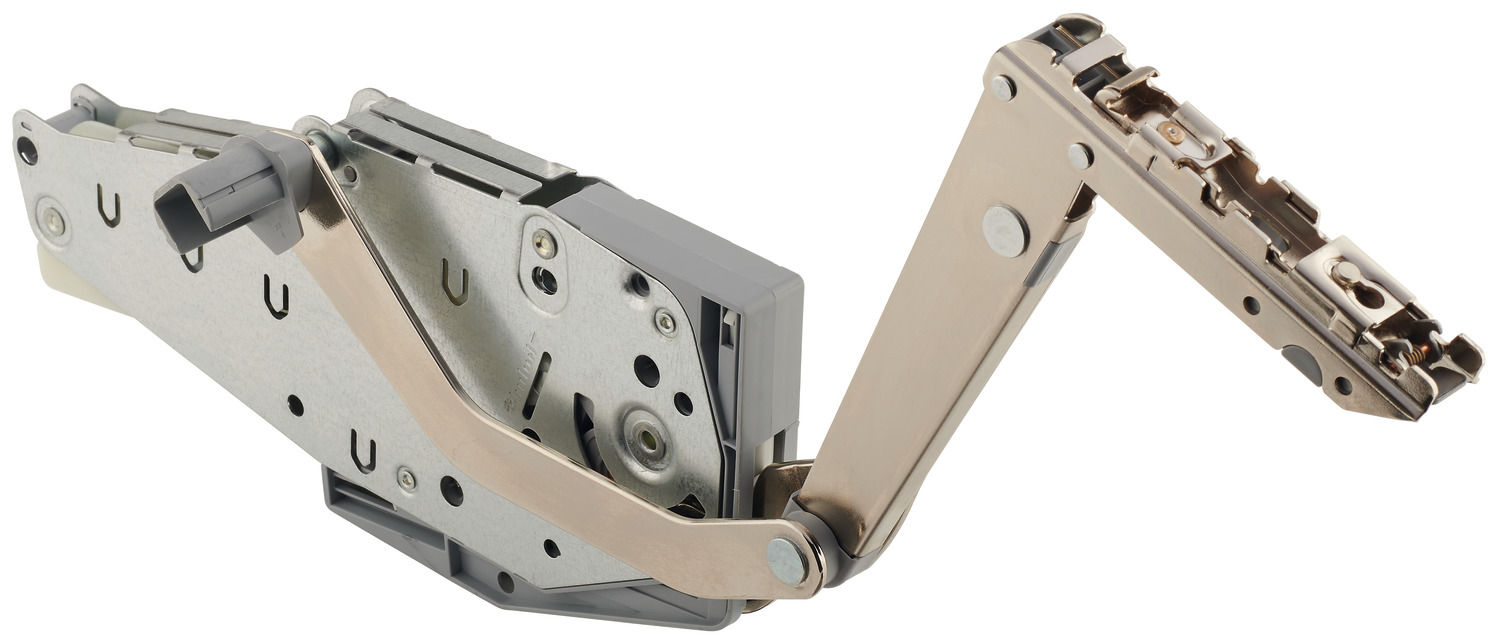

Front lift up fitting
Model series: Free swing
Model: S3sw
For one-piece flaps made of wood, glass or with aluminum frame

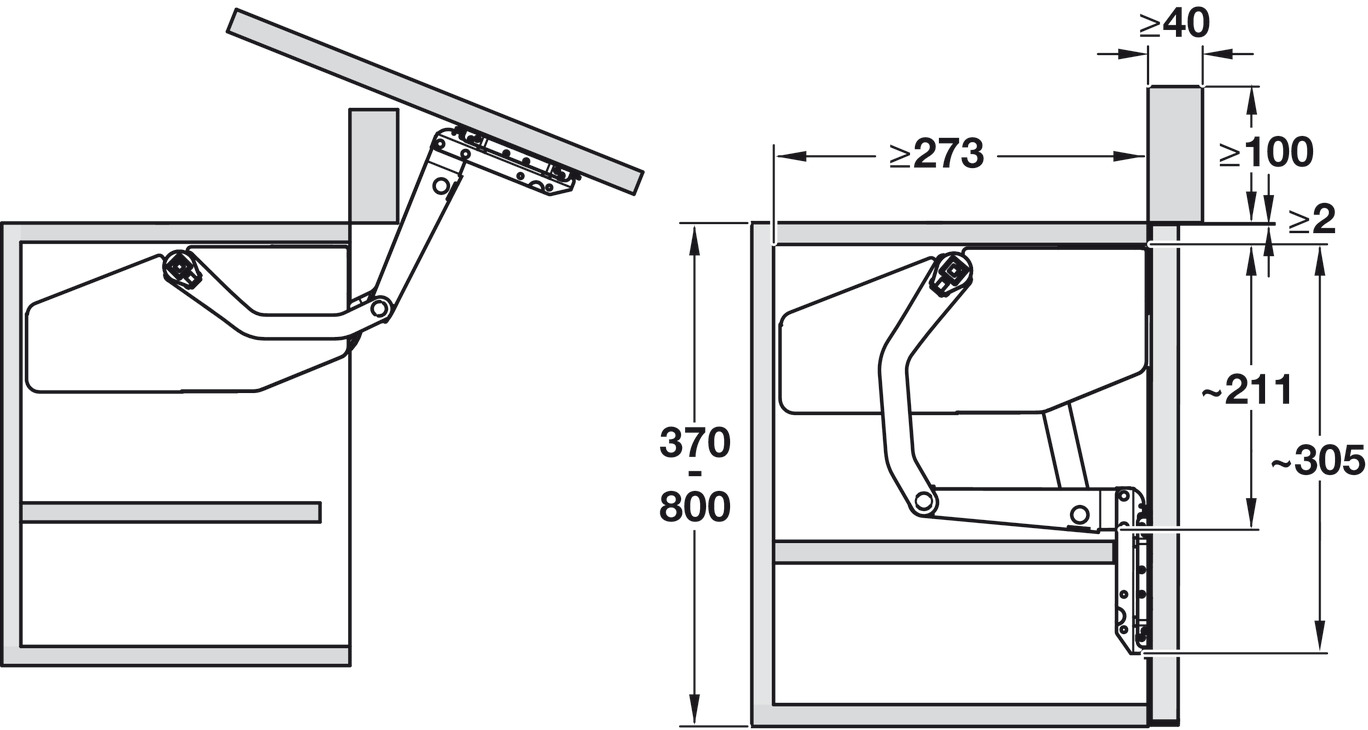

Cabinet height: 670-800 mm (26-3/8" - 31-1/2")
Flap weight: 2.9-6.5 kg (6.4 - 14.33 lbs)
Notes:
- Optimum access to cabinet contents
- Ideal for large front panels
- Modern design thanks to clear lines
- Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel
- Efficient and time-saving processing thanks to pins, pre-mounted Euro screws, quick fixing system for front panel and cross bar, and eccentric front panel adjustment
Order reference:
- Cross bars and adapters for glass front panels or narrow aluminum frames (if applicable) must be ordered separately.
- Use two Free swing sets for flap widths > 1800 mm (70 7/8”).
Packing & Sold as: Set
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
