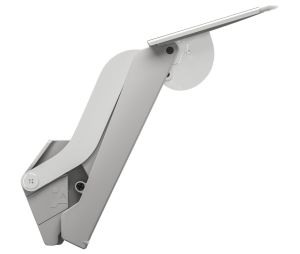

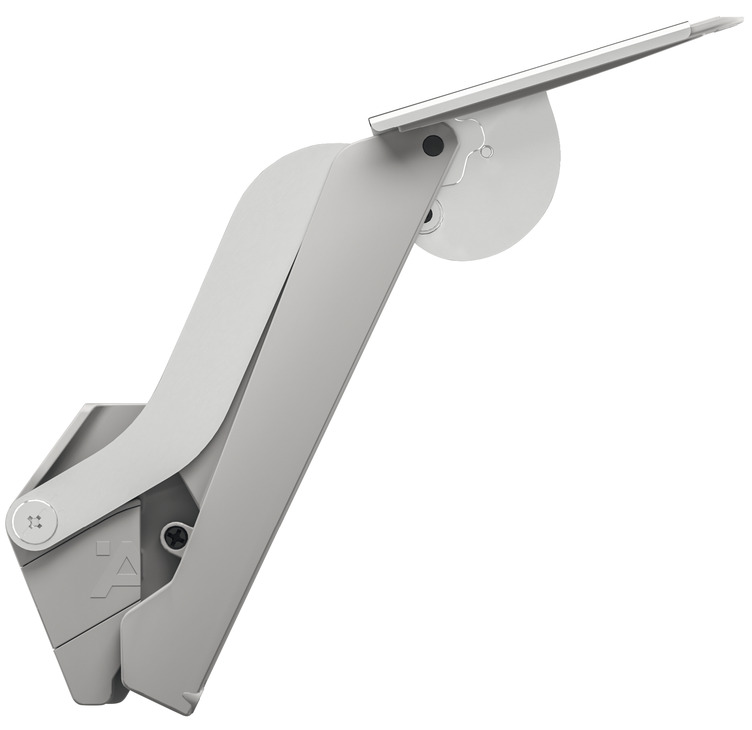

Hafele 372.27.504

• Swing-Up Fitting
• Häfele Free Space 1.11
• Extremely powerful and versatile: the Free Space series can be used for a much wider range of applications - up to 80% of all flap applications!
• For wood or aluminum frame doors
• Extremely compact: modern design and Häfele engineered technology allow for more space inside a cabinet
• Door opening can be adjusted to open at 90° or 107° with integrated stop

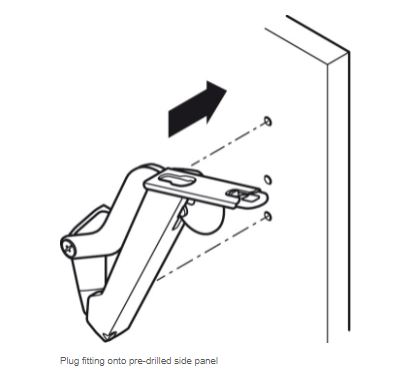

• Fast simple installation: plugs into standard 32/37 mm line holes and fastens with one pre-mounted screw
• Intuitive 3D door alignment and closing adjustment
• Additional hinges and cover caps are not required
• The flap stays reliably put in any position
• With integrated soft close
• Model: F
• Adjustment: height, side, tilting angle, holding power
• Application: for standard stay flap applications with front height up to (26") 650 mm
• Installation:

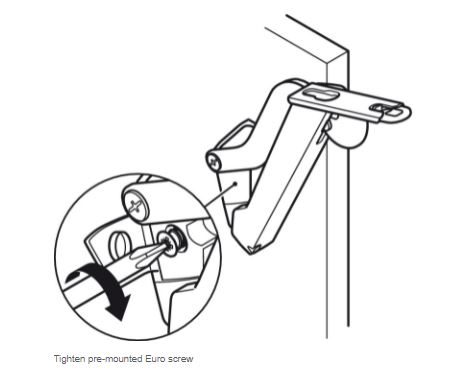

• Screw mounts with pre-mounted Euro screw

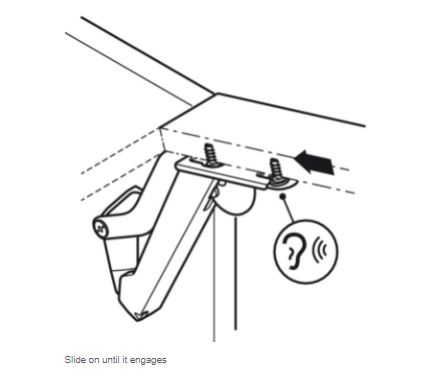

• Door panel mounts without tools and slides onto pre-mounted screws
• Opening angle: 90° or 107°
• Material:
• Housing: Plastic
• Front fixing bracket and support lever: Steel
• Finish: Nickel-Plated, Light Gray
• Supplied with:
• 2 Fittings (right/left)
• 4 Mounting screws for front panel
• 1 Set mounting instructions and drilling template
• Packing & Sold as: Set
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Optional accessories:

• Sheet Metal Screw, Countersunk head: 372.27.600
• Drilling Jig, Häfele, Free Space: 372.27.602
