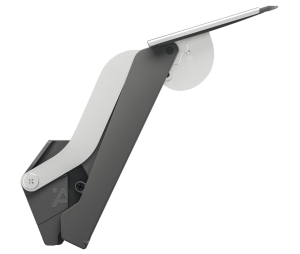

Hafele 372.27.355

Extremely powerful and versatile: the Free Space series can be used for a much wider range of applications – up to 80% of all flap applications. Extremely compact: modern design and Häfele engineered technology allow for more space inside a cabinet

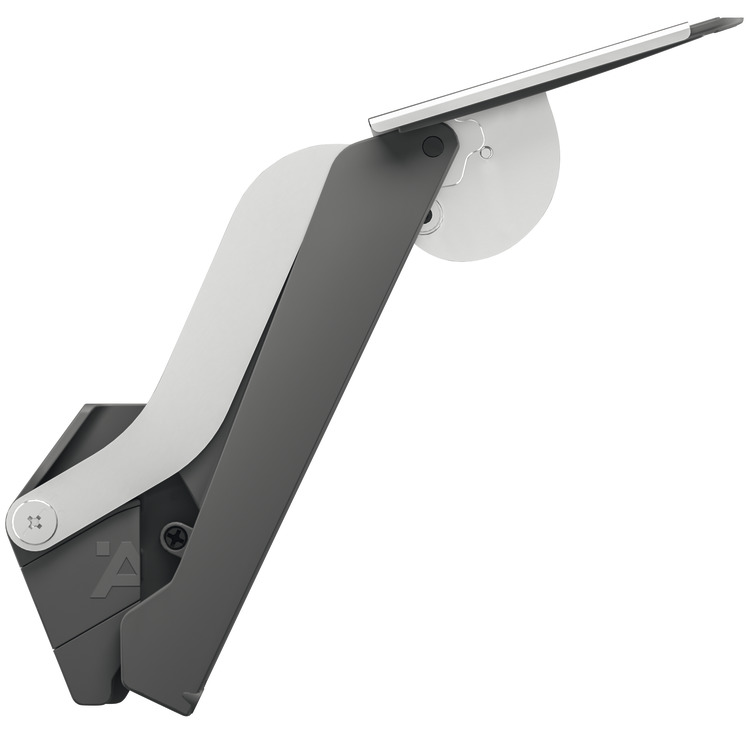

• Swing-Up Fitting
• Häfele Free Space 1.8
• For push to open applications without handles
• Model: B pto
• Area of application: For door heights up to 650 mm (26")
• Adjustment facility: Please use a Pozi Drive #2 bit for all screw installations and adjustments. Door opening angle can be adjusted to 90° or 107° degrees.
• Installation reference: The fitting mounts to the side panels with a single pre-mounted Euro screw. The door mounts without tools and slides onto the mounting plates.
• Flap type: One-piece
• For lid weight: ≤4.3 kg
• Efficiency factor: 480 – 983
• For cabinet width: ≤1,800 mm
• For cabinet height: 225 – 650 mm

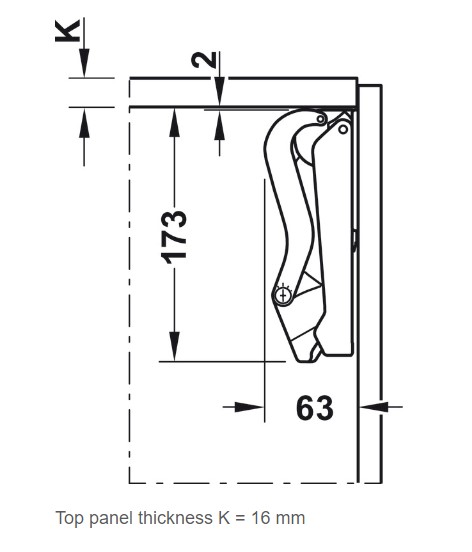

• Installation depth: 63 mm
• Installation Depth (inches): 2-1/2"
• Lid material: Wood, Aluminum frame
• Material: Plastic, steel
• Finish:
  • Housing: Anthracite
  • Support lever: Nickel plated
• Notes:

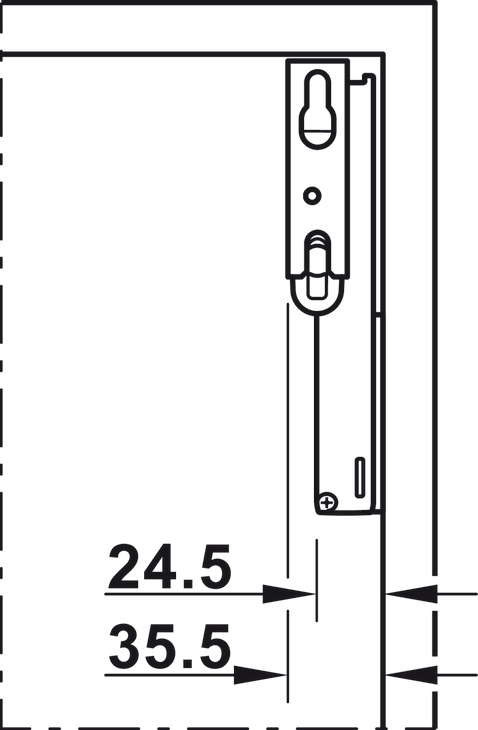

  • Fast simple installation: plugs into standard 32/37 mm line holes and fastens with one pre-mounted screw.
  • Intuitive 3D door alignment and closing adjustment
  • For wood or aluminum frame doors
  • Additional hinges and cover caps are not required
• Order reference: For aluminum framed doors, order screws and collars set item #372.27.600 - see accessories. Minimum frame width is 45 mm (1-3/4").
• Supplied with:
  • 2 Fittings (right/left)
  • 2 Mounting brackets with screws

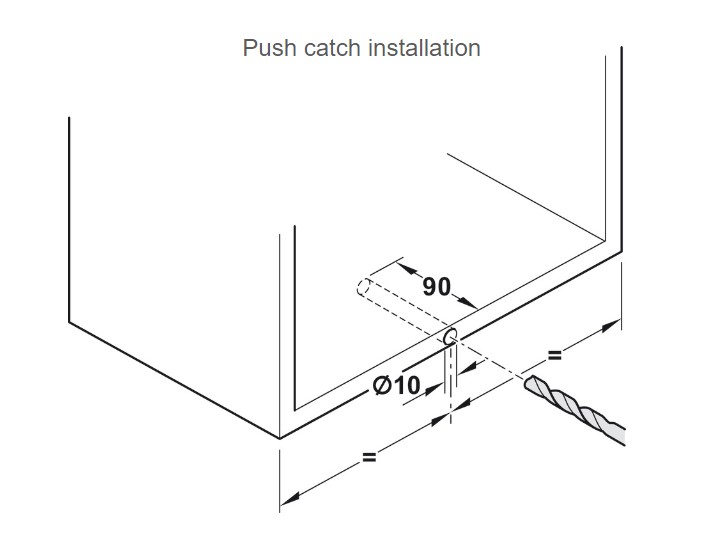

  • 1 Free push catch
  • 1 Set mounting instructions and paper drilling template
• Additional information: Important:
  • Selecting the correct model depends on door height and then door weight which should also consider the weight of the handle. We recommend ordering the stronger fitting if in doubt.
  • The lever arms are spring loaded. There is a risk of injury and damage to the fitting! After mounting the arms, do not press them down in the open position until the counterweight of the door is mounted.
  • Pozi Drive #2 bit is required for all screw installations and adjustment features, otherwise damage to the screw head is likely.
  • Be certain that Euro screws which attach the fittings to the side panels are completely tight, drawing the fitting tight against the side wall.
  • For tension adjustment feature, we recommend using a cordless driver as these screws are geared very low. Be sure to adjust both sides to the same tensioning position.
• Packing & Sold as: Set
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
