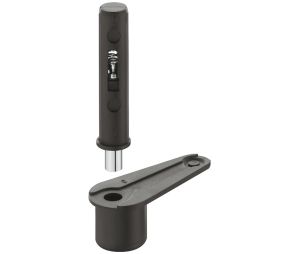

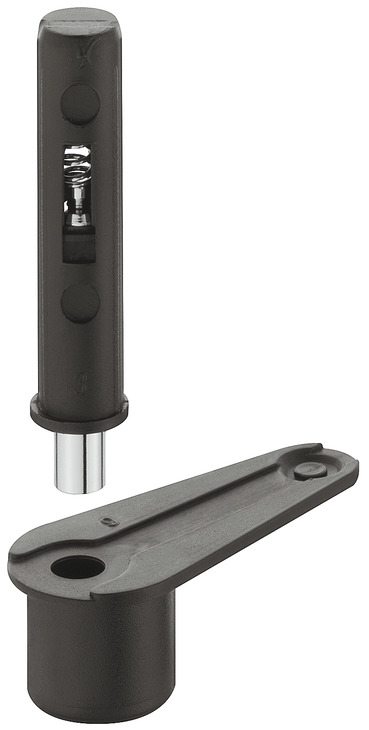

- Pivot Hinge
- 140° Opening Angle
- For door thickness: (1/16) 12 mm - (13/16") 21 mm
- Features: Detachable
- For Press Fitting

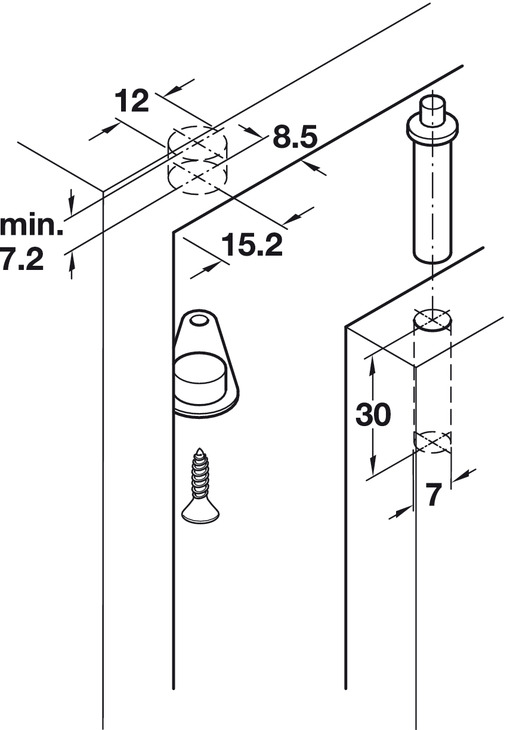

- Installation: Both pins spring-loaded: no tools required for installation
- To increase or reduce gap, turn tab on its pivotbearing. Once adjusted as desired, secure tab in position using a small wood screw as shown.
- To detach door, insert a small screwdriver into hole located in door edge. Then, use screwdriver to lift spring-loaded pin inside lower bushing. Important - Be sure to match holes in door and bushing.
- Material:
- Color: Black
- Supplied with: 2 pins & 2 bushings
- Packing & Sold as: Set.
- Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
Optional accessories: - Zip-R Screw, Flat Countersunk Head, #2 Phillips, with Nibs: 010.23.080, 010.23.150, 010.23.151, 010.23.152, 010.23.153, 010.23.154, 010.23.155, 010.23.156, 010.23.160, 010.23.161, 010.23.162, 010.23.163, 010.23.164, 010.23.165, 010.23.166, 010.23.167, 010.23.975, 010.23.979, 010.73.041, 010.73.043, 010.73.045, 010.73.046, 010.73.048, 010.73.049, 010.73.050, 010.73.051, 010.73.063, 010.73.065, 010.73.066, 010.73.941, 010.73.943, 010.73.945, 010.73.946, 010.73.948, 010.73.949, 010.73.950, 010.73.951, 010.73.963, 010.73.965, 010.73.966
- Flat Countersunk Head, #2 Phillips Drive: 010.23.171, 010.23.172, 010.23.173, 010.23.174, 010.23.175, 010.23.180, 010.23.181, 010.23.182, 010.23.183, 010.23.184, 010.23.185, 010.71.041, 010.71.043, 010.71.045, 010.71.046, 010.71.048, 010.71.049, 010.71.050, 010.71.051, 010.71.065, 010.71.066, 010.71.941, 010.71.943, 010.71.945, 010.71.946, 010.71.948, 010.71.949, 010.71.950, 010.71.963, 010.71.965, 010.71.966
- Flat Countersunk Head, #2 Square Drive, with Nibs: 010.72.041, 010.72.043, 010.72.045, 010.72.046, 010.72.048, 010.72.049, 010.72.050, 010.72.051
- Flat Countersunk Head, #2 Square Drive: 010.23.130, 010.23.131, 010.23.132, 010.23.133, 010.23.134, 010.23.135, 010.23.140, 010.23.141, 010.23.142, 010.23.143, 010.23.144, 010.23.145, 010.70.043, 010.70.045, 010.70.048, 010.70.049, 010.70.050, 010.70.066, 010.70.941, 010.70.943, 010.70.945, 010.70.946, 010.70.948, 010.70.949, 010.70.961, 010.70.963, 010.70.965, 010.70.966
- Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs: 010.22.095, 010.22.941, 010.22.943, 010.22.952, 010.22.953, 010.22.954, 010.22.955, 010.22.956, 010.22.957, 010.22.980, 010.22.981, 010.22.982, 010.22.983, 010.22.984, 010.22.985, 010.22.986, 010.22.987, 010.22.988, 010.22.995
|
