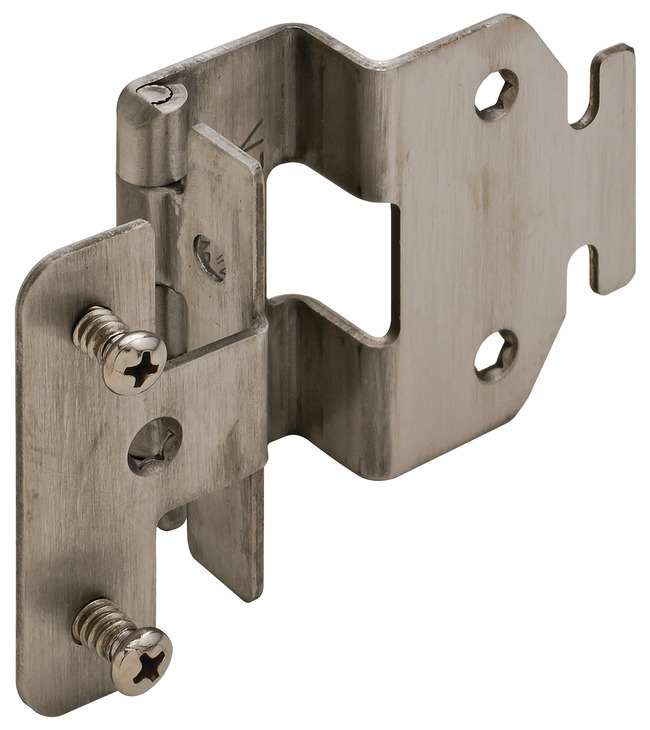

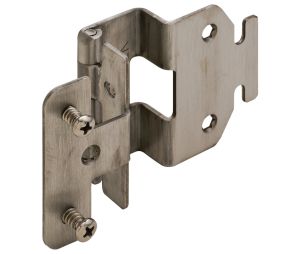

- Five-Knuckle Institutional Hinge
- Hinge knuckles broached for precision pin alignment and smooth operation
- Hinge leaves punched after forming for precision alignment
- Grade 1
- Model series: Advantage 5 K
- Application: Universal usage on 3/4" & 13/16" materials
- Installation:
- “Easy Hang" feature - requires one person operation for hanging large doors

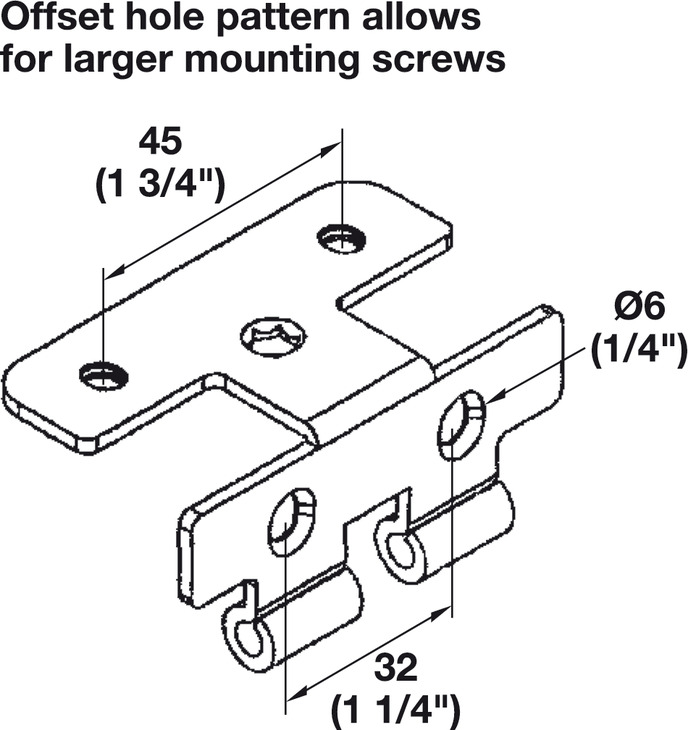

- Universal drill pattern consistent with Aximat® and concealed hinges

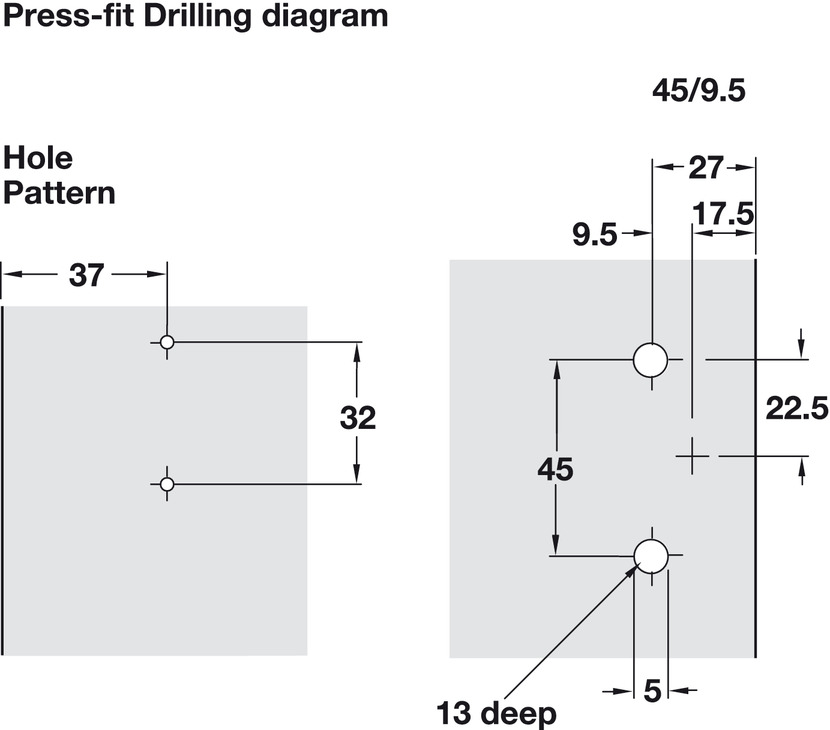

- Standard 37 mm set back and 32 mm system drilling
- Features: Pre-mounted 5 mm Euro Screws
- Opening angle: 270 °
- Gauge: 14
- Material: Steel
- Finish: Stainless Steel
- Supplied with screws
- Packing & Sold as: Each.
- Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Optional accessories: - Zip-R Screw, Pan Head, #2 Phillips Drive: 010.83.041, 010.83.043, 010.83.045, 010.83.061, 010.83.063, 010.83.065, 010.83.066, 010.83.068, 010.83.069, 010.83.941, 010.83.943, 010.83.945, 010.83.946, 010.83.961, 010.83.963, 010.83.965, 010.83.966, 010.83.968, 010.83.969, 010.83.970, 010.83.971, 015.85.990, 015.85.991
- Flat Countersunk Head, #2 Phillips Drive: 010.23.170, 010.23.171, 010.23.172, 010.23.173, 010.23.174, 010.23.175, 010.23.180, 010.23.181, 010.23.182, 010.23.183, 010.23.184, 010.23.185, 010.71.041, 010.71.043, 010.71.045, 010.71.046, 010.71.048, 010.71.049, 010.71.050, 010.71.051, 010.71.065, 010.71.066, 010.71.941, 010.71.943, 010.71.945, 010.71.946, 010.71.948, 010.71.950, 010.71.963, 010.71.965, 010.71.966
- Flat Countersunk Head, #2 Square Drive: 010.23.131, 010.23.132, 010.23.134, 010.23.135, 010.23.140, 010.23.141, 010.23.142, 010.23.143, 010.23.144, 010.23.145, 010.70.066, 010.70.961, 010.70.963, 010.70.965, 010.70.966
- Zip-R Screw, Pan Head, #2 Square Drive: 010.82.041, 010.82.043, 010.82.045, 010.82.046, 010.82.048, 010.82.049, 010.82.061, 010.82.063, 010.82.065, 010.82.068, 010.82.941, 010.82.943, 010.82.945, 010.82.946, 010.82.961, 010.82.963, 010.82.965, 010.82.966, 010.82.968, 010.82.969
- Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated: 015.80.047, 015.80.051, 015.80.140, 015.80.141, 015.80.142, 015.80.143, 015.80.144, 015.80.145, 015.80.146, 015.80.147, 015.80.148, 015.80.149, 015.80.150, 015.80.151, 015.80.152, 015.80.153, 015.80.154, 015.80.155, 015.80.156, 015.80.157, 015.80.158, 015.80.159, 015.80.160, 015.80.161
- Spax® Screw, Pan Head Screw with Uni-drive, Zinc-Plated: 015.80.162, 015.80.168, 015.80.170, 015.80.172
- Elbow Catch, Deluxe Model, Brass: 245.74.000, 245.74.200, 245.74.201
|
