Hafele 348.90.021

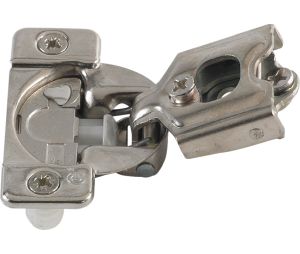

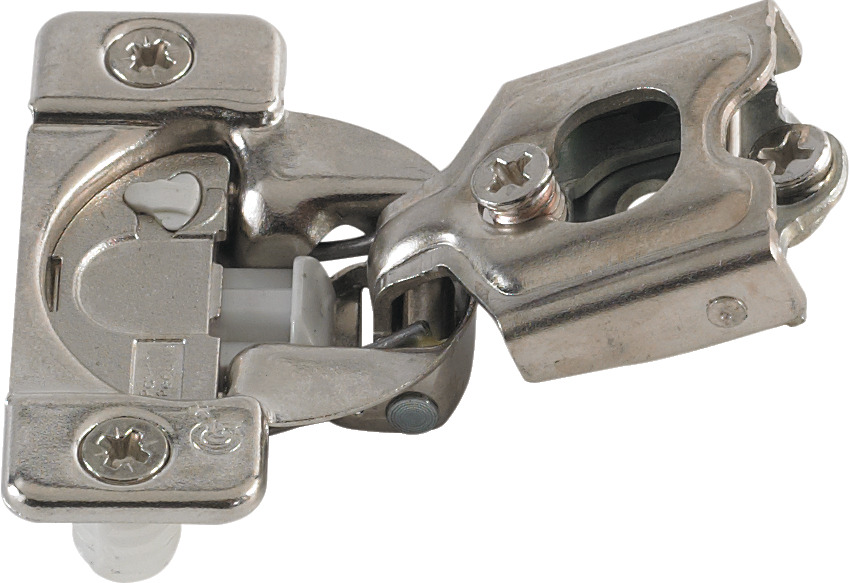

Name: Hafele 348.90.021 Concealed Face Frame Hinge, Grass Tec Wrap Around, Model 02858A-15, 108° Opening Angle, Soft-Close, 7/16" Overlay, Press-fit
Brand: Hafele
SKU: Hafele 348.90.021
Price: 6.23 USD

Hafele 348.90.021 Concealed Face Frame Hinge, Grass Tec Wrap Around, Model 02858A-15, 108° Opening Angle, Soft-Close, 7/16" Overlay, Press-fit

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 348.90.021 Concealed Face Frame Hinge, Grass Tec Wrap Around, Model 02858A-15, 108° Opening Angle, Soft-Close, 7/16" Overlay, Press-fit

Price: $6.23 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 348.90.021 Concealed Face Frame Hinge, Grass Tec Wrap Around, Model 02858A-15, 108° Opening Angle, Soft-Close, 7/16" Overlay, Press-fit

Concealed Face Frame Hinge
Model series: Grass Tec
Model: 02858A-15
Soft close mechanism is pre-mounted in the hinge cup
Adjustment switch to regulate closing action
One-piece hinge and base plate
3-dimensional adjustment
Cam side and depth adjustment

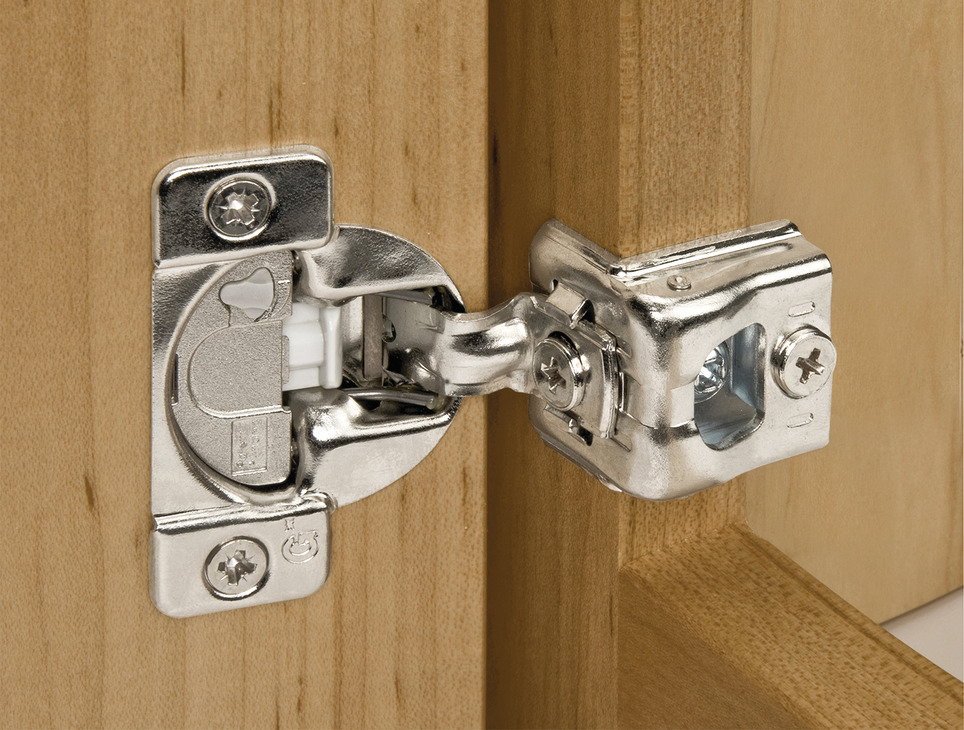

Front and rear locating tabs position hinge on face frame
Adjustment:

Side Adjustment Cam +/- 1/16" (1.5mm)
Height Adjustment: +/- 3/32 (2mm)
Depth Adjustment Cam +3/32" (2.5mm) - 1/32" (.5mm)

Mounting: Press-fit

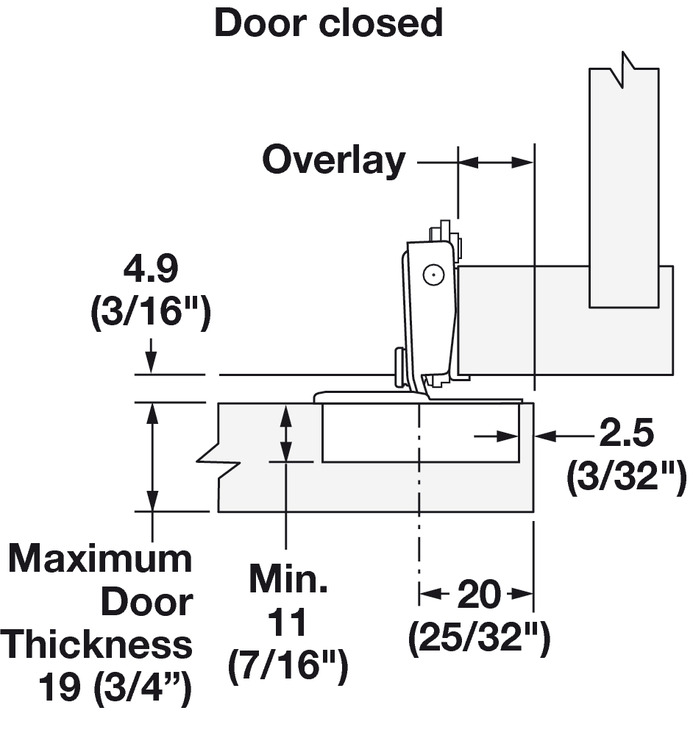

Overlay: (7/16") 11 mm
Clearance:

Door: (13/64") 5.1 mm
Arm: (7/16") 11 mm

Drilling depth: Cup drilling depth: (7/16") 10.7 mm
Opening angle: 108°
Drilling Pattern: 45/9.5
Material: Steel
Finish: Nickel-Plated
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
