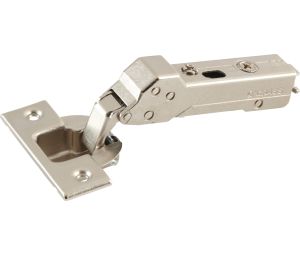

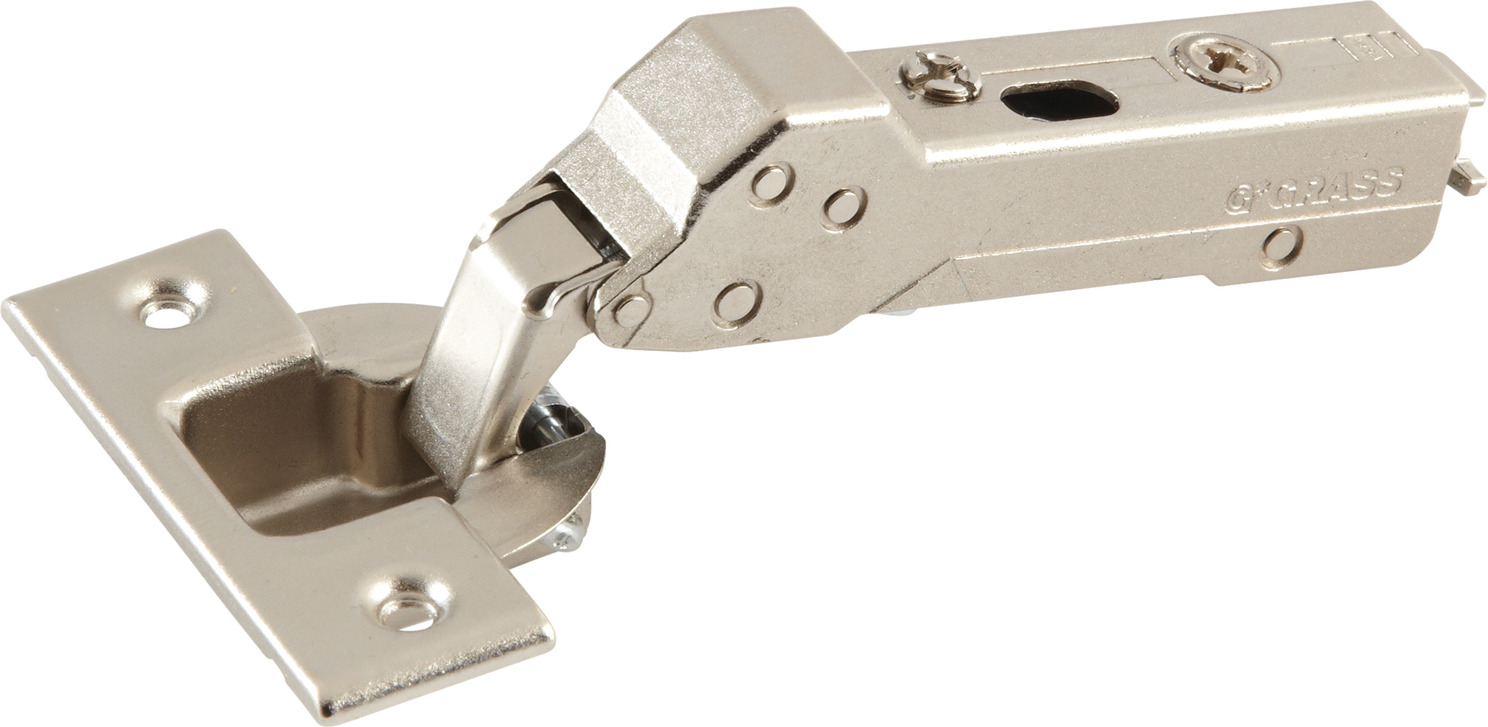

Hafele 348.35.805 Concealed Corner Hinge, Grass Tiomos, Model F028138533223, 110° Opening Angle, Overlay Mounting, Soft-close, Screw-on
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
17.68 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 171
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 348.35.805 Concealed Corner Hinge, Grass Tiomos, Model F028138533223, 110° Opening Angle, Overlay Mounting, Soft-close, Screw-on
Concealed Corner Hinge
Grass Tiomos
Model: F028138533223
Type of closing: Soft-close
Mounting: Screw-on
Opening angle: 110°
Application: For corner applications
For door thickness: Max: (15/16") 24
Material:
Cup: Steel
Hinge arm: Zinc Alloy
Finish: Nickel-Plated
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Optional accessories:
Cover Cap, for Grass Tiomos Hinge Arm:
348.40.000
