Hafele 344.75.051
Hafele 344.75.051

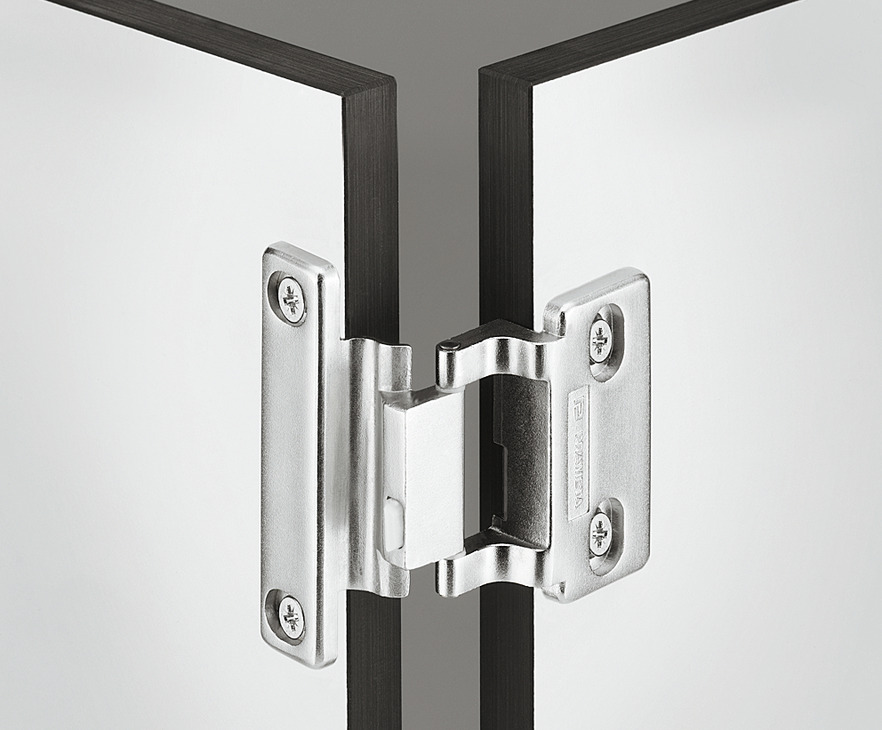

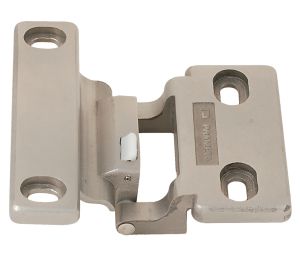

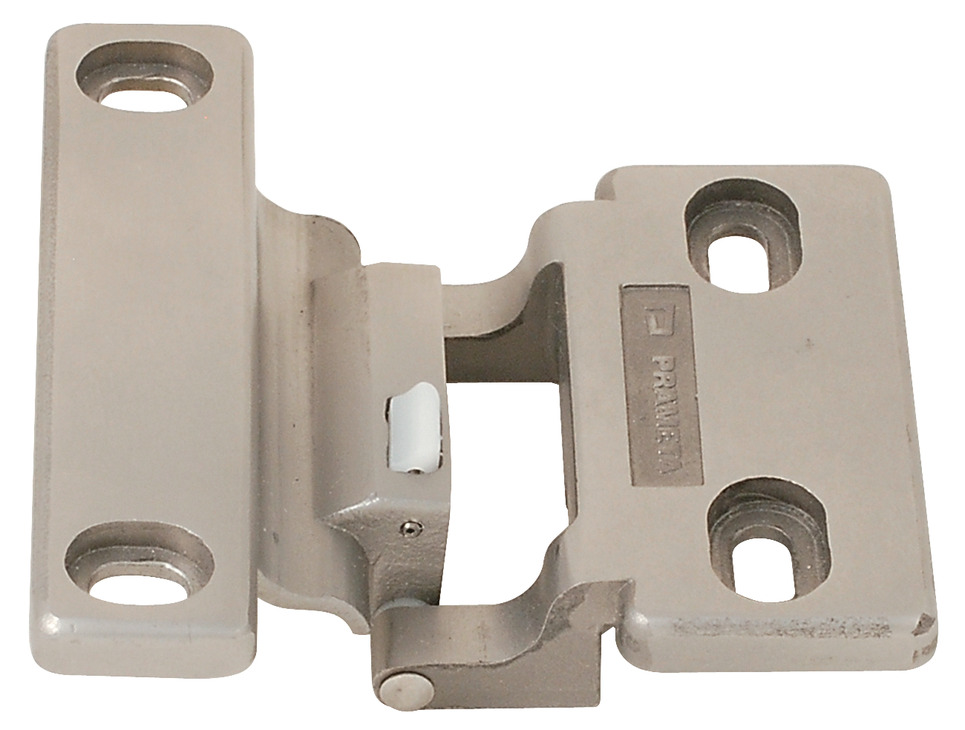

Hafele 344.75.051 Thin Panel Institutional Hinge, Grade 1, 240° Opening Angle, Stainless Steel, Satin
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
76.22 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 158
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 344.75.051 Thin Panel Institutional Hinge, Grade 1, 240° Opening Angle, Stainless Steel, Satin
Thin Panel Institutional Hinge
Grade 1
Meets 720 hour salt spray test
Door overlay (side to side) adjustment of -1 mm with oblong holes
Height adjustment (up and down) of ± 2 mm with oblong holes
Stands up to corrosion, harsh chemicals and inclement weather
With automatic closing spring
For cabinet thickness 13 mm

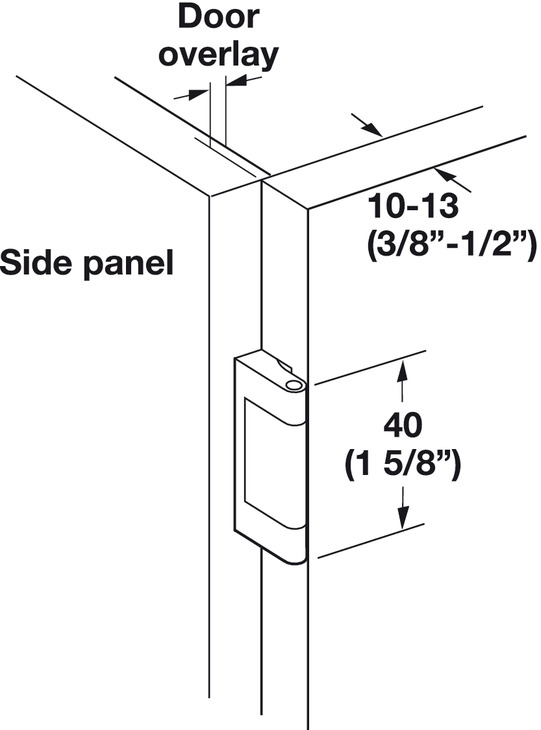

Overlay: 3+ knuckle 6 = 9.5 (3/8")
Opening angle: 240°
Mounting: Screw-mounted
Material: 316 Stainess Steel
Finish: Satin
Supplied with 4 Stainless steel mounting screws
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Product Page
DWG Drawing
