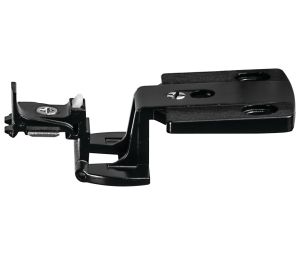

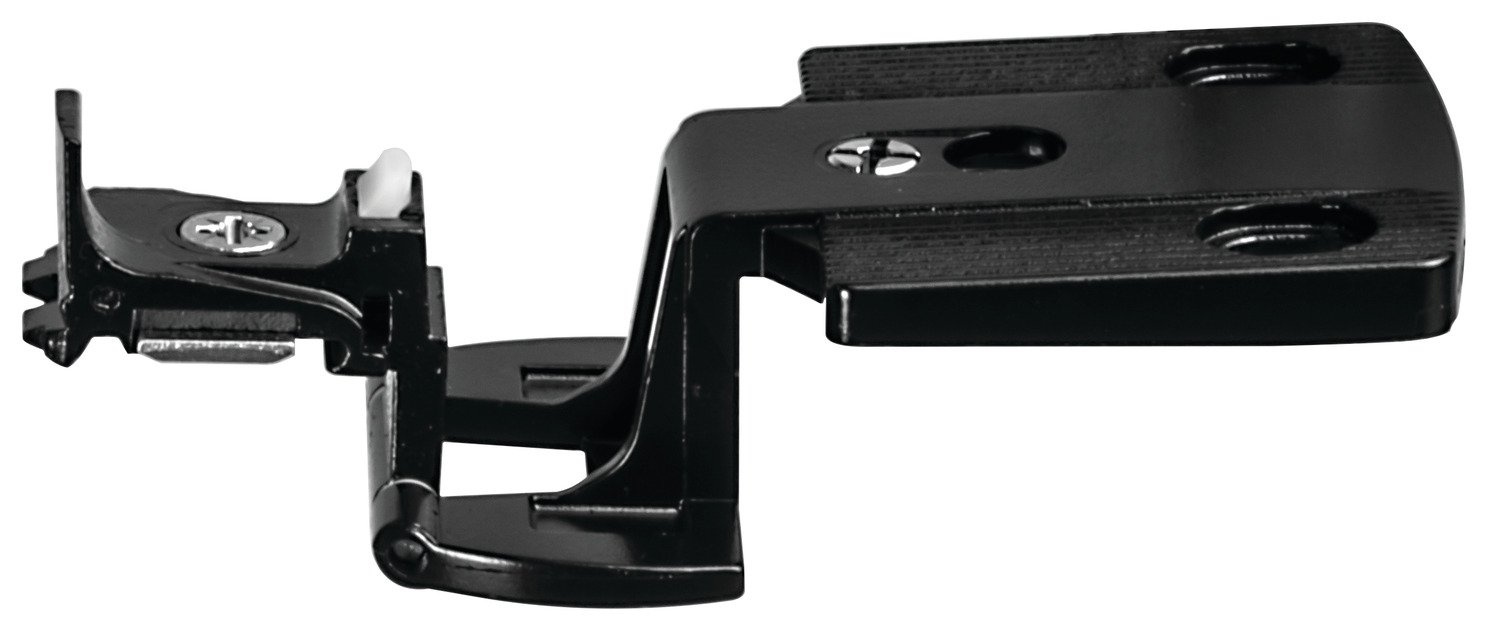

Hafele 344.06.980

• Single Pivot Institutional Hinge Arm
• Sleek sophisticated design, only 5 mm (3/16") of knuckle is visible
• Integrated catch keeps doors closed, no additional magnetic catches required
• #6 wood screws for hinge attachment are not included
• Tested in accordance with ANSI/BHMA Grade 1 standards
• Model series: 300

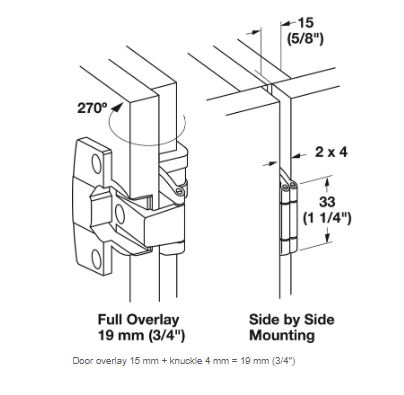

• Opening angle: 270°
• Overlay: Full
• Features:

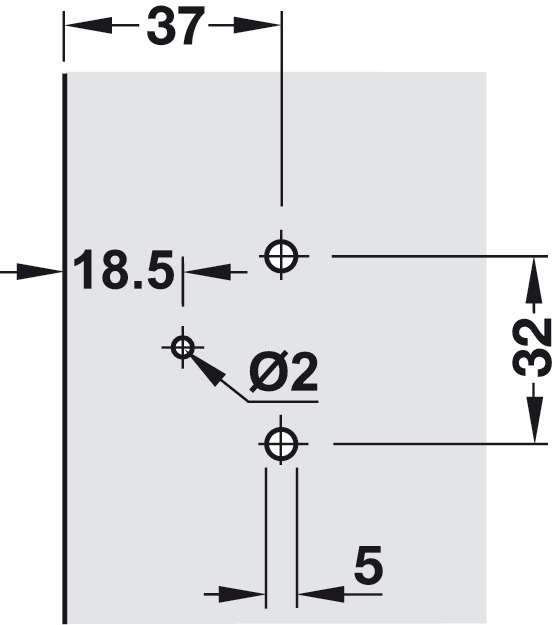

• Hinge arm component available with pre-installed expanding dowels for 5 mm holes, or for screw attachment

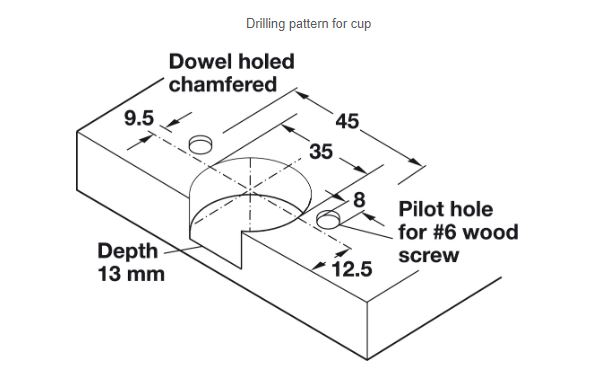

• Hinge cup component available in screw-mount or dowel-mount

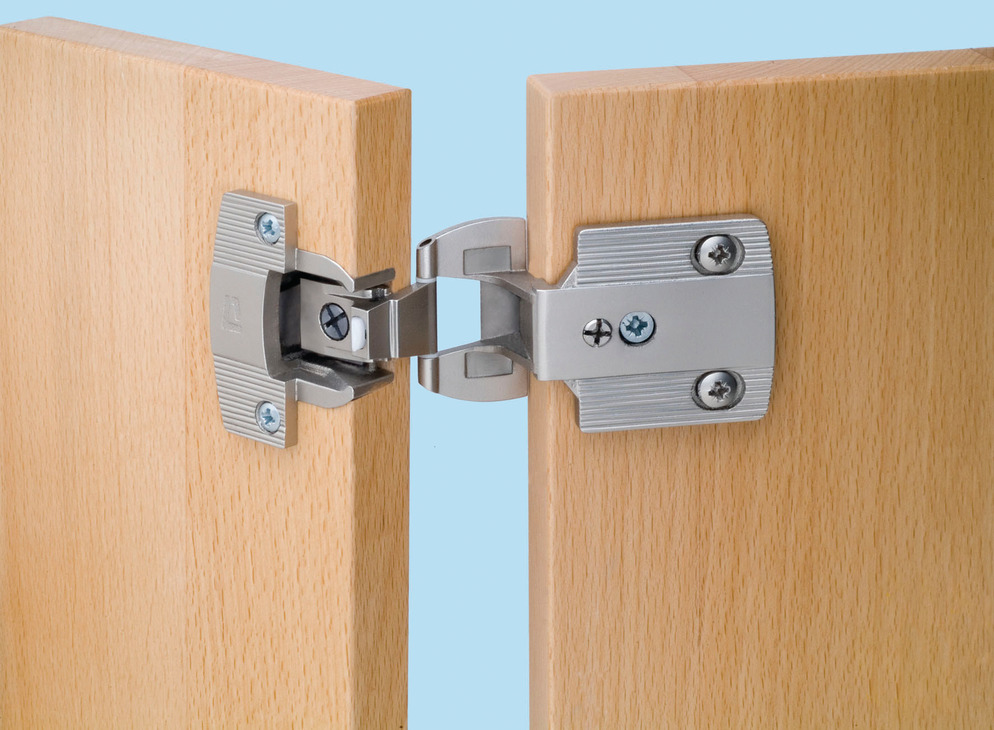

• Arm and cup clip-together, no tools required
• Without screws
• Application: For single cabinets and storage walls
• For door thickness: (13/16") 21 mm
• For side panel thickness: (3/4") 19 mm
• Mounting: without screws
• Material: Zinc
• Finish: Black
• Note:

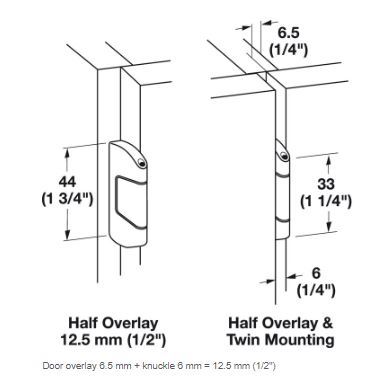

• Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel

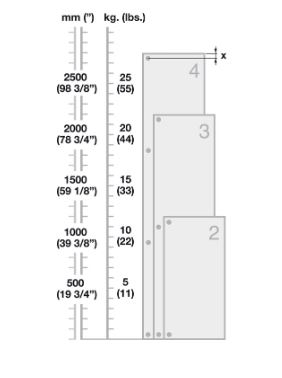

• Recommended number of hinges: Door widths up to 600mm (23-3/8"); Door width should not exceed height

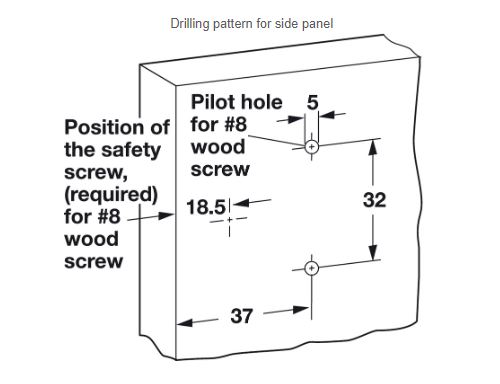

• Installation of safety screw in arm is required.
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

• Single Pivot Institutional Hinge Cup, Aximat® 300, Grade 1, Screw Mount: 344.06.800, 344.06.850
• Single Pivot Institutional Hinge Cup, Aximat® 300, Grade 1, for 8 mm Holes, Dowel Mount: 344.06.810, 344.06.860
