Hafele 344.06.860
Hafele 344.06.860

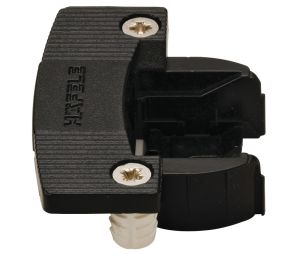

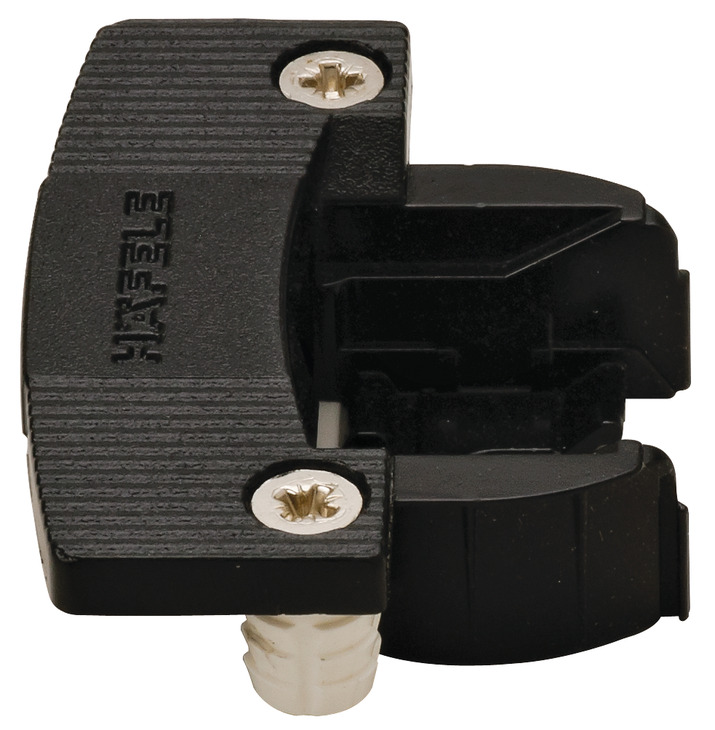

Hafele 344.06.860 Single Pivot Institutional Hinge Cup, Aximat® 300, Grade 1, for 1/4" Holes, Dowel Mount, Zinc, Nickel-Plated, Black
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
5.75 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 1357
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 344.06.860 Single Pivot Institutional Hinge Cup, Aximat® 300, Grade 1, for 1/4" Holes, Dowel Mount, Zinc, Nickel-Plated, Black
Single Pivot Institutional Hinge Arm
Sleek sophisticated design, only 5 mm (3/16") of knuckle is visible
Integrated catch keeps doors closed, no additional magnetic catches required
Tested in accordance with ANSI/BHMA Grade 1 standards
Model: 300
Application: For single cabinets and storage walls
Adjustment: Three-dimensional
Features:
Hinge arm component available with pre-installed expanding dowels for 5 mm holes, or for screw attachment
Hinge cup component available in screw-mount or dowel-mount
Arm and cup clip-together, no tools required
For door thickness: (13/16") 21 mm
For side panel thickness: (3/4") 19 mm
For 1/4" Holes
Mounting: For press fitting, dowel mount
Opening angle: 270°
Drilling pattern: 45/9.5 mm
Drilling depth: Hinge cup 13 mm
Material: Zinc
Finish: Nickel-Plated, Black
Note:
Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel
Recommended number of hinges: Door widths up to 600 mm (23-5/8"); Door width should not exceed height
Installation of safety screw in arm is required.
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
