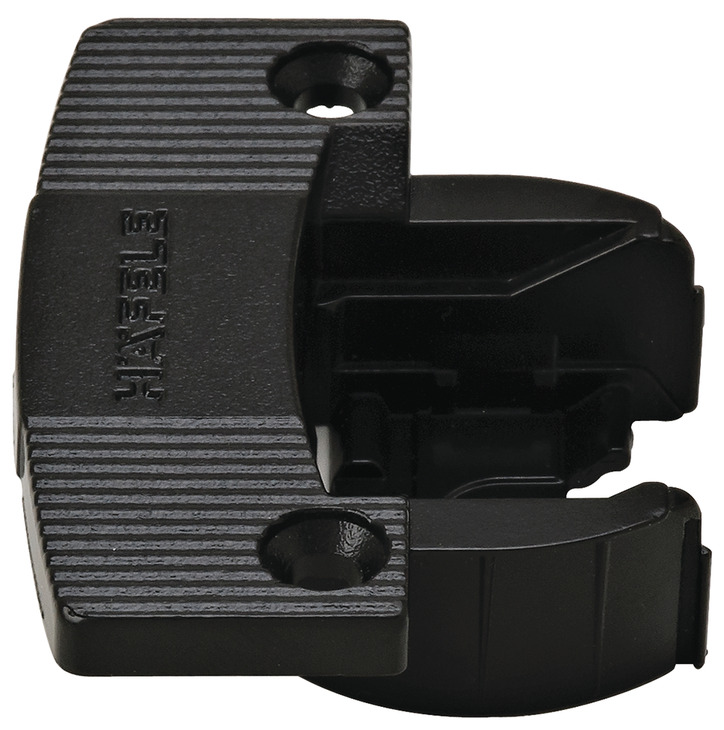

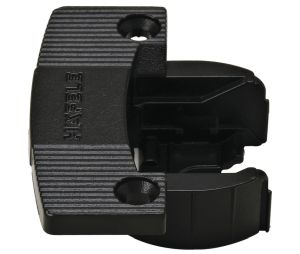

Hafele 344.06.850

• Single Pivot Institutional Hinge Arm
• Sleek sophisticated design, only 5 mm (3/16") of knuckle is visible
• Integrated catch keeps doors closed, no additional magnetic catches required
• Tested in accordance with ANSI/BHMA Grade 1 standards
• Model: 300
• Application: For single cabinets and storage walls
• Adjustment: Three-dimensional
• Features:
• Hinge arm component available with pre-installed expanding dowels for 5 mm holes, or for screw attachment
• Hinge cup component available in screw-mount or dowel-mount
• Arm and cup clip-together, no tools required
• For door thickness: (13/16") 21 mm
• For side panel thickness: (3/4") 19 mm
• Mounting: For press fitting, screw mount
• Opening angle: 270°
• Drilling pattern: 45/9.5 mm
• Drilling depth: Hinge cup 13 mm
• Material: Zinc
• Finish: Nickel-Plated, Black
• Note:
• Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel
• Recommended number of hinges: Door widths up to 600 mm (23-5/8"); Door width should not exceed height
• Installation of safety screw in arm is required.
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

• Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, with Expanding Dowels: 344.06.320, 344.06.902, 344.06.903, 344.06.920, 344.06.921
• Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, Opening Angle 270°: 344.06.930, 344.06.980
