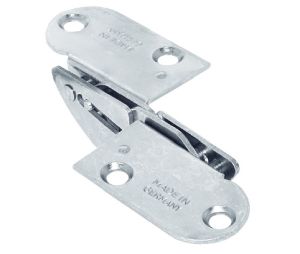

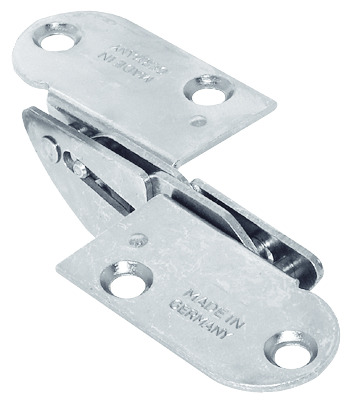

- Folding Table Hinge
- For panel thickness: 19 mm

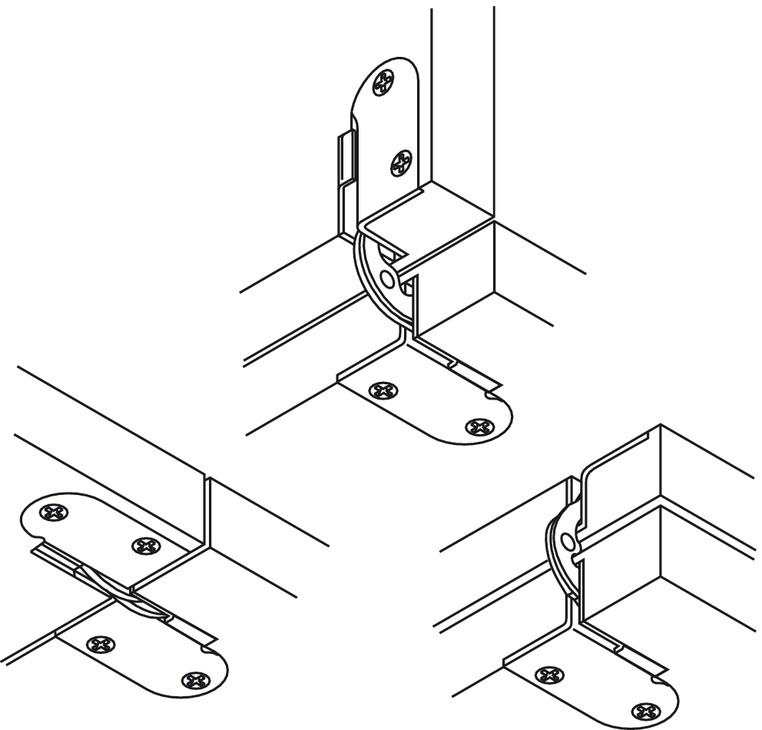

- Mounting: Flush-mounted
- Distance between panels is approximately 5 mm

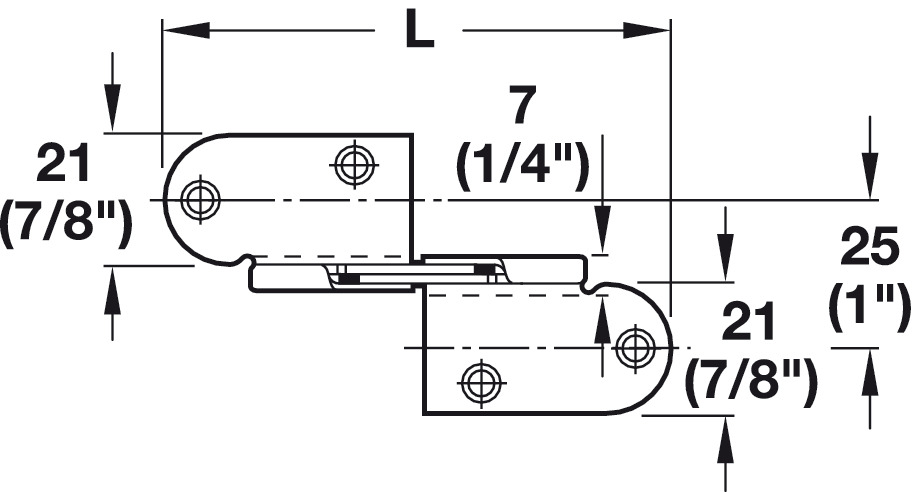

- L: 85 mm

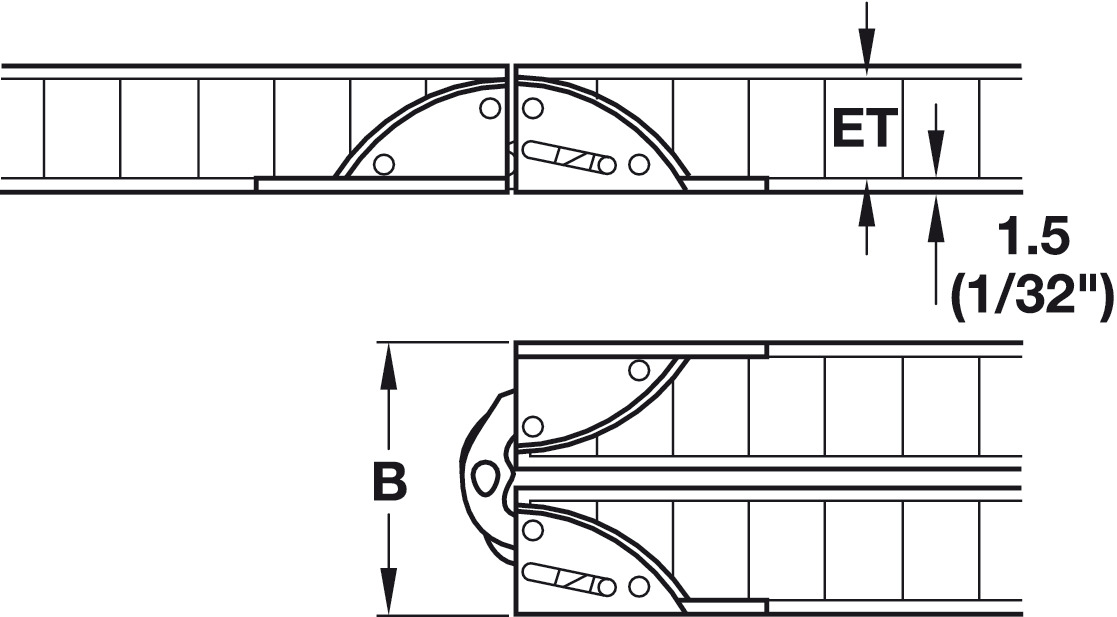

- B: 47 mm
- Depth: Mortise ET: 16
- Material: Steel
- Finish: Blue galvanized
- Packing & Sold as: Each.
- Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Optional accessories: - Peg and Sleeve Connector: 642.51.243
- Flat Countersunk Head, #2 Phillips, with Nibs: 010.23.080, 010.23.150, 010.23.151, 010.23.152, 010.23.153, 010.23.154, 010.23.155, 010.23.156, 010.23.160, 010.23.161, 010.23.162, 010.23.163, 010.23.164, 010.23.165, 010.23.166, 010.23.167, 010.23.975, 010.23.979, 010.73.041, 010.73.043, 010.73.045, 010.73.046, 010.73.048, 010.73.049, 010.73.050, 010.73.051, 010.73.063, 010.73.065, 010.73.066, 010.73.941, 010.73.943, 010.73.945, 010.73.946, 010.73.948, 010.73.949, 010.73.950, 010.73.951, 010.73.963, 010.73.965, 010.73.966
- Flat Countersunk Head, #2 Phillips Drive: 010.23.170, 010.23.171, 010.23.172, 010.23.173, 010.23.174, 010.23.175, 010.23.180, 010.23.181, 010.23.182, 010.23.183, 010.23.184, 010.23.185, 010.71.041, 010.71.043, 010.71.045, 010.71.046, 010.71.048, 010.71.049, 010.71.050, 010.71.051, 010.71.065, 010.71.066, 010.71.941, 010.71.943, 010.71.945, 010.71.946, 010.71.948, 010.71.950, 010.71.963, 010.71.965, 010.71.966
- Flat Countersunk Head, #2 Square Drive, with Nibs: 010.71.963, 010.71.965, 010.71.966, 010.22.095, 010.22.941, 010.22.943, 010.22.952, 010.22.953, 010.22.954, 010.22.955, 010.22.956, 010.22.957, 010.22.980, 010.22.981, 010.22.982, 010.22.983, 010.22.984, 010.22.985, 010.22.986, 010.22.987, 010.22.988, 010.22.995, 010.23.120, 010.23.121, 010.23.122, 010.23.123, 010.23.124, 010.23.125, 010.23.126, 010.72.041, 010.72.043, 010.72.045, 010.72.046, 010.72.048, 010.72.049, 010.72.050, 010.72.051, 010.72.065, 010.72.066, 010.72.941, 010.72.943, 010.72.945, 010.72.946, 010.72.948, 010.72.949, 010.72.951, 010.72.963, 010.72.965, 010.72.966
- Flat Countersunk Head, #2 Square Drive: 010.23.130, 010.23.131, 010.23.132, 010.23.134, 010.23.135, 010.23.140, 010.23.141, 010.23.142, 010.23.143, 010.23.144, 010.23.145, 010.70.043, 010.70.045, 010.70.048, 010.70.049, 010.70.050, 010.70.066, 010.70.941, 010.70.943, 010.70.945, 010.70.946, 010.70.948, 010.70.949, 010.70.951, 010.70.961, 010.70.963, 010.70.965, 010.70.966
- Flat Countersunk Head with Uni-Drive, Zinc-Plated: 015.80.047, 015.80.051, 015.80.140, 015.80.141, 015.80.142, 015.80.143, 015.80.144, 015.80.145, 015.80.146, 015.80.147, 015.80.148, 015.80.149, 015.80.150, 015.80.151, 015.80.152, 015.80.153, 015.80.154, 015.80.155, 015.80.156, 015.80.157, 015.80.158, 015.80.159, 015.80.160, 015.80.161
|
