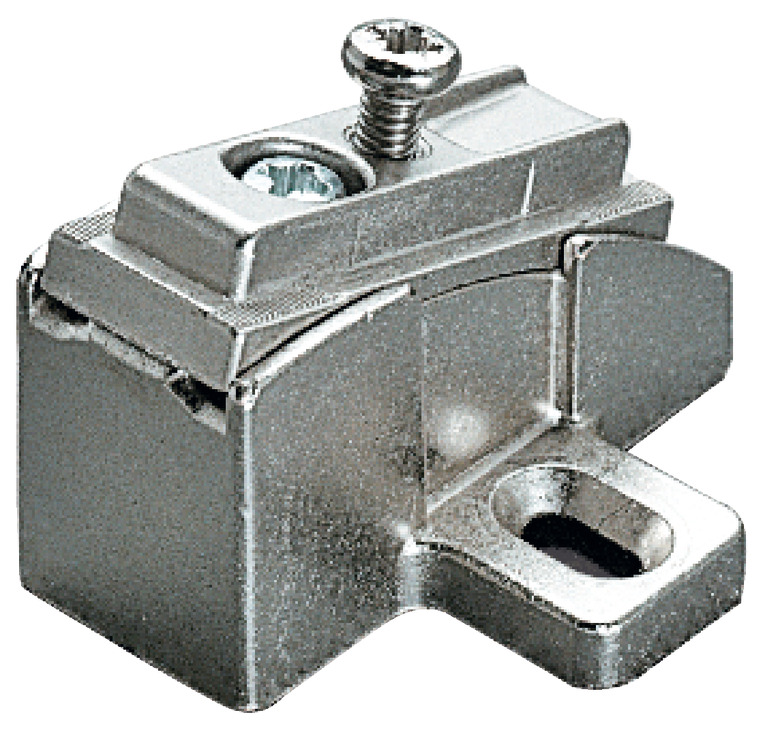

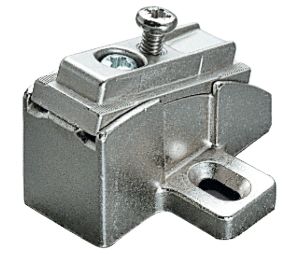

Hafele 329.84.120

Name: Hafele 329.84.120 Wing Mounting Plate, Salice, B2V3BW9S/15, Slide-on, Wood Screw, Angle from +10° to +30°, Slide-on System
Brand: Hafele
SKU: Hafele 329.84.120
Price: 3.73 USD

Hafele 329.84.120 Wing Mounting Plate, Salice, B2V3BW9S/15, Slide-on, Wood Screw, Angle from +10° to +30°, Slide-on System

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 329.84.120 Wing Mounting Plate, Salice, B2V3BW9S/15, Slide-on, Wood Screw, Angle from +10° to +30°, Slide-on System

Price: $3.73 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 394

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 329.84.120 Wing Mounting Plate, Salice, B2V3BW9S/15, Slide-on, Wood Screw, Angle from +10° to +30°, Slide-on System

Wing Mounting Plate
Salice
Slide-on
Model: B2V3BW9S/15
Area of application:

For Häfele Duomatic concealed hinges

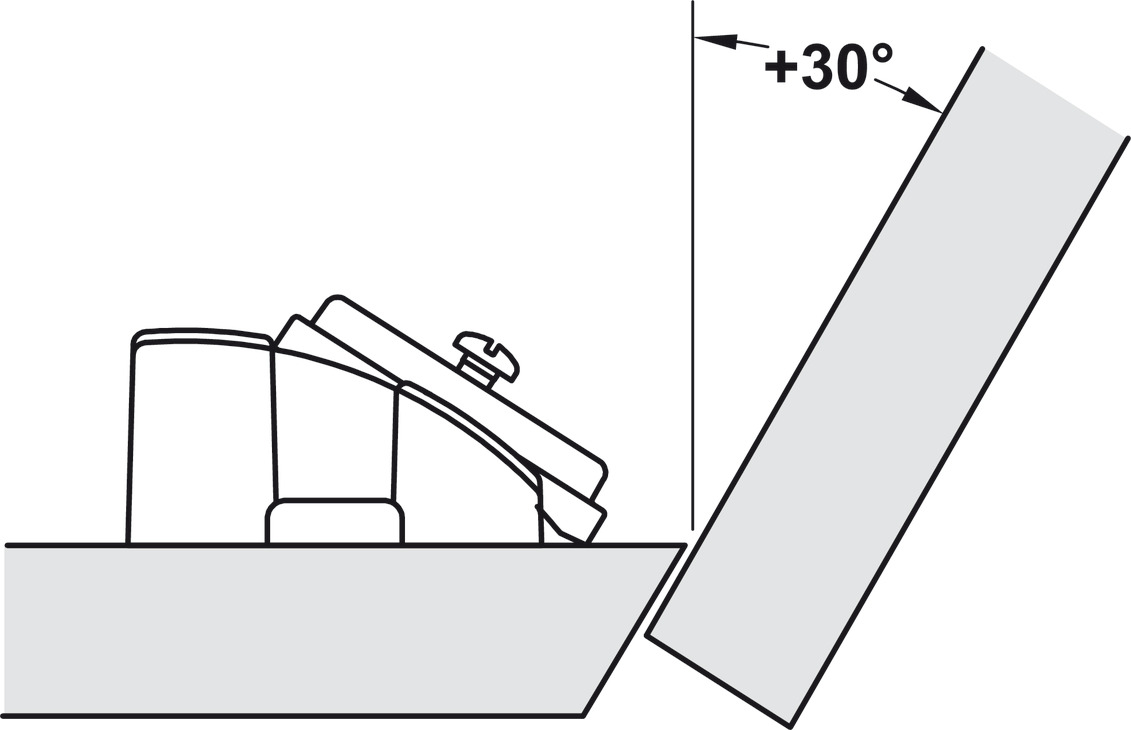

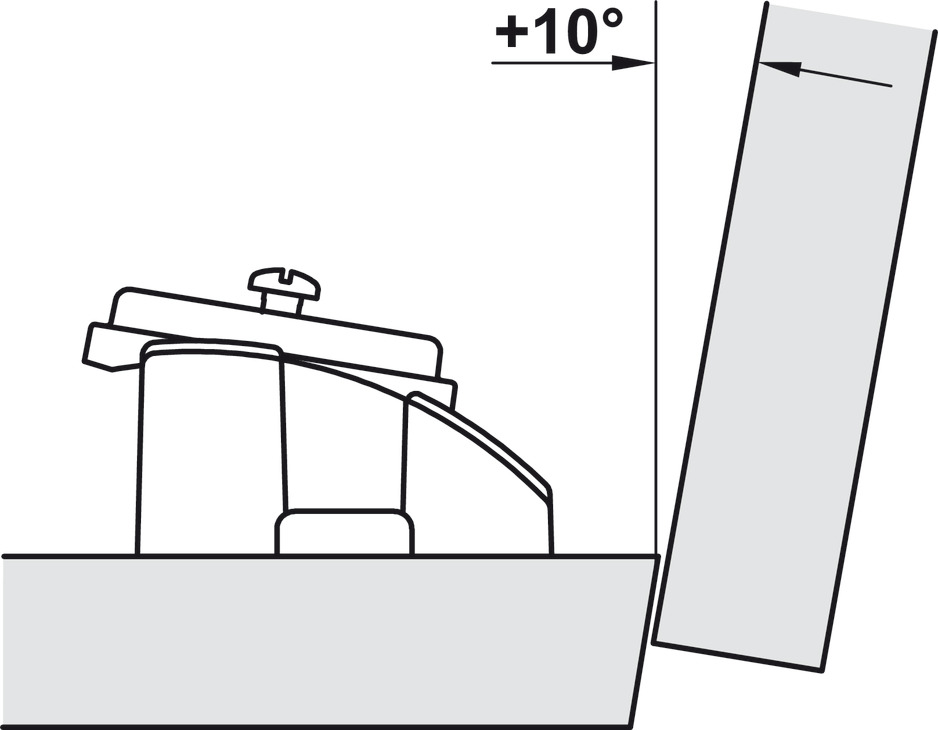

For corner applications from +10° to +30°

For mounting type: angled application
Installation: for screw fixing with chipboard screws
Adjustment facility: Height adjustment: Via slot ±2 mm
Material: Zinc Alloy
Finish: Nickel Plated

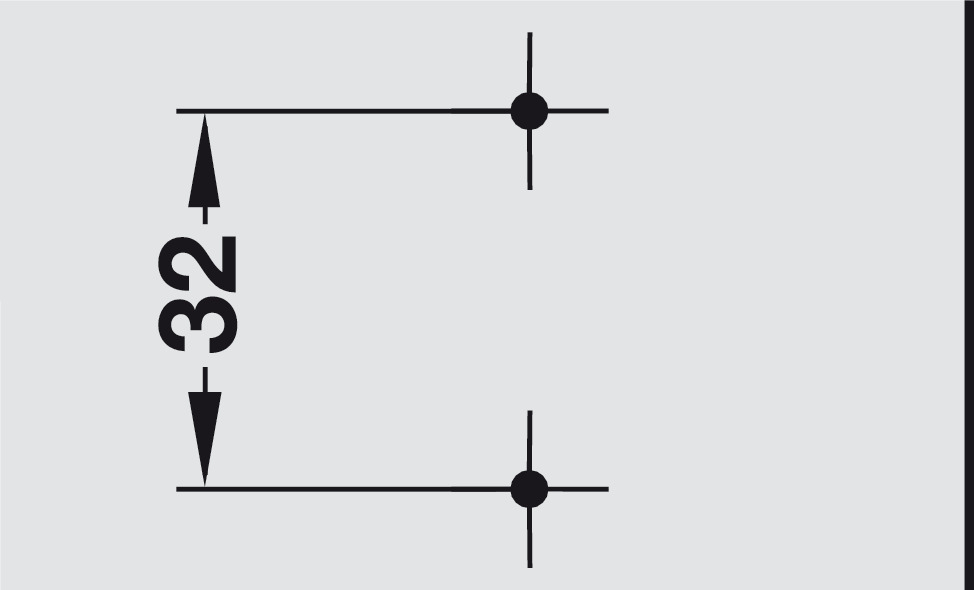

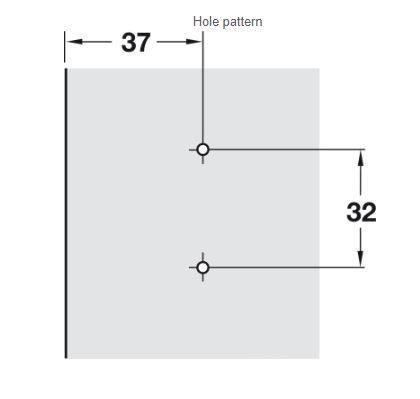

Note: The drilling distance can differ slightly depending on the corner application and should be determined by means of trial mounting.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
