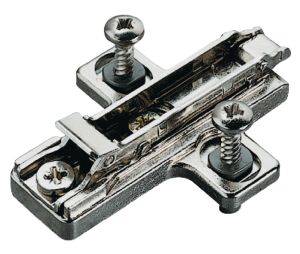

Hafele 329.71.520 Clip Mounting Plate, Häfele Duomatic SM, BAR4R09/16, with pre-mounted special screws and spreading dowels, 0" Distance, Nickel Plated
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1.39 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 10895
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

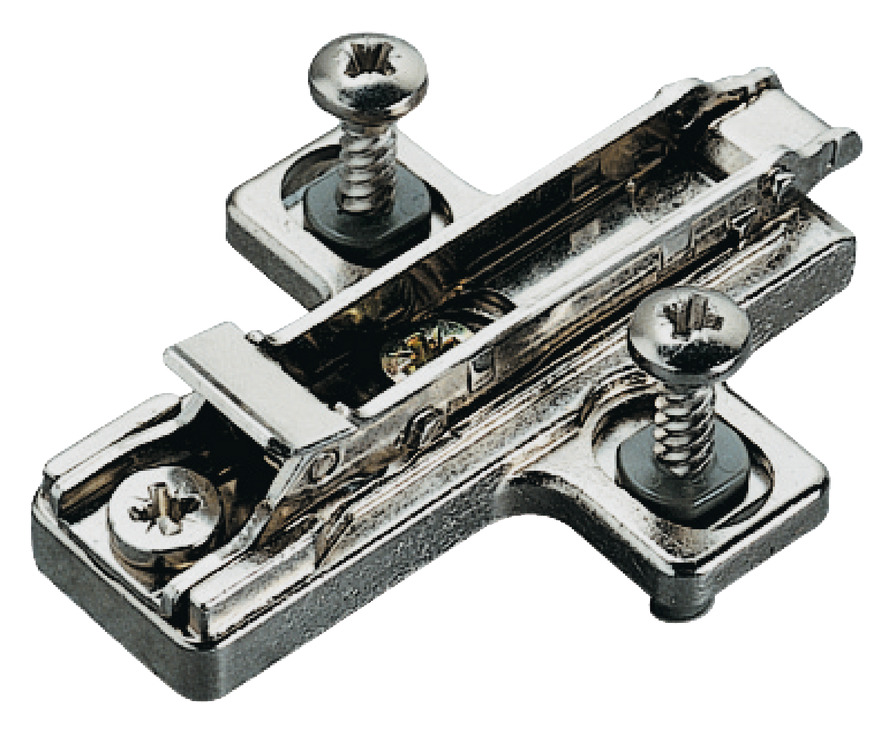

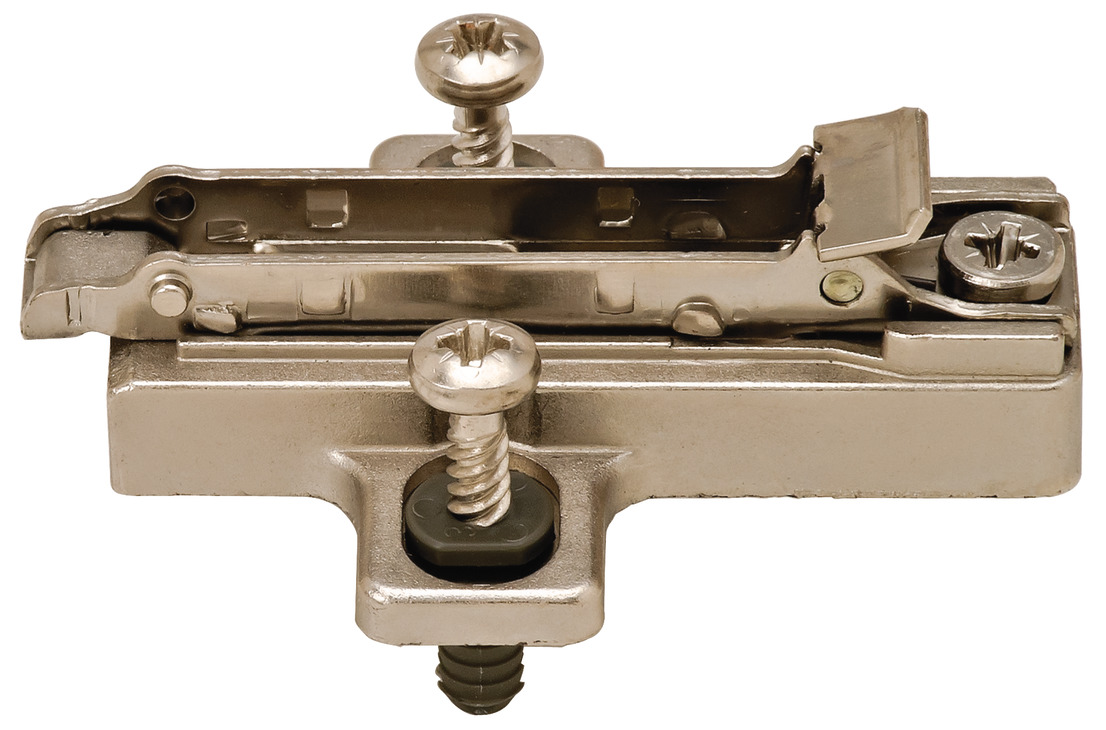

Hafele 329.71.520 Clip Mounting Plate, Häfele Duomatic SM, BAR4R09/16, with pre-mounted special screws and spreading dowels, 0" Distance, Nickel Plated
Clip Mounting Plate
Häfele Duomatic SM
Model: BAR4R09/16
Area of application: for Häfele Duomatic concealed hinges
Installation: with pre-mounted special screws and spreading dowels

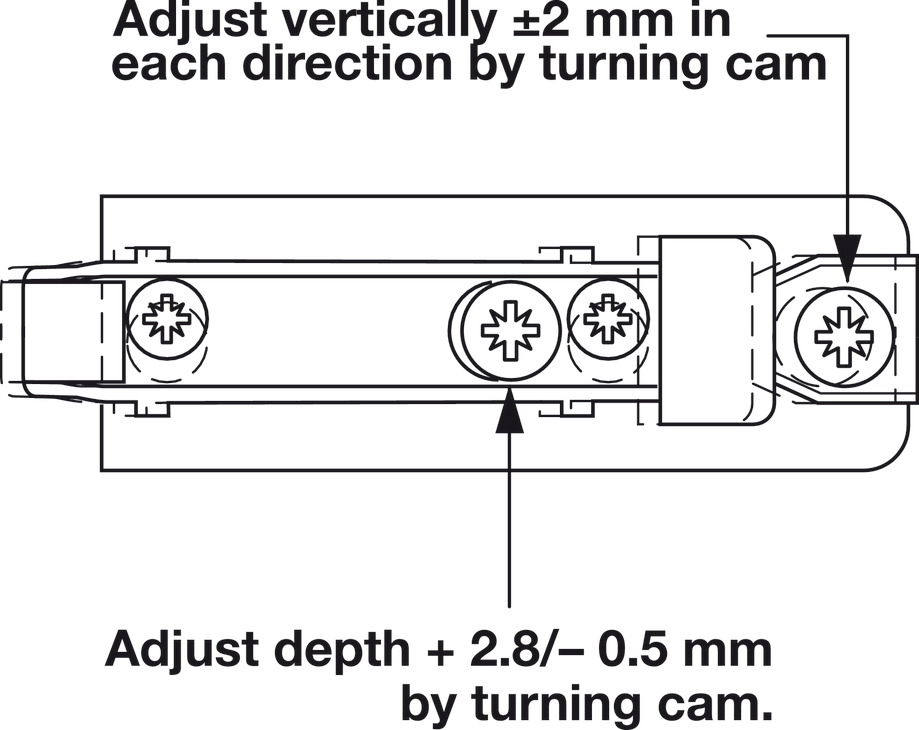

Adjustment facility:
Height adjustment: Via eccentric ±2 mm
Depth adjustment: Via eccentric -0.5 mm to +2.8 mm

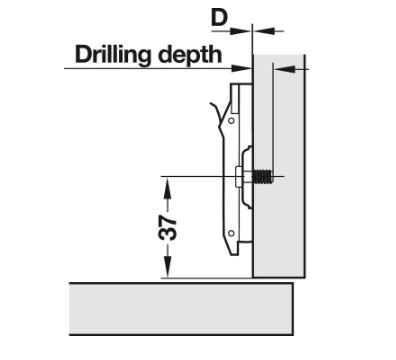

Drilling depth: 11 mm
Distance: 0 mm
Material: Zinc Alloy
Finish: Nickel Plated
Note: Vertical & depth adjustments made with Pozi drive #2
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
