Hafele 329.58.610

Name: Hafele 329.58.610 Single Pivot Institutional Hinge, Salice, CMR3A99, 270° Opening Angle, Self-close, Press-fit
Brand: Hafele
SKU: Hafele 329.58.610
Price: 12.51 USD

Hafele 329.58.610 Single Pivot Institutional Hinge, Salice, CMR3A99, 270° Opening Angle, Self-close, Press-fit

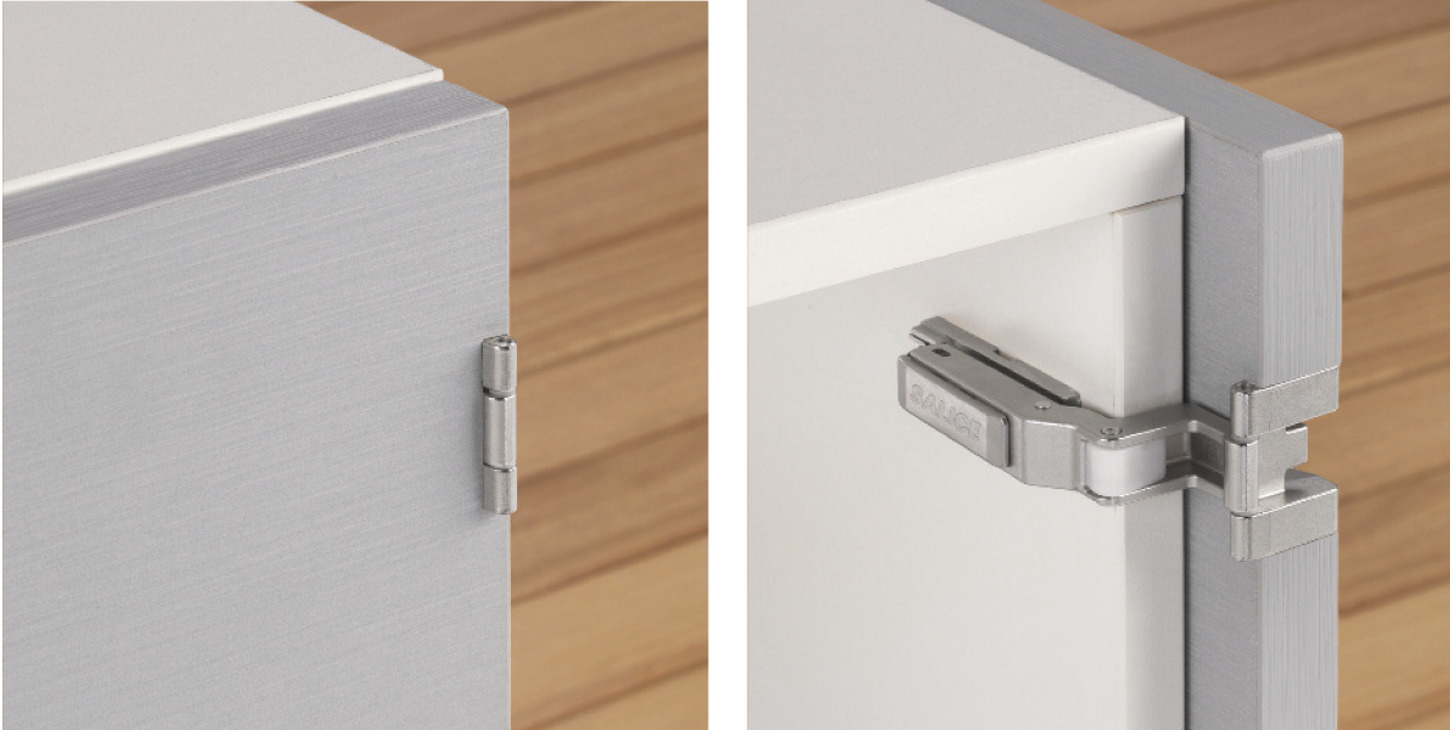

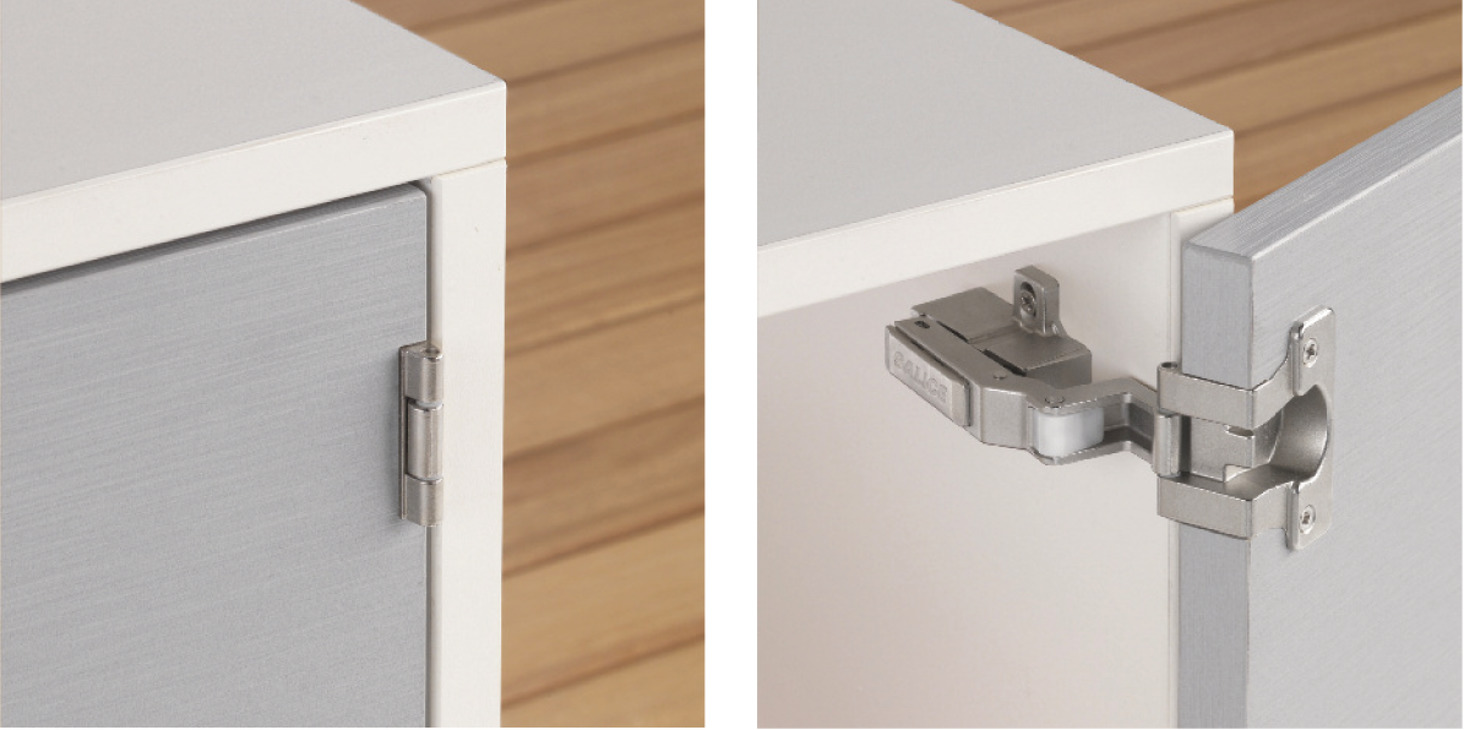

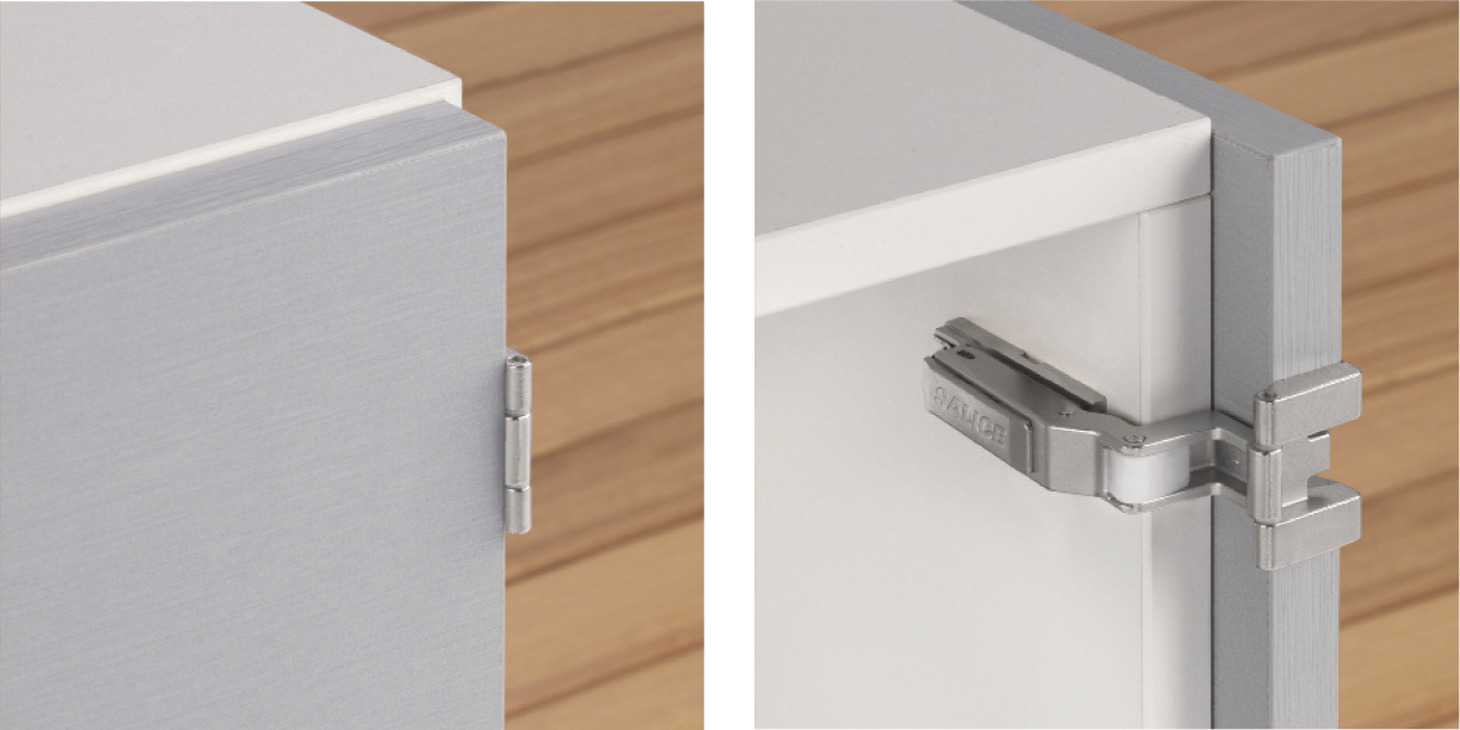

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 329.58.610 Single Pivot Institutional Hinge, Salice, CMR3A99, 270° Opening Angle, Self-close, Press-fit

Price: $12.51 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 930

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

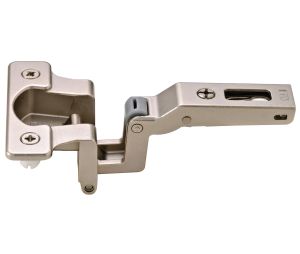

Hafele 329.58.610 Single Pivot Institutional Hinge, Salice, CMR3A99, 270° Opening Angle, Self-close, Press-fit

Single Pivot Institutional Hinge
Self-close
Press-fit
Model series: Salice
Model: CMR3A99
Hinges have built-in catch to stay closed; magnetic catches are not required.
Tested in accordance with ANSI/BHMA Grade 1 standards
Mounting: mounting in drilled hole
Adjustment facility:

Side adjustment facility: ±3 mm
Height adjustment facility: <2 mm
Depth adjustment facility: <2.8 mm

Opening angle: 270°

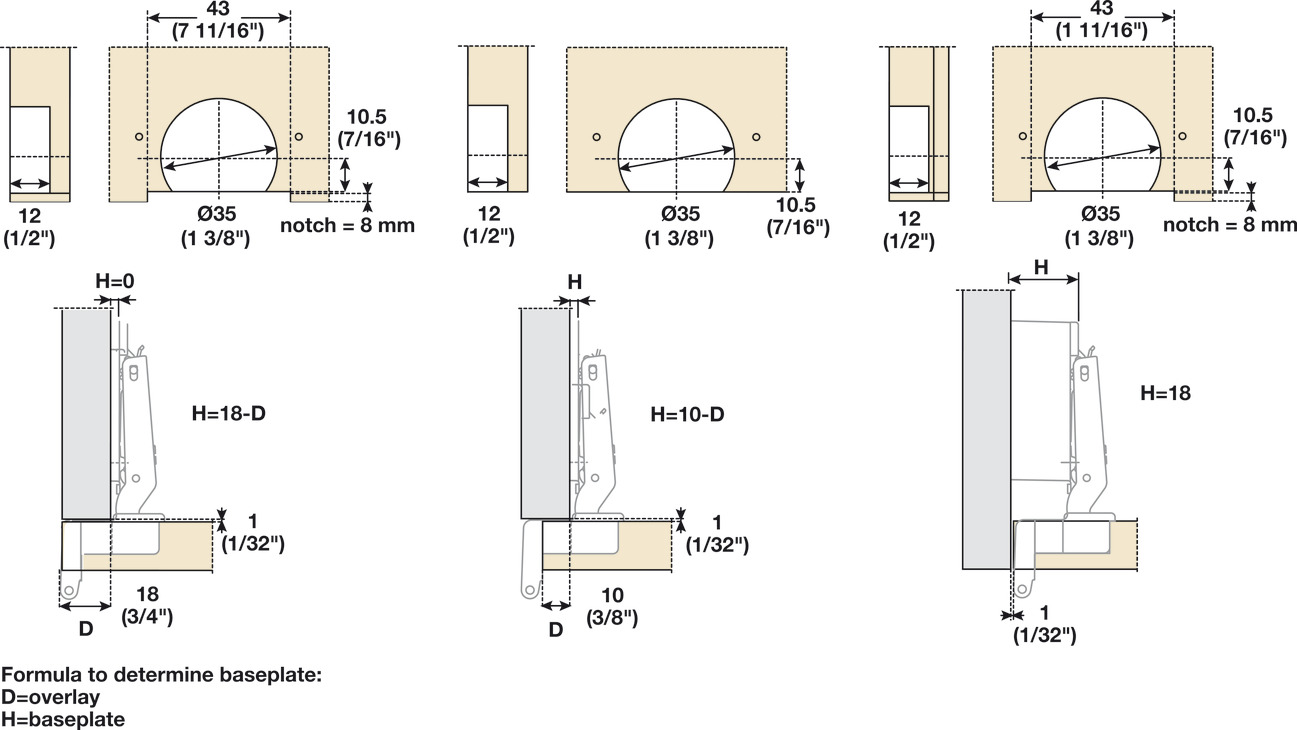

Door processing for assembly: cup drilling
For wooden door thickness: 20 mm
For door thickness min.: max. 13/16"
Cup drilling depth: 12 mm
Material: Steel, Hinge Arm: Steel
Finish: Nickel-Plated
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
