Hafele 329.23.610

Name: Hafele 329.23.610 Aluminum Frame Door Hinge, Salice, 105° Opening Angle, Self Close, Full Overlay, Zinc Alloy, Steel
Brand: Hafele
SKU: Hafele 329.23.610
Price: 4.1 USD

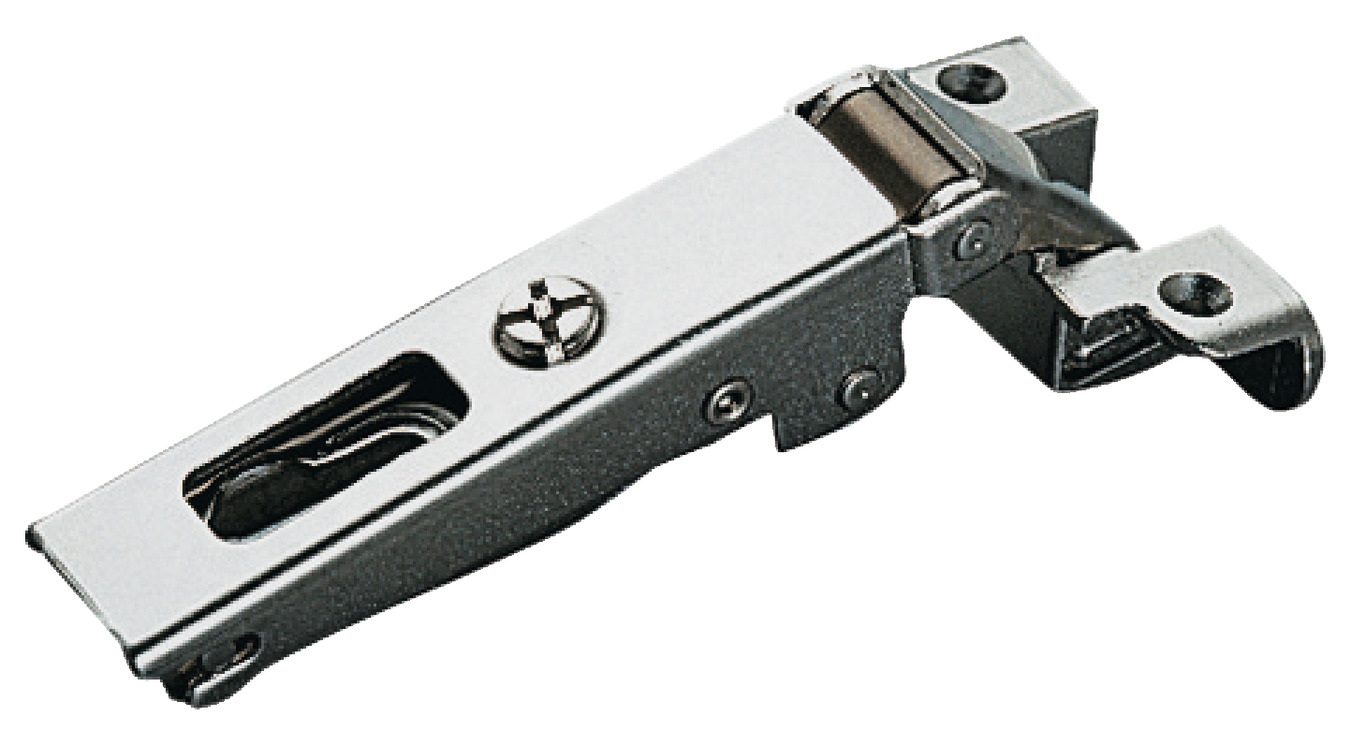

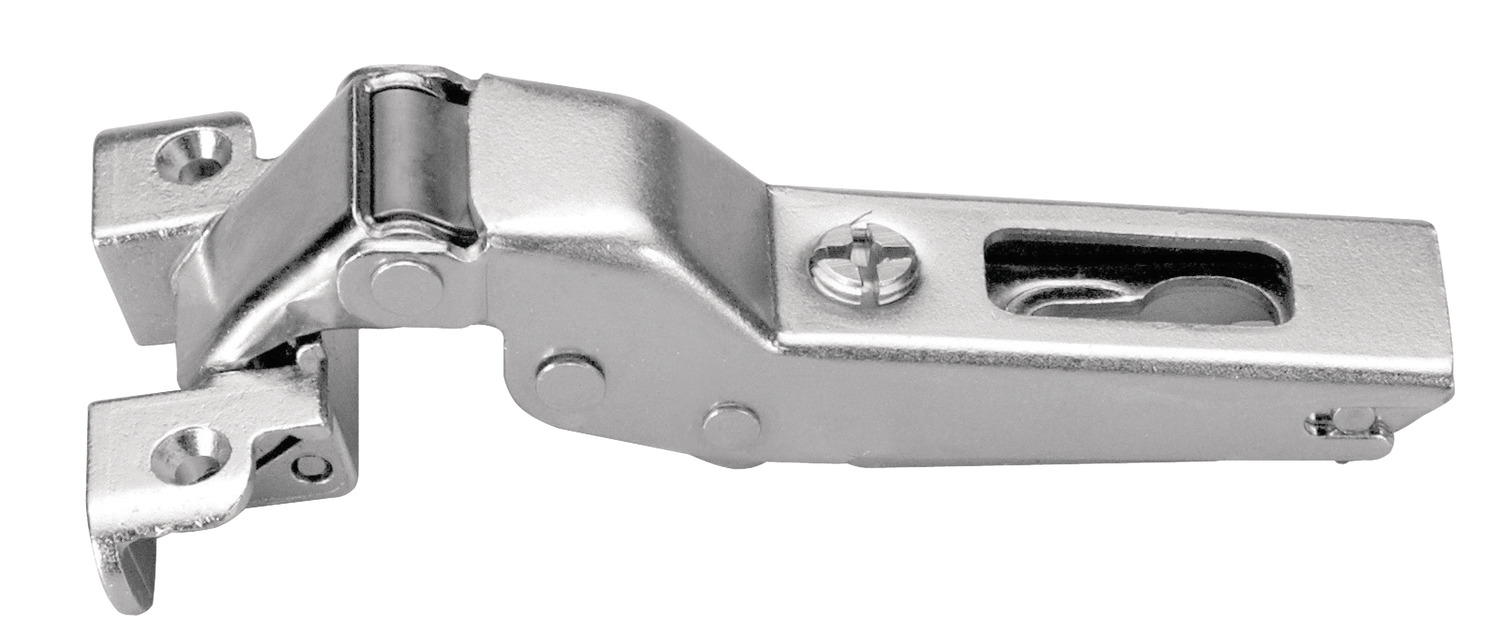

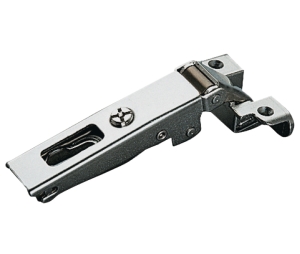

Hafele 329.23.610 Aluminum Frame Door Hinge, Salice, 105° Opening Angle, Self Close, Full Overlay, Zinc Alloy, Steel

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 329.23.610 Aluminum Frame Door Hinge, Salice, 105° Opening Angle, Self Close, Full Overlay, Zinc Alloy, Steel

Price: $4.10 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 121

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 329.23.610 Aluminum Frame Door Hinge, Salice, 105° Opening Angle, Self Close, Full Overlay, Zinc Alloy, Steel

Developed for use with metal profiles (563.55.931, 563.55.031, 563.55.911). A Ø3.5 x 9.5 mm (#6 x 3/8") countersunk sheet metal screw to attach hinge to frame is recommended

Aluminum Frame Door Hinge
Model series: Salice
Model: C2Z6A99
Closing method: Self close
Area of application: for Quick Door™ Aluminum Frame Doors
Installation: Door to cabinet for sliding on with Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates
Cup fixing: for screw fixing
Functionality: with automatic closing spring

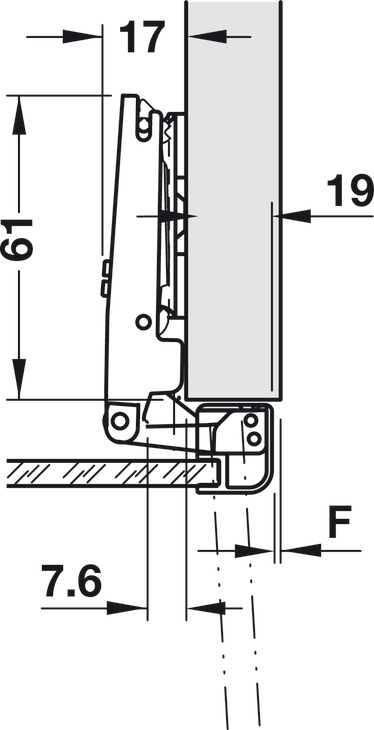

Door mounting: Full overlay
Crank type: Straight
Door processing for assembly: without
Opening angle: 105°

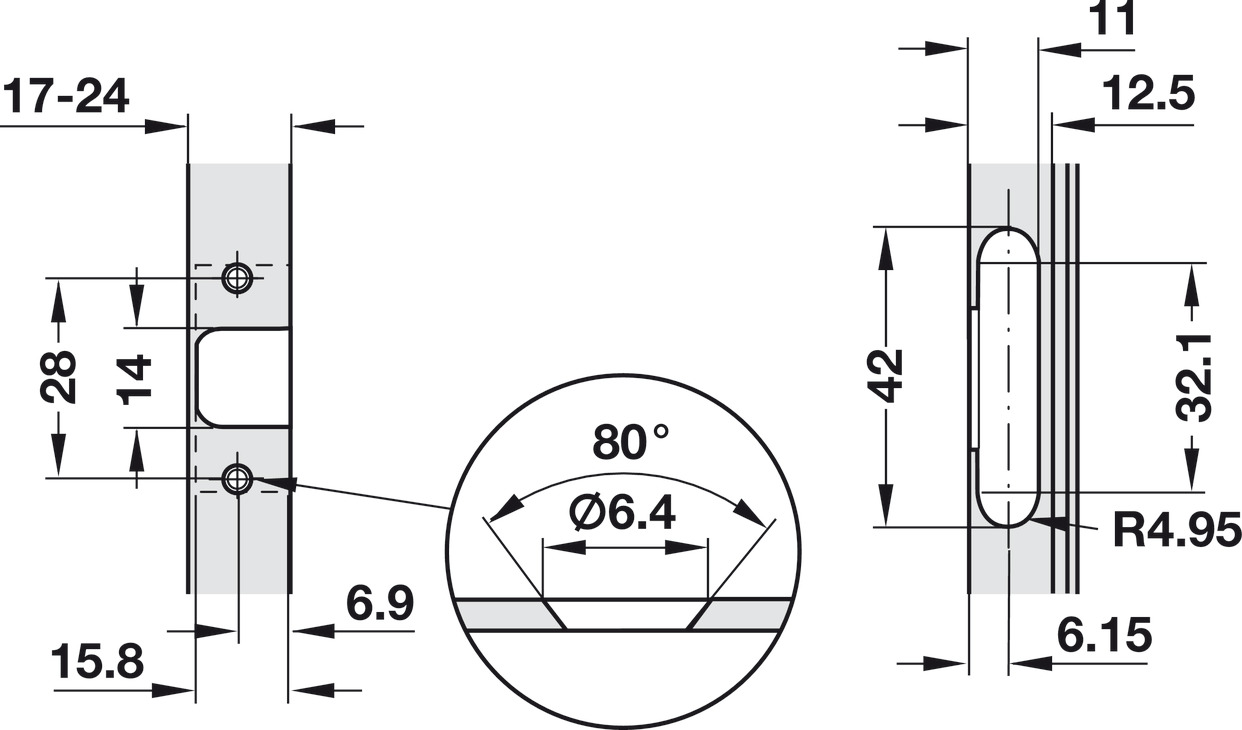

For aluminium frame width: 17 - 24 mm
For door material: Aluminum frame
Material: Cup: Zinc Alloy, Hinge arm: Steel
Finish: Nickel Plated
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
