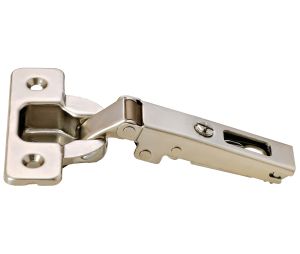

Hafele 329.17.810 Concealed Hinge, C2RPA99, Press-fit, Salice Push, 110° Opening Angle, Self Opening, Full Overlay, Steel, Nickel Plated
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
6.11 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 3952
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 329.17.810 Concealed Hinge, C2RPA99, Press-fit, Salice Push, 110° Opening Angle, Self Opening, Full Overlay, Steel, Nickel Plated
Concealed Hinge
Salice PUSH
Model: C2RPA99
Mounting: Press Fit
Overlay: Full
Reverse-spring hinges help “PUSH" the door open
Self-opening hinges and release devices that can easily be mounted to your furniture
Developed to meet the market trend of handle-less furniture
Allows for a very “clean" design appearance
Opening angle: 110°

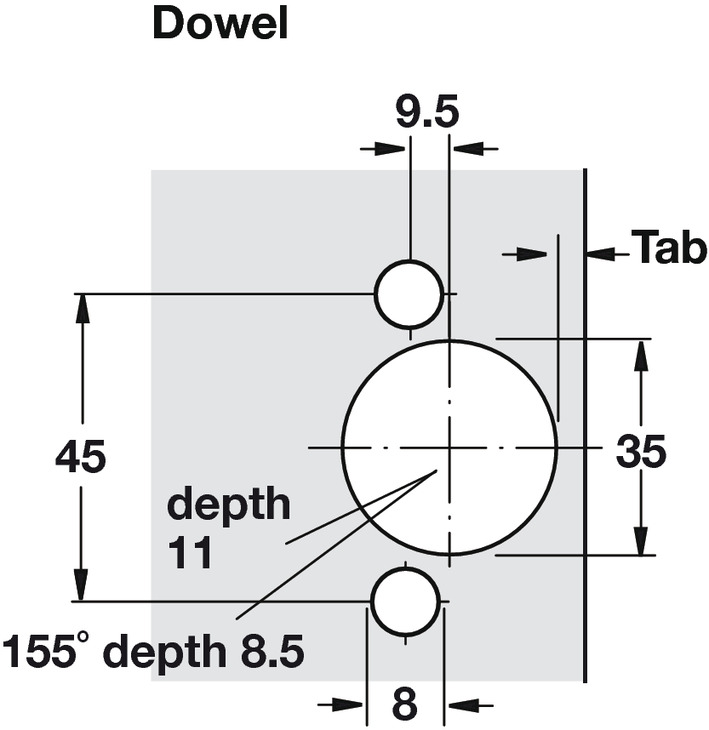

Drilling pattern: 45/9.5
Tab: (1/8" - 1/4") 3 mm - 6 mm for 110°
For side panel thickness: From (5/8") 16 mm
For door thickness: (5/8" - 7/8") 16 mm - 23 mm
Material: Steel
Material: Nickel Plated
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
Optional accessories:
Retaining Catch, with Pin:
356.06.464
Cover Cap for Hinge Arm, for Häfele Duomatic concealed hinges:
329.32.500
Flange Cover Cap, for Häfele Duomatic concealed hinges:
329.32.530
Catalog Page
DWG Drawing
