Hafele 283.32.014
Hafele 283.32.014

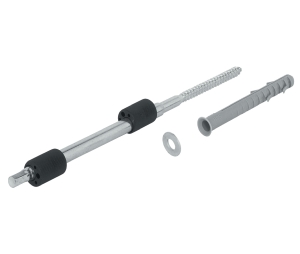

Hafele 283.32.014 Shelf Support, 1-2", Press-Fit Type, Wall Mounting, Concealed, for =3/4" Shelf Thickness
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
8.66 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 1403
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 283.32.014 Shelf Support, 1-2", Press-Fit Type, Wall Mounting, Concealed, for =3/4" Shelf Thickness
Shelf Support

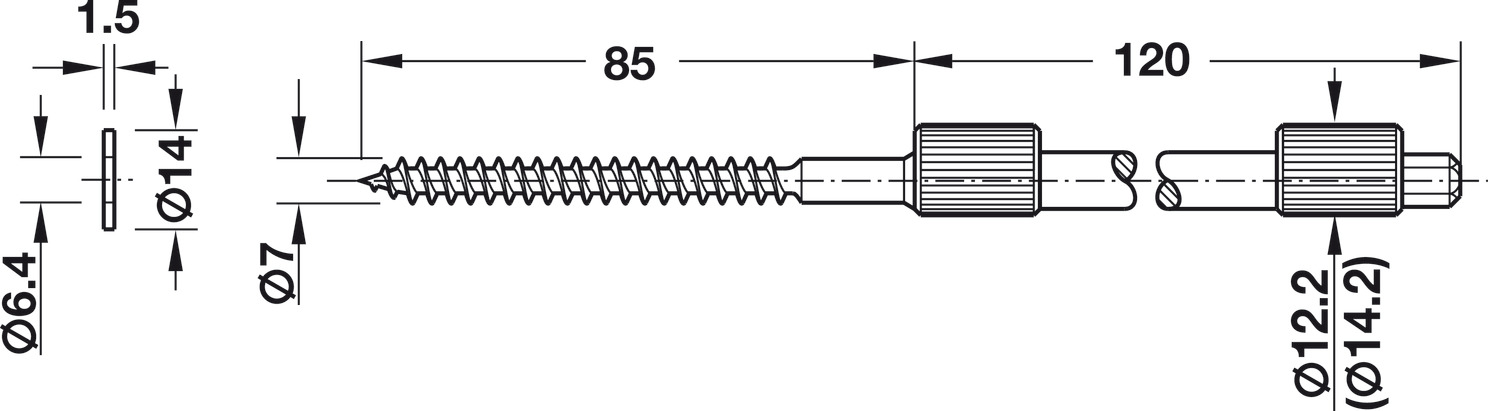

Version: Support bolt with eccentric sleeve, wood-screw thread and wall plug
Area of application: For concealed installation
Installation:
For screw fixing to support element
For mounting in drilled hole in shelf
Installation reference:
Shelf supports, for invisible fastening of shelves with a 19 mm wood thickness or greater in living room, kitchen, bath and bedroom areas.

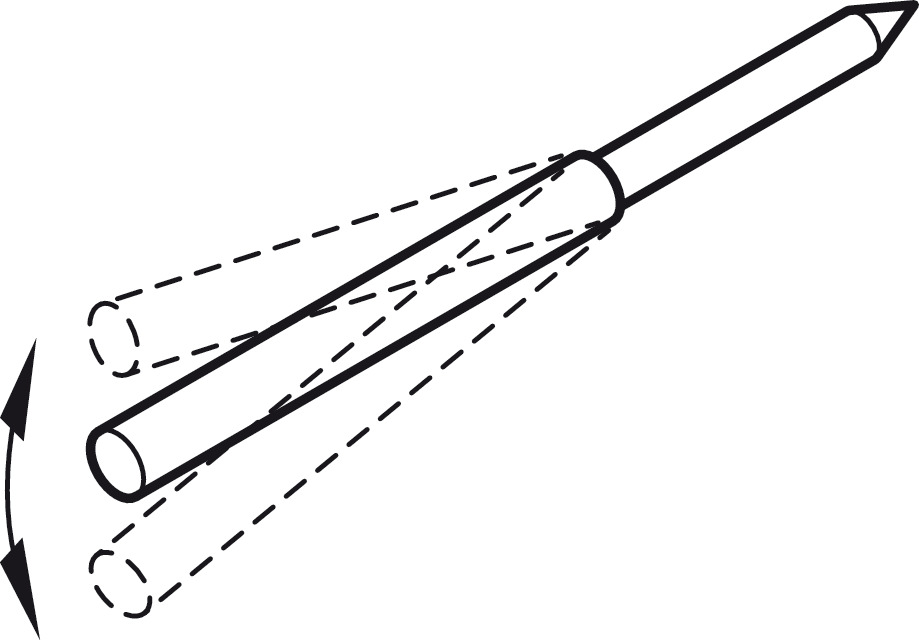

Adjustment without tools by turning the plastic sleeve
The hexagonal end on the shelf support permits installation with 1/4" using a cordless drill or a 6 mm open end or box-end wrench

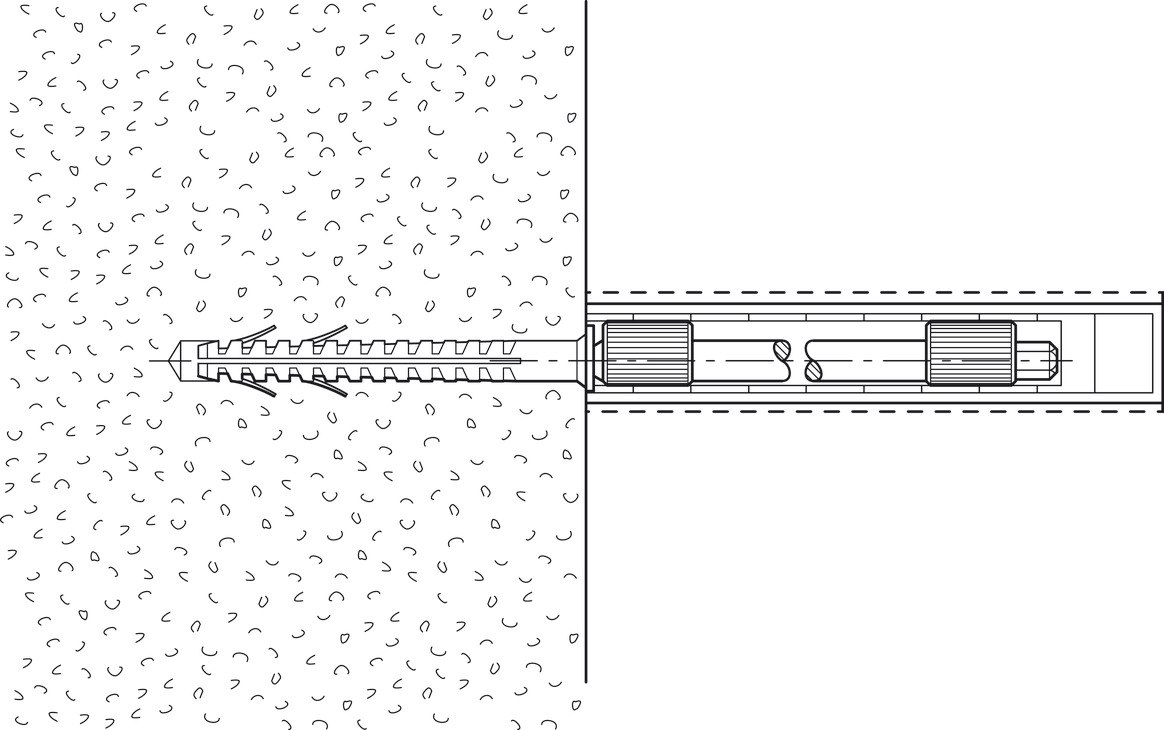

Can be installed directly into masonry walls or woodwork
To make adjustments possible, the insertion hole must be laterally elongated, with a slot drilling machine or a chain mill

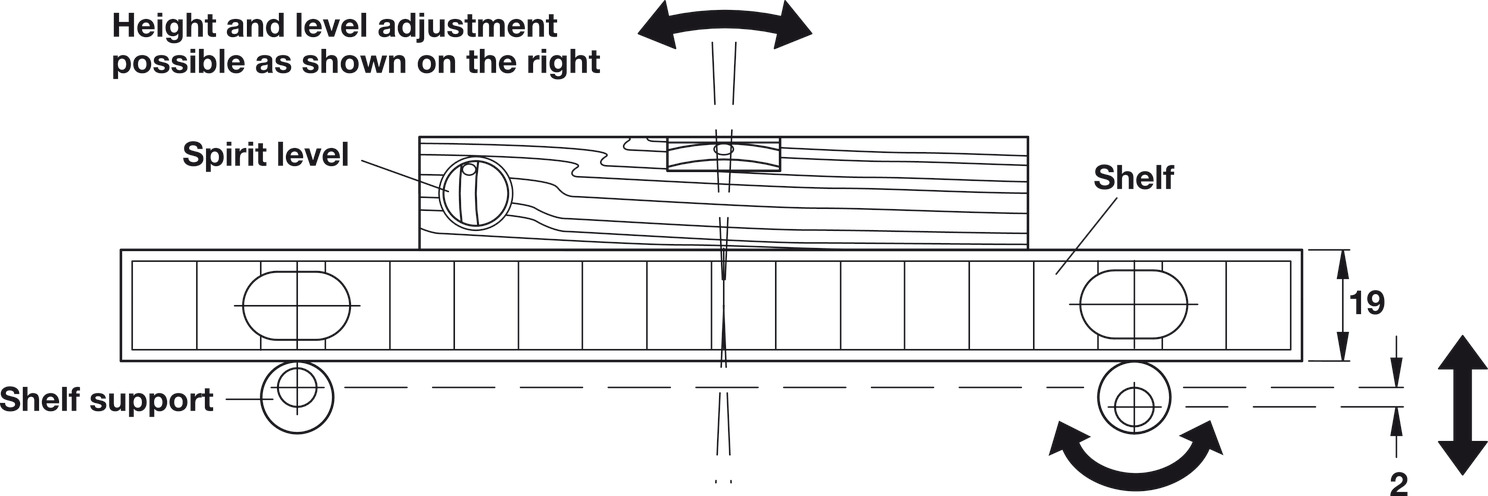

Adjust height and level, set the shelf on the shelf supports mounted in the wall and then adjust by turning the plastic sleeves
Adjustment facility: Inclination: ±1 mm
For shelf thickness: =19 mm
Diameter: 12.2 mm
Drive: SW6
Material: Steel
Finish: Zinc Plated

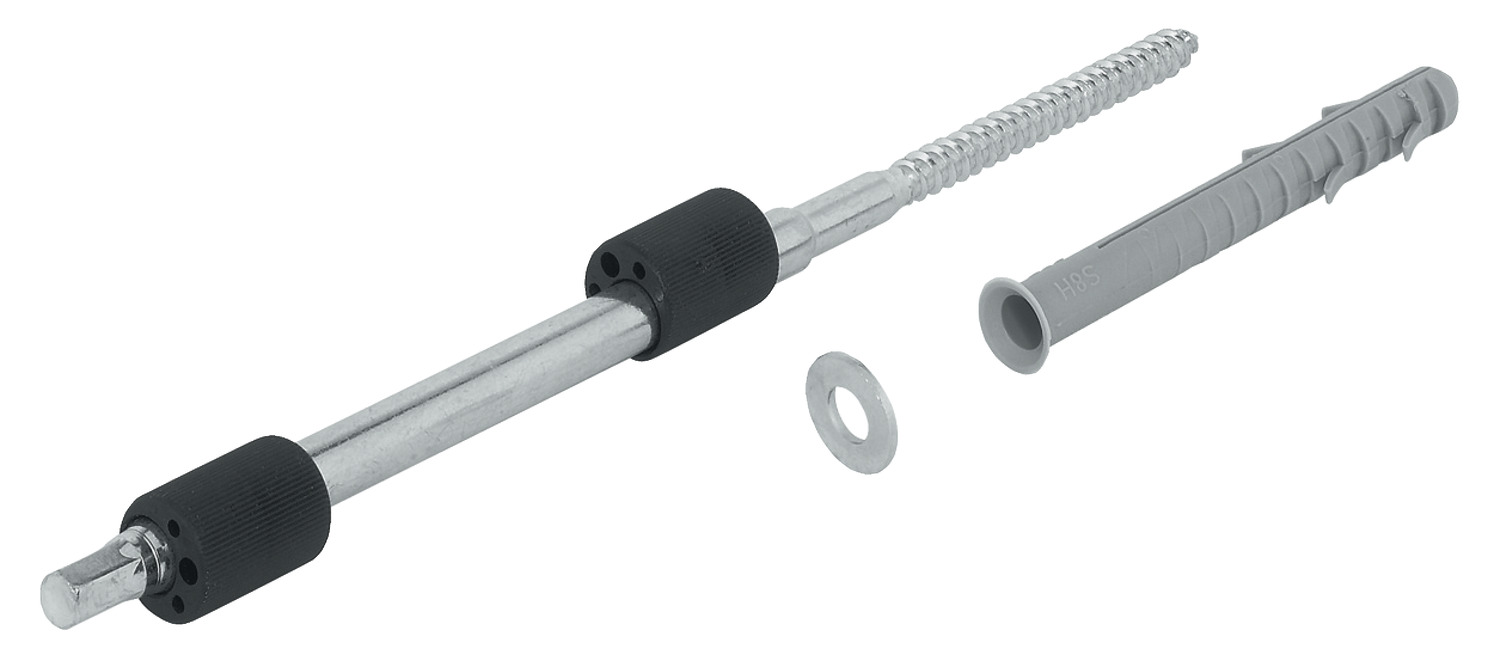

Supplied with:
1 support bolt
2 pre-mounted eccentric sleeves
1 washer
1 S8H 80R Fischer wall plug
Notes:
Configuration required

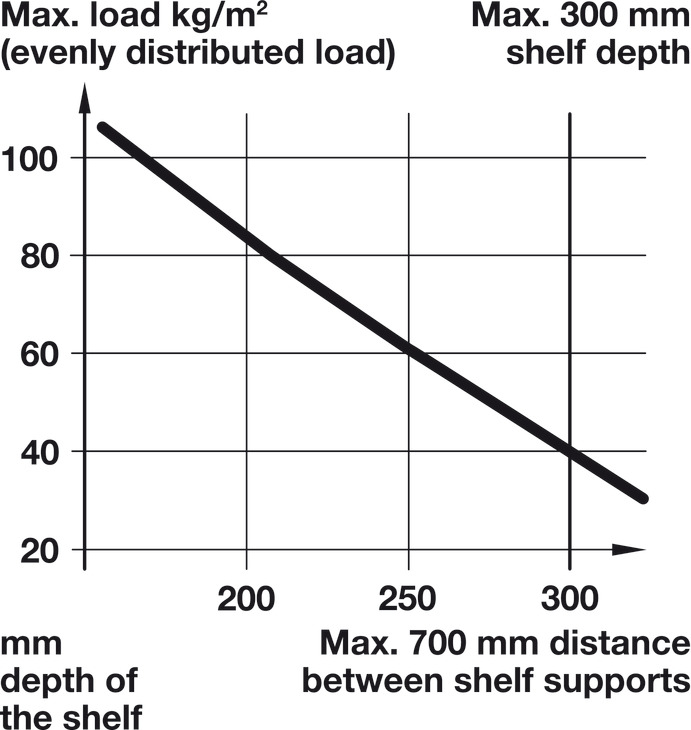

Max. distance between two shelf supports: 700 mm
Packing & Sold as:
Each.
Note:
Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
